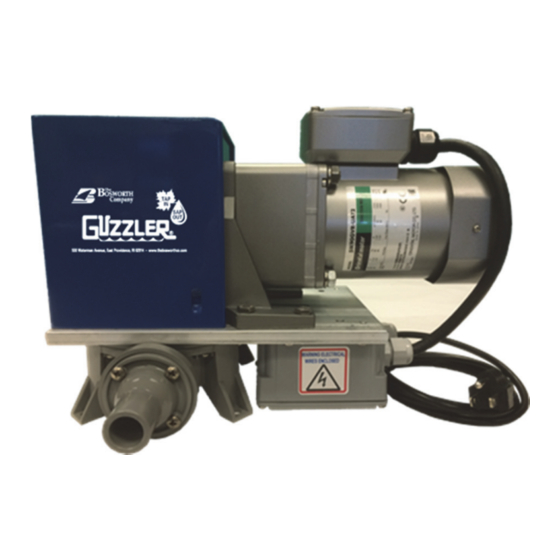

- Page 1 ® GE‐0401 GE‐0501 D GE‐0401N GE‐0401D GE‐0501D GE‐0501N ’ M use as Maple Sap Vacuum pumps © Copyright 2015 The Bosworth Company Doc M-PR-09-32.120115...
- Page 2 Guzzler GE-0401x Pump Exploded View Item Part Name Inlet Flange Outlet Flange Top Bu on & Stainless Steel Washer Bo om Bu on & Stainless Steel Washer Connec ng Rod & Screw Body Intermediate Ring Motor Moun ng Plate Miscellaneous Hardware (10‐24 Screws &...
- Page 3 Guzzler GE-0501x Pump - Exploded View Item Part Name Inlet Flange Outlet Flange Top Bu on & Stainless Steel Washer Bo om Bu on & Stainless Steel Washer Connec ng Rod & Screw Body Intermediate Ring Motor Moun ng Plate Miscellaneous Hardware (10‐24 Screws &...
- Page 4 Guzzler GE-0401x / -0501x Pump Installation & Safety Information Your Guzzler pump ships fully assembled and ready to operate. The pump on/off switch is located on the side of the switch box. (Figure 1) You can test the pump’s operation by plugging it into a 115 VAC outlet and turning it on using the on/off switch.
- Page 5 Pump Installation and Operating Information Your Guzzler Pump is capable of developing 22 in. of Hg vacuum (0.7 bar), but it is a low‐cfm (cubic feet of air per minute) pump. This means that even very small leaks can prevent the pump from delivering its rated vacuum. Maintain your tap lines to keep your system tight and address problems that can cause vacuum leaks.
- Page 6 Maintenance - Changing the Diaphragm Over time, the elastomer components of the pump (i.e., the diaphragm and valves) will fail. Diaphragms tend to develop a hole or tear. If the diaphragm fails, the pump will continue to operate, but will be unable to create or maintain a vacuum.
- Page 7 Maintenance - Changing Pump Valves There are two valves in each Guzzler pump. One valve is located between the pump body and the inlet port; the other, between the pump body and the outlet port. Your Guzzler pump may be equipped with either duckbill valves or umbrella valves, depending on the pump options chosen.
- Page 8 Maintenance - Changing Pump Valves In the case of the umbrella valve, material may become lodged in the umbrella valve pores, preventing the rub- ber umbrella valve from sealing tightly against the valve stop. The duckbill valve is generally better able to pass fluid containing some debris or material.
- Page 9 Maintenance - Changing Pump Valves 4. Inspect the valve for any tears. Remove any dirt or material that may have become lodged in the valve. For umbrella valves, in- spect O-rings in valve stop for any sign of wear and replace as necessary. Ensure that they are correctly installed in the valve stop grooves. (Figure 12) 5. To replace an umbrella valve, use a pair of pliers to grasp the flat por on of the old umbrella valve and pull the en re valve through the valve stop center retaining hole. (Figure 13) Insert the stem of the new valve into the valve stop retaining hole so Umbrella valve stop with O-ring installed in grooves. (Example shown for GE-0401x that the flat por on of the valve is on the same side of the valve pump.) stop as the old valve. Use pliers to grasp the stem of the valve Figure 12 on the other side and pull it completely through un l it snaps into place. 6. Posi on the new valve (or the inspected and cleaned old valve) between the pump body and the pump inlet flange, taking care to orient the valve as shown in Figure 10 on page 7. Fasten the pump flange and, for umbrella valves, the valve stop to the pump body using the flange screws. 7. ...
-
Page 10: Replacement Parts
Figure 14 Replacement Parts Your Guzzler pump comes with a replacement diaphragm. The Bosworth Company sells a full line of replacement parts for your pump, including replacement diaphragms and valves. You can order replacement parts directly through your distributor or by going on our website at www.thebosworthco.com...
