Steepletone BROMLEY Instruction Manual

USB /SD Card - no music is playing when PLAY/PAUSE is pressed

Make sure there are MP3 or WMA music files stored on the USB Device/Flash Drive/SD Card.

Check the USB Device/Flash Drive/SD Card is not larger than 32GB as the limit of this unit is up to 32GB max.

If the USB/SD mode in normal operation does not work, power off by unplugging the power cord from the outlet
and plug it in again to reset.

Not all makes of USB device/SD Card are compatible with this unit – this is not a malfunction of the unit.
Cannot Record Music on the USB /SD Card

Make sure the USB/SD Card is not full. Check the contents on a computer, format it to be sure.

Make sure the lock switch on the side of the SD card is in the unlocked position.

It may be the device/card is not compatible not all available USB/SD devices are guaranteed to work with this
unit due to the way they are manufactured.
The recorded MP3 Music does not have the same sound quality as the original CD

The sound quality of an MP3 music file or disc varies from that of a pre-recorded Audio Compact Disc, due to the
quality and method of recording and the difference in format.
The Cassette Player is not playing my cassette

Use only standard tapes, and ensure the cassette is a 'C60' - it is not advisable to play a C120 cassette.

Clean and demagnetize the heads.

Check the cassette has been inserted the correct way – it may need to be Fast Forwarded first.
The unit switches itself off when I leave it unattended

This is a built-in power saving measure. Switch it off and after a few seconds on again.

Refer to the ERP2 'IMPORTANT PRODUCT INFORMATION' SECTION.
PRODUCT SPECIFICATIONS
RADIO FREQUENCY : AM (= MW): 520kHz to 1620kHz; FM: 87.5 MHz to 108 MHz
ANTENNAS : FM – External Wire Antenna
: MW – Built-in Directional Ferrite Bar Antenna
LINE-OUT : RCA (L + R) – Lead not supplied
LINE-IN : 3.5mm dia.
HEADPHONE JACK : 3.5mm dia. - Headphones not supplied
TURNTABLE : 3-speed – 33/45/78rpm – belt-driven system
CD PLAYER : Plays CD, MP3 CD, CD-R and CD-RW discs
STYLUS & CARTRIDGE : Stereo Ceramic Cartridge; universal type Stylus Code SSTY1 fitted
CASSETTE PLAYER : Slot type (for 'C60' type tapes); 2 channel Stereo
USB PORT : Supports up to 32GB Flash Memory; 1.1 Full-Speed (FS) , Supports full-speed USB 1.1
: host mode for USB hard drive: Memory Stick (MS), MS-Pro, etc.
SD CARD SLOT : Supports up to 32GB Flash Memory; Secure DigitaI & Multi-Media (MMC)
SPEAKERS : Built-in – Stereo; 2 x 5W RMS; 4 Ohm
SOUND OUTPUT : 14Watts p.m.p.o.
POWER CONSUMPTION : 26W
POWER SOURCE : DC - via 12V/2A DC Adaptor supplied
STEEPLETONE CUSTOMER CARE HELPLINE - LO~CALL NO.: 08457-585681
*DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. E. & O. E.
NOTES ABOUT THIS INSTRUCTION MANUAL
This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this
instruction manual for the removal of typographic mistakes and editorial inaccuracies, as well as due to (technical)
improvements (changes) of the devices, can be done by the manufacturer at any time and without prior notice.
Changes of this kind may be considered in future versions of this user manual. All rights reserved.
All line drawings are only for illustration and do not always show the exact representation of the product.
INSTRUCTIONS FOR THE DISPOSAL OF WASTE EQUIPMENT BY USERS IN PRIVATE HOUSEHOLDS
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of
disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.
( 15 )
3-Speed Record Player with Integral CD Player,
Slot Cassette Player, Mw-Fm Radio, Line-in and
MP3 to USB/SD Encoding & Playback
RE/06/10/15

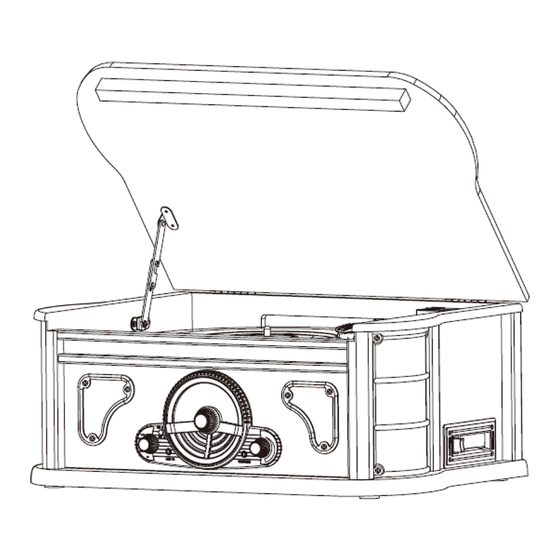

Model: BROMLEY
Stereo Audio System
INSTRUCTION MANUAL
(Please read before use)
