MATSUSHITA Compressor
MODEL# DA73C12RCU6
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static / Fan Cooling
Rated Performance Data
Capacity . . . . . . . . . . . . . . 881 Btu/h ±7%
E.E.R. . . . . . . . . . . . . . . . . . 5.34 Btu/Wh ±7% 6.20 Btu/Wh ±7%
Current . . . . . . . . . . . . . . . 1.53 Amps
Nominal Motor Data
Motor Input . . . . . . . . . . . . . . .165 Watts
Rated Current . . . . . . . . . . . .
Type . . . . . . . . . . . . . . . . . . . .
Locked Rotor . . . . . . . . . . 12.6 Amps
Start Current . . . . . . . . . . 18.3 Amps
Coil Resistances
Run . . . . 3.26 Ohms
@ 68°F (20°C)
Start . . . 5.29 Ohms
*Test Conditions for Performance Specifications
Test Oil
. . . . . . . . . . . . . . . . ISO VG 10
Shell Temp . . . . . . . . . . . . . . 150.0°F / 65.0°C
Condensing Temp . . . . . . . . . (I) 130.0°F / 54.4°C
. . . . . . . . . (II) 105.0°F / 40.6°C
Evaporating Temp . . . . . . . . . -10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
Model Name
4TM419MFBYY
Manufacturer
Texas Instruments
Temperature To . . . . . . . . . . . Open: 239°F ± 9°F / 115°C ± 5°C
Close: 142°F ± 16°F / 61°C ± 9°C
Trip Current . . . . . . . . . . . . . . @158°F (70°C) 3.4 Amps ± 7.5%
@77°F (25°C) 13.7 Amps @ 18 sec. max.
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name
PTH490D-AS100
Manufacturer
Murata Mfg.
Base resistance
@ 77°F(25°C) ±20%
Power Consumption (max)
Operation time
0.45 to 1.35
Recovery time (max)
Run Capacitor
12 µF 180 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic
Cond. Temp I* Cond. Temp II*
973 Btu/h ±7%
1.45 Amps
157 Watts
1.39 Amps
RSCR, PTC relay
†
PTH7M100MD2
Murata Mfg.
10
10
2.8
2.8
0.45 to 1.35 seconds
55
50
seconds
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
Performance Curves
260
220
180
140
100
60
-40
2.5
2.2
1.9
1.6
1.3
1.0
0.7
-40
2,000
1,525
1,050
575
100
-40
9 – Point Data
Condensing Temp.
130°F
120°F
Ohms
Watts
110°F
Panasonic Industrial Company
®
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Single Phase
R-134a
-30
-20
-10
-30
-20
-10
-30
-20
-10
Evaporating Temperature (°F)
110°F
120°F
130°F
Evaporating Temp.
Rating
-30°F
Btu/h
383
Watts
104
Amps
0.99
E.E.R.
3.68
Btu/h
426
Watts
108
Amps
1.02
E.E.R.
3.95
Btu/h
478
Watts
110
Amps
1.05
E.E.R.
4.36
115 V
60 Hz
0
10
20
0
10
20
0
10
20
-10°F
+10°F
881
1,524
165
227
1.53
2.08
5.34
6.71
911
1,560
162
217
1.50
2.00
5.62
7.17
944
1,587
158
207
1.46
1.91
5.96
7.67
Rev#1-5/9
Show quick links

Advertisement

   Related Manuals for Panasonic DA73C12RCU6

   Summary of Contents for Panasonic DA73C12RCU6

  • Page 1

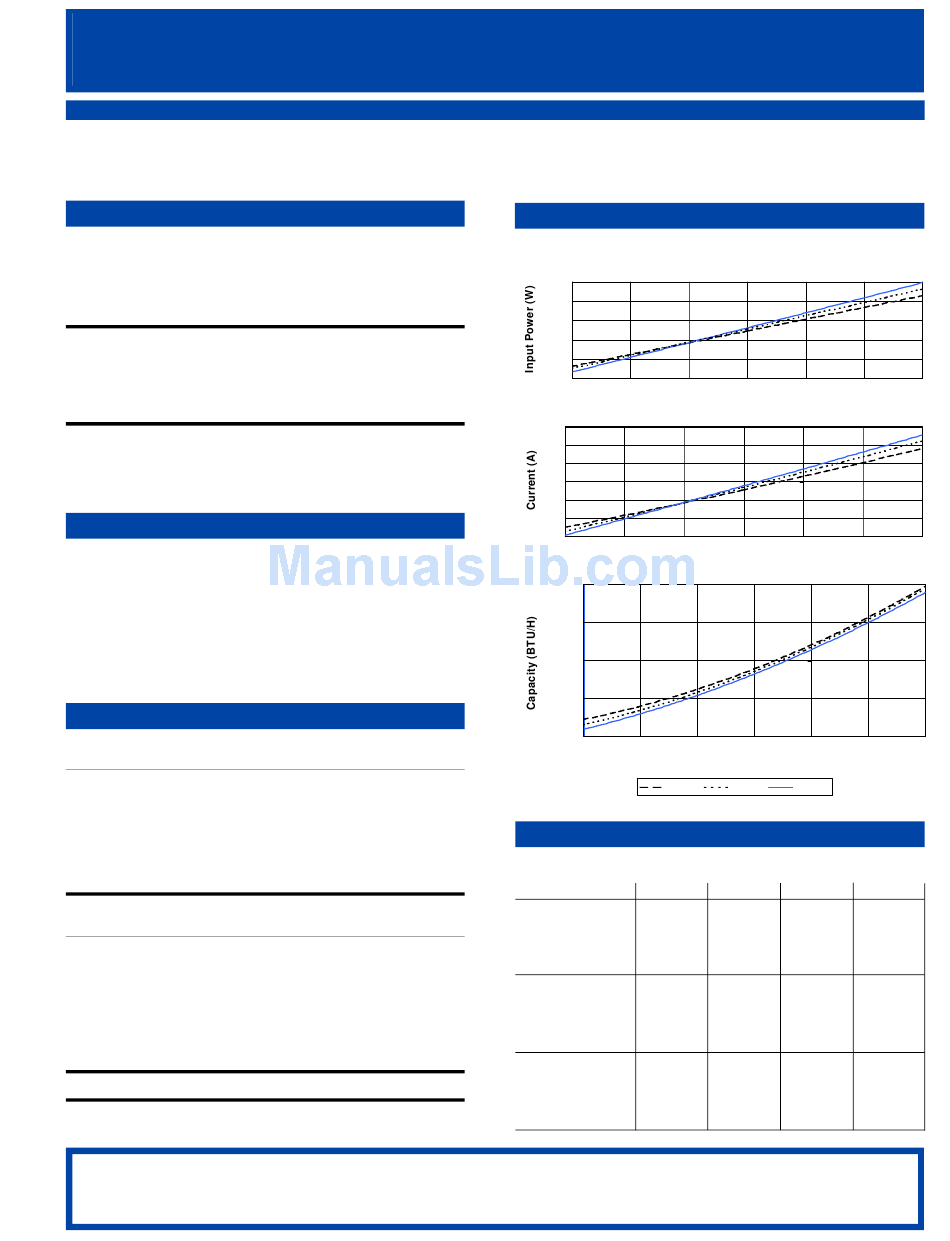

    MATSUSHITA Compressor MODEL# DA73C12RCU6 Voltage Range ..103 Volts to 127 Volts @ 60 Hz Application ... . Low Back Pressure Compressor Cooling ..Static / Fan Cooling Rated Performance Data Cond.
