EB15488
PACIFIC GROVE
Purchase Date _________________________
1
ITEM #0451809

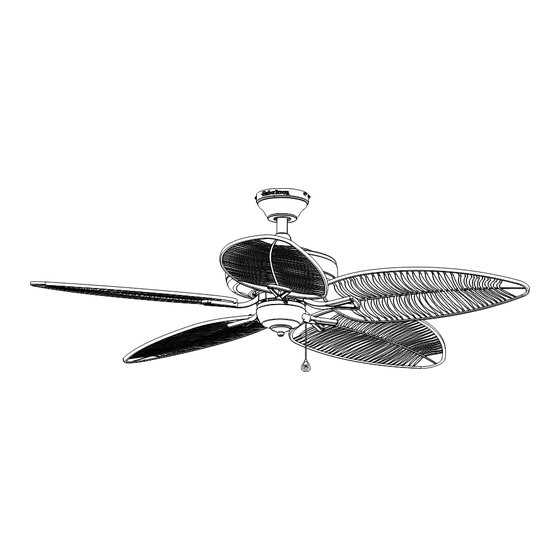

CEILING FAN

MODEL #40945
Español p. 20
LISTED FOR
WET LOCATION
Lowes.com/harborbreeze

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40945 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harbor Breeze 40945

  • Page 1: Ceiling Fan

    ITEM #0451809 PACIFIC GROVE CEILING FAN MODEL #40945 Español p. 20 Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. LISTED FOR ATTACH YOUR RECEIPT HERE WET LOCATION Serial Number _________________________ Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents ..............3 Hardware Contents .
  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket (preassembled to Canopy [E]) Canopy Canopy Cover (preassembled to Canopy [E]) Yoke Cover Motor Assembly Adapter Plate (preassembled to the Motor Assembly [H]) Fitter Plate Switch Housing Blade Arm...
  • Page 4: Hardware Contents

    HARDWARE CONTENTS (shown actual size) Wire Connector Pull Chain Blade Screw Rubber Washer Blade Washer Qty. 3 Extension Qty. 15 Qty. 15 Qty. 15 + 1 extra Qty. 1 + 1 extra + 1 extra + 1 extra Lowes.com/harborbreeze...
  • Page 5: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 6: Preparation

    SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure they are secured.
  • Page 7: Initial Installation

    INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard Mounting is best suited for ceilings 8 ft.
  • Page 8 INITIAL INSTALLATION 4. Loosen all four preassembled mounting bracket screws (O), then completely remove the two mounting bracket screws (O) from the round holes of canopy (E). Set aside for later use. Detach mounting bracket (D) from canopy (E). 5. Attach mounting bracket (D) to outlet box (not Standard or included) using screws and washers provided with Closemount...
  • Page 9: Standard Or Angle Mounting Instructions

    STANDARD OR ANGLE MOUNTING INSTRUCTIONS 1. Remove the downrod clip (C) and downrod pin (B) from the downrod (A). Then partially loosen the set screws (Q) in the yoke at the top of the motor assembly (H). Yoke 2. Insert the downrod (A) through the canopy (E) and yoke cover (G).
  • Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 4. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the following manner: Take the lead wires and make sure you have pulled them 8 in.
  • Page 11: Closemount Instructions

    CLOSEMOUNT INSTRUCTIONS 1. Remove the canopy cover (F) from the bottom of the canopy (E). Helpful Hint: Closemount-style mounting is more suitable for ceilings lower than 8 ft. high. The downrod (A), yoke cover (G) and canopy cover (F) are not used in this type of installation.
  • Page 12: Wiring

    WIRING WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
  • Page 13: Final Installation

    FINAL INSTALLATION Note: Closemount installation will not have the downrod (A), yoke cover (G) or canopy cover (F). 1. Align the canopy (E) over the loosened mounting bracket screws (O) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (O) and rotate the canopy (E) clockwise.
  • Page 14 FINAL INSTALLATION 4. Install the blade arm (L) to the underside of the motor assembly (H) with motor screws (N) previously removed (Step 6, page 8). Tighten with Phillips screwdriver. Repeat for each blade arm (L). 5. Remove one of the fitter plate screws (P) from the adapter plate (I) preassembled on the motor assembly (H) loosen (do not remove) the other two screws.
  • Page 15 FINAL INSTALLATION 7. Remove the switch housing screws (S) preassembled to the switch housing (K). Then, connect the 9-pin connector from the motor assembly (H) to the 9-pin connector from the switch housing (K), and ensure the connections are secure. 8. Secure the switch housing (K) to the fitter plate (J) using the previously removed switch housing screws (S).
  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS 1. The pull chain labeled FAN has four positions to control fan speed. One pull is HIGH, two is MEDIUM, three is LOW and four turns the fan OFF. Fan Pull Chain 2. Use the fan reverse switch, located on the switch housing (K) to optimize your fan for seasonal performance.
  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Shut off the main power supply before you begin any maintenance task.
  • Page 18: Limited Lifetime Warranty

    LIFETIME LIMITED WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser.
  • Page 19: Replacement Parts List

    Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. PART DESCRIPTION PART # Downrod 0451809-A Mounting Bracket 0451809-D Canopy 0451809-E Blade Arm 0451809-L Blade 0451809-M Hardware Bag 0451809-HW Printed in China ® Harbor Breeze is a registered trademark of LF, LLC. All Rights Reserved 9031 • 101915 Lowes.com/harborbreeze...
