  • Page 1: Dvd Player

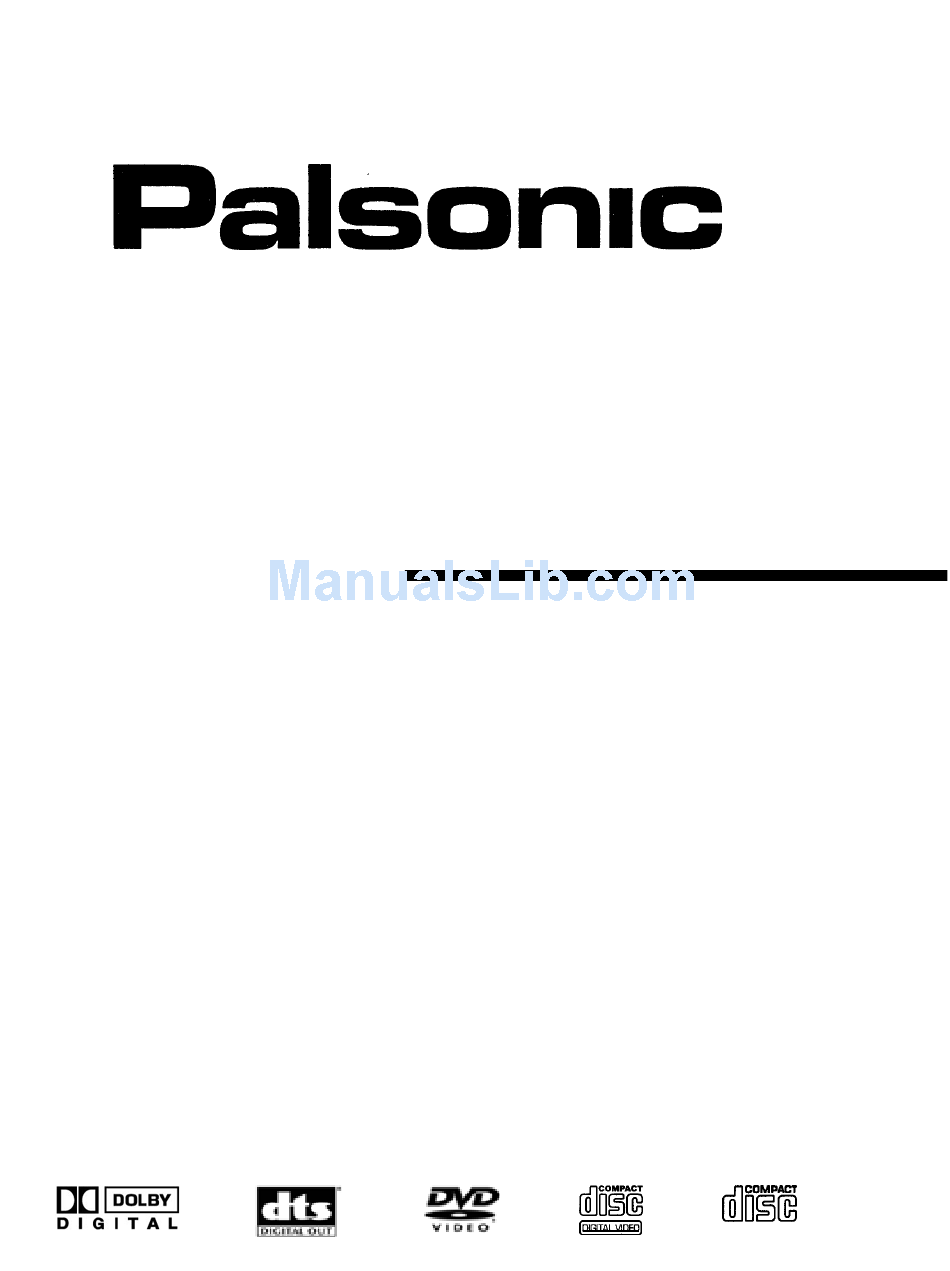

    DVD5000 User's Manual DVD Player OIGITAL AUOIO...

  • Page 2: Table Of Contents

    Content Introduction Safety Precautions ... Important Safety Instructions... Caution ... Features ... Front Panel and Rear Panel Illustration ... VFD Illustration ... Remote Controller ... Connections Connecting to a TV Set ... Connecting to an AV Amplifier with 2 Channels Analog Audio Input ... Connecting to an AV Amplifier with 5.1 Channels Analog Audio Input ...

  • Page 3: Introduction

    Safety Precautions Welcome to purchase our DVD player. For perfect operation and security, please read the manual carefully and keep it for future reference. THE LIGHTNING FLASH WITH AR- ROWHEAD SYMBOL WITHIN AN EQUI- LATERAL TRIANGLE IS INTENT TO A- LERT THE USER TO THE PRESENCE OF U N INSULATED "DANGEROUS VOLTAGE"...

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. READ INSTRUCTIONS All the safety and operating in- structions should be read before the product is operated. 2. POWER SUPPLY This product should be operated only on condition that the type of power supply corresponds to the marking label.
  • Page 5 Important Safety Instructions 11. OBJECT AND LIQUID ENTRY Never push any kinds of object into this product through openings as they my touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill any kinds of liquid on the product.

  • Page 6: Caution

    Caution USING CAUTION For safety, please use the original box and pack- ing materials, and the mode of packing same as the original. When you repackage this product. Do not let this product near the volatile liquid such as insecticide. Do not let the rubber and plastic touch this product for a long time, because these matter may imprint on the surface of this product.

  • Page 7: Features

    Features Full compatibility with DVD, SVCD, VCD, CD, MP3, CD-R & CD-RW DOLBY DIGITAL and DOLBY PRO LOGIC 5.1 channels or 5 channels decoding DTS digital out Screen saver Multiple playing mode: memory, program, search, 10 seconds reviewed Dynamic spectrum display and 6 frequency bands adjustable Optical and coaxial digital audio output DOLBY DIGITAL 5.1 channels or down mix 2 channels output S-video and composite video output...

  • Page 8: Front Panel And Rear Panel Illustration

    Front Panel and Rear Panel Illustration Front panel fast backward fast forward power headphone headphone volume control Rear panel down- down- main left right main right left optical coaxial surround surround S-video output output right left woofer disc tray composite video output output...

  • Page 9: Vfd Illustration

    VFD Illustration The figure above shows the front panel with all the displays on. 1. Play indicator 2. MP3 indicator 3. CD indicator 4. DVD indicator 5. SVCD-VCD indicator 6. Repeat indicator 7. PBC indicator 8. Play indicator 9. Pause indicator 10.

  • Page 10: Remote Controller

    Remote Controller 1. STANDBY/ON button 2. TITLE button 5. OSD/SETUP button 7. SLOW FWD button 8. Previous/Fast backward button 9. Next/Fast forward button 12. PAUSE/STEP button 13. Arrow buttons 15. STOP button 16. ENTER button 18. A-B repeat button 20. PLAY MODE button 22.

  • Page 11: Connections

    Connecting to a TV Set YELLOW WHITE Notes: Please set the audio out in 2 channel mode. (Refer to the "Audio Setup") There are three ways of connecting the player's AV output to the TV set. 1. S-video cord and audio cord. 2.

  • Page 12: Connecting To An Av Amplifier With 2 Channels Analog Audio Input

    Connecting to an AV Amplifier with 2 Channels Analog Audio Input WHITE Notes: 1. Set player's audio out in 2 channel mode. 2. Set the TV set's AV input to the channel you have connected. 3. Set the amplifier's audio input to the channel you have connected. Connections YELLOW VIDEO IN...

  • Page 13: Connecting To An Av Amplifier With 5.1 Channels Analog Audio Input

    Connecting to an AV Amplifier with 5.1 Channels Analog Audio Input Notes: 1. Set player's audio out in 5.1 channel mode. 2. Set the TV set's AV input to the channel you have connected. 3. Set the amplifier's audio input to the channel you have connected. Connections -12-...

  • Page 14: Connecting To An Av Amplifier With Digital Audio Input

    Connecting to an AV Amplifier with Digital Audio Input Connections Notes: 1. Either Optical or Coaxial digital audio output can be selected. 2. Set the player's audio out in Raw or PCM mode. 3. Set the amplifier's audio input to the channel you have connected. -13-...

  • Page 15: Connecting To Headphones

    Connecting to Headphones Before you enjoy the headphones, please: 1. Set player's audio out to 2 channel mode. 2. Turn down the headphone volume to minimum. 3. Connect the headphones as above, and adjust the headphones volume with the volume knob. YELLOW -14- Connections...

  • Page 16: Basic Playback

    3. Turn down the amplifier volume and turn on the power of amplifier, then select the Audio input to the channel you have connected. After the preparation, you use the DVD player and enjoy the program as following: 1. Firstly, press the power switch, the player will start to work.

  • Page 17: Function Illustrations

    Modes and Features Setup OSD/SETUP In stop mode, press OSD/SETUP key, and the TV screen will display the setup menu as the following: A.Press ENTER key to confirm B. Press OSD/SETUP key to return to stop mode Language Setup Select [Language] in the setup menu, and press ENTER key to display the [Language] submenu: Press key to change the items...
  • Page 18 Modes and Features Setup Language Setup 2. Select [DVD Subtitle], and press ENTER or A. Press ENTER key to confirm B. Press OSD/SETUP key to return to stop mode 3. Select [DVD Audio] and press ENTER or A. Press ENTER key to confirm B.
  • Page 19 Modes and Features Setup Video Setup Select [Video] in the setup menu, and press ENTER key to display the [Video] submenu: Press key to change the items A. Press ENTER or 1. Select [TV Aspect], and press ENTER or A. Press ENTER key to confirm [4:3 Letter Box]----In this mode a black band appears at the top and bottom.
  • Page 20 Modes and Features Setup Audio Setup Select [Audio] in the setup menu, and press ENTER key to display the [Audio] submenu: Press key to change the items A. Press ENTER or B. Press RETURN or 1. Select [Analog Out], and press ENTER or A.
  • Page 21 Modes and Features Setup Audio Setup 3. Select [ProLogic], and press ENTER or A. Press ENTER key to confirm B. Press OSD/SETUP key to return to stop mode Notes: [Auto]----It is subject to the disc. This setup is available only when the [Analog Out] is in 5.1 channel mode. 4.
  • Page 22 Modes and Features Setup Rating Setup Select [Rating] in the setup menu, and press ENTER key to display the [Rating] submenu: Press key to change the items A. Press ENTER or B. Press RETURN or 1. Select [Password], and use Digital keys to input four digits, and press ENTER key to confirm, then the [Rating] submenu displays as the following: Press key to...
  • Page 23 Modes and Features Setup Others Setup Select [Others] in the setup menu, and press ENTER key to display the [Others] submenu: Press key to change the items 1. Select [Screen Saver], and press ENTER or A. Press ENTER key to confirm B.

  • Page 24: Remote Controller Operation

    Remote Controller Operation STAND BY/ON TITLE Note: This function is subject to the disc. MENU Note: This function is subject to the disc. OPEN/CLOSE During the playback, press STAND BY/ON key, the player will stop playing and turn to standby mode, and the standby indicator turns on. While the player is in standby, press STAND BY/ON key or any key on the front panel, the player will start to work again, and the standby indicator turns off.
  • Page 25 Remote Controller Operation OSD/SETUP During playback, press OSD/SETUP key to display the current time of the disc playing. Elapsed time of the current track/chapter Press OSD/SETUP key again to display the current information of the disc playing. Disc type Disc type Current title Audio type Subtitle...
  • Page 26 Remote Controller Operation Digital keys These keys are used to input the track, title, chapter numbers and time When the item with digits displays on the screen, press Digital keys to select the desired one, and press ENTER key to confirm. When DVD, CD and VCD(PBCis off) is playing, press Digital keys to select title or track directly, then press ENTER key to confirm.
  • Page 27 Remote Controller Operation SEARCH Use the digital keys to input the desired [Time] or [Rel-Time] or [Title/Chapter] then press ENTER key to confirm. Notes: 1. During CD playback, press SEARCH key to display the [Track Search] menu, 2. During VCD and SVCD playback and when PBC is off, press SEARCH key twice Notes: 1.
  • Page 28 Remote Controller Operation CLEAR PAUSE/STOP Note: The step function is invalid during CD playback. PLAY previous programs. will be invalid. Otherwise, the player will play forward for 10 seconds. Note: MP3 disc and some DVD discs have no 10 seconds reviewed function STOP Press STOP key when the player is playing, and playback will stop and go into the resume stop mode.
  • Page 29 Remote Controller Operation RETURN When the DVD or VCD/SVCD(PBC is on) is playing, press RETURN key to return to the program menu. Press it in setup menu, and the player will return to main menu or stop status. Press it in some function menus, and the current display will be cancelled. During playback, press A-B key to select A point.
  • Page 30 Remote Controller Operation Function Illustrations PLAY MODE Press PLAY MODE key to display the [Play Mode] menu: Press key to change the items 1. Select [Repeat], and press ENTER or key to display the [Repeat] submenu: Press key to change the items A.
  • Page 31 Remote Controller Operation Function Illustrations While [Program] is on, press ENTER key to display the [Program] submenu: Input the track number you want to play orderly. Then select [Play] and press ENTER key to play the tracks in the order you have set. Select [Clear All] and press ENTER key to clear all the numbers you have input.
  • Page 32 Remote Controller Operation Function Illustrations EQUALIZER With equalizer, you can adjust 6 frequency bands independently. Note: This function is invalid for DVD & MP3. Press VOL/CH key, and [Channel/Volume] menu will display as the following: change the items 1. Select [Volume], the screen will display as the following: to adjust the volume Press VOL/CH key again, the menu will disappear.
  • Page 33 Remote Controller Operation ZOOM During VCD/SVCD/DVD playback, press ZOOM key to enlarge the picture ANGLE During DVD playback Press ANGLE key, you can view the pictures from the different camera angles. Press it once, you can view the picture from one camera angle to the another. Note: The function is available only when the disc has been recorded the SUBTITLE During DVD playback...

  • Page 34: Mp3 Playing

    MP3 Playing Supported formats This set supports: Disc format: ISO 9660, Joliet Music file formats: MP3 MP3 bit rate (data rate): 32--320kbps but VBR can not be supported Total number of music files and albums: around 350 Sampling rate: 32kHz/44.1kHz/44kHz Note: The player will not identify or play the MP3 disc on the following conditions: recording format is not supported, scratched or deformed badly, MP3 recorded in CD-R or CD-RW which is not finalized, dust and dew drops on the pickup.

  • Page 35: Others

    Trouble Shooting Please read the user's manual carefully before using the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble after using all the suggestions, please contact our company or the technical service centre authorized by us.

  • Page 36: Specifications

    Specifications Power requirements: ~110-24OV 50/60Hz Power consumption: 25W Signal system: NTSC/PAL Weight: 3.2kg Dimensions: 430mm(W) x 260mm(D) x 75mm(H) (product) Video out Video out: 1.0V(p-p)/75 sync, negative polarity, RCA pin Jack x 1 S-video output connector(separate Y, C signal output connector): Y output: 1.0V(p-p)/75 sync, negative polarity C output: 0.286V(p-p)/75...

  • Page 37: Remote Controller Preparation

    If you do so, you may not be able to operate the DVD player via the remote controller. Notes: Direct the remote controller at the remote sensor of the DVD player.
