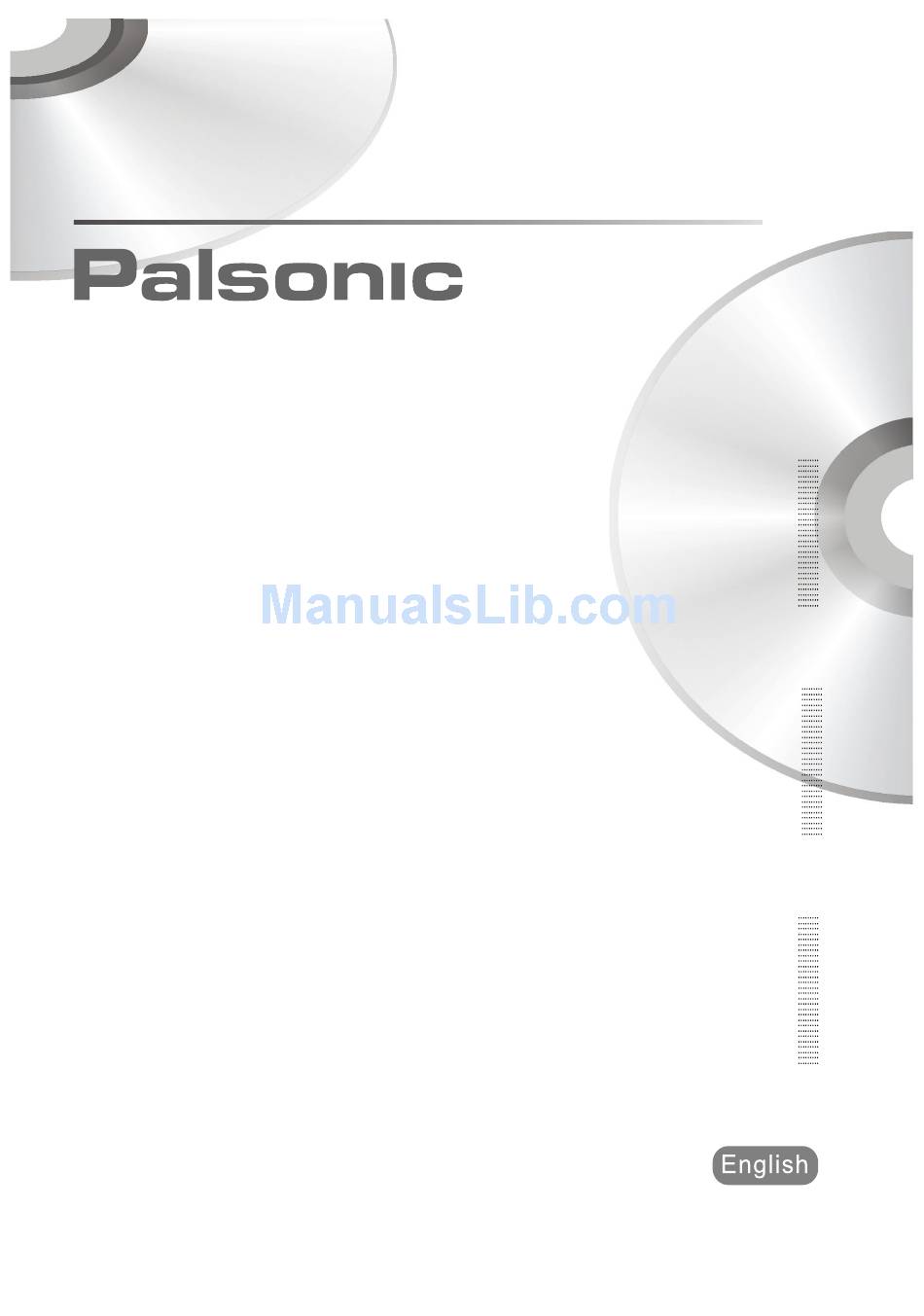

- Page 1 DVD/CD/MP3 PLAYER DVD2030 USER'S MANUAL Please read this manual before connection and use. PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888...
-
Page 2: Table Of Contents
Content Introduction Safety Precautions ... Important Safety Instructions... Caution ... Features ... Front Panel and Rear Panel Illustration ... Remote Controller ... Connections Connecting to a TV Set ... Connecting to an AV Amplifier with 2 Channels Analog Audio Input ... Connecting to a AV Amplifier with Digital Audio Input ... -
Page 3: Safety Precautions
Safety Precautions CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN THE LIGHTNING FLASH WITH AR- ROWHEAD SYMBOL WITHIN AN EQUI- LATERAL TRIANGLE IS INTENT TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE UNIT'S CABINET THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. -
Page 4: Important Safety Instructions
Important Safety Instructions 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the product is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. - Page 5 Important Safety Instructions 15. OUTDOOR ANTENNA GROUNDING If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the...
-
Page 6: Caution
Caution Please use the original box and packing materials for safe transportation of the product. It is normal for the cover and rear panel become warm after the player has been operating for an extended period of time. Do not move this product during playback. Doing so may cause damage to the pick-up and the disc. -
Page 7: Features
Features Progress Scan Video output. Full compatibility with DVD, DVD+R/RW, DVD-R/RW ,VCD, CD, MP3, Kodak Picture CD, CD-R and CD-RW (finalised). Multiple playback modes: Program, Search, 10-Second Review. Dynamic spectrum display. Coaxial digital audio output. S-video, composite video and component (Y,Pb/Cb,Pr/Cr) video outputs. Disc formats supported by this player: Progressive scan Kodak Picture CDs... -
Page 8: Front Panel And Rear Panel Illustration
Front Panel and Rear Panel Illustration Front panel Disc Tray - Insert disc here. Front Panel Display - Display the player's status. IR Sensor - Receives input from the remote control. OPEN/CLOSE - Open and close the disc tray. Rear panel Component Video/Progressive Scan Video Output - Connect to a TV equipped with Component Video or... -
Page 9: Remote Controller
Remote Control POWER TITLE 0-10 NUMBER KEYS 10+ KEY ANGLE ZOOM AUDIO SUBTITLE DISC MENU LEFT DISPLAY DOWN STOP PLAY Note: 1. Please note that reference numbers for the remote are described begin on page 20 of this manual. 2. In this manual, " "... -
Page 10: Connections
Connecting to a TV Set Pb/Cb WHITE Notes: There are three ways of connecting the player's AV output to the TV set: 1. S-Video cable and left/right audio cable [set the (Video Type) to (S-Video)]. 2. Composite video cable and left/right audio cable. 3. -
Page 11: Connecting To An Av Amplifier With 2 Channels Analog Audio Input
2 Channel Analog Audio Input Pb/Cb Pr/Cr VIDEO COAXIAL WHITE Notes: 1. Set the TV to the AV input connected to the DVD player. 2. Set the Amplifier's to the AV input connected to the DVD Player. YELLOW S-VIDEO AMPLIFIER POWER BYPASS... -
Page 12: Connecting To A Av Amplifier With Digital Audio Input
Digital Audio Output Pb/Cb Notes: 1. Select the Coaxial digital audio output. 2. Set the players audio out to Raw or PCM mode. 3. Set the Amplifier to the AV input connected to the DVD player. Pr/Cr VIDEO S-VIDEO COAXIAL... -
Page 13: Basic Playback
1. Connect your DVD player to the TV and amplifier. 2. Turn on the TV. 3. Set the TV to the AV input connected to the DVD player 4. Turn down the volume on your amplifier, and then power it on. -
Page 14: Modes And Features Setup
Modes and Features Setup SETUP In stop mode, press SETUP, and the TV screen will display the Setup Menu as follows: Language A. Press ENTER to display each submenu B. Press SETUP to exit the Setup Menu Language Setup Select [Language] in the Setup Menu, and press ENTER to display the [Language] submenu: Language OSD Menu Subtitle... - Page 15 Modes and Features Setup Language Setup Select [Subtitle], and press ENTER or Language OSD Menu Subtitle Audio DVD Menu A. Press ENTER to confirm. B. Press SETUP to exit the Setup Menu. Select [Audio], and press ENTER or Language OSD Menu Subtitle Audio DVD Menu...
- Page 16 Modes and Features Setup Video Setup Select [Video], in the Setup Menu, and press ENTER to display the [Video] submenu: Language TV signal Press TV system select the menu item Video Output A. Press ENTER or B. Press Select [TV shape], and press ENTER or Language TV signal TV system...
- Page 17 TV using the composite Video output. [YUV] -Select if you connected the DVD player to your TV using the YUV output. [Y Pb Pr] - Select if you connected the DVD player to your TV using progressive scan. Audio Setup The Audio menu allows you to set the analog and digital audio outputs to correspond with the external components you have connected to the player.
- Page 18 The Rating menu allows you to block playback of DVDs based on their ratings. Setting the Password & Rating Level The DVD player allows you to block playback of inappropriate content with a password protected Rating system (not all discs are rated).
-
Page 19: Remote Control Operation
Remote Control Operation POWER During playback, press POWER to stop the player and return to standby mode. While the player is in standby, press POWER or any key on the front panel to resume normal operation. OPEN/CLOSE To open the disc tray, press OPEN/CLOSE. To Close the disc tray, press OPEN/CLOSE again 0-10+ Keys These keys are used to input time, as well as... - Page 20 Remote Control Operation DISPLAY During playback, press DISPLAY to display the current time counter position. Press DISPLAY again to display additional information about the playing disc. Disc type CDDA Track 1/15 Title 2/2 Disc type Current title Audio type Audio Audio type Angle 00:00:01 0:04:45...
- Page 21 Remote Control Operation SEARCH During playback, press SEARCH, and the [Tack Search] menu will display as follows: Track Search Time Track Search Time Track/Chapter Use the number keys to input the desired Time, Title or Chapter, then press ENTER to confirm. Press SEARCH again, the [Disc Search] menu will be displayed as follows: Track Search Time...
- Page 22 Remote Control Operation STOP Press STOP once during playback to stop and hold playback. Press PLAY to resume playback from the point you pressed STOP Press STOP twice to stop playback completely. Note: The screen saver will automatically turn on if playback is stopped for about 5 minutes (when Screen Saver is set as on).
- Page 23 Remote Control Operation PLAY Press PLAY from stop mode to start playback This function is not available if the elapsed time of current track is less than 10 seconds. Note: MP3 disc and some DVD discs do not have a 10 second review feature. DISC MENU During DVD playback, press MENU to return to the program menu.
- Page 24 Press PS/IS button twice to switch to progressive scan mode. Press PS/IS once to switch back to interlace scan mode. Note: If you have connected the DVD player to your TV using the component Video Output, you can use PS/IS button to switch to progressive scan for superior video quality.
- Page 25 Remote Control Operation Advanced Features Press N/P when in STOP mode to select the mode from NTSC/PAL/AUTO. SLOW Press SLOW repeatedly to SLOW DOWN motion playback at variable speeds. STEP Press STEP during playback to pause playback. Press STEP repeatedly to play frame. Press PLAY to resume normal playback.
- Page 26 Remote Control Operation Advanced Features RETURN Press RETURN to the main menu when PBC is on. VOL+ VOL- Press Volume <VOL+> button to increase Volume. Press <VOL-> button to reduce volume till no volume output. During VCD playback. Press PBC (playback control) to select PBC 0n and off. MUTE Press MUTE to mute the Audio output.
- Page 27 Remote Control Operation ZOOM During VCD/SVCD/DVD playback, press ZOOM to magnify the image as follows: ANGLE During DVD playback Press ANGLE to view scenes from different camera angles. Press ANGLE repeatedly to change from one camera angle to another. Note: This function is disc specific. AUDIO During CD/VCD/SVCD playback Press AUDIO ro select a audio channel (STEREO, LEFT, RIGHT etc)
-
Page 28: Mp3 Playback
MP3 Playback Supported formats Disc format: ISO9660, Joliet Music file format: MP3 MP3 bit rate (data rate): 32 - 192 kbps Total number of music files and albums: around 350 per disc. Sampling rate: (CBR)32kHz/44.1kHz/48kHz/64kHz; (VBR) 16kHz/22kHz/24kHz/32kHz (MPEG) Note: The player will not identify or play MP3 discs under the following conditions: recording format is not supported, badly scratched or deformed disc, MP3 recorded in CD-R or CD-RW which is not finalised, or a dirty pickup. -
Page 29: Kodak Picture Cd Playback
Kodak Picture CD Playback The introduction of KODAK PICTURE CD A Kodak Picture CD has the size and shape of a regular CD. You can order a KODAK Picture CD simply by checking the box on the photo finishing envelope when you drop off a roll of film (35mm or Advanced Photo System (APS) colour print film) at the time of processing in Kodak Express store displaying "Kodak Picture CD"... -
Page 30: Others
Remote Control Preparation Insert batteries 1. Open the cover. 2. Insert batteries. Make sure to match the "+" and "-" of the batteries with the marks inside the battery compartment. 3. Close the cover. Notes: Improper use of batteries may cause battery leakage and corrosion. -
Page 31: Troubleshooting
