Summary of Contents for Palsonic TFTV765

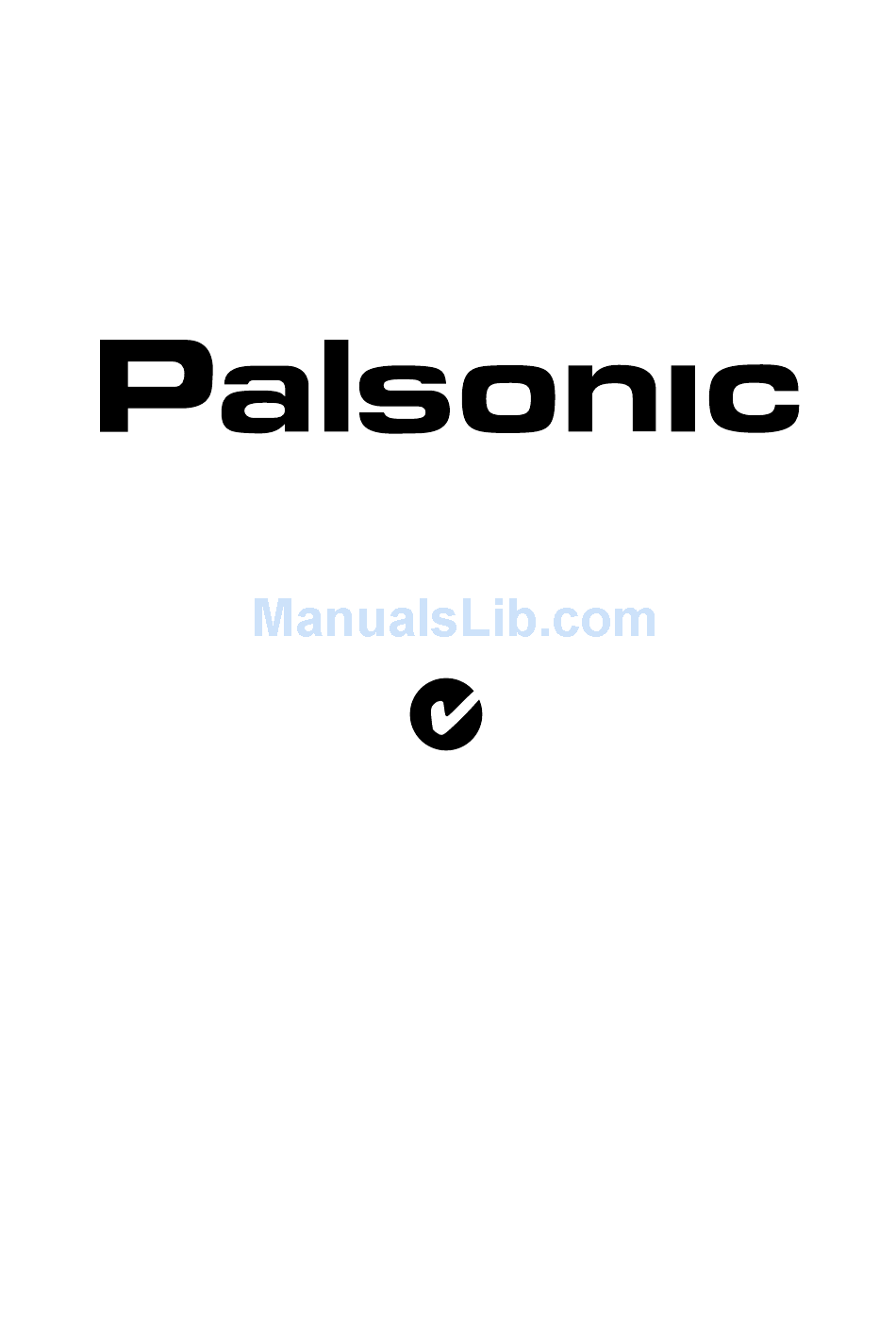

- Page 1 OWNER'S MANUAL 76CM CORDLESS REMOTE LCD TV/MONITOR MODEL: TFTV765 N111 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888...
-
Page 2: Table Of Contents
Congratulations on your purchase of this Palsonic LCD TV. We recommend that your thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this LCD TV. Retain this manual in an easily accessible location for future reference. -
Page 3: Important Safety Cautions
Important Safety Cautions When any unusual situation occurs, turn off the power supply at once and remove the plug from the wall outlet. Contact a qualified service department in your local area. Water and moisture - Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. - Page 4 This TV set can be operated on a power of ~240V 50Hz. You must not use a power supply of any other type. When relocating the product placed on a trolley, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley.
-
Page 5: Identification Of Controls
Identification of controls Front Remote sensor Indicator To enter into MENU Volume up Channel up Volume down Channel down Power on/Standby To select input signal... -
Page 6: Back
Back Video input HDTV YPbPr S-video input inputs DVD inputs Antenna input VGA input DC input Speaker outputs Audio inputs Earphone jack PC audio line in HDTV Audio inputs... -
Page 7: Remote Control
Identification of controls Remote Control Power on/Standby Volume down To enter into MENU Colour/Sound system select Zoom select Auto correct picture Picture mode select Channel select Input signal select Still picture OSD position select Adjusting Bass (continued) Sound Mute Channel up Volume up Channel down To exit OSD menu... -
Page 8: Battery Installation
Battery installation Please install the batteries before using the remote control unit. Open the battery cover. Install two "AAA" batteries matching the +/- polarities of the battery to the +/- marks. Replace the battery cover. Notes: When the remote control will not be used for a long period of time or when the batteries are worn out, remove the batteries. -
Page 9: Installation
Installation Antenna installation/Adaptor connection Before using this equipment, please connect the AC power adaptor correctly. Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area. Notes: Turn off the power firstly when you connect a outdoor antenna to the Antenna input terminal. -
Page 10: Connecting Video/Audio Equipment
Connecting video/audio equipment To S-video input To audio outputs Video equipment with S-video terminal To ANT output Y Yellow (video) To audio inputs To audio To video inputs input Video equipment without S-video terminal White (audio L/MONO) Red (audio R) To audio To video outputs... -
Page 11: Connecting Dvd Player And Speaker
Installation (continued) Connecting DVD Player and speakers To YCbCr inputs To YCbCr outputs DVD Player White (audio L/MONO) Red (audio R, Cr) Green (Y) Blue (Cb) Red Black Red To audio inputs To audio outputs To speaker... -
Page 12: Connecting Ypbpr Terminals
Connecting YPbPr terminals To YPbPr inputs To YPbPr White (audio L/MONO) outputs Red (audio R, Pr) Green (Y) Blue (Pb) (Or other equipment with YPbPr output terminals) To audio inputs To audio outputs SET TOP BOX... -
Page 13: Connecting Vga Interface
Installation (continued) Connecting VGA interface To LINE in To VGA input interface To LINE out To VGA output interface Equipment with VGA output interface... -
Page 14: Elevation Adjustment
Elevation adjustment You can adjust the angle of the LCD TV/Monitor as follows. The elevation can be adjusted from -5 to +10... -
Page 15: Menu Introduction
Menu Introduction Press MENU button in TV mode PICTURE SETTING Brightness Contrast Color Sharpness Tint <V-> or V+> key to change Press MENU button SOUND Bass Treble Balance <V-> or V+> key to change Press MENU button SETUP Color sys AUTO Sound sys Language... - Page 16 Press MENU button in PC mode PICTURE SETTING Brightness Contrast Phase Frequency USER_R USER_G USER_B Color Temp 9300K <V-> or V+> key to change Press MENU button PICTURE POSITION Horizontal Vertical Reset <V-> or V+> key to change Press MENU button SOUND Bass...
-
Page 17: Turning On/Off
Turning On/Off POWER MENU ENTER C.SYS ZOOM AUTO.ADJ Treb+ STILL Bass+ POSITION Bass - Treb- Turning On Insert the output plug of the AC power adaptor into the DC power input of the unit. Press the power switch on AC power adaptor and the red indicator lights up, the TV/Monitor is in STANDBY mode. -
Page 18: Channel Preset
CHANNEL SETTING Auto search Search Fine Tune 1. Press MENU button repeatedly to display CHANNEL SETTING Change Prog Current Prog Change to Prog 2. Press CH Skip 3. Press VOL+ or VOL- button to confirm or adjust selected item. <V-> or V+> key to change Please enter into CHANNEL SETTING menu and select Auto Search POWER item. -
Page 19: Channel Skipping
Channel Preset CHANNEL SETTING Auto search Search Fine Tune Change Prog Current Prog Change to Prog Skip <V-> or V+> key to change POWER MENU ENTER C.SYS ZOOM AUTO.ADJ Treb+ STILL Bass+ POSITION Bass - Treb- (continued) Channel Skipping You can skip unnecessary channels by using Skip function when you browse program by CH Use 0~9 digit buttons or CH firstly, then enter into CHANNEL SETTING menu and select Skip item. -
Page 20: Channel Select
POWER Press -/-- button repeatedly to display "--". MENU ENTER C.SYS ZOOM AUTO.ADJ Press -/-- button repeatedly to display "--". Treb+ STILL Bass+ POSITION Bass - Treb- Use 0~9 digit buttons and -/-- button Use 0~9 digit buttons to select one-digit channel number. Press -/-- button to display "-". -
Page 21: Picture Adjustment
Picture Adjustment PICTURE SETTING Brightness Contrast Color Sharpness Tint <V-> or V+> key to change POWER MENU ENTER C.SYS ZOOM AUTO.ADJ Treb+ STILL Bass+ POSITION Bass - Treb- Adjusting picture 1. Press MENU button to display PICTURE SETTING menu. 2. Press CH button to select item. -
Page 22: Sound
SOUND Bass Treble Balance <V-> or V+> key to change POWER MENU ENTER C.SYS ZOOM AUTO.ADJ Treb+ STILL Bass+ POSITION Bass - Treb- * When receiving broadcasts transmitted in A2 system: Broadcast mode FM MONO FM STEREO FORCE MONO FM BILINGUAL FM A (default) Note: "Default"... -
Page 23: System Setting
System setting SETUP Color sys AUTO Sound sys Language OSD position Upper Left OSD background Opaque <V-> or V+> key to change POWER MENU ENTER C.SYS ZOOM AUTO.ADJ To enter into SETUP menu 1. Press MENU button repeatedly to display SETUP menu. 2. -
Page 24: Setting Osd Position
SETUP Color sys AUTO Sound sys From the SETUP menu, press CH Language OSD position Upper Left Press VOL- or VOL+ button to select an OSD position in your OSD background Opaque preference. <V-> or V+> key to change You can quickly select OSD position by using OSD position button on the remote. -
Page 25: Timer
Timer Turn off POWER MENU ENTER C.SYS ZOOM AUTO.ADJ Treb+ STILL Bass+ POSITION Bass - Treb- Use SLP button Press SLP button repeatedly to set sleep time between: 0, 10, 20, 30, 60, 90,120,180,240 minutes. If you select 0 minute, it means the sleep timer function is turned off. -
Page 26: Adjustment In Ypbpr Mode
Repeatedly press AV button on the remote control or SOURCE button on YPbPr the set's panel until the screen display YPbPr, which indicates that the set is in YPbPr mode. Connect the YPbPr terminals to Set Top Box and make sure there is a signal input. -
Page 27: Adjustment In Pc Mode
Adjustments in PC mode POWER MENU ENTER C.SYS ZOOM AUTO.ADJ Treb+ STILL Bass+ POSITION Bass - Treb- To enter into PC mode Repeatedly press AV button on the remote control or SOURCE button on the set's panel until the screen display PC, which indicates that the set is in PC mode. -
Page 28: Adjusting Brightness And Contrast
PICTURE SETTING Brightness Contrast Phase Frequency USER_R USER_G USER_B Color Temp 9300K You can adjust bright and contrast in PC mode and this adjustment <V-> or V+> key to change does not effect the brightness and contrast in TV and AV mode. POWER If you can not obtain the best display after auto correction for many times. -
Page 29: Trouble Shooting
Trouble shooting Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptoms Power is not turned on. Poor colour, poor tint. Spots appear on the screen. Stripes appear on the screen. Double images or "ghosts". -
Page 30: Specifications
Power Supply for AC adaptor: Power Consumption: Dimensions (mm): Weight (kg): SCREEN: TV system & channel range. SYSTEM PAL-B/G Colour system: Sound output: Accessories Design and specifications are subject to change without notice. 110-240V 50/60Hz 160W 932 (W) x 553 (H) x 245 (D) 16.3 76cm 2-12... - Page 31 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-L32B13-07A Ver. 1.0...
