airmaster A22R220 Specifications

New Product Information
6.4
REVERSE CYCLE
KW
COOLING COOLING
Design and specifications are current as of November 2006 (Ver 4), but are subject to change without notice.
Specifications for Australia & New Zealand Only.
6.6
KW
HEATING HEATING

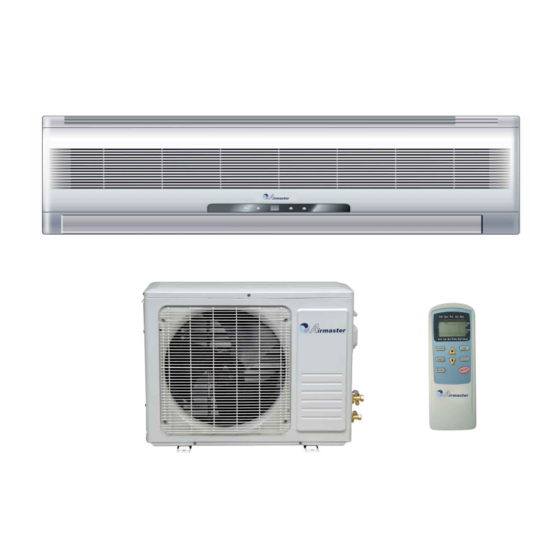

A22R220
Split System Air Conditioner
Airmaster's New Reverse Cycle Wall Mounted Split System
Room Air Conditioner with Dust Eliminating Filter System
will Keep You Cool in Summer & Warm in Winter.
• Stylish Design unit provides effective operating power even for large areas.
• 6.40KW Heating & 6.60KW Cooling Capacity Split System.
• Advanced Nanometre Ti02 Technology.
• Germ Killing & Dust Eliminating Filter System.
• Auto Mode Operation
- when unit is turned on, the Auto Sensor checks the
current room temperature and will automatically select Cool, Dry or Heat Mode.
• 4 Mode Operation Cool/Dry/Fan/Heat.
• 4 Speed Fan
- 3 Speed plus Auto Mode.
• 5 Direction Air Outlet Louvre.
• Programmable ON/OFF Timer.
• Up to 2 Litres per Hour Dehumidifier Capacity.
• Removable Front Panel for Easy Cleaning of Washable Filters (indoor).
• Speed Heating & Cooling.
• Quiet Operation only 40/44/49
(Low/Medium/High)
• Built to Tropical Class 1 Specifications.
• Soft Starter In-built.
• Suitable for 25~40m area.
2
• Easy to Use LCD Remote Control.

Specifications

Power source

AC 220~240 V, 50/60Hz

Cooling capacity

6.40KW

Heating capacity

6.60KW

COP/EER

COP 2.8 (Heating) / EER 3.0 (Cooling)

Sound Levels

Indoor unit: 40/44/49 (L/M/H) dB(A), Outdoor unit: 58 dB(A)

Dimensions (W x H x D)

Indoor unit: 1033 x 131 x 202 mm
Outdoor unit: 900 x 650 x 315 mm

Weight

Indoor unit: 14kg, Outdoor unit: 59kg (approx.)

EAN

9312202840195
© Airmaster.
1 Joynton Avenue, Waterloo, Sydney, NSW 2017, Australia.
Telephone: (02) 9313 7111
Facsimile: (02) 9313 7555
Internet: www.palsonic.com.au
dB(A) Indoor Noise.
