Pacific Accessory Corporation
Before You Start
A. Is this product compatible with the vehicle?
• See application guide (seperate sheet) for listing of vehicles and connection information. If not, check www.pac-
audio.com for an updated list of compatible vehicles.
B. Is this product compatible with the head unit?
• Ensure that the new head unit is capable of being operated with a remote control, and that it responds to the
remote control provided with it.
• The head unit must accept a remote control with the common carrier frequency range of 38 – 40Khz in order to
work with the SWI-X.
Note: Certain head units will not work with the SWI-X. See Appendix B - Known Incompatible Aftermarket Head
Units (page 7).
C. Prepare for the installation.
• If possible, install the SWI-X while you are installing the new head unit. Keep in mind you may need to plug in the
factory stereo to locate certain wires; therefore do not complete the head unit installation until the SWI-X is working
properly.
• Plan a general installation location for both the SWI-X LED and the control body. Keep in mind that the supplied
wire harness is two feet long, and the IR harness is four feet long.
• Use a multimeter or approved measuring device for checking vehicle circuits.

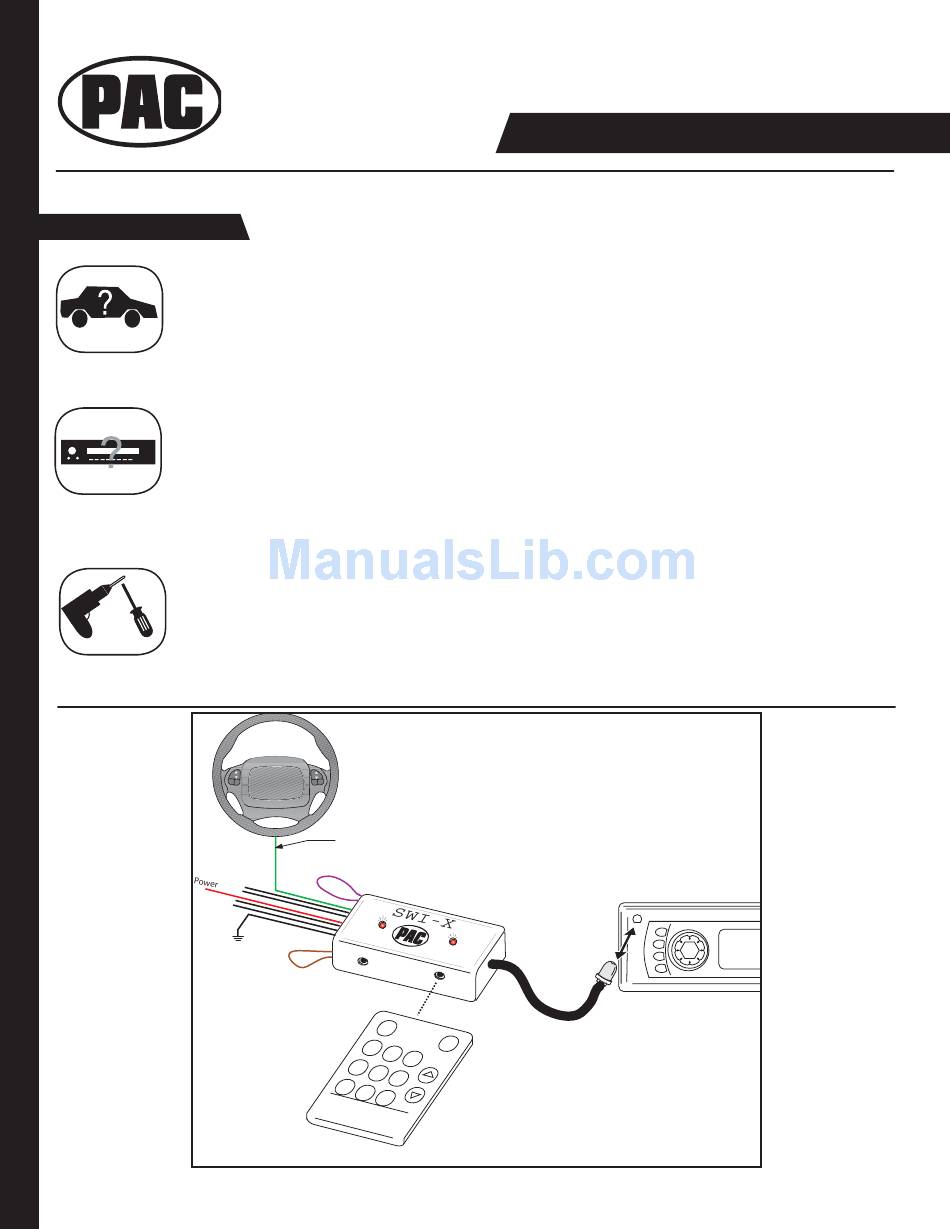

SEEK
PRESET
AM FM

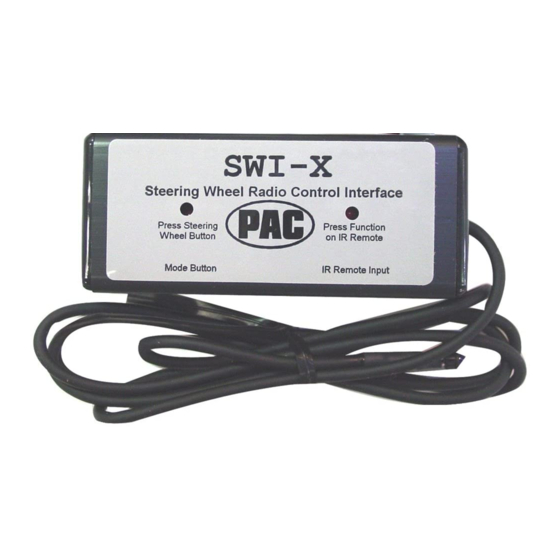

SWI-X
Universal Steering Wheel Control Interface
VOLUME
PLA Y
MUTE
Steering wheel
audio control wire
SWI-X is a learning remote.
Installation Instructions
Aftermarket stereo must come with
a wireless remote.
06-14-07
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PAC SWI-X
Summary of Contents for PAC SWI-X
-
Page 1: Installation Instructions
C. Prepare for the installation. • If possible, install the SWI-X while you are installing the new head unit. Keep in mind you may need to plug in the factory stereo to locate certain wires; therefore do not complete the head unit installation until the SWI-X is working properly. -
Page 2: Wiring Connections
Wiring Connections Note: Only 3 wires will be used during installation. Only GM vehicles programmed for version #4, will use 4 wires. Step 4 If necessary, perform the following operations as indicated by the notes in Note: Step 4a is for vehicles made by General Motors that are programmed for version #4 only. - Page 3 Programming the SWI-X to Work With the Vehicle IMPORTANT! Some steps of the programming instructions must be completed within a certain number of seconds following the previous step. Review the complete instruction before beginning the programming sequence. Step 5. Refer to Appendix C - Head Units That Require IR Extended Mode On and the Vehicle Appication Guide. Note the IR Extended Mode Setting and INTERFACE Version Number next to the selected vehicle.
- Page 4 Programming the SWI-X to Control the Head Unit IMPORTANT! Some steps of the programming instructions must be completed within a certain number of seconds following the previous step. Review the complete instruction before beginning the programming sequence. Step 11. IG N Turn the vehicle ignition to the ON position.
- Page 5 Programming the SWI-X to Control the Head Unit (cont.) Step 20. Within 7 seconds, press and hold the button that is to be V O L learned on the steering wheel. Step 21. Release the button. V O L Step 22.
-
Page 6: Final Installation
(starting from Step 11) or refer to Troubleshooting Guide. Final Installation Mount the SWI-X infrared emitter within line of sight of the head unit, testing continuously to ensure that it will operate from the chosen position. The LED can be installed in the center console or overhead console. - Page 7 Connect a resistor to each side of a push button and connect the other ends of the resistor all together. Connect the SWI- X to these resistors. On the Harley Davidson, one button can be connected directly to the SWI-X.
-
Page 8: Troubleshooting Guide
Website, contact us at techsupport@pac-audio.com so that we may add the information to the instructions. 1502 S. Santa Fe St. • Santa Ana, CA 92705 techsupport@pac-audio.com •...
