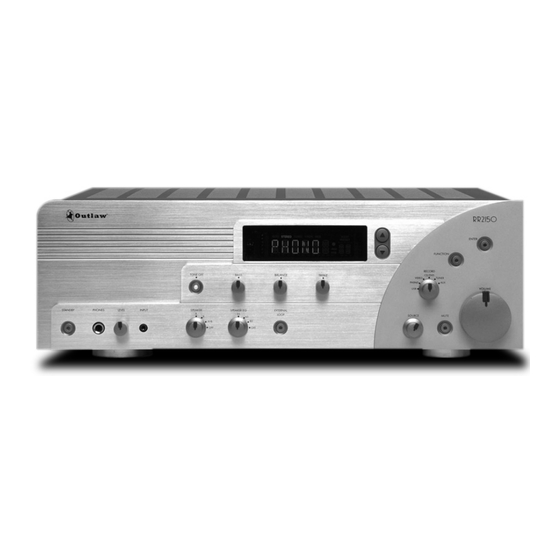

- Page 1 RR 2150 Stereo RetroReceiver Owner’s Manual Version 1.1...
-
Page 2: Please Read First
(including amplifiers) that produce heat. IMPORTANT SAFETY NOTE Before connecting a new component such as the RR 2150 to your audio or home theater system it is always good practice to make certain that all components are turned off, and preferably unplugged from their AC power source. -
Page 3: Installation Location
RR 2150. Should the power cord require replacement, use an identical type, or contact Outlaw Audio for service. -
Page 4: Table Of Contents
You may also find fellow Outlaws hanging out around the campfire at the Outlaw Saloon. It’s a great place to hang out and share your RR 2150 experi- ences with like minded folk. Mosey on in by clicking on “Outlaws’ Hideout”... -
Page 5: Quick Guide To The Rr 150'S Features
If some packing material can’t be folded, save it in a plastic bag. The RR 2150 is not light. So take care when you lift it. Use your legs, not your back! And don’t bash the protruding front-panel volume control knob or the rear-panel connectors. -
Page 6: Rr 150 Front Panel
It is also used with the Function and Enter pushbuttons to to adjust tuner functions to match your preferences. FP8 Function button (see pages 20-21) This button is used to configure the RR RR 2150’s internal tuner. FP9 Enter button (see pages 20-21) When setting up tuner functions with the Function (FP8) and the Tuning Up and Down buttons (FP6 and FP7 respectively), press this button to enter the choice shown to the unit’s memory. -
Page 7: Rr 150 Rear Panel
FP10 On/Standby button (see page 18) When the RR 2150 is plugged in and the Master Power switch (RP8) is On, pressing the front panel On/Standby button will toggle the unit from standby condition (everything off except for the IR sensor and associated circuitry) to fully operational. - Page 8 Simply remove the jumpers and connect the preamp outputs to the inputs of the additional amplifier. NOTE: Removing the jumpers ordinarily means that the RR 2150’s internal amplifier does not receive a signal and thus can not send any output to the speakers you have connected to it.
-
Page 9: Remote Control
RC8 Cursor control buttons (menu navigation) (see pages 20-22) RR 2150: The Left and Right buttons have no function for the RR 2150. When the tuner is in use, the Up and Down buttons have the same func- tions as the front panel Up and Down buttons. -
Page 10: Connecting Your Rr 150
Press this button to turn off the RR 2150, or the device currently being controlled by the remote. NOTE: This is a “Power Off” button only. To turn the RR 2150 on, press any Source Selector button (RC11). This will turn the unit on and select the input you’ve pushed. -
Page 11: Connecting Source Components
For most systems no change is needed here, as you will use both sections of the RR 2150. However, if you wish to use an optional, external amplifier, remove the jumper plugs and connect the left and right output jacks on the RR 2150 to the matching inputs on your amplifier. - Page 12 Owner’s Manual Connecting Your RR 2150 Connecting Audio Equipment to the RR 2150 Outlaw Audio...
-
Page 13: Loudspeaker Connections
“best” connectors, our advice is to use what you feel is appropriate. How- ever, we do feel that there is one vital guideline: If the run from your RR 2150 to a speaker is less than 40 feet, use speaker wire with a conductor diameter that’s identified as “16 gauge”... - Page 14 Owner’s Manual Connecting Your RR 2150 Connecting Loudspeakers to the RR 2150 Outlaw Audio...
-
Page 15: Subwoofers And Bass Management Settings
You won’t damage anything, it just doesn’t sound good. Subwoofers and Bass Management Settings The RR 2150 is unique among stereo receivers in that it has built-in bass management, a feature common, if not required, for multi-channel products, but not found in the two-channel world. -
Page 16: External Amplifier Connections
1 Volt Trigger The RR 2150 has one 12 volt Trigger output that output offers a 12 volt DC signal that can be used to control compatible external components such as amplifiers, blinds and projection screens. - Page 17 Owner’s Manual Connecting Your RR 2150 Connecting an External Amplifier to the RR 2150 Option 1 Option RR 2150 Stereo RetroReceiver...
-
Page 18: Operation
RR 2150 will not be used for an extended period of time, or if you wish to connect or disconnect a component or speaker. -
Page 19: Adjusting Tone Controls
(FP14) off. Recording The RR 2150 allows you to send the signal from any input source to a record- ing device properly connected to the rear panel Tape jacks (RP13). Note that unlike many current audio products, the RR 2150 has a separate record output bus so that you may listen to one source (selected with the remote control or the front panel Source control) and record a different source. -
Page 20: Setting Sleep Timer
That is easy to do on the RR 2150 by following these steps: Once you’ve entered the complete frequency, the tuner will automatically... -
Page 21: Preset Tune
The tuner will automatically tune to the new frequency. Memorizing Your Favorite Stations Once you have tuned to a station, you may enter it into the RR 2150’s memory so that it may be easily recalled for future listening. The tuner memory holds up to 39 stations in any order you choose –... -
Page 22: Programming The Remote Control
Owner’s Manual Programming the Remote Control Programming the Remote Control In addition to the RR 2150 itself, the remote control can operate up to three other devices, and is preprogrammed with command codes for hundreds of components. To program your remote for another device, you will first input a single digit device code, followed by a four-digit code from the table in the following pages. -
Page 23: Care And Maintenance
Care and Maintenance Cleaning To clean normal dust, wipe your RR 2150 with a clean, soft, dry cloth. If the dirt has really accumulated (Outlaws aren’t always the most meticulous people, are they?), first wipe the surface with a soft cloth that’s slightly damp- ened with mild soapy water. -
Page 24: Setup Codes
Emerson 0305 Fisher 0179 Garrard 0420 Genexxa 0032, 0305 Harman/kardon 0157, 0173 Hitachi 0032 0072 kenwood 0028, 0190, 0826, 0037, 0626, 0681 krell 0157 0305 Outlaw Audio Linn 0157 0029 0420 Magnavox 0157, 0305 Marantz 0157, 0626, 0029 Mission 0157 0157 Onkyo 0101, 0868 Optimus 0032, 0468, 0420, 0179, 0305, 1063, 0000, 0037, 0145 Panasonic 0029 Parasound... - Page 25 0016 Sony 0000 Soundesign 0178, 0179, 0180 Squareview 0171 Starlite 0180 Supreme 0000 Sylvania 0054, 0030 Symphonic 0171, 0180 0056, 0178 0017 Tandy 0093 Technics 0051, 0250 TechnoAce 0179 Techwood 0051, 0056 Teknika 0016, 0054, 0179, 0180, 0 019, 0092, 0056, 0060, 0150 Telefunken 0056 Toshiba 0156, 0060, 0154, 1256 Vector Research 0030 Victor 0053 RR 2150 Stereo RetroReceiver...
- Page 26 Funai 0000 0035, 0060, 0048, 0240 Garrard 0000 Go Video 0432 GoldStar 0037, 0038 Gradiente 0000 HI-Q 0047 Harley Davidson 0000 Harman/kardon 0038, 0081 Harwood 0072 Outlaw Audio Hitachi 0042, 0000 Hughes net. Sys. 0042 0067 0037, 0278 0072 kenwood 0067, 0038 kodak 0035, 0037 0037 Lloyd’s 0000 Logik 0072 0035 0043, 0240 MGn Technology...
-
Page 27: Audio Section
All features and specifications are subject to change without notice or liability to upgrade existing units. Outlaw Audio and the Outlaw Audio logo are registered trademarks of Outlaw Audio, LLC. Any trademark not acknowledged is recognized as the property of the respective owner. -
Page 28: Outlaw Audio Limited Warranty
Outlaw Audio shall not be liable for, or in any way responsible for, any incidental or consequential damages of any kind. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion of incidental or consequential damages;...
