Orion STARBLAST 9814 Instruction Manual

4.5" altazimuth reflector tabletop telescope
Hide thumbs Also See for STARBLAST 9814:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
®
Orion
StarBlast
™
#9814
4.5" Altazimuth Reflector Tabletop Telescope
Customer Support (800) 676-1343
E-mail: support@telescope.com
Corporate Offices (831) 763-7000
P.O. Box 1815, Santa Cruz, CA 95061
Providing Exceptional Consumer Optical Products Since 1975
IN 201 Rev. A 08/02

Advertisement

loading

Related Manuals for Orion STARBLAST 9814

Summary of Contents for Orion STARBLAST 9814

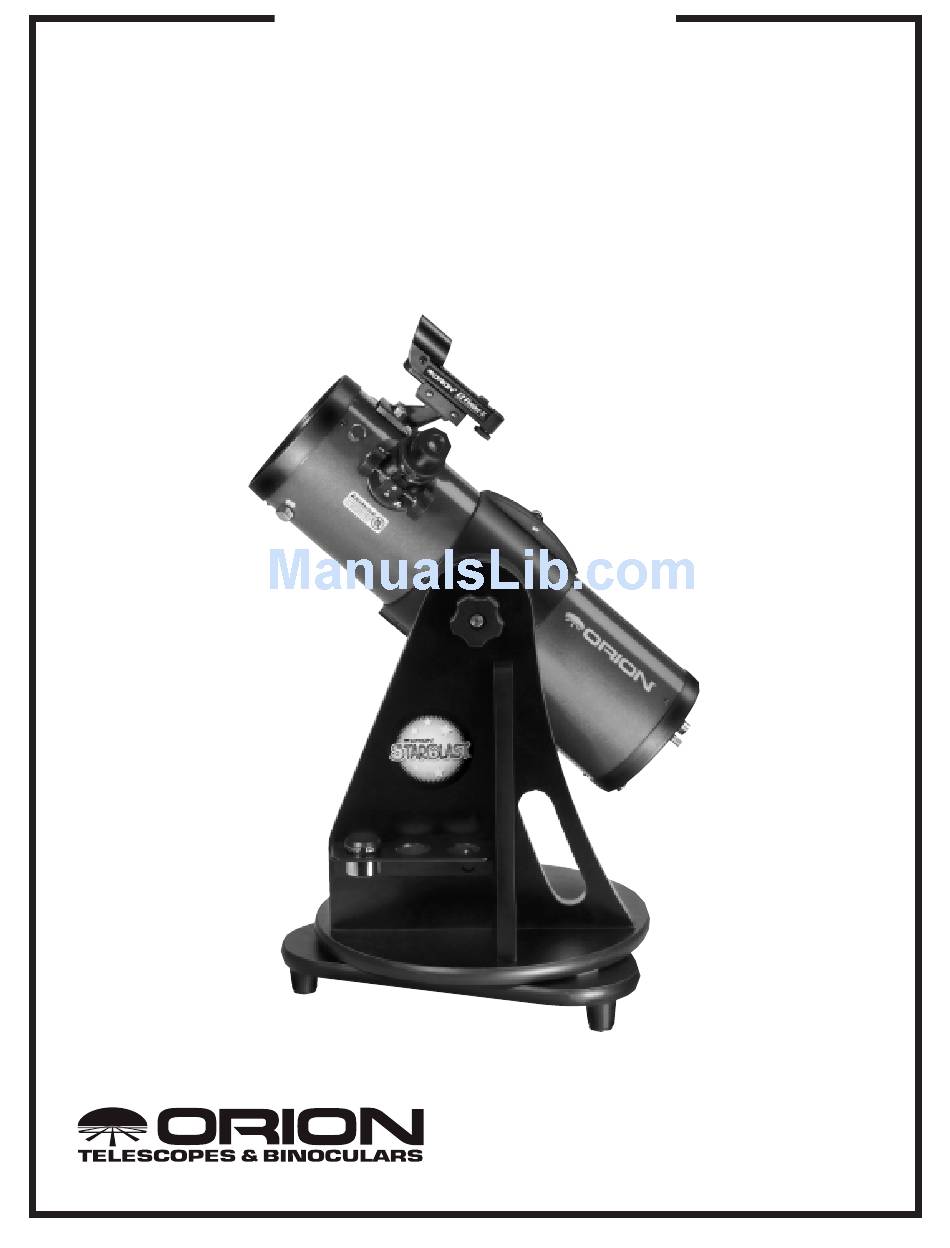

  • Page 1 INSTRUCTION MANUAL ® Orion StarBlast ™ #9814 4.5" Altazimuth Reflector Tabletop Telescope Customer Support (800) 676-1343 E-mail: support@telescope.com Corporate Offices (831) 763-7000 P.O. Box 1815, Santa Cruz, CA 95061 Providing Exceptional Consumer Optical Products Since 1975 IN 201 Rev. A 08/02...
  • Page 2 Figure 1. The StarBlast.
  • Page 3 The StarBlast will give you breathtaking views of the Moon, planets, and even deep sky objects like the Orion Nebula. These instructions will help you set up and use your StarBlast telescope, please read them thoroughly.

  • Page 4: Table Of Contents

    Getting Started ..... .4 Using Your Telescope ....6 Care and Maintenance .
  • Page 5 (up/down) and azimuth (left/right). Figure 5. Try grasping the telescope as shown for easiest pointing. One hand moves the telescope from the front of the tube while the other hand remains on the handle to keep the telescope steady. Focusing the Telescope...

  • Page 6: Using Your Telescope

    Faint deep sky objects become difficult or impossible to see through the murk of light pol- lution. Even bright nebulas like the Orion and Lagoon Nebulas lose much of their delicate detail. The Moon and planets are not affected; they require steady air more than dark skies, so they remain good targets for city- dwelling observers.
  • Page 7 Figure 9. To calculate the magnification of a telescope-eyepiece combi- nation, simply divide the focal length of the telescope by the focal length of the eyepiece. Telescope Focal Length (mm) ÷ Eyepiece Focal For example, the StarBlast, which has a focal length of...
  • Page 8 What to Expect So what will you see with your telescope? You should be able to see bands on Jupiter, the rings of Saturn, craters on the Moon, the waxing and waning of Venus, and many bright deep-sky objects.

  • Page 9: Care And Maintenance

    The Milky Way is best observed on summer and winter evenings. Care and Maintenance If you give your telescope reasonable care, it will last a life- time. Store it in a clean, dry, dust-free place, safe from rapid temperature changes and humidity. Do not store the telescope outdoors, although storage in a garage or shed is OK.
  • Page 10 The secondary mirror itself should be cen- tered in the focuser drawtube, in the direction parallel to the length of the telescope. If it isn’t, as in Figure 10b, it must be adjusted. This adjustment will rarely, if ever need to be done.

  • Page 11: Appendix B: Cleaning The Optics

    Star-Testing the Telescope When it is dark, point the telescope at a bright star and accurate- ly center it in the eyepiece’s field of view. Slowly de-focus the image with the focusing knob. If the telescope is correctly colli- mated, the expanding disk should be a perfect circle (Figure 15).
  • Page 12 Phillips head screwdriver to unthread the mirror clip One-Year Limited Warranty This Orion StarBlast is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail pur- chaser only.
