Summary of Contents for Orion TELETEXT 21FVD

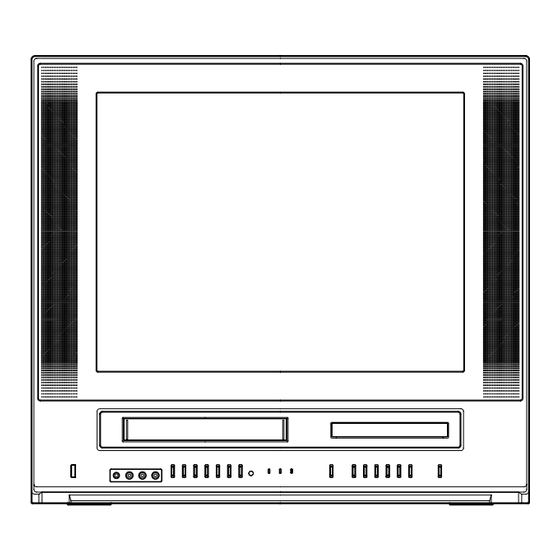

- Page 1 Operating Instructions Combination 21” Flat TV and Video Recorder/DVD Video Player Region / Region discs only TELETEXT 21FVD PAL SECAM Before operating the unit, please read this manual thoroughly.
-
Page 2: Mains Supply
IMPORTANT Unauthorized recording of copyright television programmes, films, video tapes and other materials may infringe on the rights of copyright owners and be contrary to copyright laws. WARNING To prevent fire or shock hazard, do not expose this equipment to rain or moisture. MAINS SUPPLY This unit is designed to operate from AC 240V 50Hz household mains supply. -
Page 3: Table Of Contents
DUPLICATING FROM DISC TO VIDEO TAPE ... 33 TELETEXT ... 34 • On Screen 5 Language Display • Sleep Timer • Auto Repeat Play DVD Player • Digital Audio Jack (Coaxial) • Multi-Language • Multi-Angle • Repeat Playback • Memory/Random Playback •... -
Page 4: Precautions
PRECAUTIONS MOISTURE CONDENSATION If the unit is suddenly moved from a cold place to a warm place, moisture may form inside the unit. In this case, do not operate it for two or three hours. WHAT IS MOISTURE CONDENSATION? When cold water is poured into a glass, for example, water vapor in the air will condense on the surface of the glass. - Page 5 Avoid extreme moisture and dust. Do not insert fingers or any other objects into the cassette loading slot. Do not spray cleaner or wax directly on the unit or use forced air to remove dust. Keep the unit away from flower vases, sink etc. Liquids spilled into the unit can cause serious damages.
-
Page 6: Location Of Controls
LOCATION OF CONTROLS Front STAND BY ( Cassette Loading Slot Main Power (ON) Switch Phones socket VIDEO/AUDIO IN (L/R) jacks (AV2) REW (Rewind) button (VCR) STOP/EJECT button (VCR) PLAY button (VCR) F.FWD button (VCR) REC button (VCR) CHANNEL ▲/▼ buttons Remote sensor Note for key-operation During TV/VCR mode:... -
Page 7: Remote Control
REMOTE CONTROL Sub Power on/off TV/VCR Select to operate TV/VCR Select to operate DVD CH/PAGE +/– Select channel of the VCR Utilize the teletext Direct channel selection of TV Input setting Enter a security code Scart Input or Front AV input VOL +/–... -
Page 8: Battery Installation
REMOTE CONTROL BATTERY INSTALLATION Open the battery compart- ment cover in the direction of the arrow. BATTERY CAUTIONS • Use two “AAA/R03/UM-4” size penlight batteries for the remote control transmitter. • The batteries may last approximately one year depending on how much the remote control is used. For best performance it is recommended batteries be replaced on a yearly basis, or when remote operation becomes erratic. -
Page 9: External Antenna
ANTENNA CONNECTIONS Connect an indoor or outdoor antenna to the antenna socket at the rear panel as shown below. For all antenna circuit problems, please consult your local dealer. Antenna socket Mains lead EXTERNAL ANTENNA The type of antenna required depends on the position of your home, it's distance from the transmitter and local interference. -
Page 10: Connection To Other Equipment
CONNECTIONS TO OTHER EQUIPMENTS The exact arrangement you use to interconnect various video and audio components to the unit is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs. -
Page 11: Connection To Other Equipment
Input Selection If you connect the unit to a VCR, camcorder or games console, you can select this input by pressing the AV button. Press the TV/VCR button to select the TV mode and then press the AV button repeatedly to select AV1 or AV2. -
Page 12: On-Screen Language Selection
ON-SCREEN LANGUAGE SELECTION This unit can display five languages, English, German, French, Italian or Spanish. NOTE: When you plug the AC mains lead into the mains socket for the first time the MENU screens shown in step 2 and step 3 will be skipped and the language selecting screen shown in step 4 will appear. -
Page 13: To Set The Clock
Besides displaying the channel number and functions symbols on the screen, the unit also displays the present time and the day of the week. The digital clock is the 24 hour type. NOTES: • During a power failure, disconnection of the mains lead or if the MAIN POWER (ON) Switch is switched off, the clock and all its programmed setting will remain... -
Page 14: Tuning The Tv Channels
TUNING THE TV CHANNELS This unit has 110 channels for you to tune and memorize into the Television. You must tune in the broadcast stations before you can enjoy watching them. AUTO TUNING Press TV/VCR to select TV/VCR mode. Press MENU. Note: If the clock is not set, press MENU twice. -
Page 15: Tuning The Tv Channels
TUNING THE TV CHANNELS TO CHANGE THE TV STATIONS TO ANOTHER CHANNEL POSITION Example: Changing the TV Station from CH 4 to CH 6 position. Press TV/VCR to select TV/ VCR mode. Press MENU. Press ▲ or ▼ to select the CHANNEL SETUP mode, then press ENTER. -
Page 16: Manual Tuning
TUNING THE TV CHANNELS In certain areas of the countries which have poor reception the Automatic Tuning System may not tune your unit to the strongest broadcast signal. If you are not satisfied with the automatic tuning then select the Manual Tuning. -
Page 17: Tv Operation
NOTE: If the station being viewed stops broadcasting, the TV will shut off after 15 minutes. TV OPERATION Press Sub Power ( ). Then press TV/VCR to select TV/VCR mode. Press Direct Channel Selection. 1-9: Press one of keys 1-9 as required. -
Page 18: Quick View
TV OPERATION NOTE: If SLEEP is pressed when the unit is the REC mode, the clock will count down and the picture will shut off at the set time, but the recording continues. (CONTINUED) MUTE To cut off the sound, press this button once. The unit will be silenced and the symbol “MUTE”... -
Page 19: Picture Control Adjustments
PICTURE CONTROL ADJUSTMENTS The picture settings have been factory adjusted under optimum signal recep- tion. However, conditions may not be the same in your area. After tuning in the unit, allow it to warm up for a few min- utes. If the picture is not to your liking, make the following adjustments using the remote control. -
Page 20: To Set The On Timer
TO SET THE ON TIMER This feature allows you to have the TV automatically turn “ON” at a predeter- mined time. Once you have programmed the ON TIMER, it will switch the TV on every day at the same time and same channel, until you cancel this setting. -
Page 21: To Set The Off Timer
This feature allows you to have the TV turn “OFF” automatically at a predetermined time. Once you have programmed the OFF TIMER, the TV will be automatically turned off at the same time each day, until you cancel this setting. NOTES: •... -
Page 22: Loading And Unloading The Video Cassette Tape
LOADING AND UNLOADING THE VIDEO CASSETTE TAPE Use only video cassette tapes marked Preparation: Press TV/VCR to select TV/VCR mode. LOADING Push the centre of the tape until it is automatically inserted. AUTOMATIC POWER ON AND PLAY (Make sure that the MAIN POWER switch is pushed in.) When loading a cassette tape without the erase prevention tab intact, the unit will turn on and playback will start immediately. -
Page 23: Colour System Selection
Select your appropriate Colour System. COLOUR SYSTEM SELECTION Preparation Press the TV/VCR to select TV/VCR mode. Press MENU. Press ▲ or ▼ to select the SYSTEM SETUP mode. Then press ENTER Press ▲ or ▼ to select the COLOUR SYSTEM mode. Press to select the AUTO, PAL, MESECAM or SECAM. -
Page 24: Playback
PLAYBACK To play a pre-recorded cassette tape. TO START PLAYBACK To turn “ON” the power of the TV/VCR, press Sub Power ( Press TV/VCR to select TV/VCR mode. Load a pre-recorded tape (When loading a cassette tape without the erase prevention tab, playback will start auto- matically). -
Page 25: Recording
TO VISUALLY SEARCH FOR DESIRED POINTS When either F.FWD or REW is pressed in the PLAYBACK mode, the speed search picture will appear. When pressed twice the search picture will increase in speed. Speed search times depend upon the speed used (SP or LP) during recording. -
Page 26: Recording A Tv Programme
RECORDING A TV PROGRAMME NOTES: • If the power is switched off during re- cording, the TV section shuts off and the VCR section continues to record. • The selected channel cannot be changed during recording. • If you try to change the channel while a recording is being made, “RECORDING IN PROGRESS”... -
Page 27: Timer Recording
Timer recording can be programmed on screen with the remote control. The built-in timer allows automatic unattended recording of up to 8 programmes within 1 month. NOTES: • If programming is performed without a tape in the unit, or with a tape without an erase prevention tab, Timer Recording is not possible. -
Page 28: Other Functions For Timer Recording
OTHER FUNCTIONS FOR TIMER RECORDING TO SET DAILY/WEEKLY TIMER When setting the date in the step 4 on page 25, press repeatedly when the current day is displayed. The setting changes as follows: Example The current day (Friday) SUN-SAT (Sunday to Saturday) MON-SAT (Monday to Saturday) One month later... -
Page 29: One-Touch Timer Recording (Otr)
ONE-TOUCH TIMER RECORDING (OTR) The One-touch Timer Recording feature provides a simple and convenient way to make a timed recording. NOTES: • To cancel OTR, press STOP. • You cannot change the channel while the unit is recording, but you can switch to the DVD mode and watch a DVD without affecting the recording. -
Page 30: Using The Real Time Tape Counter
USING THE REAL TIME TAPE COUNTER The On-Screen Real Time Tape Coun- ter shows the tape running time in Hours, Minutes and Seconds. NOTES: • If you rewind the tape from “00:00:00”, a minus sign “–” will be displayed in front of the counter. -
Page 31: Using Zero Return
The zero return function provides a convenient method of rapidly return- ing to the starting point of recording or playback. The starting point can be indexed for any location on the tape by pressing the COUNTER RESET button and ZERO RETURN button. USING ZERO RETURN Press TV/VCR to select TV/ VCR mode. -
Page 32: Video Index Search System (Index)
VIDEO INDEX SEARCH SYSTEM (INDEX) The VIDEO INDEX SEARCH SYSTEM (INDEX) enables you to locate the beginning of any recording made on the unit. The Index Search function auto- matically records an INDEX mark on the tape whenever a recording is initiated. This mark can easily be located by using F.FWD and REW. -
Page 33: Nicam Stereo Recording And Playback/Reception Disturbance
NICAM STEREO RECORDING AND PLAYBACK/RECEPTION DISTURBANCE RECORDING This unit is capable of recording sound in Hi-Fi system. NICAM STEREO broadcasts are recorded in its original sound system automatically. If the NICAM sound has noise, select NICAM “OFF” as follows. Press Press TV/VCR to select the TV select TV/VCR... -
Page 34: Duplicating A Video Tape
DUPLICATING A VIDEO TAPE If you connect the unit to another VCR or VIDEO CAMERA, you can duplicate a previously recorded tape. Make all connections before turning on the power. Load a blank cassette tape with the erase prevention tab intact into the unit (these instructions show how to use this unit as the recording, rather than the playback device). -
Page 35: Duplicating From Disc To Video Tape
DUPLICATING FROM DISC TO VIDEO TAPE With this unit it is theoretically possible to record from a DVD or Audio CD to a video tape. If the DVD disc has a Copy-guard feature, the duplication is not possible. A symbol mark “... -
Page 36: Teletext
TELETEXT Most broadcasters offer a Teletext service in addition to their standard TV programmes. Teletext offers news, weather forecast, winning Lotto numbers, TV listings and other interesting news. The text is received page by page, as soon as you select the broadcasting station. A single page can be displayed on the screen. - Page 37 To call a teletext page Leaf through the pages with PAGE (+/–) (forward or backward). NOTE: You will not necessarily find a page for every page number you enter. E.g. you might enter page no.116 but there may or may not be a page no.116.
-
Page 38: Disc
DISC DVD discs must be Region 4 or Region ALL type to play on this unit. The loaded Disc (DVD, Audio-CD and MP3/JPEG-CD) will be recognized automatically. The suitable disc formats are: DVD-Video, CD, CD-R, DVD-R/RW (Video format only) and CD-RW. Some CD-R/RW discs may be incompatible. -
Page 39: Preparation
PREPARATION/STATUS DISPLAY OF DISC The following pages describe the setup/operation in DVD mode. NOTE: If the unit does not operate properly: Static electricity can adversely affect the operation of this player. Sometimes this can be remedied by unplugging the unit for a short time, then reconnecting it. -
Page 40: Setting Setup Language
SETTING SETUP LANGUAGE You can change the default settings to customize performance to your preference. NOTES: • If the selected soundtrack language is not recorded on the disc, the original language will be heard. • If the selected subtitle language is not recorded on the disc, the first-priority language is selected. -
Page 41: Playback Procedure
NOTES: • If a non-compatible disc is loaded, “In- correct Disc”, “Region Code Error” or “Parental Error” will appear on the TV screen according to the type of loaded disc. If these appear, check your disc again (see pages 36 and 52). •... -
Page 42: Special Playback
SPECIAL PLAYBACK NOTE: There may be a slight delay be- tween when you press the button and the function activating. NOTE: The unit is capable of holding a still video image or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an ex- tended period of time, you risk permanent... -
Page 43: Mp3/Jpeg Playback
This player can play back the MP3/JPEG-data which has been recorded on CD-R or CD-RW. To produce the MP3/JPEG-data, you need a Win- dows-PC with CD-R/RW drive and a MP3/JPEG- encoding Software (not supplied). The Apple-HFS-System cannot be played. MP3/JPEG CD information Limitations on MP3/JPEG CD playback •... -
Page 44: Jpeg Cd Playback
MP3/JPEG PLAYBACK About file menu Operation Elapsed time Media type File number Folder /0-9/Enter/Play Mode/ DVD Menu : Indicates MP3 file : Indicates JPEG file NOTES: • The picture menu is displayed when the FUJICOLOR CD or the KODAK Picture CD are played. -
Page 45: Setting The Jpeg Interval
SETTING THE JPEG INTERVAL Setting the JPEG Interval You can continuously play back all JPEG files automatically. Press SETUP in the stop mode. Press to select “Pic- ture”, then press ENTER. Press to select “JPEG Interval”. Press ENTER or select your desired time. Off: Plays back one file at a time. -
Page 46: Setting The Select Files
SETTING THE SELECT FILES When playing back a CD containing a mix- ture of MP3 and JPEG files, only MP3 or JPEG files can be displayed on the file menu. Press SETUP in the stop mode. Language Picture Press to select “Picture”, then press ENTER. -
Page 47: Zooming
ZOOMING/LOCATING DESIRED SCENE NOTES: • You can select the Pause, Slow or Search playback in the zoom mode. • Some discs may not respond to the zoom feature. Zooming This unit will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame. -
Page 48: Repeat Playback
REPEAT PLAYBACK NOTES: • Some discs may not work with the repeat operation. • In A-B repeat mode, subtitles near point A or B may not appear. • During the A-B Repeat Playback the ANGLE feature will not operate. • You may not be able to set A-B Re- peat, depending on the scenes of the DVD. -
Page 49: Program Playback
PROGRAM PLAYBACK/RANDOM PLAYBACK (CD) NOTES: • To cancel program play, select “Clear” at step 4 and press ENTER. • The program is cancelled when you open the disc tray or turn the power off. • Random playback can not be combined with Repeat playback. -
Page 50: Changing Soundtrack Language
CHANGING SOUNDTRACK LANGUAGE/SUBTITLES NOTES: • If the desired language is not heard af- ter pressing the AUDIO button several times, the language is not recorded on the disc. • Changing soundtrack language is can- celled when you open the disc tray. The initial default language or available lan- guage will be heard if the disc is played back again. -
Page 51: Changing Angles
CHANGING ANGLES/TITLE SELECTION/DVD MENU NOTES: • Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD. • Depending on the DVD, you may not be able to select the title. Depending on the DVD, a “title menu”... -
Page 52: Setting The Aspect Ratio Of Tv Screen
SETTING THE ASPECT RATIO OF TV SCREEN/SETTING ON SCREEN DISPLAY NOTE: It is not always possible for the DVD disc to display the picture as per your preferred picture setting - for example, if you select “4:3 Panscan”, the disc may not offer this option. -
Page 53: Dynamic Range Control
DRC (Dynamic Range Control) ena- bles you to control the dynamic range so as to achieve a suitable sound for your equipment. NOTES: • This function works only during play- back of Dolby Digital recorded discs. • The level of Dynamic Range Reduction may differ depending on DVD video disc. -
Page 54: Parental Control Setting
PARENTAL CONTROL SETTING Some discs are specified not suitable for children. Such discs can be limited not to play back with the unit. NOTES: • If each setup (P.38,43,44,50~53, 55~57) has been completed, the unit can always be worked under the same conditions (especially with DVD discs). -
Page 55: To Change The Parental Level
TO CHANGE THE PARENTAL LEVEL NOTE: If you forget the password, you can reset the code as follows; Press and hold the Stop button on the front panel, then press and hold the number 7 button on the remote control at the same time. -
Page 56: Temporary Disabling Of Rating Level By Dvd Disc
TEMPORARY DISABLING OF RATING LEVEL BY DVD DISC Depending on the DVD disc, the disc may try to temporarily cancel the rating level that you have set. It is up to you to decide whether to cancel the rating level or not. NOTE: This temporary cancellation of rating level will be kept until the disc is ejected. -
Page 57: Setting Menu Language
You can select the language of the disc menu messages of DVDs. SETTING MENU LANGUAGE Press SETUP in the stop mode. Language Picture Press to select “Lan- guage”. Press or ENTER. Language Picture Then press to select “Menu”. Press or ENTER. Language Picture Press to select your... -
Page 58: Setting Subtitle Language
SETTING SUBTITLE LANGUAGE The same subtitle language can always be selected even if you replace the disc or turn the power off. NOTE: If the selected language is not recorded on the disc, the first-priority language is selected. Press SETUP in the stop mode. Language Picture Press to select “Lan-... -
Page 59: Setting Audio Soundtrack Language
SETTING AUDIO SOUNDTRACK LANGUAGE The same audio soundtrack language can always be selected by your unit even if you replace the disc or turn the power off. NOTE: If the selected language is not recorded on the disc, the original language will be heard. -
Page 60: Language Code List
LANGUAGE CODE LIST Enter the appropriate code number for the initial settings “AUDIO”, “SUBTITLE” and/or “MENU LANGUAGE” (see pages 55–57). Language Name Code Language Name Code Language Name Code Language Name Code Abkhazian 1112 Fiji Afar 1111 Finnish Afrikaans 1116 French Albanian 2927 Frisian Amharic... -
Page 61: Before Requesting Service
If your unit does not work properly check the following before calling a service engineer. SYMPTOMS POWER The Mains lead is not connected. No power. Main power (ON) switch is OFF. TIMER REC button is ON. Recorder does not work (TIMER REC indicator is on.) even though STANDBY light is on. - Page 62 BEFORE REQUESTING SERVICE SYMPTOMS No disc is inserted. An unplayable disc is inserted. The disc is placed upside down. The unit does not start playback. The disc is not placed within the guide. The disc is dirty. The parental lock function is set. Playback does not It is in the mode of repeat playback, follow the course of the...
-
Page 63: Remote Control Unit
TELEVISION Picture Tube: Television System: Tuner: Receiving Channels: Antenna Input: Audio Output Power: Speaker: Video Recording System: Audio Track: Tape Format: F. FWD/REW Time at 25°C: Tape Speed: Play Back Time: Input Level: Output Level: Hi-Fi Dynamic Range: Frequency Response: Wow and flutter: Signal system: Applicable disc:... - Page 64 ORION ELECTRIC CO., LTD. (JAPAN) J5N20401A SH 05/11...
- Page 65 Use micro batteries type UM-4 (AAA-Size). Open the battery compartment cover in the direction of the arrow. Connect as follows. Antenna socket Install two “AAA” batteries paying attention to the polarity diagram in the battery compartment. MODEL 21FVD Mains lead Replace the compartment cover.
- Page 66 Power On Main power (ON) switch On-screen language selection Turn on Main power (ON) switch. The STAND BY Press Sub Power ( ). The indicator will disappear. Press TV/VCR to select TV/VCR mode. Press MENU. If you press MENU for the first time, the language setting menu will appear. Press to select the desired LANGUAGE.
- Page 67 To set the clock Channel preset Press MENU. The SYSTEM SETUP menu will appear before the clock is set. Press ENTER. Press to set the day and press memorize. Set the month, year, hour and minute in the same way above. Then press ENTER. Press the TV/VCR button to select TV/VCR mode.
- Page 68 Playback procedure J5N20407A SH Press DVD to select the DVD mode. Press OPEN/CLOSE. The disc tray will open. Place a disc onto the tray. Hold the disc, position it with the printed label side up, align it with the guides, and place it in its proper position.
