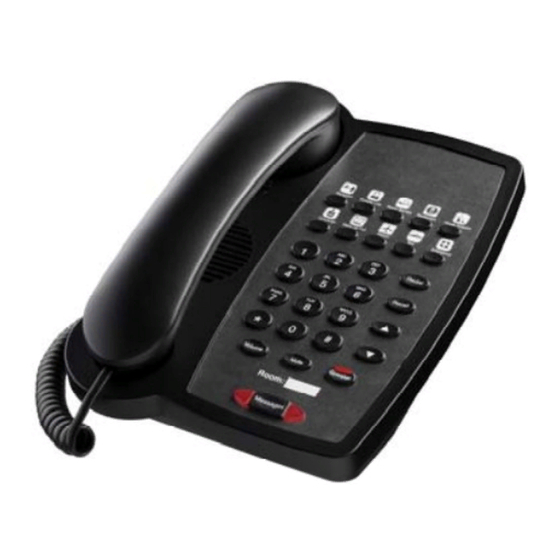

Oricom HP200 User Manual

HP200
Corded Hotel Phone with
Speakerphone
Keep this user guide for future reference
Installation
Connection
1. Connect one end of the curly cord to the handset,
and the other end to the socket marked
HANDSET on the left-hand side of the base.
2. Connect the telephone line cord to the LINE IN
socket on the telephone, and to a telephone
network wall socket.
3. Lift the handset and listen for the dial tone. Your
telephone is now operational.
4. Ensure the correct Recall time has been set for
your system PBX or phone network
For Desk Use
Fit the desk support onto the base of the phone.

Location of controls

1
2
3
Reception
4
Concierge
1
5
GHI
4
PQRS
7
6
7
8
9

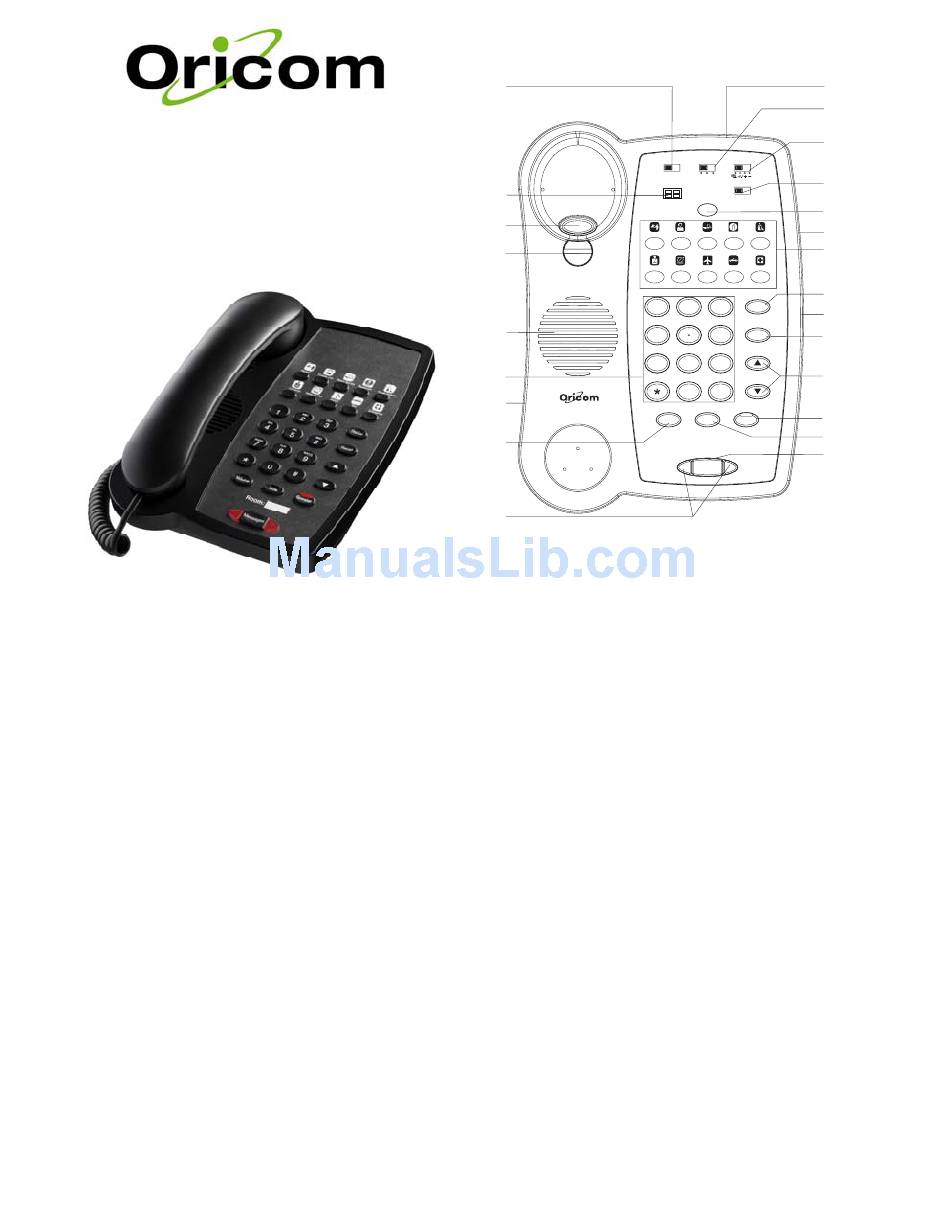

1. Program/Store switch
2. Programmer switch
3. Hook switch
4. Handset holder
5. Speaker
6. Keypad
7. Handset cord jack
8. Handset volume control button
9. Message Waiting and Visual
Ringer indicator
10. Telephone line jack
11. Recall time 100/300/600
switch
Wall mounting your phone:
For wall mounting installation, do not insert the desk
support on the base.
1. Revolve the handset catch 180° to the wall
mounting position using a small coin.
2. Connect the telephone line cord to the LINE IN
socket on the telephone, and to a telephone wall
socket.
3. Run the telephone cable inside the groove and
ensure it is tight.
4. Drill two holes vertically, one above the other,
83mm apart, and leave the screws protruding
from the wall by 5mm.
5. Align the base's keyhole slots with the screws and
slide the phone downward to secure it.
6. Lift the handset. Listen for the dial tone to ensure
the telephone is working.
10
11
12
100 300 600
Program/Store 13
Programer
2 1
Store
14
15
Outside Line Room Service Restaurant House Keeping
16
Wake Up Call Airport Taxi Emergency
17
ABC DEF
Redial
2 3
18
JKL
MNO
19
5 Recall
6
TUV WXYZ
8 9
20
0 #
21
Volume Mute
Speaker
22
23
Messages
12. Message Waiting switch
13. Line 1/2 switch
14. Store button
15. Data port
16. One touch memories
17. Ringer volume Hi/Lo switch
18. Redial button
19. Recall button
20. Speaker volume control
21. Speaker button with LED
22. Mute button
23. Messages button
