Oricom HP100 User Manual

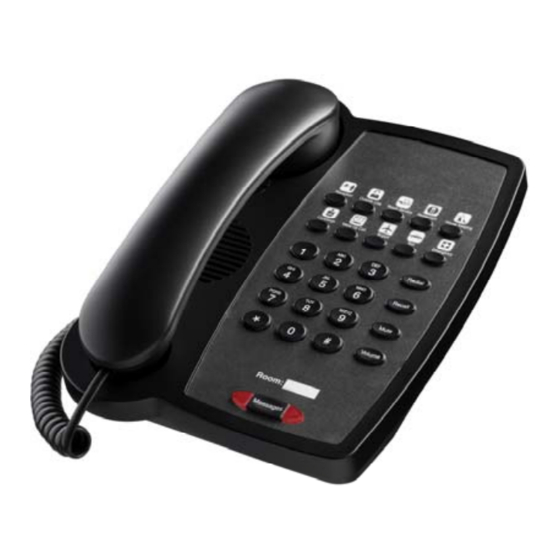

HP100
Corded Hotel Phone
Keep this user guide for future reference
Installation
Connection
1. Connect one end of the curly cord to the handset, and the
other end to the socket marked HANDSET on the left-hand
side of the base.
2. Connect the telephone line cord to the LINE IN socket on the
telephone, and to a telephone network wall socket.
3. Lift the handset and listen for the dial tone. Your telephone is
now operational.
4. Ensure the correct Recall time has been set for your
system/PBX or phone.
For Desk Use
Fit the desk support onto the base of the phone.

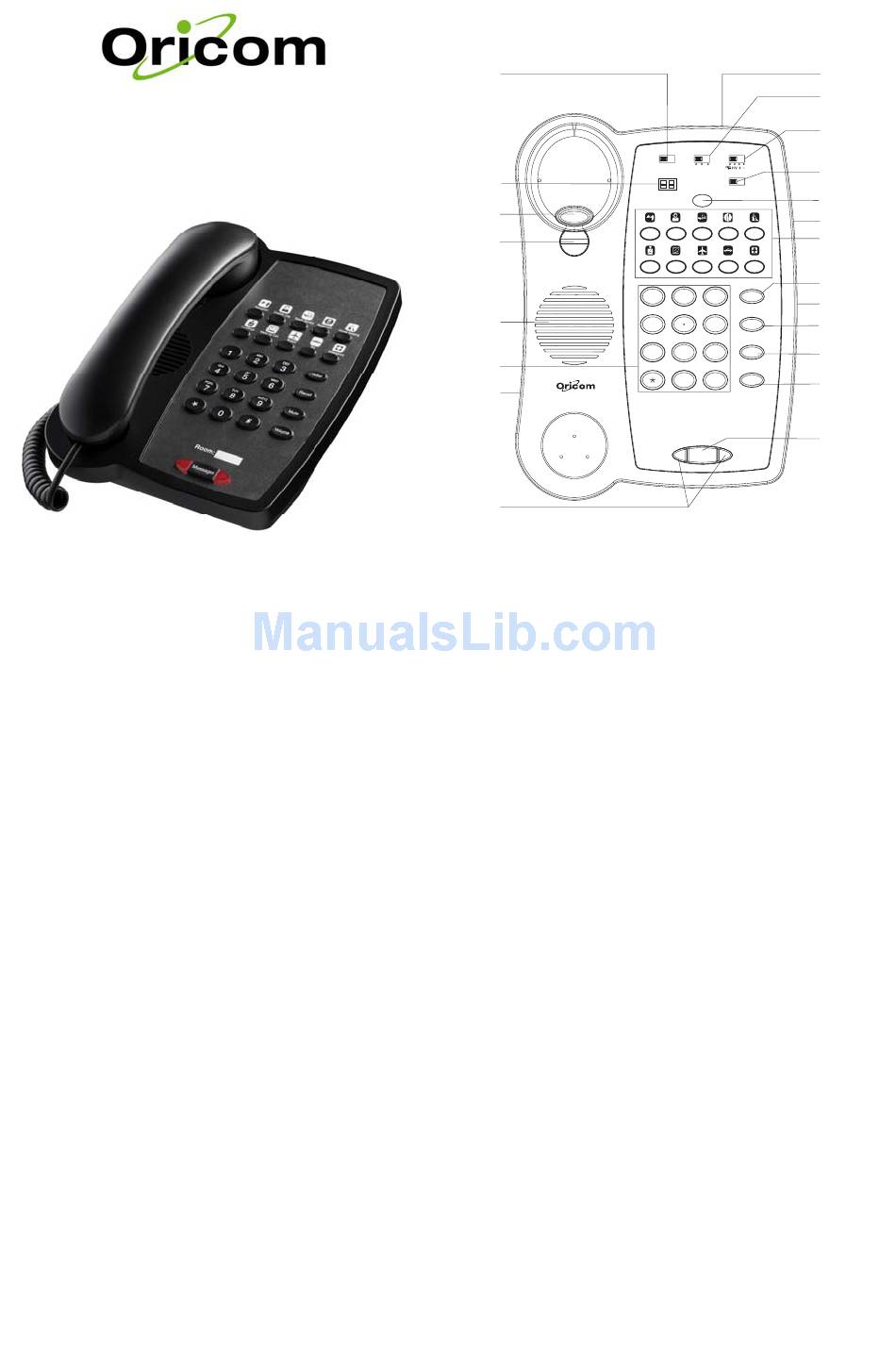

Location of Controls

1
2
3
4
5
6
7
8
1. Program/Store switch
2. Programmer switch
3. Hook switch
4. Handset holder
5. Speaker
6. Keypad
7. Handset cord jack
8. Message waiting and Visual
Ringer indicators
9. Telephone line jack
10. Flash/Recall time 100/300/600
switch

Wall mounting your phone:

For wall mounting installation, do not insert the desk support on the
base.
1. Revolve the handset catch 180° to the wall mounting position
using a small coin.
2. Connect the telephone line cord to the LINE IN socket on the
telephone, and to a telephone wall socket.
3. Run the telephone cable inside the groove and ensure it is
tight.
4. Drill two holes vertically, one above the other, 83mm apart, and
leave the screws protruding from the wall by 5mm.
5. Align the base's keyhole slots with the screws and slide the
phone downward to secure it.
6. Lift the handset. Listen for the dial tone to ensure the telephone
is working.

Using your phone

Making a call

1. Lift the handset and dial tone will be heard.
2. Dial the required telephone number.
3. On completion of the call, hang up the handset
Answering a incoming call
1. When an incoming call is received, the phone will ring,
2. Pick up the handset to answer the call.
3. On completion of the call, hang up the handset.
100 300 600
Program/Store
Programer
2 1
Store
Reception Outside Line Room Service Restaurant House Keeping
Concierge Wake Up Call Airport Taxi Emergency
ABC DEF
Redial
1 2 3
JKL
GHI MNO
5
Recall
4 6
TUV
PQRS WXYZ
Mute
7 8 9
0 #
Volume
Messages
11. Message Waiting switch
12. Line 1/2 switch
13. Store button
14. Data port
15. One touch memories
16. Redial button
17. Ringer volume Hi/Lo switch
18. Recall button
19. Mute button
20. Handset volume control button
21. Messages button
9
10
11
12
13
14
15
16
17
18
19
20
21
