QUICK START GUIDE

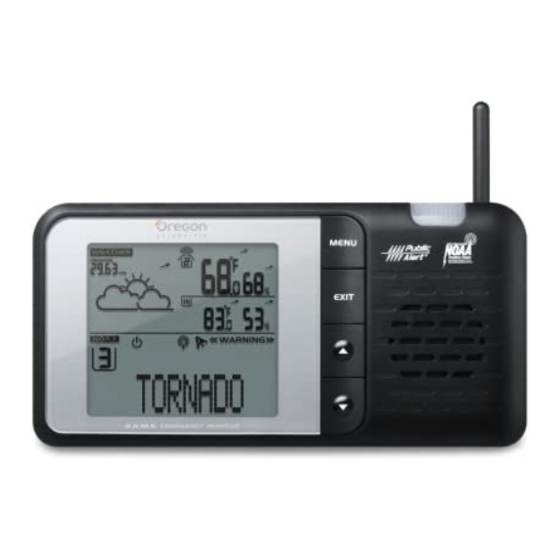

WR606 Desktop Emergency Weather Station
UNPACK
A
Make sure that you have all of the parts shown here before
setting up your Desktop Emergency Weather Station.
1× Desktop Emergency 1× THGN132N Remote
Weather Station Outdoor Sensor
INSTALL REMOTE
B
OUTDOOR SENSOR
IMPORTANT Set up the remote outdoor sensor first before setting the main unit.
1. Open the battery compartment and insert battery, matching the polarity.
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the remote outdoor sensor within 30 m (98 ft) from the main unit.
2
1
4
3
5
NOTE Press RESET after each battery change or channel selection.
INSTALL MAIN UNIT
C
IMPORTANT
Use the 7.5V AC/DC adaptor
as the main source of power supply.
4× UM-3 (AA) 1.5V 1×
7.5V Adaptor
batteries
1
LED status indicator
2
Wall mount hole
3 Battery compartment
4 RESET hole
CHANNEL switch
5
Batteries serve as back-up only. Use 3 pieces
of AA (UM-3) 1.5V batteries. Insert batteries,
RESET
matching the polarity. Press after each
battery change.
TURNING ON THE UNIT
D
FOR THE FIRST TIME
NOTE:
each step in order and confirm each setting within one minute, the WR606 will automatically exit the setup process and
this setup process to ensure your unit is ready to receive all warning messages.
n I t s u r t c o i n
Open the battery cover and press the RESET button.
Press or to select 12 or 24 time format and then
press the MENU button to confirm.
Press or to select PM/AM HOUR setting and press the
MENU button to confirm.
Press or to select MINUTE setting and press the MENU button
to confirm.
Press or to select month/day or day/month and press the
MENU button to confirm.
Press or to select YEAR and press the MENU button to confirm.
Press or to select MONTH and press the MENU button to confirm.
Press or to select DAY and press the MENU button to confirm.
Press or to select LANGUAGE (E=English / F=French /
S=Spanish) and press the MENU button to confirm.
to select "Set Channel" Mode and press MENU to select.
Press
to select "Auto" channel seeking and press the EXIT
and press EXIT button again to get back to time mode.
If you know the specific Channel (1 through 7) that is applicable to your
location, press or to select. Press the EXIT button to confirm and
press
EXIT button again to get back to time mode.
Press to switch to the NOAA ON mode.Your radio will automatically search
the appropriate channel that is in your area. Once you hear the 24-hour weather
broadcast on your radio, your radio has successfully found the appropriate channel.
If you set your channel manually, the 24-hour weather broadcast will start
immediately.
Press to switch to the NOAA STANDBY mode. The radio is in Standby
and will switch to ON when a NOAA alert message is received.
L C D D s i p a l y
button to confirm
NOAA On
NOAA Standby
complete
