Oregon Scientific Pedometer with Calorie Counter PE326CA User Manual

BATTERIES

Pedometer with Calorie Counter
Model: PE326CA
USER MANUAL
To change the batteries:
EN
1. Gently press and pull the battery compartment door.
INTRODUCTION
2. Insert 2 x LR43 size 1.5V batteries or equivalent.
Thank you for selecting an Oregon Scientific™ pedometer 3. Replace the battery compartment door.
(PE326CA).
NOTE Protect the environment by taking exhausted
Keep this manual handy as you use your new product. It
batteries to authorized disposal stations.
contains practical step-by-step instructions as well as
technical specifications and warnings you should know
To open the cover:
about.
Holding the pedometer upright, grasp the clip with one hand
and press the COVER RELEASE button with the other.

KEY FEATURES

FRONT VIEW

CLOCK

Insert a thin blunt object into HR / + or MIN / - to alter the
clock time.
NOTE The unit automatically returns to clock display after
5 seconds.

ADJUSTING THE SETTINGS

DISTANCE

Total distance = steps taken x average step length. For
greater accuracy, it is recommended that a personal stride-
1. COVER RELEASE: Press to open protective cover
length is set.
2. Battery compartment
1. Press DIST until the stride length is viewed on the top line
of the display.

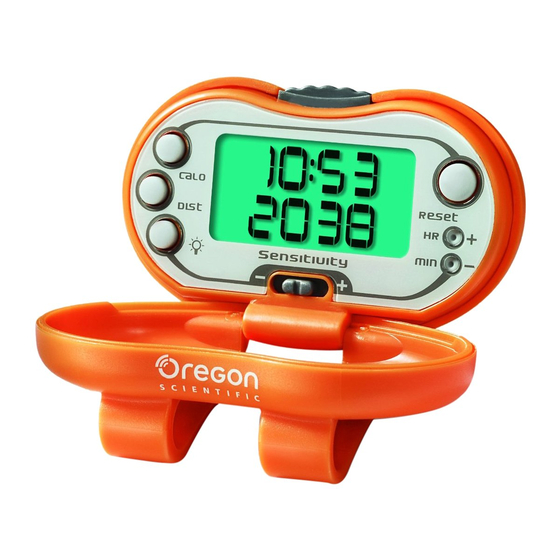

INTERIOR
2. Insert a thin blunt object into HR / + to increase or MIN
/ - to decrease stride length (30 to 150 cm or 11 to 60
inches)*.
If no changes are made to the Stride function, the unit
automatically returns to clock display after 5 seconds.
1. CALO: Calorie measurement and weight display mode
NOTE Individual stride-length varies. Input an appropriate
length for an average stride. To determine length of stride
2. DIST: Total distance and stride length display mode
walk 10 paces and divide distance traveled by 10.
3. : Turns backlight on
4. Motion Sensitivity Switch: Increases or decreases unit
sensitivity
5. RESET: Resets display mode values to zero
6. HR / +: Changes clock hour digits; increases personal
weight and stride length values
7. MIN / -: Changes clock minute digits; decreases personal
weight and stride length values
8. Belt clip

CALORIES

Precise calories burned calculations require taking many
LCD
factors into account. The PE326CA uses body weight and
the number of steps taken to give a good estimate.
1. Press CALO until the body weight is viewed on the top
line of the display.
1. PM for 12 hour format
2. Stride in Cm or Inches*
3. Weight in Kg / Lbs*
4. Distance in Km or Mile*
2. Insert a thin blunt object into HR / + or MIN / - to increase
5. Displays when calories are shown
or decrease body weight setting (65 to 340 lbs or 30 to
150 kg)*.
NOTE *Imperial units of measure are used on US models
The unit automatically returns to clock display after 5
only and metric units of measure are used on EU / UK
seconds.
models only.
MOTION SENSITIVITY

GETTING STARTED

Follow these important procedures to adjust the Motion
INSULATION TAPE
Sensitivity and ensure accurate readings:
Before using the device, pull out the insulation tape
1. Correctly position and attach the unit to a belt or
underneath the battery cover.
waistband.
NOTE The unit will not work until the tape is pulled out.
PE326CA_EN.TC.SC.indd 1
2. Reset step counter to zero.
• Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
3. Walk at a normal pace; take at least 100 steps.
is necessary.
The contents of this user manual and technical specifications
are subject to change without further notice. Images not
drawn to scale. The manufacturer and its suppliers hold no
responsibility to you or any other person for any damage
expenses, lost profits or any other claim that arises from
using this product.
If unit shows more If unit shows fewer
steps than actual steps than actual

SPECIFICATIONS

number of steps taken, number of steps taken,
slide switch toward "-". slide switch toward "+" .
TYPE
4. Adjust sensitivity switch if walking speed changes.
Step counter
Repeat steps 2-4 until accurate reading is obtained.
Distance traveled
The following conditions may cause incorrect reading
of steps taken: Stride distance
1. Uneven walking pace, such as walking in crowded areas
or on uneven floor.
Calorie display
2. Frequent up and down movements, such as standing up
Body weight range
and/or sitting down; running, jumping, going up and down
stairs etc.
Operating temp
Storage temp

USING THE PEDOMETER

Batteries

VIEWING STEPS TAKEN

Battery life
Press CALO when the unit is in clock/calorie display or press Product size
DIST when it's in clock/distance display.
(L x W x H)
Weight

VIEWING DISTANCE TRAVELED

Press DIST when the unit is in clock/calorie display.
NOTE *Imperial units of measure are used on US models
only and metric units of measure are used on EU / UK
models only.

VIEWING CALORIES BURNED

Press CALO when the unit is in clock/distance display.
ABOUT OREGON SCIENTIFIC
To reset the values, press RESET in any clock display.
Visit our website (www.oregonscientific.com) to learn more
NOTE about Oregon Scientific products such as digital cameras;
The total distance and calories burned will be cleared
MP3 players; children's electronic learning products and
along with the total steps.
games; projection clocks; health and fitness gear; weather
stations; and digital and conference phones. The website
also includes contact information for our Customer Care
FITNESS TIPS
department in case you need to reach us, as well as
To keep fit, it generally takes a person weighing 60 kg to
frequently asked questions and customer downloads.
walk 10,000 steps to burn approximately 300 calories. The
following diagram will give you some basic reference to the
calorie consumption for people of various weights. We hope you will find all the information you need on our
website, however if you're in the US and would like to contact
the Oregon Scientific Customer Care department directly,
please visit:
www2.oregonscientific.com/service/default.asp
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp
EU - DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Pedometer
with Calorie Counter (model PE326CA) is in compliance with
EMC directive 89/336/CE. A copy of the signed and dated
Declaration of Conformity is available on request via our
Oregon Scientific Customer Service.
WARNINGS
This product is designed to give you years of service if
handled properly. Observe the following guidelines:
• Clean the unit with a slightly damp cloth and mild
detergent.
• Never immerse the unit in water. This can cause electrical
shock and damage the unit.
• Do not subject the main unit to extreme force, shock, or
fluctuations in temperature or humidity.
• Do not tamper with the internal components. Doing so
will terminate the unit's warranty and may cause damage.
The unit contains no user-serviceable parts.
• Do not mix new and old batteries or batteries of different
types.
• Do not use rechargeable batteries with this product.
• Remove the batteries if storing this product for a long
period of time.
• Do not scratch the LCD.
• Read this instruction manual thoroughly before operating
the unit.
測卡路里計步器
型號 : PE326CA
用戶指南
中文繁
簡介
感謝您選用 Oregon Scientific TM 計步器(PE326CA)。
DESCRIPTION 使用產品時,應把本說明書放在附近以便隨時參考。使用指南
內含實用的逐步操作說明,以及技術規格和警告須知。
0 to 99,999 steps
0 to 999.99 km
(0 to 999.99 miles)*
主要功能
30 to 150 cm
正面圖
(11 to 60 inches)*
0.1 to 9999.9 kcal
30 to 150 kg
(65 lbs to 340 lbs)*
-10 to 40 °C (14 to 104 °F)
-20 to 60 °C (-4 to 140 °F)
2 x LR43 1.5V
1 year
64 x 30 x 40 mm
(2.52 x 1.18 x 1.58 inches)
29.4 g (1.04 ounces)
1. 外蓋釋放鈕: 按下以打開外蓋
2. 電池格
內部
1. 卡路里: 卡路里測量與體重顯示模式
2. 距離: 總距離和步伐長度顯示模式
3. : 開啟背光燈
4. 運動感應切換鈕: 增加或減少計步器對運動的敏感度
5. 重設: 將顯示模式值重設為0
6. 小時 / +: 變更時鐘的小時數值、增加個人體重和步伐長度
數值
7. 分 / -: 變更時鐘的分鐘數值、減少個人體重和步伐長度數
值
8. 皮帶夾
LCD
1. 12 小時格式的 PM (下午) 顯示
2. 以公分或吋來測量步伐*
3. 以公斤/磅來測量體重*
4. 以公里或里來測量距離*
5. 顯示卡路里時將出現
註: *英制測量單位僅用於美式型號,而公制測量單位則用於歐
盟/英式型號。
開始操作
絕緣膠帶
使用裝置前,把電池蓋下方的絕緣膠帶拉下。
註: 若未拉下膠帶,機體將無法運作。
電池
欲更換電池:
1. 請按並拉出電池格門。
2. 插入2 枚 LR43 的 1.5V 或相容電池。
3. 放回電池格門。
註:
將耗盡電量的電池送至授權的棄置站回收,保護地球環
境。
欲開啟外蓋:
一手持夾子,使計步器正面朝上,另一手按下外蓋釋放鈕。
時鐘
將薄型鈍物插入小時/+或分/-內,變更時鐘時間。
註:
計步器將在五秒後自動返回時鐘顯示。
調整設定
距離
總距離 = 步伐數 x 平均步伐長度。為取得更準確的讀數,建議
您設定個人的步伐長度。
1. 按距離,直到步伐長度顯示在螢幕的第一項中。
2. 將薄型鈍物插入小時/+,增加步伐長度,或插入分/-內,以減
少步伐長度(30至150公分或11至60吋)*。
若未變更步伐功能,計步器將在五秒後自動返回時鐘顯示。
註:
每個人的步伐長度各異。請輸入適當的平均步長。欲決
定步伐長度,先走十步,再把距離除以10。
卡路里
要準確計算已燃燒的卡路里,需要考慮許多因素。PE326CA
利用體重和步數,作出良好的計算。
1. 按卡路里,直到體重顯示在螢幕的第一項中。
2. 將薄型鈍物插入小時/+或分/-中,以增加或減少體重設定
(65至340 磅或 30 至 150 公斤)*。
計步器將在五秒後自動返回時鐘顯示。
動態感應
按下列重要步驟調整動態感應,確保取得準確讀數:
1. 將計步器正確繫在皮帶或腰帶上。
2. 重設步伐計算器為0。
3. 以正常步伐步行,最少步行100步。
若 計 步 器 顯 示 的 步 伐 若計步器顯示的步伐比
比 實 際 已 步 行 的 步 伐 實際已步行的步伐少,將
還多,將切換鈕向「-」 切換鈕向「+」滑動。
滑動。
11/24/06 9:13:06 AM
