Summary of Contents for Dual L83BK

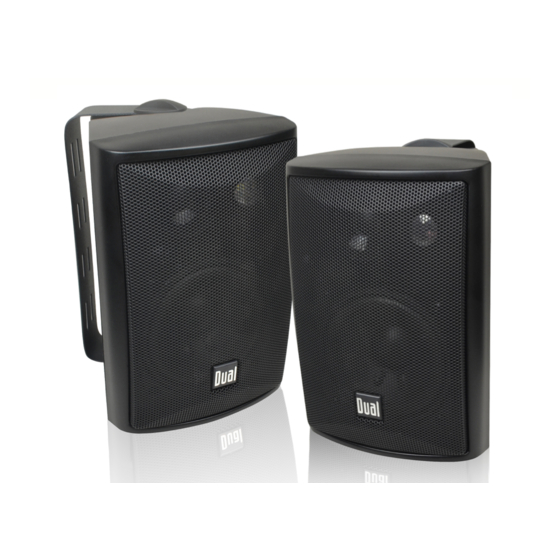

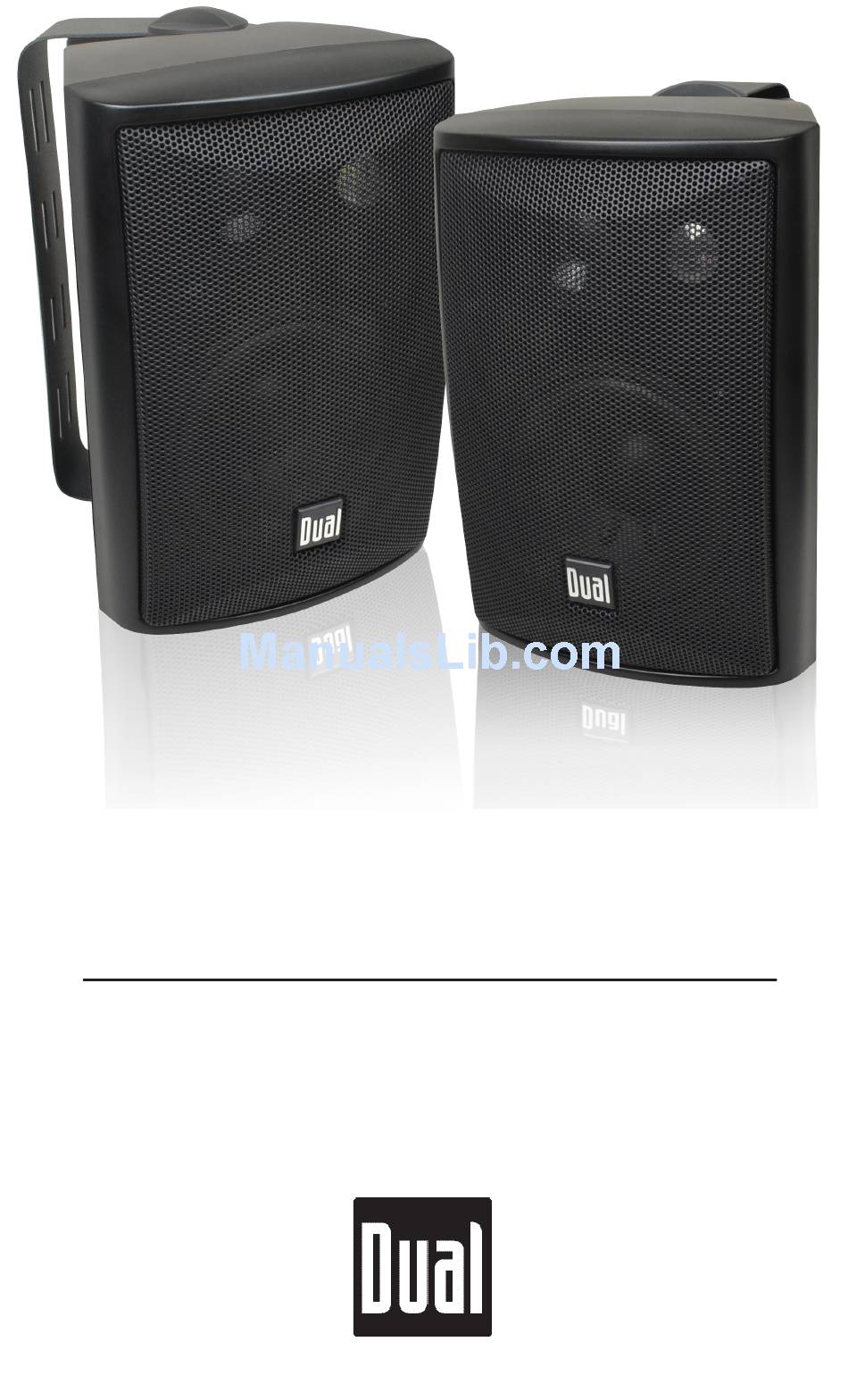

- Page 1 L83BK INSTALLATION/OWNER’S MANUAL Indoor/Outdoor 3-Way Dynamic Loudspeakers ®...
- Page 2 ® L83BK INTRODUCTION Introduction Introduction The DUAL outdoor speaker series is designed as a multi- purpose speaker and will deliver accurate high fidelity sound in exterior or interior environments. Weather-resistant design and construction provide optimum durability for permanent or temporary outdoor use. Both models are available in black or white.
- Page 3 Wall and Ceiling For wall and ceiling applications, DUAL mounting brackets Placement are included. In addition, the L83BK has a rear inset keyhole for surface hanging if aftermarket mounting systems will be used. Experiment for Better You should experiment with various placements. Room...
- Page 4 The L83BK speakers have a DUAL logo that can be rotated. The logo is located on the face of the grille in the event a vertical installation is needed.
- Page 5 Terminal Type - The L83BK utilizes a push-pin design. Gently depress the colored lever and insert the stiped end of the wire directly into the opening located in the center of the input housing.
-
Page 6: Troubleshooting
® L83BK CONNECTION & TROUBLESHOOTING Connecting Speakers Your Speakers The speaker wire must be securely connected and tightened properly to the speaker inputs. Do not over-tighten. Do not allow the positive and negative speaker wire from the receiver to make contact, as this will cause a short. -
Page 7: Specifications
® L83BK SPECIFICATIONS Specifications Specifications Model L83BK Frequency Response 100 Hz-20kHz Woofer 4" (100mm) Polyelite PVA Surround Midrange 40mm polypropylene Tweeter 20mm Piezo Dome Sensitivity 85.5 dB (2.83v @ 1 meter) Nominal Impedance 4-6 ohms Power Handling* 50 watts RMS - 100 watts (IPP) Dimensions (Inches H x W x D) 8.25 x 5.25 x 5.25 Weight 2.8 lbs. Finish Black * Power handling is based on amplifier volume never being set above the point of audible distortion. - Page 8 3. Please describe your problem in writing and original retail purchaser for products purchased include your name, a return UPS shipping from an authorized Dual dealer and used in the address (P.O. Box not acceptable), and a daytime U.S.A. phone number with your shipment.
