Summary of Contents for Oregon Scientific BPW813

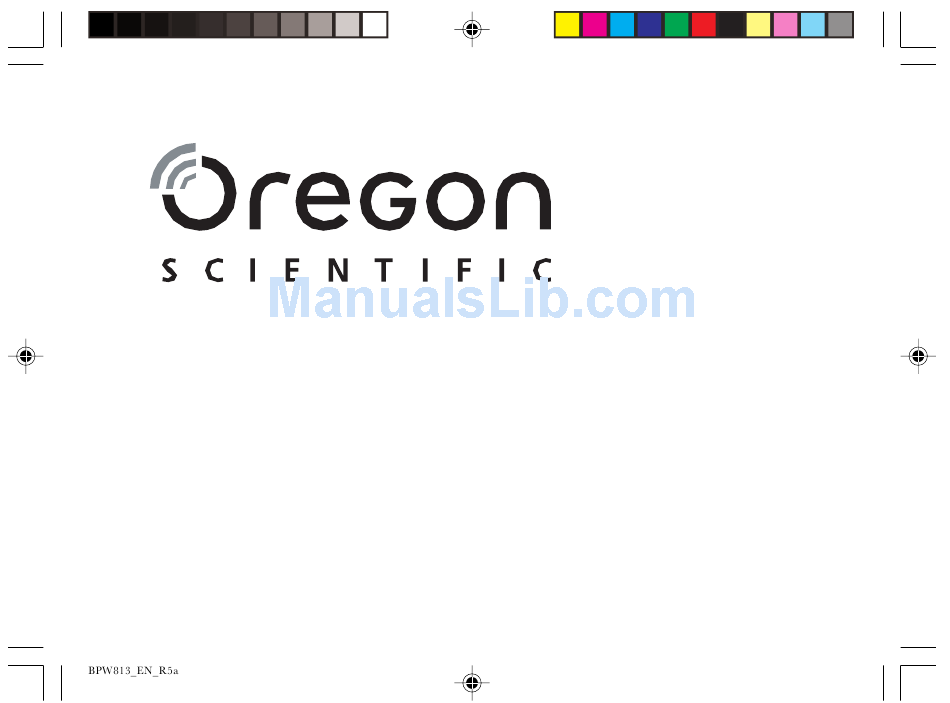

- Page 1 Talking Wrist Type Blood Pressure Monitor Model: BPW813 User Manual 10/20/04, 5:13 PM...
-
Page 2: Table Of Contents
Deleting a Measurement Record from Memory .. 12 Deleting the Latest Record ... 12 Deleting All Records ... 13 Troubleshooting ... 13 Technical Specifications ... 15 About Oregon Scientific ... 16 Information About the CE Mark ... 17 Blood Pressure Log Book ... 17 10/20/04, 5:13 PM... -
Page 3: Introduction
• Pulse rate • Historic record of up to 60 measurements per user (maximum 2 users) Readings taken by the BPW813 are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method, within the limits prescribed by "EN1060-3 Non-invasive... -
Page 4: Rear View
REAR VIEW 1. Wrist cuff 2. Battery compartment LCD SYMBOLS SYMBOL DESCRIPTION Systolic pressure Diastolic pressure Time (hour: minutes) Mean arterial pressure Pulse User Memory 10/20/04, 5:13 PM EXPLANATION The highest blood pressure measured The lowest blood pressure measured Current time Average blood pressure measured (see "What is Mean... -
Page 5: Safety And Care Instructions
SAFETY AND CARE INSTRUCTIONS SAFETY PRECAUTIONS Please observe the following safety precautions when setting up and using your blood pressure monitor. • This device is intended for adult use only. • This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not... -
Page 6: Caring For Your Blood Pressure Monitor
CARING FOR YOUR BLOOD PRESSURE MONITOR To ensure you receive the maximum benefit from using this product, please observe the following care guidelines. • When not in use, store the unit in a dry place away from direct sunlight. • Do not immerse the unit in water. If it comes in contact with water, dry it immediately with a soft lint-free cloth. - Page 7 Why measure your blood pressure? Blood pressure measurement can highly reflect one's health condition. High blood pressure is potentially linked to serious illnesses such as stroke, heart disease and kidney failure. Since there is no symptom most of the time, many hypertensive people do not realize they are at risk until their health is seriously threatened.
-
Page 8: How The Blood Pressure Monitor Works
HOW THE BLOOD PRESSURE MONITOR WORKS This product uses the Oscillometric Measuring method to detect your blood pressure. Before every measurement, the unit establishes a "zero pressure" equivalent to the air pressure. Then it starts inflating the wrist cuff to 180mmHg or higher until it senses that it has blocked your blood in the artery. -
Page 9: Setting Date, Time And Measurement Units
SETTING DATE, TIME AND MEASUREMENT UNITS It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. 1. When the unit is off, press and hold SET for 2 seconds to enter the setting mode. -
Page 10: Voice Playback Of Blood Pressure Measurements
VOICE PLAYBACK OF BLOOD PRESSURE MEASUREMENTS The BPW813 features voice playback during and after blood pressure measurement results, as well as general instructions to help you prepare for taking measurements. When the unit has finished taking your measurement, your blood pressure readings, pulse and blood pressure classification are announced. - Page 11 • Be sure to set the clock before taking your first measurement, or whenever you replace the batteries, so that the date and time are stored in the memory with your history. For instructions, refer to p. 6. • It is important to relax when taking your blood pressure.
-
Page 12: Recalling Measurements Stored In Memory
Lying Position your wrist on a support, down cushion, or your thigh so that it is parallel with your heart with the palm facing up. 3. Relax your hand and press to turn on the unit. A voice message will remind you to relax and remain still. -
Page 13: Deleting A Measurement Record From Memory
NOTE • The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. All other records are pushed back one digit (e.g., 2 becomes 3, and so on), and the last record (60) is dropped from the list. -
Page 14: Deleting All Records
TROUBLESHOOTING This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the product is not operating as you think it should, check here before arranging for servicing. - Page 15 Problem Symptom Check This Relax for a Error A measure- shows moment and message ment error then measure on the occurred display. again Err 1, 2, Refasten the The wrist cuff and then or 3 cuff is not shows measure again secure on the display...
-
Page 16: Technical Specifications
Problem Symptom Check This Retake the No user Cannot The memory find a measurement. memory was not record saved after Press taking a to save measurement the corresponding user's memory Press The record User 1's record. was stored Press to the wrong User 2's record user memory... -
Page 17: About Oregon Scientific
ABOUT OREGON SCIENTIFIC Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products such as digital cameras; MP3 players; children's electronic learning products and games; projection clocks; health and fitness gear; weather stations; and digital and conference phones. The website also includes contact... -
Page 18: Information About The Ce Mark
Part3: Supplementary requirements for electromechanical blood pressure measuring systems". The CE mark further indicates that this blood pressure monitor meets the general requirements for electronic products as regards to resistance to electromagnetic interference. Malfunctioning may however occur in the proximity of extremely strong electromagnetic fields. - Page 19 Name: Date OCT OCT Time 10PM 10PM mmHg 29.3 26.7 24.0 21.3 18.7 16.0 13.3 10.7 Age: Weight: 10/20/04, 5:13 PM (kg/lbs)
- Page 20 © 2004 Oregon Scientific. All rights reserved. P/N.: 086-003637-016 10/20/04, 5:13 PM...
