Saftronics VM10 Instruction Manual

Micro ac drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

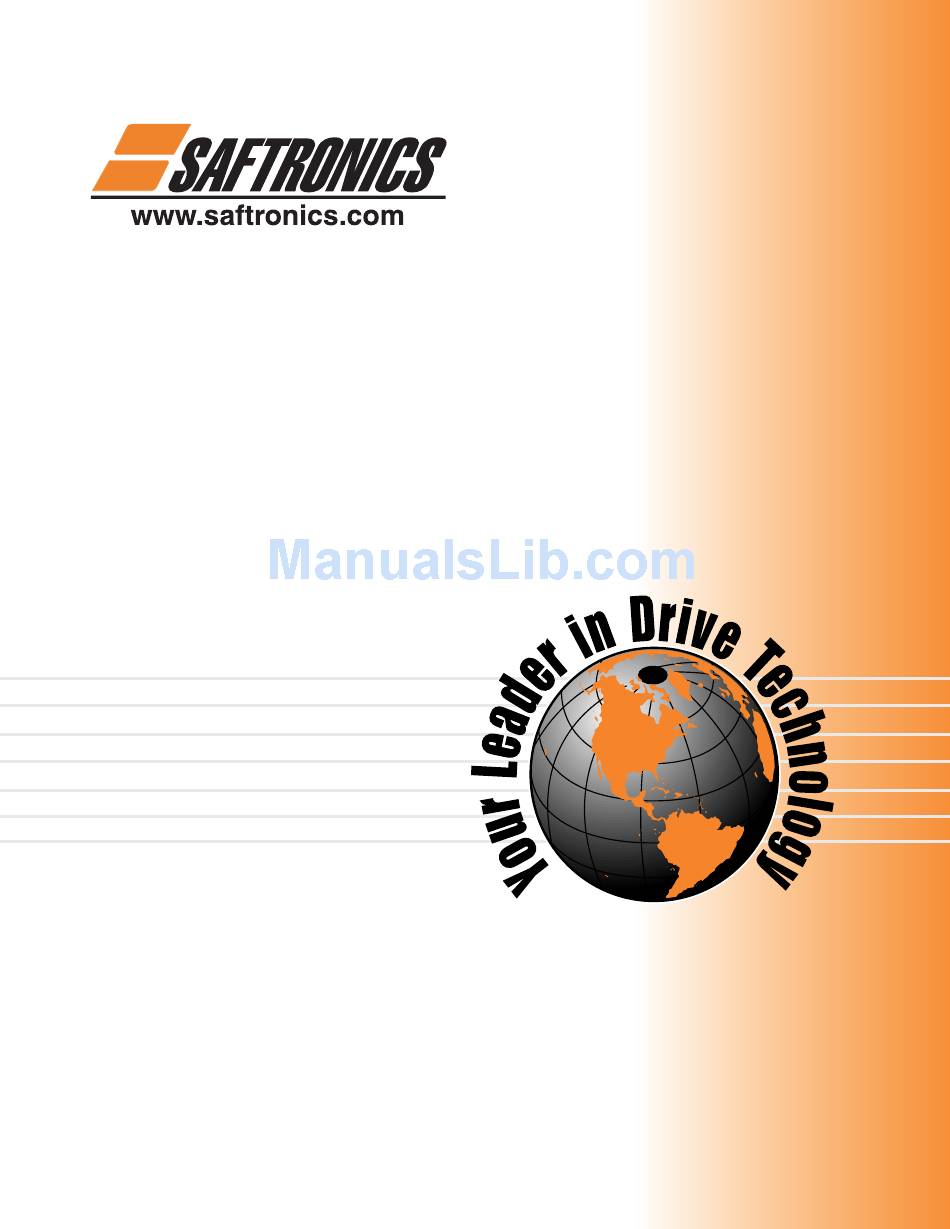

VM10
Micro
AC Drive
I
M
NSTRUCTION
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saftronics VM10

  • Page 1 VM10 Micro AC Drive NSTRUCTION ANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 BEFORE USING THIS PR ODUCT ..11 8 MAINTENANCE AND INSPECTION..70 ....11 ......70 ECEIVING NSPECTIONS AILY NSPECTION ........12 ...... 70 PPEARANCE ERIODIC NSPECTION ....13 ANDLING THE RODUCT LECTRICAL MEASUREMENTS IN THE ........14 .........
  • Page 3 Safety Instructions Read this operation manual carefully and familiarize yourself with the operation of the drive before in- stallation, connection (wiring), operation, or maintenance and inspection of the device. Become familiar with the drive, safety information, and safety signs before using it. In this instruction manual, safety signs are classified into the following categories.
  • Page 4 Compliance with low voltage directive in EU [Applicable to products with TÜV mark] CAUTION 1. Safe separation for control interface of this drive is provided when this drive is installed in overvoltage category II. PELV(Protective Extra Low Voltage) circuit or SELV(Safety Extra Low Voltage) circuit from external controller is connected to the interface directly.
  • Page 5 Compliance with low voltage directive in EU [Continued] CAUTION Use of wires specified in Appendix C of EN 60204 is recommended. Recommended wire size AWG (mm Molded case circuit Input circuit breaker (MCCB) or Power 3-phase 230V Nominal ground fault circuit supply applied [L1/R, L2/S, L3/T],...
  • Page 6 Instructions for use WARNING 1. This drive is designed to drive a three-phase induction motor and is not usable for a single- phase motor or any other purposes. Risk of fire! 2. This drive may not be used as for an elevator, life-support system, or for any other purpose di- rectly affecting the safety of humans.
  • Page 7 Instructions on wiring WARNING 1. When the drive is connected to power, connect it via a line-protection molded case circuit breaker or an ground fault circuit breaker (residual current operated protective device). Risk of fire! 2. Be sure to connect the ground wire, Risk of electric shock or fire! 3.
  • Page 8 Instructions on operation WARNING 1. Be sure to put on the surface cover before turning the power ON (close). Never remove the cover while the power is applied to the drive. Risk of electric shock! 2. Never operate switches with wet fingers. Risk of electric shock! 3.
  • Page 9 Instruction for maintenance/inspection, and replacement WARNING 1. Do not commence inspection work until at least five minutes after the power has been turned off (open). (In addition, make sure that the charge lamp has gone off and check that the DC voltage between terminals P(+) and N(-) does not exceed 25V DC.) Danger of electric shock! 2.
  • Page 10 Preface Thank you for purchasing our VM10 series drive. This product is used to drive a 3 phase electrical mo- tor at variable speed. Improper use of this product may result in personal injury and/or property dam- age. Read all operating instructions before using this device. Since this manual does not cover the use of option boards, etc., refer to relevant manuals for option operations.
  • Page 11 VM10 Model Number Configurator VM10 E9ST 3 2 _ _ _ A 1 Drive Type Enclosure 9 = IP 20 Protected Chassis Input Phases 3 = Three Phase 1 = Single Phase Input Voltage 2 = 230V 50/60Hz Horsepower F50 = 1/2 HP...
  • Page 12 VM10 Enclosure Rated Overload Model Number Part Number Dimensions Weight Rating Output (150% H x W x D (inches) (lbs) Current 1min.) 230VAC, 3 phase, 50/60Hz Input IP20 VM10E9ST32F12 ** VM102F12-9 4.72 x 3.15 x 3.23 IP20 VM10E9ST32F25 ** VM102F25-9 4.72 x 3.15 x 3.43...

  • Page 13: Before Using This Product

    1-1 Receiving Inspections Unpack and check the product as explained below. For questions or problems with this product, please contact Saftronics or your local distributor. (1) Check the ratings name plate to confirm that the delivered product is correct. Figure 1-1-1 Ratings nameplate ¬...

  • Page 14: Appearance

    1-2 Appearance (1) Surface cover (2) Keypad panel (3) Frequency setting POT (VR) (built-in POT) (4) Ratings nameplate (5) Heat sink (6) Cooling fan (2 HP or more) (7) Charge lamp CRG (8) Control terminal block (9) Main circuit terminal block 3 phase 230V [ G, L1/R, L2/S, L3/T, P1, P(+)] Single phase 230V [ G, L1/L, L2/N, P1, P(+)] (10) Main circuit terminal block...
  • Page 15 1-3 Handling the Drive Remove the surface cover as explained below. (1) For 1/8 to 1 HP drives Grasp the upper and lower parts of the cover with both hands, and pull the cover off the front of the drive. (2) For 2 to 5 HP drives Expand the lower part of the cover horizontally, lift the cover to the front, and then remove it.

  • Page 16: Carrying

    Carrying Always hold the main case while carrying this product. If carried by the cover or other parts, the drive may be dropped or damaged. Force must not be applied to the plastic drive cover while carrying. 1-5 Storage and transportation Store and transport this product under the conditions listed in Table 1-5-1.

  • Page 17: Installation And Connection

    Do not install the drive upside down, or horizontally. Heat is generated while the drive is operating, so the open- ings shown in Figure 2-2-1 are necessary for the passage of VM10 cooling air. The generated heat is convected upward by the Drive 0.4"...

  • Page 18: Connection

    ° If two or more drives need to be installed in the same device or control panel, they should be ar- ranged horizontally to minimize the influence of heat between them. If two or more drives must be installed vertically, place a plate between them to prevent the upper drive from being affected by heat from the lower drive.

  • Page 19: Connecting The Main Circuit And Ground Terminals

    For single phase 230V input circuit breaker which can also detect DC current is rec- ommended. Phase-sequence matching is unnecessary. VM10 It is recommended that a magnetic contactor is con- nected to prevent any failure or accident from becoming P(+)

  • Page 20: Connecting The Control Terminals

    DC reactor (see Figure P(+) 2-3-2. Use diagonal cutting pliers to cut the surface cover VM10 barriers from P1, P(+) terminals before connection. If no DC reactor is used, do not remove the jumper (a) Connection diagram...
  • Page 21 (2) Run/stop command terminal (FWD, REV) FWD terminal is short-circuit to CM terminal in the factory. Pressing the RUN key on the keypad panel can start forward operation. If function F02 is 0, short-circuit FWD and CM and press the RUN key for forward operation, or short-circuit REV and CM for reverse operation.
  • Page 22 Noise is generated from the drive, motor, and wiring. Ensure that noise CAUTION does not cause malfunctions in peripheral sensors and equipment. Risk of accident!. (4) Control terminal arrangement, screw size, and tightening torque Figure 2-3-7 shows the control terminal block arrangement. Screw size: M2.5;...
  • Page 23 Table 2-3-2 Functions of control circuit terminals Classifi- Terminal Terminal name Detailed specifications Remarks symbol cation Power supply for Used as power supply for frequency setting variable resistor device (POT: 1 to 5 KΩ). (+10 VDC 10mA max.) Frequency setting 0 to +10 VDC/0 to 100%, 0 to +5 VDC/0 to Analog voltage input...
  • Page 24 Classifi- Terminal Terminal name Detailed specifications Remarks cation symbol FM, 11 Analog monitor Data selected between the following items is output with DC voltage: Output frequency PID feedback value Output current DC link circuit voltage Analog * Up to two analog voltmeters (input imped- output ance: 10 KΩ...

  • Page 25: Connection Examples

    2-3-4 Connection examples 1) Keypad panel operation When power-factor correcting DC reactor is used P(+) P(+) P(+) N(-) MCCB Fuse 3-phase L1/R 230V input series L2/S 200 to 230V 50/60Hz L3/T MCCB Fuse Single-phase L1/L RESET 230V input series FUNC STOP 200 to 240V DATA...
  • Page 26 2) External operation When power-factor correcting DC reactor is used P(+) P(+) P(+) N(-) MCCB 3-phase L1/R 230V input series L2/S 200 to 230V 50/60Hz L3/T MCCB Fuse Single-phase RESET L1/L 200V input series FUNC STOP 200 to 240V DATA 50/60Hz L2/N Frequency setting POT (VR)
  • Page 27 3) Connection to PLC (when external thermal O/L relay is used) MCCB P(+) P(+) N(-) External thermal O/L relay FUSE L1/R 3-phase 230V input series L2/S 200 to 230V L3/T 50/60Hz To X2 To X2 To CM terminal To CM terminal terminal terminal MCCB...
  • Page 28 4) Connection to PLC (when analog signal is input from PLC) FUSE P(+) P(+) N(-) MCCB External thermal relay L1/R 3-phase 230V L2/S input series 200 to 230V L3/T 50/60Hz To X2 terminal To CM terminal MCCB FUSE Single-phase L1/L RESET 230V input series FUNC...

  • Page 29: Others

    2-4 Others 2-4-1 Harmonic component A harmonic component which may influence the phase-advance capacitor and generator is included in the drive input current. If necessary, connect an optional power-factor correcting DC reactor (DCR) for the drive. 2-4-2 Noise When noise generated from the drive may affect peripheral equipment, and noise generated from peripheral equipment may cause the drive to malfunction, the following basic countermeasures should be taken.

  • Page 30: Operation

    3 Operation 3-1 Inspection and Preparation before Operation Check the following before operation: (1) Check whether the connection is correct, For 3-phase 230V series, check whether the power supply is connected correctly to the L1/R, L2/S and L3/T terminals. For single-phase 230V series, check whether the power supply is con- nected correctly to the L1/L and L2/N terminals.

  • Page 31: Trial Run

    Trial Run The motor rotates when a frequency value and running command are input from the keypad panel or external signal terminal. Refer to Table 3-3-1. Use a low frequency (about 5Hz) for trial runs A frequency can be set using the built-in frequency setting POT (VR) , and forward/stop can be performed using the keypad panel with the functions set in the factory.

  • Page 32: Keypad

    1. The STOP key is valid only when the function has been set. Assign another switch to emergency stops, otherwise accidents could occur. WARNING 2. Operation starts suddenly if alarm reset is done with an running signal input. Check that no running signal is input before alarm reset, otherwise accidents could occur.

  • Page 33: Operating Keypad

    Operating Keypad 1) Switching monitor The display can be switched between frequency display and output current display by pressing FUNC in Operation mode. DATA *1 Frequency is displayed as a percentage with the least significant digit in PID control operation FUNC FUNC FUNC...
  • Page 34 Procedure Display Press the key to set the program mode. 6 0. 0 RESET F 0 0 Press the key to select a function. F 0 1 FUNC Press the key to display data. DATA Press the key to change the data. FUNC F 0 2 Press the...

  • Page 35: Selecting Function

    FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Selecting Function Function Selection List Function Selection List Table 5-1-1 Table of F: Fundamental functions Func- Change Factory tion Min.
  • Page 36 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Func- Change Factory tion Min. User Name Setting range Unit during setting code unit setting operation Electronic thermal 0:Inactive overload relay (Select) 1:Active (for 4-pole standard motor)
  • Page 37 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA E: Extension Terminal Functions Func- Change Factory tion Min. User Name Setting range Unit during setting code unit setting operation X1 terminal function Use the code values listed below to se-...
  • Page 38 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA P: Motor Parameters Func- Change Factory tion Min. User Name Setting range Unit during setting code unit setting operation Motor characteristics 0 to 10 H: High Performance Functions...
  • Page 39 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA O: Optional Functions Change Function Min. Factory User Name Setting range Unit during code No. unit setting setting operation RTU Option 0 : Inactive 1 : Active Address...

  • Page 40: Details Of Eachf

    FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Details of Each Function Change during Factory Data protection operation setting Set data can be locked to prevent it from being changed by mistake when using the keypad panel: Data can be changed.
  • Page 41 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Operation method Change during Factory operation setting The following four values can be selected: Keypad operation [ RUN STOP The motor runs when the key is pressed and decelerates-to-stop when the key is...
  • Page 42 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA SPECIAL START SOFTWARE SELECTION DURING TERMINAL OPERATION Inactive : Setting 1 or 2 Active : Setting 3 or 4 POWER ON POWER POWER...
  • Page 43 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Change during Factory Maximum output frequency operation setting 60Hz This function sets the maximum output frequency. The maximum output frequency can be set with a resolution of 1 Hz in a range between 50 and 120 Hz.
  • Page 44 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Change during Factory Base frequency operation setting 60Hz This function sets a base frequency (branch point between constant torque characteristic and constant output characteristic).
  • Page 45 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Change during Factory Torque boost operation setting This function can choose between 32 types of boost according to the load type and motor characteris- tics.
  • Page 46 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during Electronic thermal O/L relay (thermal time constant) operation setting 5.0min 0. 5 This function sets the operating time of the electronic thermal O/L relay when the current that is 150% of the operation level flows.
  • Page 47 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Continued from previous page Operating time characteristics “ ® ? ì? ? Œ À “ Á (Base frequency) 1 Hz 5 Hz 2 0 Hz 3 0 Hz...
  • Page 48 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting Operation F14 Restart mode after momentary power failure This function determines whether operation is restarted upon recovery from momentary power failure: Inactive Failure while drive is stopped: The stop status is continued after recovery from the failure.
  • Page 49 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting operation Gain (for frequency setting signal) This function outputs the frequency obtained by multiplying the reference frequency by a ratio. This function selects an analog input signal level with a value from 1 to 4 that is set by function F 0 1 .
  • Page 50 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during DC injection brake setting operation (starting frequency) 3.0Hz This function sets 3.0Hz (fixed) as the starting frequency of DC injection brake. Factory Change during setting...
  • Page 51 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during Starting frequency setting Operation Stop frequency Starting frequency stop frequency These functions set a starting or stop frequency in a range from 1 to 6Hz in 1Hz step.
  • Page 52 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during Motor sound setting operation (sound tone) This function adjusts the motor operation sound when a value of 7 or less is set with function F26. Level 0 Level 3 Factory...
  • Page 53 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting operation 30Ry operation mode This function sets the operation mode of alarm output for any fault (30Ry). Normal Tripped operation...
  • Page 54 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting operation X1 terminal function X2 terminal function X3 terminal function Multistep frequency selection 1 (SS1) Multistep frequency selection 2 (SS2) Output Frequency selected with F01...
  • Page 55 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Continued from previous page Link operation selection (LE) Operation setting can be done by commands from RS485 when the LE terminal is connected to the CM terminal.
  • Page 56 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting operation 0.0Hz Jump frequency 1, 2, 3 0.0Hz 0.0Hz These functions jump frequencies to prevent overlap be- tween the load mechanical resonance point and drive Output Frequency output frequency.
  • Page 57 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting Operation time operation Monitoring only. This function displays the integration time of power supply applied to the drive. 0 to 655 are displayed to indicate 0 to 65500 hours.
  • Page 58 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during setting Data initialization operation This function initializes data items set with all functions to values set in the factory. Manually set value Initialized (factory set value ) The display is changed from...
  • Page 59 FUNC Change during operation: N = impossible, Y* = possible (enabled by using ), Y = possible (enabled by using DATA Factory Change during PID control setting operation (Feedback signal) This function selects a PID control feedback signal. 0 Terminal 12 (0 to +10Vdc) 1 Terminal C1 (4 to 20mAdc)
  • Page 60 Deviation Drive ⋅ ⋅ Normal and frequency ⋅ output Inverse operation Feedback value (sensor) VM10 Kp : P-gain Td : Derivative time Ti : Integral time Inverse Normal operation operation Deviation Deviation Deviation is positive and Output frequency decreases. Output...

  • Page 61: Protective Function

    Protective Function List of protective functions When the protective function is activated, drive output is instantly cut off (while the motor coasts until it is stopped), and an alarm is issued, and the details of the alarm are displayed on the keypad panel. Table 6-1-1 List of Protective Functions Keypad panel dis-...

  • Page 62: Alarm Reset

    When releasing the trip status, set the operation command to OFF. When the operation command is set to ON, check that operation starts after resetting. If the cause of tripping is Er1, reset the error and initialize data. If the drive is not reset, contact Saftronics. 10ms or more...

  • Page 63: Troubleshooting

    Prolong time setting. Can the acceleration longed? Prolong time set- time setting be pro- ting. longed? Reduce load or ex- Braking method Suppress load fluctuation needs investigation. pand drive capacity. or expand drive capacity. Consult with Saftronics. -61-...
  • Page 64 Reduce moment of in- Can the moment of inertia of load be reduced? ertia. Reduce regenerating Can regenerating load be reduced? load. Consider using DC in- DC injection brake used? jection brake. Review braking method. Contact Saftronics. -62-...
  • Page 65 ON? Probable faulty drive. Contact Saftronics Probable faulty control circuit of drive or error because of noise, etc. Co ntact Saftronics (5) External alarm input (OH2) Signal from external de- Connect alarm signal con- vice connected between tact.
  • Page 66 Is electronic thermal O/L Set to correct level. relay setting correct? Probable faulty drive or Load excessive?. error because of noise, etc. Contact Saftronics. Reduce load or increase drive capacity -64-...
  • Page 67 Is data displayed on LED? Noise source nearby? Remedy faulty parts. Probable faulty drive. Drive is normal. Continue Contact Saftronics operation. (8) RS485 Communication Error (Er8) [In case RS485 communication is not used] Communication Error Er8 Probable faulty drive.
  • Page 68 (9) Input phase failure (Lin) and imbalance Connect the input wires correctly. Are all the three phases of the input voltage supplied? Examine the power supply system Is the inter-phase imbalance ratio to satisfy the specification value. within 2%? Probable faulty drive. Contact Saftronics. -66-...

  • Page 69: Other Trouble

    Possibly of faulty In- Does motor run if Input signal verter Contact Saftronics Keypad panel RUN key is pressed? Forward or reverse External wiring be- operation command tween control circuit terminals FWD, REV -...
  • Page 70 Replace faulty fre- drive or error be- excessively long? quency setting cause of noise, etc. POT(VR) or signal Contact Saftronics. converter as ap- propriate. Change setting to correct acceleration/deceleration time for load. In the following cases, change of motor speed is also restricted.
  • Page 71 Acceleration time setting Prolong time setting. too short? Moment of inertia of motor Special motor in use? Consult with Saftronics. or load excessive? Reduce moment of inertia Motor terminal voltage of load or increase drive Use thicker cable for wir- lowered? capacity.

  • Page 72: Maintenance And Inspection

    Maintenance and Inspection Execute the daily inspection and periodic inspection for preventing a fault and ensuring long-term reliability. Note the following regarding the work. Daily Inspection During the operation and conduction, the visual inspection for abnormal operation is executed from the outside without removing the covers.
  • Page 73 Table 8-2-1 Periodic inspection list Check part Check item How to inspect Evaluation criteria 1) Check the ambient air tem- 1) Measure by visual 1) The specified standard Environment perature, humidity, vibration, inspection and the value must be satisfied. 2) No foreign matter or atmosphere (dust, gas oil mist, meter.
  • Page 74 Check part Check item How to inspect Evaluation criteria Resistor 1) Unpleasant smell and crazing 1) Olfactory and 1) Not abnormal. of the insulation by visual inspection 2) Less than about ±10% of overheating 2) Visual inspection the indicated 2) No open circuit? or use a multimeter resistance value by removing a...

  • Page 75: Electrical Measurements In The Main Circuit

    Electrical measurements in the Main Circuit The indicated values depend on the meter types because of harmonic components included in the voltage and current of the main power supply (input) and the output (motor) side of the drive. Therefore, when measuring with a meter for the commercial power frequency, use the meters shown in Table 8-3-1.

  • Page 76: Insulation Test

    Incorrect use of test specific ations for the dielectric strength test may damage products like megger test. If the dielectric strength test must be conducted, contact your local distributor or near- est Saftronics sales office. (1) Megger test for the main circuit 1) Test with a 500V dc megger.

  • Page 77: Inquiries About Products And Product Warranty

    Inquiries about Products and Product Warranty (1) Inquiries If there is damage, a fault in the product, or questions concerning the product, contact your local distributor or Saftronics. Be prepared to supply the following information: a) Drive type b) Serial No. (equipment serial number) c) Purchase date d) Inquiry details (e.g., damaged part, extent of damage, questions, status of fault)

  • Page 78: Warranty Service

    Warranty Service The purpose of the following section is to provide Before calling the number at left to determine specific instructions to the user of the VM10 warranty status, the drive serial number will be drive regarding warranty administration and how required.
  • Page 79 When returning failed parts, reference the RMA # on the shipping documents that came with the replacement parts, and ship failed parts to: Saftronics, Inc., Attn: Repair Dept., 5580 Enterprise Pkwy., Fort Myers, FL 33905. Be sure to mark carton with RMA #.

  • Page 80: Specifications

    Specifications Standard Specifications 1) Three-phase 230V input Item Specifications Drive HP Nominal applied motor *1 (HP) Rated output 0.28 0.56 capacity *2 (kVA) Voltage(V) 3-phase, 200V/50Hz, 200, 220, 230V/60Hz (Proportional to input voltage) Rated current (A) 10.0 16.5 • Overload capacity 150% of rated current for 1 min.
  • Page 81 2) Single-phase 200V input series Item Specifications Drive HP Nominal applied motor *1 (HP) Rated output 0.28 0.56 capacity *2 (kVA) • Voltage(V) 3-phase, 200V/50Hz, 200, 220, 230V/60Hz (Proportional to input voltage) Rated current (A) 10.0 • Overload capacity 150% of rated current for 1 min. •...

  • Page 82: Common Specifications

    Common specifications Item Specifications Remarks Maximum • output fre- 50 to 120Hz (in 1Hz steps) quency Base • 25 to 120Hz (in 1Hz steps) frequency Starting fre- • 1 to 6Hz (in 1Hz steps) quency Carrier fre- • 0.75 to 15kHz quency (Vector-distribution PWM control selectable at 7kHz or less) When operating at a carrie r frequency of 9kHz or above, the frequency...
  • Page 83 Item Specifications Remarks • Frequency jump Jump frequency (3 points) and jump hysteresis width (1 point) can be pre- control set. Restart after • momentary Drive restarts without causing drive-trip when power supply recovers. power failure • PID control PID control function is provided standard. •...
  • Page 84 Item Specifications Remarks • Overload Internal electronic thermal overload relay protects drive overload. • Overvoltage Detect the excessive DC link circuit voltage to stop drive. • Overcurrent Detect overcurrent due to overload on drive output side to protect drive • Incoming surge Detect incoming surge voltage between AC power and the earth to protect drive.
  • Page 85 Item Specifications Remarks • Installation Indoor use only. Do not install a dusty location(Degree of pollution: 2) or location expose to direct sunlight, corrosive gases, flammable gases. • Ambient -10 to +50°C (+14 to +122°F ) temperature • Ambient 5 to 95%RH ( No condensation ) humidity •...

  • Page 86: Dimensions

    9-3 Dimensions 0.08 (2) 3.15 (80) 0.68 (17.2) 0.26 (6.5) 0.26 (6.5) 2.64 (67) TERMINAL 2 4-0.2 x 0.23 (4-5x6) holes 8 8 8 RESET FUNC STOP DATA FREQ. SET 1.48 (37.6) 0.2 (5) Terminal (M3 .5) Terminal 1 (M2.5) 3.15 (80) 0.45 (11.5) 0.06 (1.5)
  • Page 87 0.08 (2) 4.33 (110) 0.68 (17.2) 0.24 (6) 0.24 (6) 3.86 (98) TERMINAL 2 2-Ø0.2 (2-Ø5) 0.24 8 8 8 FUNC STOP DATA FREQ. SET 0.24 (6) Terminal Terminal 1 (M4) (M2.5) 2.5 (63.5) 3.86 (98) 2-Ø0.2 (2-Ø5) 0.31 Layout of Mounting hole 0.2 (5) 0.24 TERMINAL 1 30A 30B 30C FM X1 X2 X3 FWD REV CM...
  • Page 88 0.08(2) 5.51(140) 0.68 (17.2) 0.24(6) 5.04(128) 0.24 (6) TERMINAL 2 2-Ø0.2 (2-Ø5) RESET FUNC STOP FREQ. SET 0.24 Terminal Terminal 1 (M4) (M2.5) 2.61 (66.3) 5.04 (128) (6.8) 2-Ø0.2 (2-Ø5) 0.27 0.2 (5) 0.24 Layout of Mounting hole 0.2 (5) TERMINAL 1 30A 30B 30C FM X1 X2 X3 FWD REV CM 12 13 C1 TERMINAL 2...

  • Page 89: Options

    10 Options 10-1 Built-in Options There is an optional built -in card for RS485 RTU serial communication. Ask the distributer for details. 10-2 External Options Table 10-2-1 External Options Molded case circuit The molded case circuit breaker (MCCB) is connected for protecting the main breaker circuit wiring to the drive and for turning power on and off.

  • Page 90: Applicable Dc Reactors

    11 Applicable DC reactors Connection method Power Motor supply L1/R(L1/L) L2/S L3/T(L2/N) Input power-factor correcting DC reactor P(+) P(+) Symbols in parentheses ( ) are for single -phase 230V series. Fig. 11-1-1 Connection method of Input power-factor correcting DC reactor (DCR) - 88 -...

  • Page 91: Compliance With Standards

    12 Compliance with standards 12-1 UL/cUL standards [Applicable to products with UL/cUL mark] 12-1-1 General The UL standards stand for Underwriters Laboratories Inc. and they are safety standards aiming at preven- tion of fire and other accidents in the United States, thereby providing protection for operators, service per- sonnel and other persons.

  • Page 92: Ce Mark ]

    12-3 Compliance with low voltage directive in EU [Applicable to products with TÜV or CE mark] 12-3-1 General The general purpose drive is applicable for the low voltage directive in EU. Compliance of the VM10 series with EN 50178/1997 has been obtained from a testing organization in EU and compliance with the low voltage directive is asserted.

  • Page 93: Electromagnetic Compatibility (Emc)

    13-2 RFI Filters It is strongly recommended that the appropriate VM10 input filter is used, as shown in the following table, to limit RF current flowing into the main supply circuit. Without an input filter a VM10 installation may not meet statutory requirement. The drives contain high-power semi-conductor devices which are switched at high speeds to synthesize a near-sinusoidal current wave form across the frequency range of output.
  • Page 94 Table 13-2-1 RFI filters Dimensions Drive HP Filter Type Rated Max. Dimensions Mount Dims Ferrite Total Current Rated LxWxH Y x X Ring Weight Voltage (mm) (mm) (kg) Three Phase EFL075SP2 9.57x3.35x3.66 8.98x2.32 Fig. 1/ 8 to 1HP (EFL-0.75SP-2) 240Vac (243x85x93) (228x59) (1.5)
  • Page 95 Fig. 13-2-2 Note : For detail, refer to the instruction manual that comes with the RFI filter. Remark : To minimize the conducted radio disturbance in the power distribution system, the length of motor cable should be as short as possible. And it is user's responsibility to confirm that the apparatus, which the Drives in- stalled in, conforms to EMC directive when longer motor cable is used or other installation conditions are differ- ent from those described in this manual.

  • Page 96: Electromagnetic Compatibility

    13-3 Electromagnetic Compatibility (EMC) Recommended Installation Instructions It is necessary that thes e instructions be followed to conform to EMC Directives. Follow the usual safety procedures when working with electrical equipment. All electrical connec- tions to the filter, Drive and motor must be made by a qualified electrical technician.(Refer to Fig. 13-3-1 and Fig.
  • Page 97 Power supply When power-factor correcting 1-phase 200 to 240V DC reactor is used. 50/60Hz RFI Filter L’ L1/L L2/N N’ Metal Cabinet Ferrite P(+) P(+) N(-) RFI Filter Ring Motor L1 L’1 Power supply L1/R 3-phase L2 L’2 L2/S 200 to 230V 50/60Hz L’3 L3/T...
  • Page 98 5580 Enterprise Parkway, Fort Myers, Florida 33905 • Telephone (941) 693-7200 • Fax (941) 693-2431 REV 1001 P/N 027-VM1001 (INR-S147-0716) © 2001 Saftronics...
