Summary of Contents for Optoma LR4

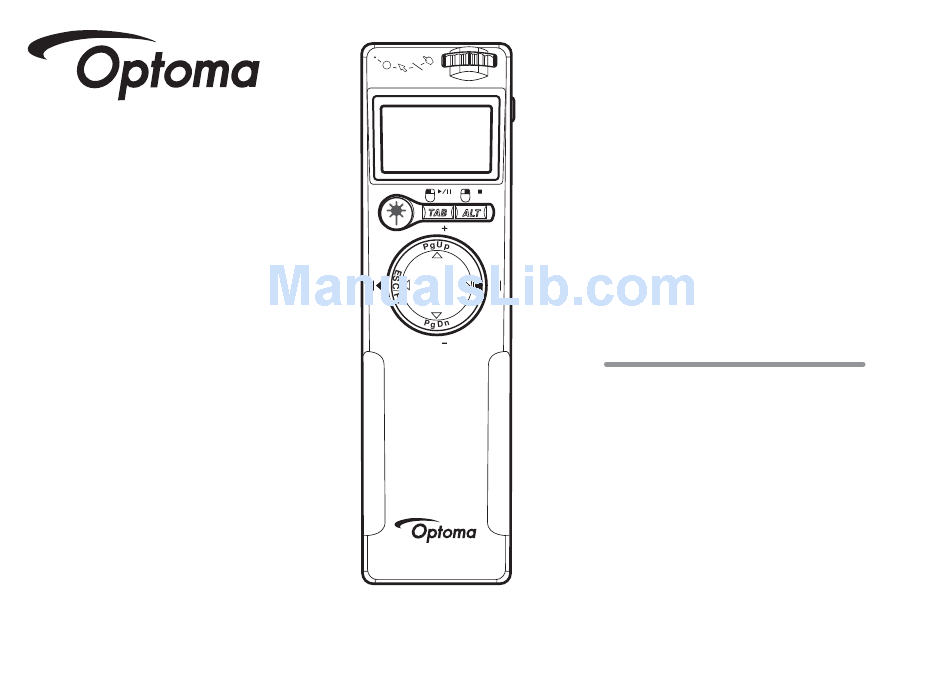

- Page 1 S E T START Wireless Laser Presenter User Manual Model No: LR4...
- Page 2 The OSD chapter details how to use LR4 menu, and the final chapter explains additional functions available. Quick Start Guide The Quick Start Guide is designed to help you set up and operate LR4 as quickly as possible. It contains basic information to get started. Syntax Convention •...
-
Page 3: Frequency Search
While inserting the battery, the LCD screen lights up for 1 second and then go out. Release the Power button after the LCD screen goes out. The Status LED will go out at the same time. The wireless transmission is reset. Now the LR4 is ready to use. -
Page 4: Table Of Contents
Table of Contents Introducing LR4 ... 1 Features ... 1 Package Contents ... 3 LR4 Components ... 4 Specifications ... 5 Laser Pointer Icons ... 5 Preparing for Use ... 6 Installing the Battery ... 6 Removing the Wireless USB Receiver ... 7 Installing the Wireless USB Receiver ... -
Page 5: Introducing Lr4
Project five different pointer images and enhance the appeal of your presentations. 1GB USB Flash Drive (optional) LR4 wireless USB receiver is also a USB flash drive that can store up to 1GB of your data. Now you can carry all your multimedia and presentations in one convenient drive. - Page 6 Backlit LCD Menu Always know the current status of your LR4 with an easily viewable display. Navigation Pad The ergonomic LR4 provides simple thumb control for easy navigation of the LCD Menu and replacing the mouse during presentations. Countdown Timer Set the timer to countdown from up to 24 hours to remind you of important events, or how much time is left for your presentation.
-
Page 7: Package Contents
1.2 Package Contents Please check the package contains the following items. S E T START LR4 User Manual Chapter 1 Introducing LR4 LR4 and Wireless USB Receiver User Manual AAA Battery x 1... -
Page 8: Lr4 Components
S E T START Laser On / Off Multifunction Navigation Controller Side View Laser Pointer Jog-wheel START/ALT/RMB SET/TAB/LMB Controller Top View Laser Pointer Power / Mode Wireless USB Receiver Connect Key / Battery Cover Status LED Chapter 1 Introducing LR4... -
Page 9: Specifications
Use of controls, adjustments or procedures other than those specified in this manual could result in hazardous exposure to laser radiation. LR4 User Manual Chapter 1 Introducing LR4 13(L) x 3.5 (W) x 2.2 (T) cm 78g (including battery) 33 feet (10 meters) 2.4G... -
Page 10: Preparing For Use
• When the controller is not used for extended periods, please remove the battery. Warning: Never dispose of batteries in fire, as they could explode. Chapter 1 Introducing LR4... -
Page 11: Removing The Wireless Usb Receiver
1.5.1.1 Powering LR4 To switch LR4 on or off, press and hold the Power/Mode button for two seconds, at the same time, the LCD illuminates for 3 seconds. The LR4 will automatically turn off after 30-minutes standby. 1.5.2 Removing the Wireless USB Receiver Locate the raised edge at the rear-end of the controller module. -
Page 12: Lr4 Menu Display
This chapter explains how to use the OSD menus Full Display Keyboard (K/B) Mouse Controller Media Player Controller Timer Controller Countdown Timer Battery Indicator (hours:minutes) Select the desired mode Normal Display HAPTER LR4 Menu Display Countdown Timer (seconds) Chapter 2 LR4 Menu Display... -
Page 13: On-Screen Display (Osd) Modes
2.2 On-Screen Display (OSD) Modes LR4 has four modes of operation. Press the Power/Mode button to cycle though the different methods of using the controller. 2.2.1 KEYBOARD (K/B) Press the Power/Mode button until K/B is highlighted on the OSD. LR4 User Manual Chapter 2 LR4 Menu Display Enter K/B mode to replace the computer keys. -
Page 14: Mouse
ALT replaces the right mouse button. TAB replaces the left mouse button. The multifunction navigation pad moves the mouse pointer. Enter MEDIA mode to play your media with the controller. Remotely play, pause, stop, skip tracks or adjust the volume. Chapter 2 LR4 Menu Display... -
Page 15: Timer
Press the Power/Mode button until TIMER is highlighted on the OSD. Decrease LR4 User Manual Chapter 2 LR4 Menu Display Enter TIMER to set and start a countdown from a maximum of 24 hours using HH:MM:SS. Press SET to start the timer and edit that value or press START to exit timer if countdown function is not needed. - Page 16 The following example details how to edit the timer settings. Add / Decrease Dec. Move right / left Move Move Quick Timer Setup: When starting the timer setting, press SET to setup the timer quickly. Press once to add 5 minutes, and so on. Chapter 2 LR4 Menu Display...
-
Page 17: Additional Information
• Pressing the PgDn (down arrow) on the multifunction navigation pad during K/B (keyboard) mode Note: During Timer mode, the backlight remains illuminated. LR4 User Manual Chapter 3 Additional Information HAPTER Additional Information This chapter details additional functions of LR4... -
Page 18: Vibrate Alert
While inserting the battery, the LCD screen lights up for 1 second and then go out. Release the Power button after the LCD screen goes out. The Status LED will go out at the same time. The wireless transmission is reset. Now the LR4 is ready to use. Chapter 3 Additional Information...
