Q19wb

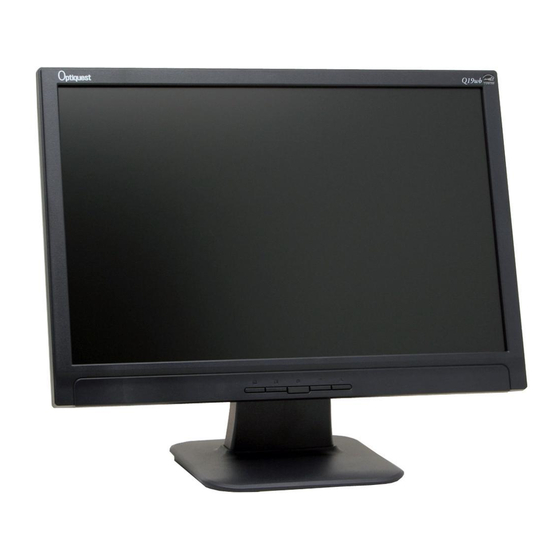

LCD Display
IMPORTANT: Please read this User Guide to obtain important
information on installing and using your product in a safe manner, as
well as registering your product for future service. Warranty information
contained in this User Guide will describe your limited coverage from
ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specific languages using the
Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en
este manual"
Model No. : VS11443
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Optiquest VS11443
Summary of Contents for Optiquest VS11443
-
Page 1: Lcd Display
ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. “Antes de operar su equipo lea cuidadosamente las instrucciones en este manual” Model No. : VS11443... -
Page 2: Table Of Contents
OSD and Power Lock Settings ... 8 Adjusting the Screen Image ... 9 Main Menu Controls ... 11 Other Information Specifications ... 14 Troubleshooting... 15 Customer Support ... 16 Cleaning the LCD Display ... 17 Limited Warranty ... 18 Mexico Limited Warranty ... 20 Optiquest Q19wb... -
Page 3: Tco Information
1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com Optiquest Q19wb... -
Page 4: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. Optiquest Q19wb... -
Page 5: Important Safety Instructions
Optiquest Q19wb... -
Page 6: Declaration Of Rohs Compliance
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. Optiquest Q19wb Proposed Maximum Concentration 0.1%... -
Page 7: Copyright Information
For the recycling information, please refer to our website: 1. USA: www.viewsonic.com/pdf/RecyclePlus.pdf 2. Europe: www.viewsoniceurope.com 3. Taiwan: recycle.epa.gov.tw Optiquest Q19wb For Your Records Q19wb ViewSonic 19" LCD Display VS11443 Q19wb-1_UG_ENG Rev. 1C 05-19-08 _______________________________ _______________________________... -
Page 8: Getting Started
Orient the LCD display away from direct sunlight to reduce glare. • Always handle the LCD display with care when moving it. Optiquest Q19wb LCD display. ® • Place the LCD display in a well ventilated area. -
Page 9: Quick Installation
This sequence (LCD display before computer) is important. Power Cord AC Outlet (Wall Socket) Optiquest Q19wb NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. Insert the ViewSonic Wizard CD into the computer’s CD drive. -
Page 10: Wall Mounting (Optional)
100 mm distance), using screws of correct length. Step 3. Attach the LCD display to the wall, following the instructions in the wall-mounting kit. Optiquest Q19wb For use only with UL Listed Wall Mount Bracket or your local dealer. Refer to the ®... -
Page 11: Using The Lcd Display
LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow Optiquest Q19wb for 10 seconds. If any buttons are again for 10 seconds. -
Page 12: Adjusting The Screen Image
Also a shortcut to Auto Image Adjust. Displays the Main Menu or exits the control screen and saves adjustments. Optiquest Q19wb Main Menu with OSD controls Front Control Panel shown below in detail Power light Green = ON Orange = Power Saving... - Page 13 • If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) Optiquest Q19wb The line at the bottom of the screen shows the current functions of buttons 1 and 2: Exit or select the Brightness control.
-
Page 14: Main Menu Controls
9300K-Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). 6500K-Adds red to the screen image for warmer white and richer red. 5400K-Adds green to the screen image for a darker color. Optiquest Q19wb and down buttons. - Page 15 Fine Tune sharpens the focus by aligning text and/or graphics with pixel boundaries. NOTE: Try Auto Image Adjust first. Sharpness adjusts the clarity and focus of the screen image. Optiquest Q19wb website URL. See your graphics card’s user guide for ®...
- Page 16 Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. Exception: This control does not affect changes made with the User Color control, Language Select or Power Lock setting. Optiquest Q19wb...
-
Page 17: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic ViewSonic. Optiquest Q19wb 19” (full 19" viewable diagonal area), TFT (Thin Film Transistor), Active Matrix WXGA+ LCD, 0.285 mm pixel pitch... -
Page 18: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time. Optiquest Q19wb for a non-DDC adapter. ®... -
Page 19: Customer Support
Islands Singapore/Malaysia/ www.ap.viewsonic.com Thailand South Africa www.viewsoniceurope.com www.viewsoniceurope.com/uk/Support/Calldesk.htm www.viewsoniceurope.com United Kingdom /uk/ United States www.viewsonic.com Optiquest Q19wb T = Telephone Email F = FAX AUS= 1800 880 818 service@au.viewsonic.com NZ= 0800 008 822 T (Toll-Free)= 1-866-463-4775 T (Toll)= 1-424-233-2533 service.ca@viewsonic.com... -
Page 20: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. Optiquest Q19wb... -
Page 21: Limited Warranty
Limitation of implied warranties: There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose. 4.3: ViewSonic LCD Warranty Optiquest Q19wb Limited Warranty VIEWSONIC LCD DISPLAY ®... - Page 22 Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information. 4.3: ViewSonic LCD Warranty Optiquest Q19wb Page 2 of 2 LCD_LW01 Rev. 1b 06-11-07...
-
Page 23: Mexico Limited Warranty
2. Any other damages, whether incidental, consequential or otherwise. 3. Any claim against the customer by any other party. 4. Repair or attempted repair by anyone not authorized by ViewSonic. 4.3: ViewSonic Mexico Limited Warranty Optiquest Q19wb ® DISPLAY PRODUCTS... - Page 24 E-Mail: rrrb@sureste.com Tijuana: Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico 4.3: ViewSonic Mexico Limited Warranty Optiquest Q19wb Villahermosa: Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx...
