Summary of Contents for Optimus SCP-92

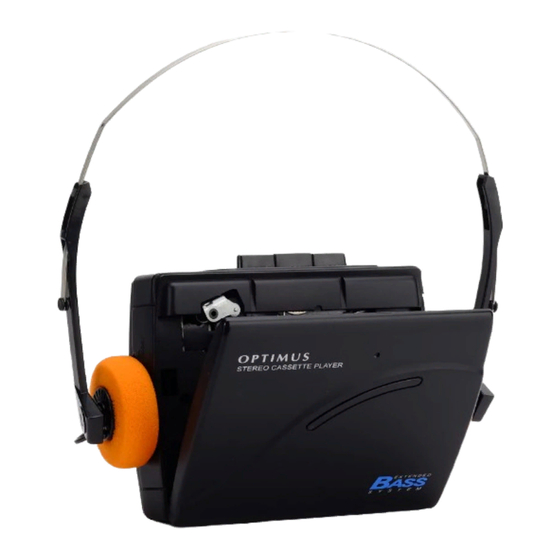

- Page 1 14-1235.fm Page 1 Friday, July 2, 1999 11:13 AM Cat. No. 14-1235 OWNER’S MANUAL Please read before using this equipment. SCP-92 Stereo Cassette Player With Headphones...
- Page 2 Bass Boost On/Off Switch — lets you increase your music’s bass sound. Removable Belt Clip — allows hands-free carrying so you can take the SCP-92 with you when you are on-the-go. © 1997 Tandy Corporation. All Rights Reserved.
- Page 3 14-1235.fm Page 3 Friday, July 2, 1999 11:13 AM Notes: • To listen to your SCP-92 privately or in stereo, you can use the supplied headphones or ampli- fied speakers (not supplied) with a plug. Your local RadioShack store sells a wide variety of speakers.
-
Page 4: Table Of Contents
14-1235.fm Page 4 Friday, July 2, 1999 11:13 AM CONTENTS Preparation ... 5 Installing Batteries ... 5 Connecting Headphones/Speakers ... 7 Listening Safely ... 7 Traffic Safety ... 8 Using the Belt Clip ... 9 Cassette Operation ... 10 Playing a Cassette Tape ... 10 Tape Tips ... -
Page 5: Preparation
14-1235.fm Page 5 Friday, July 2, 1999 11:13 AM PREPARATION INSTALLING BATTERIES You need two AA batteries to power the SCP-92. For the best performance, we recommend alkaline bat- teries, such as RadioShack Cat. No. 23-552. Follow these steps to install batteries. - Page 6 If the sound gets distorted or weak, replace the bat- teries. Cautions: • If you do not plan to use the SCP-92 for a week or more, remove the batteries. Batteries can leak chemicals that corrode or damage electronic cir- cuits.
-
Page 7: Connecting Headphones/Speakers
14-1235.fm Page 7 Friday, July 2, 1999 11:13 AM CONNECTING HEADPHONES/ SPEAKERS Connect the supplied stereo headphones or ampli- fied speakers (not supplied) with a -inch stereo plug to the jack for stereo sound. Listening Safely To protect your hearing, follow these guidelines when you use headphones. -
Page 8: Traffic Safety
14-1235.fm Page 8 Friday, July 2, 1999 11:13 AM • Set the volume to the lowest setting before you begin listening. After you begin listening, adjust the volume to a comfortable level. • Do not listen at extremely high volume levels. Extended high-volume listening can lead to per- manent hearing loss. -
Page 9: Using The Belt Clip
USING THE BELT CLIP The belt clip lets you keep your hands free while you listen to the SCP-92. To attach the belt clip, align it with the slots on the back of the SCP-92, then press the tab and slide the clip in the opposite direction of the arrow until it latches in place. -
Page 10: Cassette Operation
14-1235.fm Page 10 Friday, July 2, 1999 11:13 AM CASSETTE OPERATION PLAYING A CASSETTE TAPE 1. Take up any slack in the tape by turning the cas- sette’s hub with a pencil. Do not touch the exposed tape. 2. Pull open the cassette compartment door. - Page 11 14-1235.fm Page 11 Friday, July 2, 1999 11:13 AM 3. With its open edge facing up and its full reel to the right, insert the cassette tape into the cas- sette guides. 4. Close the door. 5. Press PLAY.
- Page 12 STOP PLAY back. To rewind the tape, turn the tape over and press F.FWD • The cassette player automatically stops when the current tape side ends, but you must press to release STOP F.FWD 6. Adjust to the desired listening level.
- Page 13 14-1235.fm Page 13 Friday, July 2, 1999 11:13 AM 7. Set for an enhanced bass BASS BOOST effect. Set it to for normal bass sound. 8. To stop playback, press STOP...
-
Page 14: Tape Tips
14-1235.fm Page 14 Friday, July 2, 1999 11:13 AM TAPE TIPS Tape Quality For the best performance, use only regular length (60- or 90-minute) cassette tapes. We do not recom- mend long-playing cassette tapes, such as C-120s, because they are extremely thin and can easily tan- gle in the playback mechanism. -
Page 15: Cleaning The Tape-Handling Parts
Dirt, dust, or particles of the tape’s coating can accu- mulate on the tape head and other parts that the tape touches. This can reduce the SCP-92’s performance. Follow these steps to clean the tape-handling parts after about every 20 hours of tape player operation. - Page 16 14-1235.fm Page 16 Friday, July 2, 1999 11:13 AM 4. Use a cotton swab dipped in denatured alcohol or tape head cleaning solution to clean the play- back head, pinch roller, capstan and tape guide. 5. When you finish cleaning, press the compartment.
-
Page 17: Maintenance
Your Optimus SCP-92 Stereo Cassette Player with Headphones is an example of superior design and craftsmanship. The following suggestions will help you care for the SCP-92 so you can enjoy it for years. • Keep the SCP-92 dry. If it gets wet, wipe it dry immediately. -
Page 18: Specifications
Battery Life (Alkaline Batteries) . 10 Hours (Approx.) Dimensions ...4 ¥ 3 (120 ¥ 97 ¥ 40 mm) Weight (Without Batteries) ... 6.5 oz CASSETTE PLAYER Tape System ... 4-Track, Stereo Tape Speed ...1 Frequency Response...125 Hz–6.3 kHz ±6 dB Signal-to-Noise Ratio ... 40 dB Wow and Flutter ... - Page 19 14-1235.fm Page 19 Friday, July 2, 1999 11:13 AM NOTES...
- Page 20 14-1235.fm Page 20 Friday, July 2, 1999 11:13 AM Limited Ninety-Day Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers.
