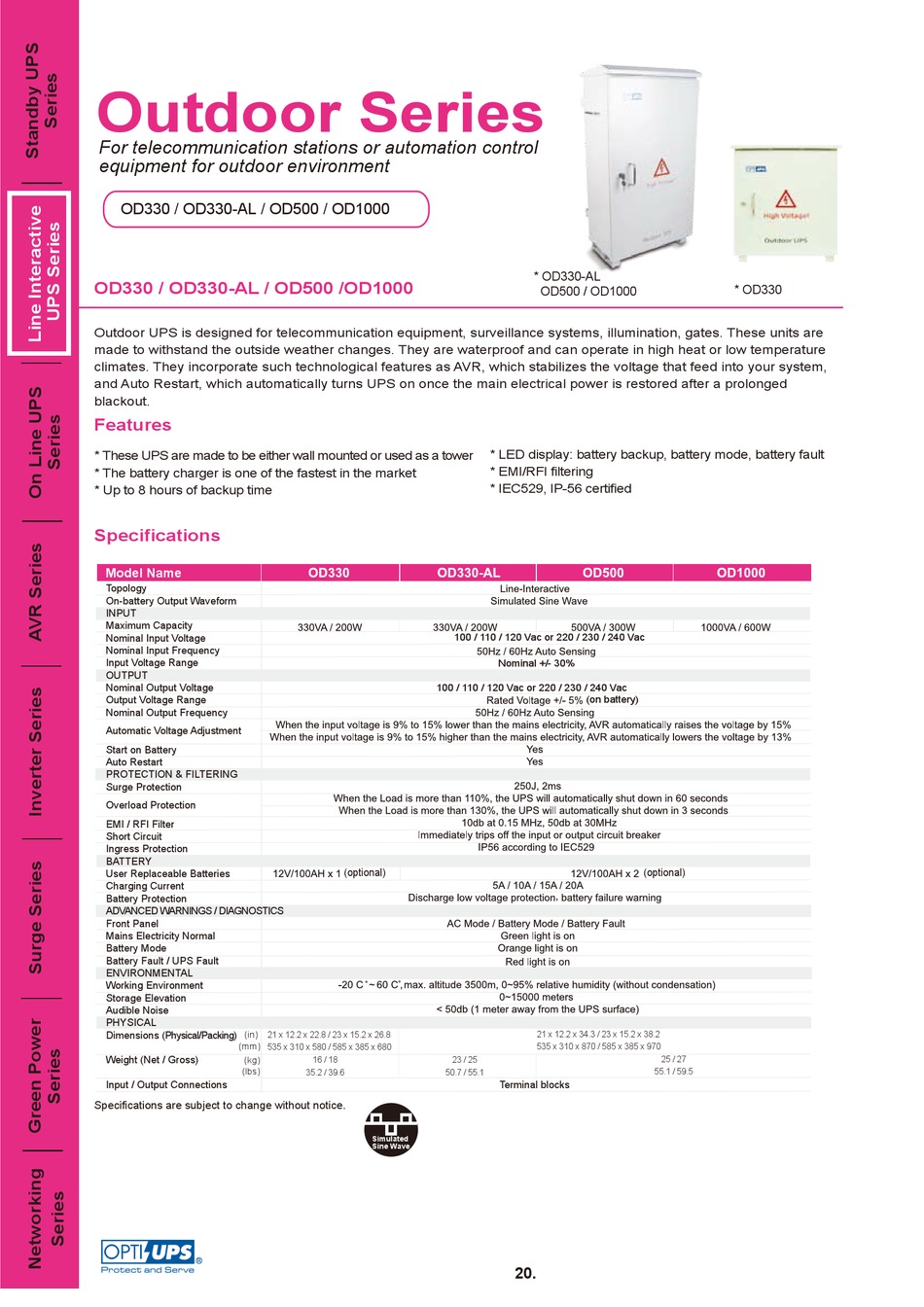

Outdoor Series
For telecommunication stations or automation control
equipment for outdoor environment
OD330 / OD330-AL / OD500 / OD1000
OD330 / OD330-AL / OD500 /OD1000
Outdoor UPS is designed for telecommunication equipment, surveillance systems, illumination, gates. These units are
made to withstand the outside weather changes. They are waterproof and can operate in high heat or low temperature
climates. They incorporate such technological features as AVR, which stabilizes the voltage that feed into your system,
and Auto Restart, which automatically turns UPS on once the main electrical power is restored after a prolonged
blackout.
Features
* These UPS are made to be either wall mounted or used as a tower
* The battery charger is one of the fastest in the market
* Up to 8 hours of backup time
Specifications
Model Name
Topology
On-battery Output Waveform
INPUT
Maximum Capacity
Nominal Input Voltage
Nominal Input Frequency
Input Voltage Range
OUTPUT
Nominal Output Voltage
Output Voltage Range
Nominal Output Frequency
Automatic Voltage Adjustment
Start on Battery
Auto Restart
PROTECTION & FILTERING
Surge Protection
Overload Protection
EMI / RFI Filter
Short Circuit
Ingress Protection
BATTERY
User Replaceable Batteries
Charging Current
Battery Protection
ADVANCED WARNINGS / DIAGNOSTICS
Front Panel
Mains Electricity Normal
Battery Mode
Battery Fault / UPS Fault
ENVIRONMENTAL
Working Environment
Storage Elevation
Audible Noise
PHYSICAL
Dimensions (Physical/Packing)
(in)
21 x 12.2 x 22.8 / 23 x 15.2 x 26.8
(mm)
535 x 310 x 580 / 585 x 385 x 680
Weight (Net / Gross)
(kg)
(lbs)
Input / Output Connections
Specifications are subject to change without notice.
100 / 110 / 120 Vac or 220 / 230 / 240 Vac
100 / 110 / 120 Vac or 220 / 230 / 240 Vac
(optional)
16 / 18
23 / 25
35.2 / 39.6
50.7 / 55.1
Simulated
Sine Wave
* OD330-AL
OD500 / OD1000
* LED display: battery backup, battery mode, battery fault
* EMI/RFI filtering
* IEC529, IP-56 certified
Nominal +/- 30%
(on battery)
(optional)
21 x 12.2 x 34.3 / 23 x 15.2 x 38.2
535 x 310 x 870 / 585 x 385 x 970
25 / 27
55.1 / 59.5
Terminal blocks
20.
* OD330
