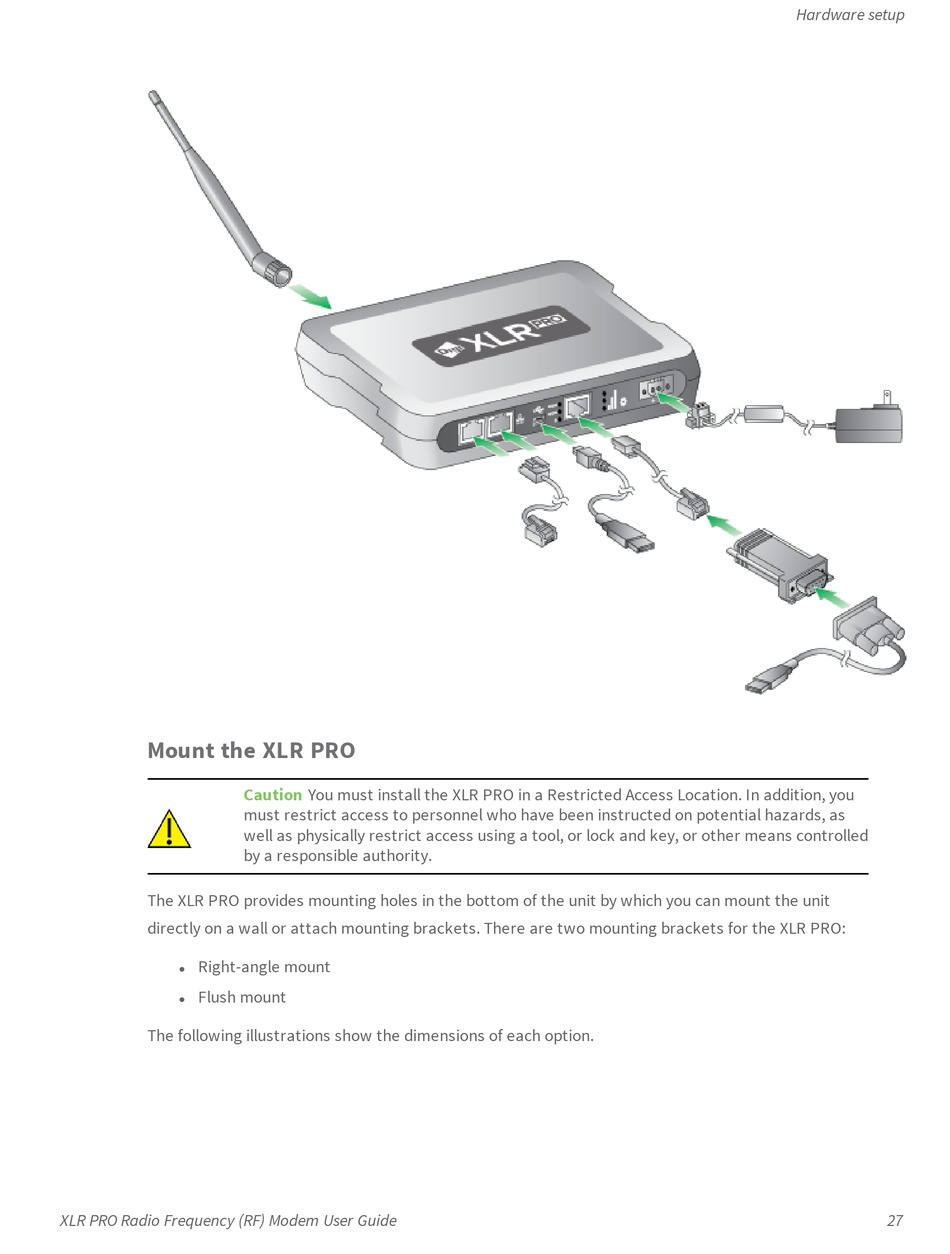

Mount the XLR PRO

The XLR PRO provides mounting holes in the bottom of the unit by which you can mount the unit
directly on a wall or attach mounting brackets. There are two mounting brackets for the XLR PRO:
Right-angle mount
l
Flush mount
l
The following illustrations show the dimensions of each option.
XLR PRO Radio Frequency (RF) Modem User Guide
Caution You must install the XLR PRO in a Restricted Access Location. In addition, you
must restrict access to personnel who have been instructed on potential hazards, as
well as physically restrict access using a tool, or lock and key, or other means controlled
by a responsible authority.
