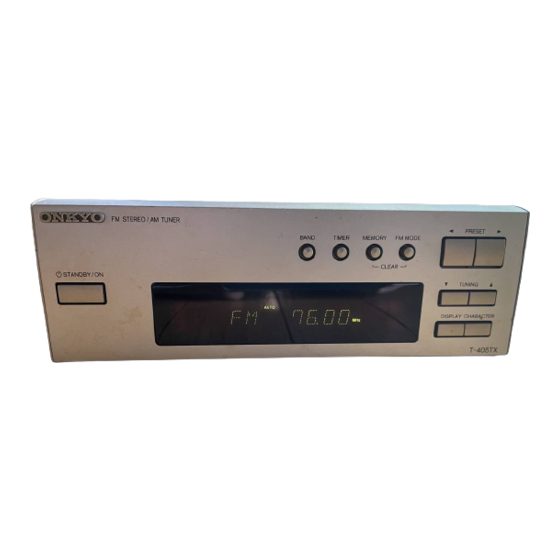

Onkyo T-405TX Instruction Manual

Fm stereo tuner
Hide thumbs Also See for T-405TX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

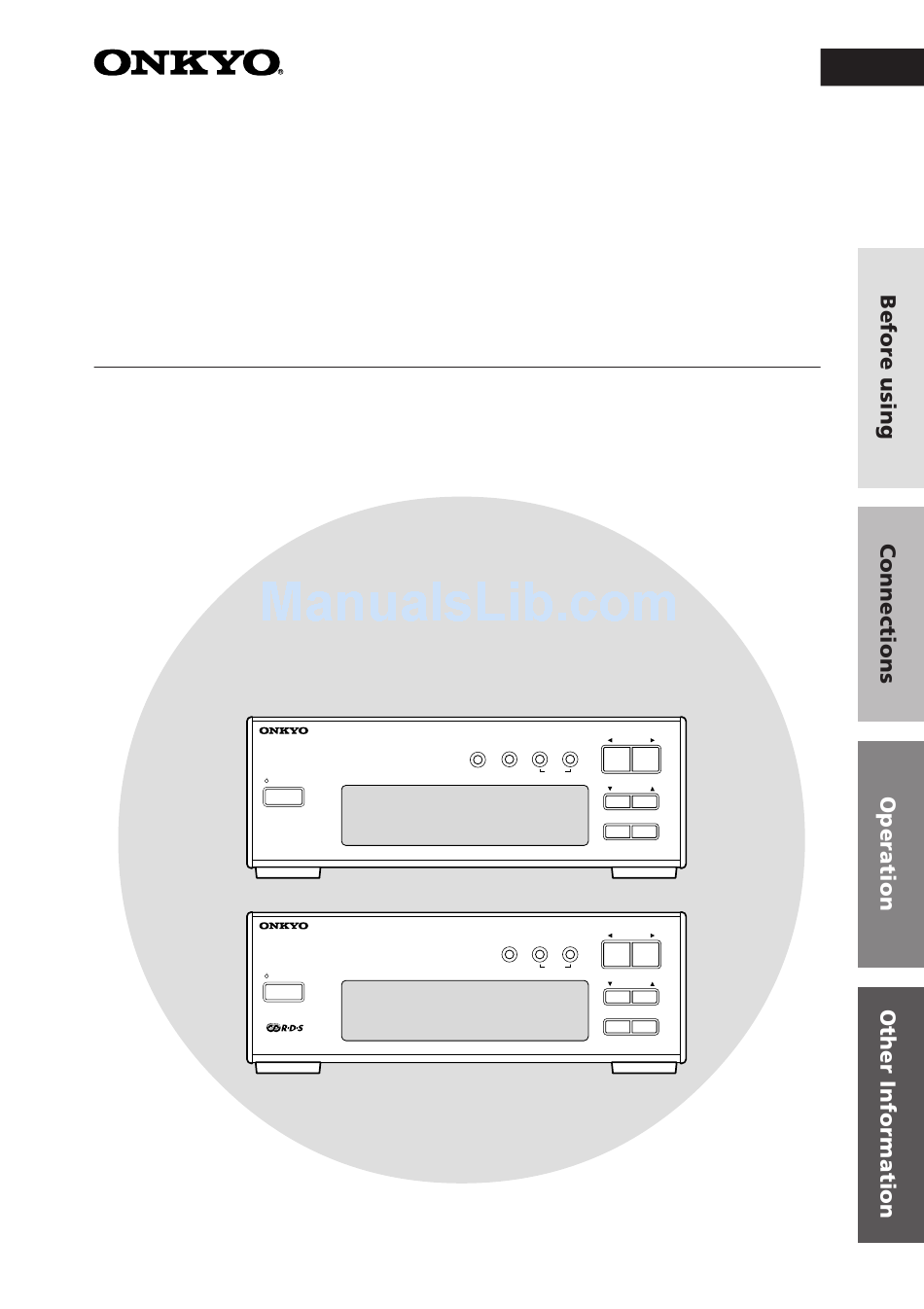

FM Stereo Tuner
T-405TX
ACCUCLOCK
ACCUCLOCK
Instruction Manual
FM STEREO TUNER
STANDBY/ ON
FM STEREO TUNER
STANDBY/ ON
PRESET
TIMER
MEMORY
FM MODE
BAND
CLEAR
TUNING
DISPLAY
CHARACTER
T-405TX
PRESET
TIMER
MEMORY
FM MODE
CLEAR
TUNING
DISPLAY
CHARACTER
T-405TX
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-405TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo T-405TX

Summary of Contents for Onkyo T-405TX

  • Page 1 FM Stereo Tuner T-405TX Instruction Manual FM STEREO TUNER STANDBY/ ON ACCUCLOCK FM STEREO TUNER STANDBY/ ON ACCUCLOCK PRESET TIMER MEMORY FM MODE BAND CLEAR TUNING DISPLAY CHARACTER T-405TX PRESET TIMER MEMORY FM MODE CLEAR TUNING DISPLAY CHARACTER T-405TX English...

  • Page 2: Important Safeguards

    Before using Thank you for purchasing ... Thank you for purchasing the ONKYO T-405TX Tuner. Please read this manual thoroughly before making any connection or turning on the power. Follow these instructions to obtain optimum performance and maximum listening enjoyment from your new Tuner.
  • Page 3 Important Safeguards Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. Ventilation – The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings;...
  • Page 4 Precautions 1. Warranty Claim You can find the serial number on the rear panel of this unit. In case of warranty claim, please report this number. 2. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt.

  • Page 5: Table Of Contents

    Table of contents Connections Connecting to the ONKYO Separate Collection Series Components ... 6 Connecting to other components ... 8 Antenna connections ... 10 Operation Setting the Clock ... 12 Receiving stations ... 16 Naming a preset station ... 19 Receiving RDS (European models only) ...

  • Page 6: Connections

    • CDR-205TX ... Compact Disc (CD) Recorder (available only in part of Asia) Note that the available components may vary according to the area. Combining the T-405TX Stereo tuner with the above system components enables you to operate the following convenient functions: •...

  • Page 7: Using The Remote Controller

    Be sure to make the connection securely. If the connection is incomplete, you cannot use the remote controller to operate the unit. Point the remote controller toward the remote control sensor of A-905TX. T-405TX A-905TX Remote control sensor RC-456S ANTENNA...

  • Page 8: Connecting To Other Components

    Note: The 230-240 V model is shown in the following illustrations. Connections FM STEREO TUNER ANTENNA Antenna connections (See pages 10, 11) Audio connection cable T-405TX MODEL NO. OUTPUT REMOTE CONTROL next page. TUNER Amplifier (White) To L connectors...
  • Page 9 OUTLET connector. This means that if the T-405TX is plugged into an AC outlet, AC power is available to this AC OUTLET even if the T-405TX is off. The shape and capacity of the AC outlet may differ depending on the area of purchase.

  • Page 10: Antenna Connections

    Antenna connections Connecting the FM antenna Connecting the antenna cable 1. Open the lever. 2. Insert the wire. FM indoor antenna The supplied FM antenna is for indoor use only. Move the antenna in various directions until the clearest signal is received. Fix it with push pins or similar implements in the position that will cause the least amount of distortion.
  • Page 11 Connecting the AM antenna (U.S. and Canadian models only) • AM reception is available only on the U.S. and Canadian models. Assembling the AM loop antenna Assemble the loop antenna as shown in the illustration. Insert into the hole. Connecting the antenna cable 1.

  • Page 12: Operation Setting The Clock

    TUNING outlet DISPLAY CHARACTER DISPLAY CHARACTER T-405TX flashes slowly • You may wish to adjust the clock manually because the time information may differ depending on the RDS station detected. If so, follow the manual clock adjustment procedure described on page 14.
  • Page 13 CLEAR STANDBY/ ON ACCUCLOCK The following procedures are based on the front panel of the T-405TX. However, you can also perform the procedure using the remote controller that comes with Onkyo A-905TX amplifier. On the remote controller, press the “ENTER”...
  • Page 14 ACCUCLOCK Setting the clock manually The following procedures are based on the front panel of the T-405TX. However, you can also perform the procedure using the remote controller that comes with Onkyo A-905TX amplifier. On the remote controller, press the “ENTER” button and “UP/DOWN”...
  • Page 15 Press the PRESET √ or ® button until “AUTO” appears, then press the MEMORY button. PRESET MEMORY “- -.- -” instead of the radio frequency will appear on the display. Press the MEMORY button. ACCUCLOCK will become active whenever the T-405TX enters STANDBY mode. MEMORY...

  • Page 16: Receiving Stations

    MEMORY FM MODE CLEAR TUNING DISPLAY CHARACTER T-405TX Hold down the MEMORY button for a few seconds. “AUTO” will start flashing on the display. Keep hold- ing down the button for a few more seconds to start the Auto Memory function.

  • Page 17: Presetting Your Favorite Stations

    PS display. (Refer to page 22 for more information on the RDS function.) RDS reception is available only on the European models. PRESET TUNING †TUNINGπ CHARACTER T-405TX PRESET STEREO AUTO MEMORY Selected preset number STEREO...

  • Page 18: Selecting Preset Stations

    “ ..” appears on the display. Note If you fail to press the FM MODE button while holding down the MEMORY button immediately, the AUTO MEMORY function will start operating. PRESET TUNING †TUNINGπ CHARACTER T-405TX BAND PRESET MEMORY FM MODE CLEAR...

  • Page 19: Naming A Preset Station

    Select the station you wish to name. (See “Selecting preset stations” on page 18.) AUTO Press the CHARACTER button. The T-405TX enters character input mode, and “...” flashes on the display. CHARACTER Flash AUTO √PRESET® The following 54 characters can be used:...

  • Page 20: Naming Preset Stations

    Select the station you wish to modify. (See “Selecting preset stations” on page 18.) STEREO Press the CHARACTER button. The T-405TX enters character input mode, and the first character flashes. Press the MEMORY button repeatedly until the character that you want to change flashes.
  • Page 21 Follow the procedure below to delete the name of the selected preset station. Press the CHARACTER button. STEREO While holding down the MEMORY button, press the FM MODE button. The name will be deleted. PRESET TUNING CHARACTER T-405TX CHARACTER CHARACTER MEMORY FM MODE CLEAR...

  • Page 22: Receiving Rds (European Models Only)

    RDS provides you with various services so that you can choose a station broadcasting your favorite categories of music or other information. The information below is available through the T-405TX. Program Service Name Radio Text Note If radio signals are weak, RDS may not be received.

  • Page 23: Using The Timer

    The T-405TX features a Timer function that enables you to start playing or recording a specified component at a specified time. To use this function, you need to configure a system that includes an ONKYO amplifier A-905TX connected to the T-405TX and other components via “System connection for use of Timer function”...
  • Page 24 The remote con- TIMER troller comes with UP/DOWN VOLUME ACOUSTIC PRESENCE - - / - - - the Onkyo A-905TX ENTER 10 / 0 REMOTE CONTROLLER RC - 456 S amplifier. Press the MEMORY button. MEMORY The current WEEKDAY or WEEKEND setting will be displayed.
  • Page 25 Press the PRESET √ or ® button to display the desired day of the week. PRESET Pressing the PRESET √ or ® button repeatedly toggles between the day indication and the bar cursor (...). Press the MEMORY button to con- firm the selection.
  • Page 26 VOLUME ACOUSTIC ENTER PRESENCE - - / - - - ENTER 10 / 0 the Onkyo A-905TX RC - 456 S REMOTE CONTROLLER amplifier. mark, such as the K-505TX. mark, such as the MD-105TX. Press the TIMER button repeatedly until “REC” appears on the display, then press the MEMORY button.
  • Page 27 You can select “NEXT” instead of the day of the week. If you do so, recording will start at the next occurrence of the indicated time. If you select “EVERYDAY,” recording will start at the designated time everyday. Press the PRESET √ or ® button to set the ON time, and press the MEMORY button.
  • Page 28 TONE CLEAR TIMER MUTING The remote con- TIMER troller comes with UP/DOWN VOLUME ACOUSTIC ENTER PRESENCE - - / - - - 10 / 0 the Onkyo A-905TX ENTER REMOTE CONTROLLER RC - 456 S amplifier. TIMER PRESET AUTO MEMORY...

  • Page 29: Sleep Function

    RANDOM The remote con- MEMORY CLEAR DISC REPEAT PLAY MODE troller comes with TONE CLEAR the Onkyo A-905TX MUTING TIMER amplifier. UP/DOWN VOLUME ACOUSTIC PRESENCE Notes for timer setting • Make sure that the clock has been set correctly before setting the timer.

  • Page 30: Other Information

    Other Information Troubleshooting Symptom No power. AM stations cannot be re- ceived. Buzzing noise on AM (particularly conspicuous at night or with weak sta- tions). High-pitched noise or buzzing noise on AM. Crackling noise on AM, Tuning indicators and ste- reo indicator light but sound is distorted and separation is bad.

  • Page 31: Index To Parts And Controls

    TUNING †/π buttons [16~18] U.S. and Canadian model’s front panel shown RDS indicator (non-U.S., non-Canadian models only) AM/PM indicator AUTO/MONO indicator AUTO MONO Multi display Frequency indicators PRESET TUNING DISPLAY CHARACTER T-405TX Tuning indicator STEREO indicator STEREO Sleep time indicator...

  • Page 32: Specifications

    0.75 V (Other area models) Muting Level : 17.2 dBf 2.0 µV, 75 Ohms Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 http://www.onkyo-intl.com ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
