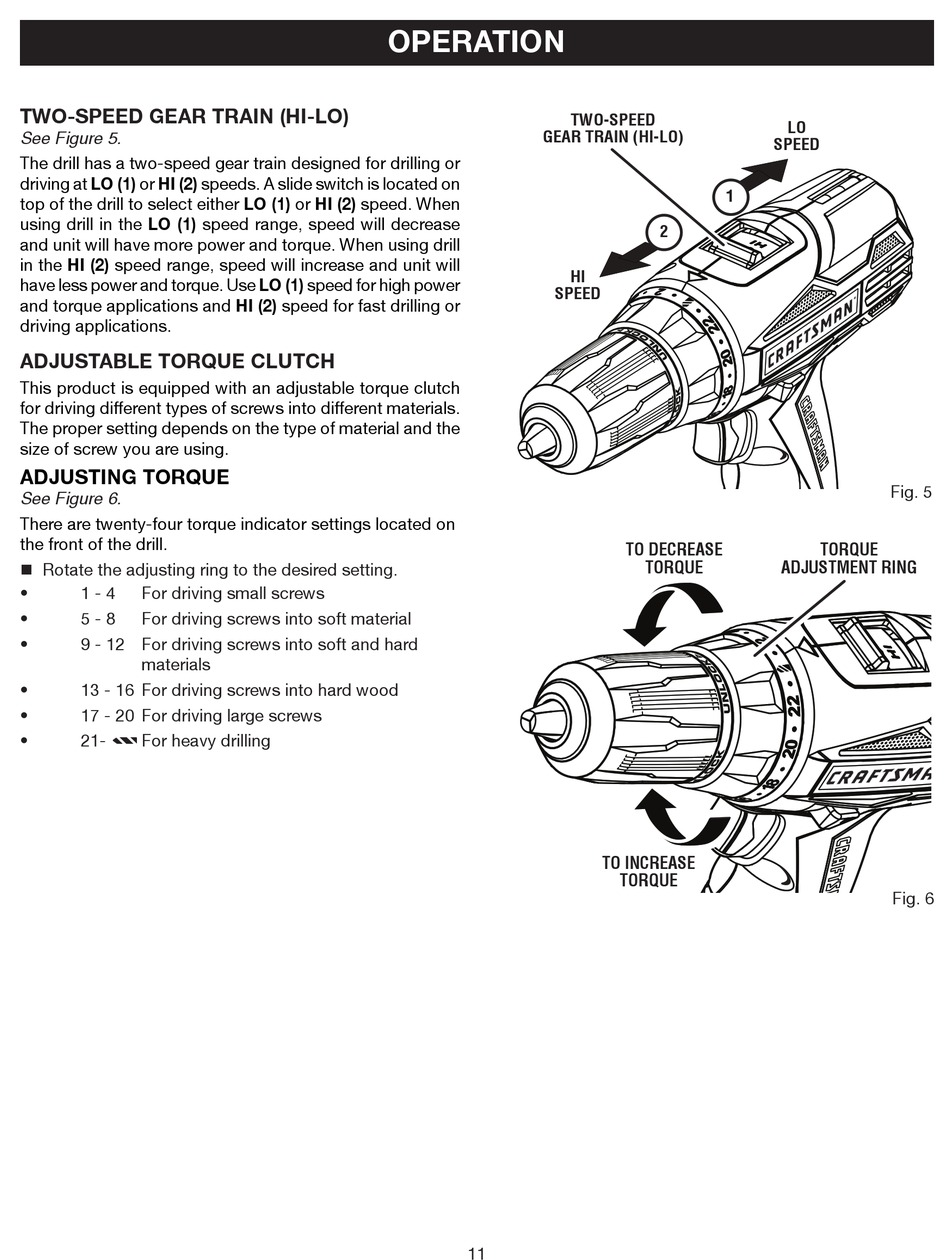

TWO-SPEED GEAR TRAIN (HI-LO)
See Figure 5.
The drill has a two-speed gear train designed for drilling or
driving at LO (1) or HI (2) speeds. A slide switch is located on
top of the drill to select either LO (1) or HI (2) speed. When
using drill in the LO (1) speed range, speed will decrease
and unit will have more power and torque. When using drill
in the HI (2) speed range, speed will increase and unit will
have less power and torque. Use LO (1) speed for high power
and torque applications and HI (2) speed for fast drilling or
driving applications.
ADJUSTABLE TORQUE CLUTCH
This product is equipped with an adjustable torque clutch
for driving different types of screws into different materials.
The proper setting depends on the type of material and the
size of screw you are using.
ADJUSTING TORQUE
See Figure 6.
There are twenty-four torque indicator settings located on
the front of the drill.
 Rotate the adjusting ring to the desired setting.
• 1 - 4 For driving small screws
• 5 - 8 For driving screws into soft material
• 9 - 12 For driving screws into soft and hard
materials
• 13 - 16 For driving screws into hard wood
• 17 - 20 For driving large screws
• 21- For heavy drilling
OPERATION
GEAR TRAIN (HI-LO)
SPEED
11
TWO-SPEED
1
2
HI
TO DECREASE
TORqUE
TO INCREASE
TORqUE
LO
SPEED
Fig. 5
TORqUE
ADjUSTmENT RING
Fig. 6
