Summary of Contents for Onkyo R-805TX

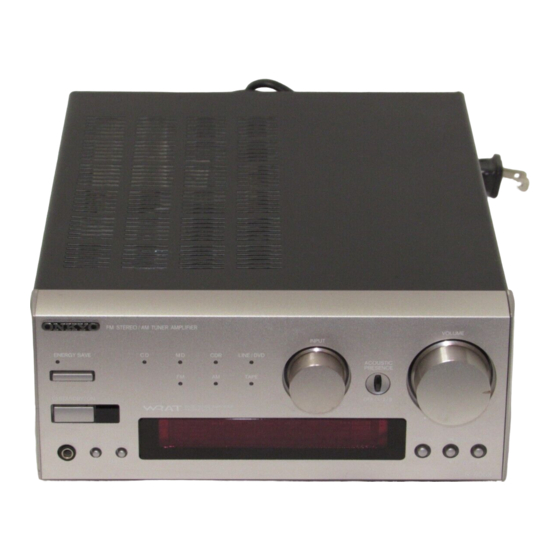

Page 1 Thank you for purchasing the ONKYO R-805TX FM Stereo/AM Tuner Ampliﬁer. Please read this manual thoroughly before making any connection or turning on the power. Follow these instructions to obtain optimum performance and maximum listening enjoyment from your new R-805TX. Please retain this manual for future reference. VOLUME INPUT CDR/PC...
Page 2: Important Safeguards
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: REDUCE ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
Page 3 14. Outdoor Antenna Grounding – If an out- side antenna or cable system is connected to the appliance, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and sup-...
Page 4 3. AC Fuse The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Onkyo authorized service station. 4. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth.
Page 5: Fcc Information For User
For U.S. model Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC, ANSI/NFPA 70, which provides guidelines for proper grounding and, in par- ticular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Page 6: Main Features
We, ONKYO EUROPE ELECTRONICS GmbH INDUSTRIESTRASSE 20 82110 GERMERING, GERMANY declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3. GERMERING, GERMANY...
Page 7: Table Of Contents
Table of contents Before using Supplied accessories ... 6 Connections Connecting to the ONKYO Separate Collection Series components ... 8 Connecting to components other than the Separate Collection Series ... 13 Connecting speaker systems... 16 Antenna connections ... 17 Connecting the AC power cord (mains lead) ... 20 Preparations Preparing the remote controller ...
Page 8: Connecting To The Onkyo Separate Collection Series Components
Connecting to the ONKYO Separate Collection Series components This section introduces you to the other Separate Collection Series system components and their convenient system functions, followed by connecting instructions. The following Separate Collection Series components are commercially available: • K-505TX ... Stereo Cassette Tape Deck (Not available in U.S. and Canada) •...
Page 9 Select the CD player C-705TX (or CD changer C-707CHX), CD recorder, and stereo cassette tape deck K-505TX in addition to this unit. When you arrange these components, stack them as shown below. Vertical way stacking This unit (R-805TX) Stereo cassette tape deck (K-505TX) CD recorder (CDR-205TX)
Page 10 “Con- nections for combination example 1.” The European model is shown in the following illustrations. Audio connection cable cable, supplied with each component (except for the R-805TX) to and AC OUTLET connections on (White) To L connector (Red)
Page 11: Signal Flow
INPUT OUTPUT (REC) (PLAY) ANALOG INPUT OUTPUT REMOTE (REC) (PLAY) CONTROL DIGITAL INPUT OPTICAL MD recorder (MD-105TX) Optical cable This unit (R-805TX) TAPE ANTENNA REMOTE CONTROL SPEAKERS LINE/DVD PROCESSOR INPUT OUTPUT (REC) (PLAY) AC OUTLET AC 230-240V 50Hz UNSWITCHED 100W MAX.
Page 12 CD changer (C-707CHX) • If the R-805TX is in Standby mode (only the display is lit) in the system, a small amount of power (for standby mode) is being supplied to the connected devices. If you do not wish to supply this power to the connected devices to save energy, press the ENERGY SAVE button on the R-805TX.
Page 13: Connecting To Components Other Than The Separate Collection Series
DVD, LD or Video equipment (White) To L connector (Red) To R connector Improper connection Insert completely Stereo cassette tape deck PLAY INPUT OUTPUT This unit (R-805TX) TAPE ANTENNA CAUTION: SPEAKER REMOTE IMPEDANCE CONTROL 4 OHMS MIN. LINE/DVD PROCESSOR SPEAKERS...
Page 14 – If you do not use the PROCESSOR connectors, connect two jumper plugs horizontally to the IN and OUT jacks ﬁrmly. Connections Remove the jumper plugs. Connect the sound processor to the unit. This unit (R-805TX) TAPE ANTENNA CAUTION: SPEAKER...
Page 15 AC connector on the rear panel. If you press the ENERGY SAVE button while the R-805TX is in standby mode, the power to the connected audio device will be turned off one minute later. (See page 20.) The shape and capacity of the AC outlet may differ depending on the area of purchase.
Page 16: Connecting Speaker Systems
Connecting speaker systems Connecting left and right speakers Before connecting • The load impedance of each speaker must be at least 4 ohms. • Do not use unnecessarily long or extremely thin speaker cords. Otherwise, the DC resis- tance of the speaker cords may become too high, lowering the damping factor and causing the sound quality to deteriorate.
Page 17: Antenna Connections
Antenna connections Connecting the AM antenna Assembling the AM loop antenna Assemble the loop antenna as shown in the illustration. Insert into the hole. Connecting the antenna cable 1. Press down the lever. Connecting the AM loop antenna The AM loop antenna is for indoor use only. Set it in the direction and position where you receive the clearest sound.
Page 18 Antenna connections Connecting the FM antenna FM indoor antenna The supplied FM antenna is for indoor use only. Move the antenna in various directions until the clearest signal is received. Fix it with push pins or similar implements in the position that will cause the least amount of distortion.
Page 19 2 Clamp it in place with pliers. 4. Re-install the cover. Directional Iinkage Directional Iinkage type splitter To R-805TX Slit C antenna Do not use the same antenna for both FM and TV (or VCR) reception since the FM and TV (or VCR) signals can inter- fere with each other.
Page 20: Connecting The Ac Power Cord (Mains Lead)
Direct Play function is dis- abled. To turn on the power to the compo- nents again, press the STANDBY/ON button on the R-805TX. (With a slight delay, the power to the components connected to the R-805TX will be turned on.)
Page 21: Operation
• If there is any obstacle between the remote controller and the remote control sensor, the remote controller will not operate. operate R-805TX FM STER EO / AM TUNE R AMPL IFIER ENER GY SAVE...
Page 22: Setting The Clock
Do not operate any but- tons until the clock setting is complete. The R-805TX retains the clock setting until you unplug the power cord. The following steps describe how to set the clock automatically: 1.
Page 23 TIMER ENTER Conﬁrming/changing the RDS station used by ACCUCLOCK If you wish to know which RDS station has been used to set the clock by ACCUCLOCK, or to use a different RDS station signal to set the clock, follow the steps below: Press the TIMER button repeatedly until “ADJUST”...
Page 24 Setting the Clock UPπ/DOWN† Setting the clock manually Press the TIMER button until “AD- JUST” is selected on the display, then press the ENTER button. TIMER The day of the week will ﬂash on the dis- play. Non-U.S. and non-Canadian models: “AUTO”...
Page 25 Press the ENTER button. ENTER The clock will start operating. Switching between the 24 hour and 12 hour display settings: 1. Press the TIMER button repeatedly to dis- play “24H/12H.” 2. Press the ENTER button. 3. Use the UP π or DOWN † button to select 24H (24 hour display) or 12H (12 hour display).
Page 26: Choosing The Required Source
ﬁgure. INPUT VOLUME VOLUME INPUT LINE/DVD ACOUSTIC PRESENCE TAPE OFF / 1 / 2 / 3 DISPLAY PRESET TUNING R-805TX INPU LINE/DVD LINE/DVD LINE/DVD TAPE STANDBY/ ON GRAPHIC EQ CLOCK SLEEP EFFECT MODE PRESET TUNER...
Page 27: Adjusting The Sound
R-805TX ENTER ACOUSTIC PRESENCE Acoustic Presence adds realness to music through the use of exclusive Onkyo circuitry. Presence settings 1, 2 and 3 are ideally suited for use with compact speakers. Press the ACOUSTIC PRESENCE on the unit or the remote controller.
Page 28: Muting/Listening With The Headphones
LINE/DVD ACOUSTIC PRESENCE TAPE OFF / 1 / 2 / 3 DISPLAY PRESET MEMORY FM MODE CLEAR TUNING WIDE RANGE AMPLIFIER ACCUCLOCK TECHNOLOGY R-805TX FM STEREO / AM TU ENERGY SAVE STANDBY / ON PHONES MEMORY FM MODE CLEAR ACCUCLOCK...
Page 29: Recording
VOLUME INPUT ACOUSTIC PRESENCE OFF / 1 / 2 / 3 DISPLAY PRESET TUNING R-805TX Prepare the playing source. e.g. Prepare the recording component. e.g. 1 Insert an MD into the MD recorder. Remote controller INPUT e.g. 2 Insert a cassette into the stereo LINE/DVD e.g.
Page 30: Receiving Stations
OFF / 1 / 2 / 3 DISPLAY PRESET †TUNINGπ TUNING R-805TX Using Auto Memory (FM only) This function enables you to store the fre- quencies into memory automatically, with- out having to go through and store each frequency manually.
Page 31: Presetting Your Favorite Stations
PRESENCE OFF / 1 / 2 / 3 DISPLAY PRESET √PRESET® TUNING R-805TX †TUNINGπ While “..” is ﬂashing, use the PRESET √ or ® button to select the preset number into which to store the station frequency. The preset number will ﬂash on the display.
Page 32 ACOUSTIC PRESENCE TAPE OFF / 1 / 2 / 3 DISPLAY PRESET √PRESET® TUNING R-805TX †TUNINGπ STEREO Clearing preset stations You can clear preset stations from the preset memory. Note If you fail to press the FM MODE button while holding down the MEMORY button immediately, the AUTO MEMORY function will start operating.
Page 33: Naming A Preset Station
(See “Selecting preset stations” on page 32.) AUTO Press and hold down the DISPLAY but- ton for more than two seconds. The R-805TX enters character input mode, and “...” ﬂashes on the display. DISPLAY Flash AUTO The following 54 characters can be used:...
Page 34: Naming Preset Stations
(See “Selecting preset stations” on page 32.) STEREO Press and hold the DISPLAY button for a few seconds. The R-805TX enters character input mode, and the ﬁrst character ﬂashes. Press the MEMORY button repeatedly until the character that you want to change ﬂashes.
Page 35 Press and hold the DISPLAY button for STEREO a few seconds. While holding down the MEMORY button, press and hold the FM MODE button for a few seconds. The name will be deleted. VOLUME PRESET TUNING R-805TX DISPLAY MEMORY FM MODE CLEAR...
Page 36: Receiving Rds (European Models Only)
The information below is available through the R-805TX. PS: Program Service Name RT: Radio Text Note If radio signals are weak, RDS may not be received.
Page 37: Using The Timer
Using the timer The R-805TX features a Timer function that enables you to start playing or recording a speci- ﬁed component at a speciﬁed time. To use this function, you need to connect this unit to other components via REMOTE CONTROL jacks. Refer to “Connecting the and AC OUTLETS”...
Page 38 Using the timer UPπ/DOWN† Changing the WEEKDAY and WEEKEND settings You can deﬁne or change which day is WEEK- DAY or WEEKEND. You can also deﬁne the day as both WEEKDAY and WEEKEND in order to program two timer settings on the same day. The initial factory settings are: WEEKDAY : Monday –...
Page 39 Programming to play at a speci- ﬁed time Before using the timer for listening to or recording broadcast programs, you need to store the preset stations. (Refer to “Receiv- ing stations” on page 30, 31 for information how to preset stations.) Press the TIMER button repeatedly until “WEEKDAY”...
Page 40 WIDE RANGE AMPLIFIER ACCUCLOCK TECHNOLOGY If you select an input source that is not connected to the R-805TX, the power is turned on to the unit at the programmed time and the input source is switched, but nothing will happen.
Page 41 Press the UP π or DOWN † button to set the ON time, and press the ENTER button. UP/DOWN TIMER ENTER Notes • You can also use the number buttons instead of the UP π or DOWN † button to set the desired recording ON and OFF time.
Page 42 PRESENCE OFF / 1 / 2 / 3 DISPLAY PRESET TIMER TUNING R-805TX ENTER Press the TIMER button repeatedly until the timer mode (WEEKDAY, WEEKEND or REC) that you wish to enable or disable appears on the upper left corner of the display.
Page 43: Sleep Function
Sleep function The Sleep function can be performed only by using remote controller. The SLEEP timer automatically sets the entire system to Standby mode after a speciﬁed period of time. Start playing something you would like to listen to. (CD, tape, MD or radio broadcast). Press the SLEEP button repeatedly to set the desired sleep time.
Page 44: Troubleshooting
Troubleshooting If you have any problems with the unit, please check the troubleshooting table below ﬁrst. For any problems not covered in the table, please consult your nearest ONKYO authorized service center. Symptom The unit doesn’t turn Sound is reproduced from neither left or right speaker.
Page 45 Symptom Cause AM stations cannot • AM loop antenna is not be received. attached. Buzzing noise on AM • Noise from electrical appa- (particularly conspicu- ratus such as ﬂuorescent ous at night or with lamp. weak stations). High-pitched noise or •...
Page 46: Specifications
Speciﬁcations Ampliﬁer Section Power output 20 watts per channel, min RMS, at 4 ohms, both channels driven 1 kHz, with no more than 0.6% THD 15 watt per channel, min RMS, at 8 ohms, both channels driven 1 kHz, with no more than 0.6% THD 2 X 20 watts at 4 ohms, 1 kHz, DIN 2 X 17 watts at 6 ohms, 1 kHz, DIN 2 X 15 watts at 8 ohms, 1 kHz, DIN...
Page 47: Power Supply
General Clock precision monthly error: +/-30 seconds (at 25 degrees Celsius) Power supply AC 120 V, 60 Hz AC 230-240 V, 50 Hz Power consumption 61 W (120 V, 60 Hz) 54 W (230-240 V, 50 Hz) Dimensions (W X H X D) 205 X 91 X 302 mm 8-1/16"...
Page 48: Index To Parts And Controls
ACOUSTIC PRESENCE button [27] VOLUME control [26] VOLUME ACOUSTIC PRESENCE OFF / 1 / 2 / 3 DISPLAY PRESET TUNING R-805TX √PRESET ® buttons [31~33, 35] †TUNINGπ buttons [30~32] European models front panel shown. Tuning indicator STEREO indicator STEREO MUTING MUTING indicator...
Page 49: Remote Controller
Remote controller • You can control the other • The remote controller buttons operate in the same way as the buttons on each component with the same indication. • For actual operations, please refer to the Instruction Manual for each component. STANDBY/ON button [20, 40, 42] Toggles between STANDBY and Tuner control [31~33, 35]...
Page 50 Remote controller • Use the following buttons to control components that are connected to the Stereo cassette tape deck control : Reverse play button : Stop button : Play button : Rewind button : Fast-forward button DVD player control : Chapter/track down button : Chapter/track up button...
Page 51 MEMO...
Page 52 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 E-mail: info@onkyo.de ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, HOMEPAGE N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039...
