5.1 Ch Home Theater Speaker Package
HTP-240
6.1 Ch Home Theater Speaker Package
SKS-HT240
Instruction Manual
Thank you for purchasing an Onkyo home theater
speaker package. Please read this manual thoroughly
before using your new speakers. Following the
instructions in this manual will enable you to obtain
optimum performance and listening enjoyment from
your speaker package.
Please retain this manual for future reference.
Contents
Getting Started
Important Safeguards ..................... 2
Precautions ..................................... 3
Introduction ..................................... 4
Package Contents ........................... 4
Package ........................................ 5
Installing & Using
Various Mounting Methods ............ 6
Connecting the Speakers ............... 8
About Home Theater ....................... 9
Adjustment .................................... 10
Appendix
Caring for Your Speakers.............. 10
Troubleshooting ............................ 11
Specifications................................ 11
E
n
Advertisement
Table of Contents
Related Manuals for Onkyo SKS-HT240
Summary of Contents for Onkyo SKS-HT240
-
Page 1: Table Of Contents
6.1 Ch Home Theater Speaker Package SKS-HT240 Instruction Manual Thank you for purchasing an Onkyo home theater speaker package. Please read this manual thoroughly before using your new speakers. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your speaker package. -
Page 2: Important Safeguards
HTP-240.fm Page 2 Thursday, April 7, 2005 4:36 PM WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. -
Page 3: Precautions
2. AC Fuse The fuse is located inside the chassis and is not userser- viceable. If power does not come on, contact your Onkyo authorized service station. 3. Care From time to time you should wipe off the front and rear panels and the cabinet with a soft cloth. -
Page 4: Introduction

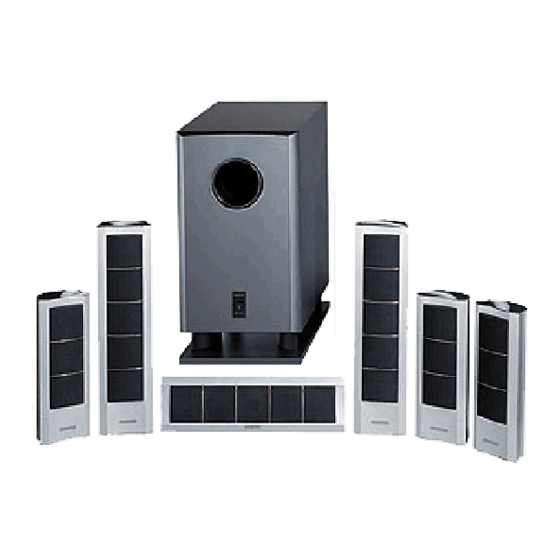

HTP-240.fm Page 4 Thursday, April 7, 2005 4:36 PM Introduction The HTP-240’s and SKS-HT240’s stylish enclosures are made of aluminum and their slim design makes them ideal for use with LCD and plasma TVs. HTP-240 The HTP-240 is a 5.1-channel speaker package consist- ing of front left and right speakers, a center speaker, sur- round left and right speakers, and a powered subwoofer. -
Page 5: Getting To Know Your Speaker Package
(SKF-240F, SKC-240C, SKM-240S, SKB-240) To AC outlet Speaker terminals These push terminals are for connecting the speaker to your DR-S2.2 DVD Receiver, amp, or other receiver with the supplied speaker cables. The sup- plied speaker cables are color-coded for easy identi- fication. -
Page 6: Various Mounting Methods
If it’s loose, try resetting it. Note: • If you put the center speaker on the floor, take it off the base and position it so that it’s facing slightly up toward the listener’s ears. - Page 7 (65 mm) Use this hole if mounting horizontally Note: The portion of the screw that goes into the speaker’s threaded insert should be between 1/5" and 3/8" of an inch long (5 mm and 9 mm). Mount or bracket 1/5"–3/8"...
-
Page 8: Connecting The Speakers
2 – –VIDEO – – 1 VIDEO WOOFER PRE OUT AUDIO VIDEO2 VIDEO 1 CDR/PC Gray Surround right speaker SKS-HT240 & 6-channel AV Amp Hookup Onkyo AV receiver used in this example. Front right Color speaker White Green Blue Gray Brown ANTENNA... -
Page 9: About Home Theater
HTP-240.fm Page 9 Thursday, April 7, 2005 4:36 PM About Home Theater Enjoying Home Theater The HTP-240/SKS-HT240’s great sound means that you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. Center speaker... -
Page 10: Adjustment
TV or monitor. Operating Precautions The HTP-240/SKS-HT240 speakers can handle the specified input power when used for normal music reproduction. If any of the following signals are fed to them, even if the input power is within the specified rat-... -
Page 11: Troubleshooting
HTP-240.fm Page 11 Thursday, April 7, 2005 4:36 PM Troubleshooting Symptom Possible cause The speaker cables are not connected properly. Check the speaker cables and correct as necessary. HTP-240: The number of speaker channels is not set to 5ch on the DR-S2.2. There’s no sound coming... - Page 12 ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ SN 29343622C (C) Copyright 2005 ONKYO CORPORATION Japan. All rights reserved. ■ Surround Speaker (SKM-240S/SKB-240) Type: Impedance: Maximum input power:...
