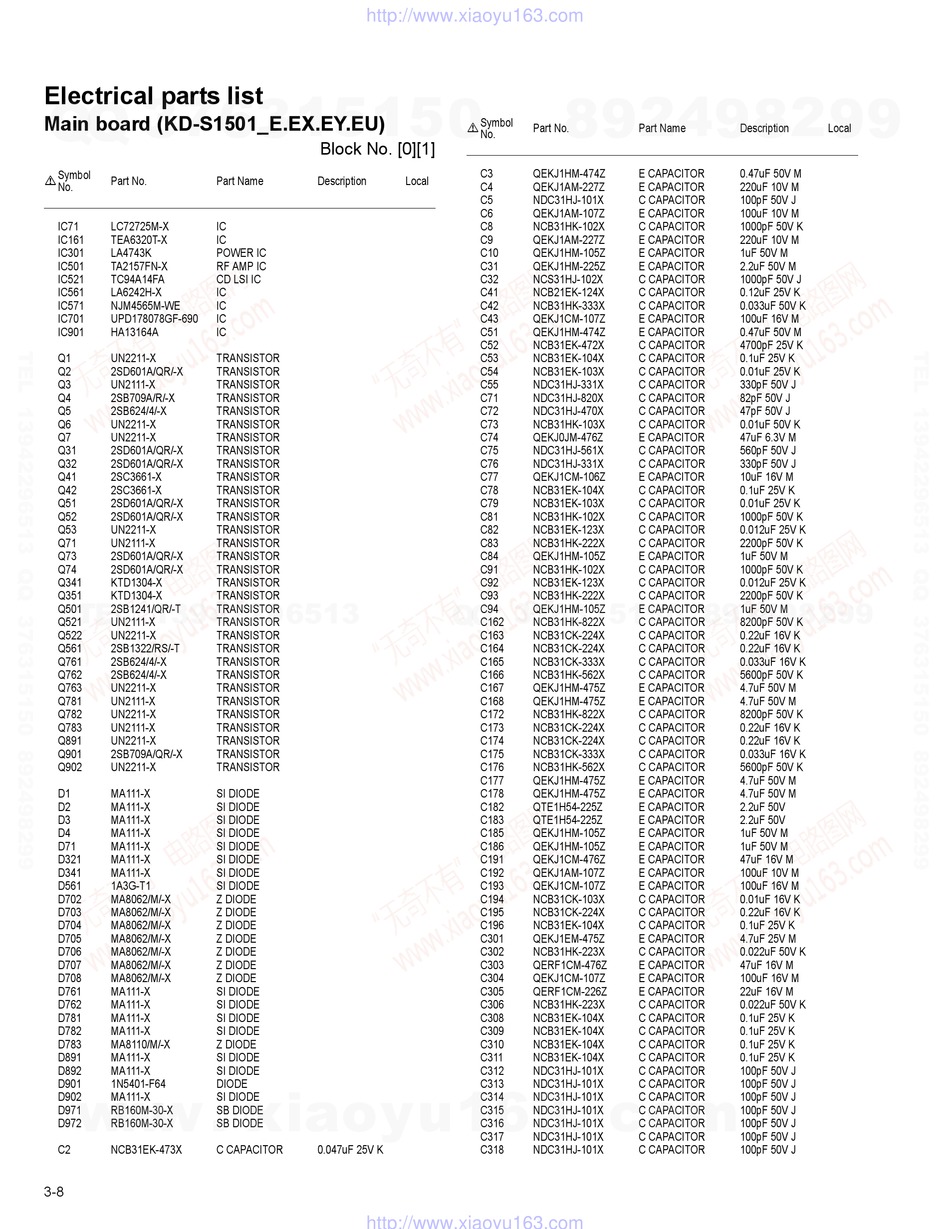

Electrical parts list

Main board (KD-S1501_E.EX.EY.EU)
 Symbol
Part No. Part Name
No.
IC71 LC72725M-X IC
IC161 TEA6320T-X IC
IC301 LA4743K POWER IC
IC501 TA2157FN-X RF AMP IC
IC521 TC94A14FA CD LSI IC
IC561 LA6242H-X IC
IC571 NJM4565M-WE IC
IC701 UPD178078GF-690 IC
IC901 HA13164A IC
Q1 UN2211-X TRANSISTOR
Q2 2SD601A/QR/-X TRANSISTOR
Q3 UN2111-X TRANSISTOR
Q4 2SB709A/R/-X TRANSISTOR
Q5 2SB624/4/-X TRANSISTOR
Q6 UN2211-X TRANSISTOR
Q7 UN2211-X TRANSISTOR
Q31 2SD601A/QR/-X TRANSISTOR
Q32 2SD601A/QR/-X TRANSISTOR
Q41 2SC3661-X TRANSISTOR
Q42 2SC3661-X TRANSISTOR
Q51 2SD601A/QR/-X TRANSISTOR
Q52 2SD601A/QR/-X TRANSISTOR
Q53 UN2211-X TRANSISTOR
Q71 UN2111-X TRANSISTOR
Q73 2SD601A/QR/-X TRANSISTOR
Q74 2SD601A/QR/-X TRANSISTOR
Q341 KTD1304-X TRANSISTOR
TE
L 13942296513
Q351 KTD1304-X TRANSISTOR
Q501 2SB1241/QR/-T TRANSISTOR
Q521 UN2111-X TRANSISTOR
Q522 UN2211-X TRANSISTOR
Q561 2SB1322/RS/-T TRANSISTOR
Q761 2SB624/4/-X TRANSISTOR
Q762 2SB624/4/-X TRANSISTOR
Q763 UN2211-X TRANSISTOR
Q781 UN2111-X TRANSISTOR
Q782 UN2211-X TRANSISTOR
Q783 UN2111-X TRANSISTOR
Q891 UN2211-X TRANSISTOR
Q901 2SB709A/QR/-X TRANSISTOR
Q902 UN2211-X TRANSISTOR
D1 MA111-X SI DIODE
D2 MA111-X SI DIODE
D3 MA111-X SI DIODE
D4 MA111-X SI DIODE
D71 MA111-X SI DIODE
D321 MA111-X SI DIODE
D341 MA111-X SI DIODE
D561 1A3G-T1 SI DIODE
D702 MA8062/M/-X Z DIODE
D703 MA8062/M/-X Z DIODE
D704 MA8062/M/-X Z DIODE
D705 MA8062/M/-X Z DIODE
D706 MA8062/M/-X Z DIODE
D707 MA8062/M/-X Z DIODE
D708 MA8062/M/-X Z DIODE
D761 MA111-X SI DIODE
D762 MA111-X SI DIODE
D781 MA111-X SI DIODE
D782 MA111-X SI DIODE
www
D783 MA8110/M/-X Z DIODE
D891 MA111-X SI DIODE
D892 MA111-X SI DIODE
D901 1N5401-F64 DIODE
D902 MA111-X SI DIODE
.
D971 RB160M-30-X SB DIODE
D972 RB160M-30-X SB DIODE
C2 NCB31EK-473X C CAPACITOR
3-8
http://www.xiaoyu163.com
Block No. [0][1]
Description Local
x ao u163
y
i
0.047uF 25V K
http://www.xiaoyu163.com
2 9
8
Symbol
 Part No.
No.
C3 QEKJ1HM-474Z
C4 QEKJ1AM-227Z
C5 NDC31HJ-101X
C6 QEKJ1AM-107Z
C8 NCB31HK-102X
C9 QEKJ1AM-227Z
C10 QEKJ1HM-105Z
C31 QEKJ1HM-225Z
C32 NCS31HJ-102X
C41 NCB21EK-124X
C42 NCB31HK-333X
C43 QEKJ1CM-107Z
C51 QEKJ1HM-474Z
C52 NCB31EK-472X
C53 NCB31EK-104X
C54 NCB31EK-103X
C55 NDC31HJ-331X
C71 NDC31HJ-820X
C72 NDC31HJ-470X
C73 NCB31HK-103X
C74 QEKJ0JM-476Z
C75 NDC31HJ-561X
C76 NDC31HJ-331X
C77 QEKJ1CM-106Z
C78 NCB31EK-104X
C79 NCB31EK-103X
C81 NCB31HK-102X
C82 NCB31EK-123X
C83 NCB31HK-222X
C84 QEKJ1HM-105Z
C91 NCB31HK-102X
C92 NCB31EK-123X
Q Q
3 6 7 1 3 1 5
C93 NCB31HK-222X
C94 QEKJ1HM-105Z
C162 NCB31HK-822X
C163 NCB31CK-224X
C164 NCB31CK-224X
C165 NCB31CK-333X
C166 NCB31HK-562X
C167 QEKJ1HM-475Z
C168 QEKJ1HM-475Z
C172 NCB31HK-822X
C173 NCB31CK-224X
C174 NCB31CK-224X
C175 NCB31CK-333X
C176 NCB31HK-562X
C177 QEKJ1HM-475Z
C178 QEKJ1HM-475Z
C182 QTE1H54-225Z
C183 QTE1H54-225Z
C185 QEKJ1HM-105Z
C186 QEKJ1HM-105Z
C191 QEKJ1CM-476Z
C192 QEKJ1AM-107Z
C193 QEKJ1CM-107Z
C194 NCB31CK-103X
C195 NCB31CK-224X
C196 NCB31EK-104X
C301 QEKJ1EM-475Z
C302 NCB31HK-223X
C303 QERF1CM-476Z
C304 QEKJ1CM-107Z
C305 QERF1CM-226Z
C306 NCB31HK-223X
C308 NCB31EK-104X
C309 NCB31EK-104X
C310 NCB31EK-104X
C311 NCB31EK-104X
co
C312 NDC31HJ-101X
C313 NDC31HJ-101X
C314 NDC31HJ-101X
.
C315 NDC31HJ-101X
C316 NDC31HJ-101X
C317 NDC31HJ-101X
C318 NDC31HJ-101X
9 4 2 8
Part Name Description
E CAPACITOR 0.47uF 50V M
E CAPACITOR 220uF 10V M
C CAPACITOR 100pF 50V J
E CAPACITOR 100uF 10V M
C CAPACITOR 1000pF 50V K
E CAPACITOR 220uF 10V M
E CAPACITOR 1uF 50V M
E CAPACITOR 2.2uF 50V M
C CAPACITOR 1000pF 50V J
C CAPACITOR 0.12uF 25V K
C CAPACITOR 0.033uF 50V K
E CAPACITOR 100uF 16V M
E CAPACITOR 0.47uF 50V M
C CAPACITOR 4700pF 25V K
C CAPACITOR 0.1uF 25V K
C CAPACITOR 0.01uF 25V K
C CAPACITOR 330pF 50V J
C CAPACITOR 82pF 50V J
C CAPACITOR 47pF 50V J
C CAPACITOR 0.01uF 50V K
E CAPACITOR 47uF 6.3V M
C CAPACITOR 560pF 50V J
C CAPACITOR 330pF 50V J
E CAPACITOR 10uF 16V M
C CAPACITOR 0.1uF 25V K
C CAPACITOR 0.01uF 25V K
C CAPACITOR 1000pF 50V K
C CAPACITOR 0.012uF 25V K
C CAPACITOR 2200pF 50V K
E CAPACITOR 1uF 50V M
C CAPACITOR 1000pF 50V K
C CAPACITOR 0.012uF 25V K
0 5 8 2 9 9 4 2 8
C CAPACITOR 2200pF 50V K
E CAPACITOR 1uF 50V M
C CAPACITOR 8200pF 50V K
C CAPACITOR 0.22uF 16V K
C CAPACITOR 0.22uF 16V K
C CAPACITOR 0.033uF 16V K
C CAPACITOR 5600pF 50V K
E CAPACITOR 4.7uF 50V M
E CAPACITOR 4.7uF 50V M
C CAPACITOR 8200pF 50V K
C CAPACITOR 0.22uF 16V K
C CAPACITOR 0.22uF 16V K
C CAPACITOR 0.033uF 16V K
C CAPACITOR 5600pF 50V K
E CAPACITOR 4.7uF 50V M
E CAPACITOR 4.7uF 50V M
E CAPACITOR 2.2uF 50V
E CAPACITOR 2.2uF 50V
E CAPACITOR 1uF 50V M
E CAPACITOR 1uF 50V M
E CAPACITOR 47uF 16V M
E CAPACITOR 100uF 10V M
E CAPACITOR 100uF 16V M
C CAPACITOR 0.01uF 16V K
C CAPACITOR 0.22uF 16V K
C CAPACITOR 0.1uF 25V K
E CAPACITOR 4.7uF 25V M
C CAPACITOR 0.022uF 50V K
E CAPACITOR 47uF 16V M
E CAPACITOR 100uF 16V M
E CAPACITOR 22uF 16V M
C CAPACITOR 0.022uF 50V K
C CAPACITOR 0.1uF 25V K
C CAPACITOR 0.1uF 25V K
m
C CAPACITOR 0.1uF 25V K
C CAPACITOR 0.1uF 25V K
C CAPACITOR 100pF 50V J
C CAPACITOR 100pF 50V J
C CAPACITOR 100pF 50V J
C CAPACITOR 100pF 50V J
C CAPACITOR 100pF 50V J
C CAPACITOR 100pF 50V J
C CAPACITOR 100pF 50V J
