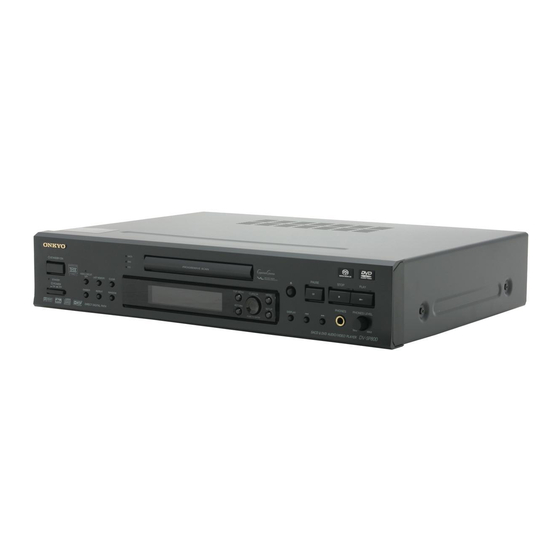

SACD & DVD AUDIO/VIDEO
PLAYER
DV-SP800
Instruction Manual
Thank you for purchasing the ONKYO SACD & DVD
AUDIO/VIDEO PLAYER.
Please read this manual thoroughly before making
connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new SACD & DVD AUDIO/
VIDEO PLAYER.
Please retain this manual for future reference.
Table of Contents
Getting Started
Connecting
Setting Up the Player
Basic Playback
Advanced Playback
Function Setup
Toubleshooting
Others
E
