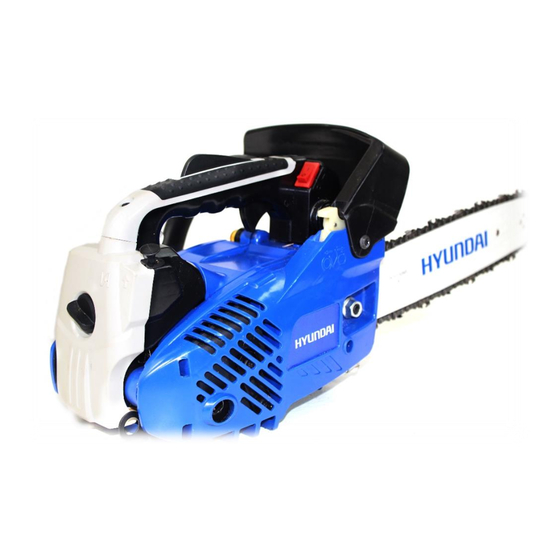

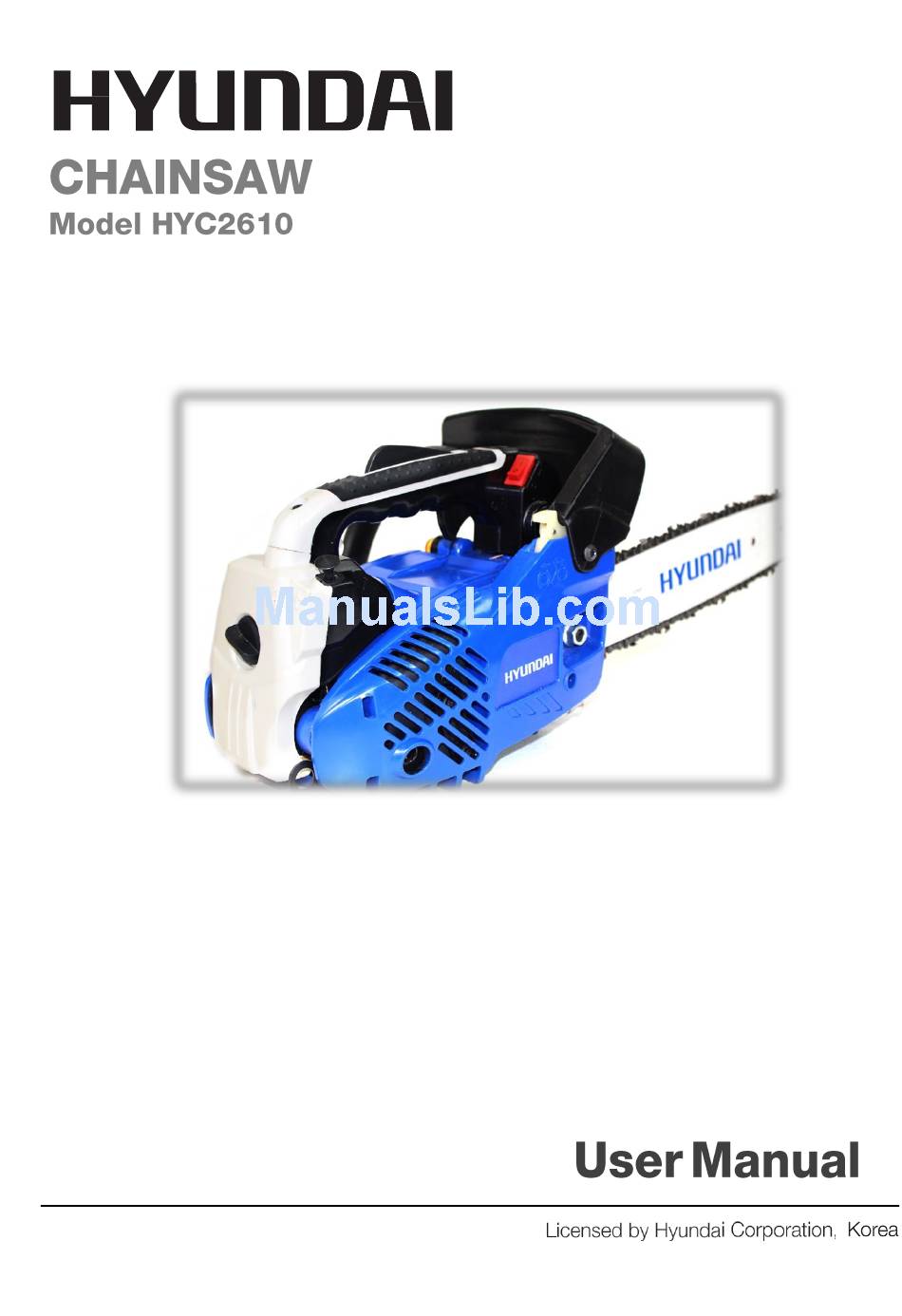

Hyundai HYC2610 User Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Chainsaw
  5. HYC2610
  6. User manual

Hyundai HYC2610 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYC2610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HYC2610

Summary of Contents for Hyundai HYC2610

  • Page 2: Operation Notes

    OPERATION NOTES  Read these notes before you start working with the chainsaw, and keep the notes for future reference.  Read the instructions carefully and familiarise yourself with all of the control elements so that you are able to safely operate the device. Always keep these operating instructions together with the chainsaw.
  • Page 3  Vibration. : The actual existing vibration emission value during use of the machine can deviate from the manual or the manufacturer specified. This can be caused by the following factors, before or during each of use the following points should be considered: o Is the machine being used correctly? o Is the method of cutting and processing the material correct? o Is the machine being used within the relevant regulations?

  • Page 4: Table Of Contents

    CONTENTS o’s Page N Section Description OPERATION NOTES 2 - 3 1. SAFETY 5 - 7 2. SAFE OPERATION 7 - 10 3. MACHINE PARTS 4. INSTALLING GUIDE BAR AND CHAIN 12 - 15 5. FUEL/CHAIN OIL & BRAKE 15 - 16 6.

  • Page 5: Safety

    1. SAFETY. See NOTE 1 (page 38) for additional information. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2.

  • Page 6: Safety

    1.4. Carbon Monoxide 1.4.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.4.2. The symptoms of Carbon monoxide poisoning can include the following; 1.4.2.1.

  • Page 7: Safe Operation

    1.6.1.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.6.1.3. Hand protection. 1.6.1.4. Protective clothing. 1.6.1.5. If item 1.5.1.1. Cannot be fulfilled then - Respiratory protective equipment should be used.
  • Page 8 Before using this product, please read this manual carefully to understand the proper use of your chainsaw. Never operate a chainsaw when you are tired, ill, upset, or under the influence of medication that may make you drowsy, or if you are under the influence of alcohol or drugs.
  • Page 9 Always inspect the chain saw before each use for worn, loose, or changed parts. Never operate a chain saw that is damaged, improperly adjusted, or is not completely and securely assembled. Be sure that the saw chain stops moving when the throttle control trigger is released.
  • Page 10 KICKBACK 2.8. Kickback may occur when the nose or tip of the guide bar/chain touches an object, or when the wood closes in and pinches the saw chain in the cut. 2.9. Tip contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator.

  • Page 11: Machine Parts

    3. MACHINE PARTS 3.1. Model HYC2610. Saw Chain Air Filter Cover Saw Chain Guide Bar Air Filter Lock Nut Cap Front Hand Guard and Brake Starter Pull Cord Throttle Trigger Front Handle Throttle Trigger Lock Lever Oil Tank Filler Engine Switch...

  • Page 12: Installing Guide Bar And Chain

    4. INSTALLING GUIDE BAR AND CHAIN The saw chain has very sharp edges. Use protective gloves for safety. 4.1. A standard saw unit package contains the items listed below; Power Unit Saw Chain Guide Bar Guide Bar Cover Spark Plug Socket File 4.1.1.
  • Page 13 4.1.3. Remove the spacer from chain saw (Figure 2). Spacer 4.1.4. Fit the guide bar to the power unit, and then push the guide bar toward the clutch (Figure Guide Bar 4.1.5. Gear the chain to the sprocket and, while fitting the saw chain around the guide bar (Figure Page 13 Rev 3...
  • Page 14 Pay attention to the correct direction of the saw chain 4.1.6. Adjust the position of chain tensioner nail, and then insert the tensioner nail in the lower hole of the guide bar. Mount the clutch cover to the power unit and fasten the mounting nut to finger tightness.

  • Page 15: Fuel/Chain Oil & Brake

    4.1.8. Check the tension of the saw chain. Use your gloved hand to lift the chain link which positions on the middle of cutting length up with approximate 10N force. If the chain link comes completely out of the rail of guide bar, you need to retighten the chain.
  • Page 16 Do not use waste or regenerated oil - this may cause damage to the oil pump and increase chain and bar wear. 5.3. Only use correct and special chainsaw oil. 5.4. Chain Brake. When the brake operates, release the throttle lever to slow down the engine speed.

  • Page 17: Operation

    6. OPERATION 6.1. Starting the Engine. Before you start the engine, make sure the saw chain is not touching anything. Make sure the chain brake is always activated each time you start the engine. When restarting immediately after stopping the engine. Set choke in the open position.
  • Page 18 6.1.7. Push the front handle guard down toward the front to activate the chain brake. 6.1.8. While holding the saw unit securely on the ground, pull the starter rope firmly and do not let go. Instead slowly release cord into machine body 6.1.9.
  • Page 19 6.3. Checking the functionality of the Clutch. When running, the machine must always be firmly held in both hands, with the left hand on the front hand-grip and the right hand on the rear hand grip, even if the operator is left-handed. Before each use confirm that there is no chain movement when the chain saw is running at idling speed.

  • Page 20: Sawing

    7. SAWING Before proceeding to your job, read “Safe Operation” section. It is recommended to first practice sawing easy logs. This also helps you get accustomed to your chainsaw. Always follow all the safety regulations applicable to this machine. The chainsaw must only be used for cutting wood. It is forbidden to cut other types of material.
  • Page 21 7.3.1.2. Pull the saw from the kerf whilst lifting the branch as necessary, 7.3.1.3. If necessary, use a handsaw or second chain saw to release the trapped saw by cutting a minimum of 30 cm away from the trapped saw. 7.3.2.

  • Page 22: General Maintenance

    8. GENERAL MAINTENANCE Before cleaning, inspecting or repairing your chainsaw, make sure the engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting. Air filter screw Air filter cover Air filter Spark Plug 8.1. Follow the instructions to carry out regular maintenance, pre-operating procedures and daily maintenance routines.
  • Page 23 8.3.2. Chain oil port. 8.3.2.1. Dismount the guide bar and check the chain oil port (1) for clogging. 8.3.3. Guide bar. 8.3.3.1. When the guide bar is dismounted, remove chain, then clear sawdust in the bar groove (4) and the oiling port (1). 8.3.3.2.
  • Page 24 8.3.5.6. Front and Rear dampers. Use only genuine Hyundai spare parts. Using non genuine Hyundai spare part will invalidate the warranty. Using non genuine Hyundai spares can cause serious injury. 8.3.5.6.1. Replace if adhered part has peeled or cracks are observed on the rubber part.

  • Page 25: Bar & Chain Maintenance

    9. BAR & CHAIN MAINTENANCE Be sure to wear safety gloves. See NOTE 1. It is very important for smooth and safe operation to keep the chain sharp at all times. Your cutters need to be sharpened when: • Sawdust becomes powder-like. •...
  • Page 26 File Top plate Down Head tilt Depth gauge diameter angle angle angle (55°) standard Type of Vice rotate Vice tilt chain Side angle angle angle 5/32” 30° 0° 80° 0.025” 91PJ 5/32” 30° 0° 80° 0.025” 91VG 5/32” 30° 0° 80°...
  • Page 27 9.1.2. Guide bar. 9.1.2.1. Reverse the bar occasionally to prevent partial wear. 9.1.2.2. The bar rail should always be square. 9.1.2.3. Check for wear of the bar rail. 9.1.2.4. Apply a ruler to the bar and the outside of a cutter.

  • Page 28: Storage

    10. STORAGE 10.1. Empty the fuel tank and run the engine out of fuel. 10.2. Empty the oil tank. 10.3. Clean the entire unit. 10.4. Store the unit in a dry place out of the reach of children. 11. EVIROMENTAL DISPOSAL 11.1.

  • Page 29: Troubleshooting

    13. TROUBLESHOOTING PROBLEM PROBABLE CAUSE/S CORRECTIVETION ACTION/S Water in fuel or sub-standard Replace Fuel Engine does mixture not start Remove and dry the spark plug. Engine Flooding Start engine without choke No or bad spark ignition Replace Plug Water in fuel or sub-standard Lack of Power Replace Fuel mixture...

  • Page 30: Specifications

    14. SPECIFICATIONS MODEL HYC2610 Engine Type 1E34F Air cooled 2 stroke petrol. 25.4 Engine Size - cc Maximum engine power - kw Ignition system C.D.I. with timing advance function Spark plug NHSP LD L8RTF Fuel Type Unleaded Petrol/Oil mixture. Mineral based 2-stroke oil : 25:1 (40ml of oil per 1...

  • Page 31: Genpower Contact Details

    15. GENPOWER CONTACT DETAILS 15.1. Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. 15.2. Telephone contact number; Office +44 (0) 1646 687880 15.3. Email contacts; Technical service@genpower.co.uk 15.4. Web site; www.hyundaipowerequipment.co.uk Page 31 Rev 3...

  • Page 32: Declarations

    16. DECLARATIONS 16.1. Genpower Ltd confirms that this Hyundai petrol chainsaw conforms to the following CE directives: • 2006/42/EC Machinery directive • 2004/108/EC EMC directive • 2000/14/EC Noise emissions directive • 97/68/EC NRMM Emissions directive Page 32 Rev 3...
  • Page 33 17. SUGGESTED FURTHER READING 17.1. Top-Handed Chainsaws HSE AFAG308. http://www.hse.gov.uk/pubns/afag308.pdf 17.2. Chainsaws at work Leaflet INDG317(rev2) HSE Books 2012 www.hse.gov.uk/pubns/indg317.htm 17.3. Tree-climbing operations Leaflet AFAG401(rev2) HSE Books 2013 www.hse.gov.uk/pubns/afag401.htm 17.4. Aerial tree rescue Leaflet AFAG402(rev1) HSE Books 2013 www.hse.gov.uk/pubns/afag402.htm 17.5. Mobile elevating work platforms (MEWPs) for tree work Leaflet AFAG403(rev1) HSE Books 2013 www.hse.gov.uk/pubns/afag403.htm...
  • Page 34 NOTES Page 34 Rev 3...
  • Page 35 NOTES Page 35 Rev 3...
  • Page 36 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
