Omnitron Systems Technology FlexPointTM OC12FF Specifications

FlexPoint
FlexPoint
FlexPoint ™ OC12FF
Single-mode to Multimode Fiber Converters for OC-12
The FlexPoint OC12FF is a protocol-independent fiber converter
that provides reliable and cost-effective extension of network
distances by connecting multimode fiber networks or devices
over single-mode fiber cabling.
No manual configuration is required with the plug-and-play
FlexPoint OC12FF. Connect the fiber cables to the appropriate
interface and the installation is complete.
The fiber port operates at 1310nm or 1550nm and features SC
connectors. Multimode fiber models support distances of up
to 550m, and single-mode fiber models support distances of
up to 80km.
The FlexPoint OC12FF features descriptions of the LED
indicators on the label for easy in-the-field installation and
maintenance. The LEDs report the availability of power and
the detection of devices attached to the fiber ports.
FlexPoint modules can be mounted utilizing optional wall-
mounting hardware or with DIN-rail mounting brackets. They
can also be rack-mounted in a 5-Module shelf or in a high-density
14-Module, power-redundant Powered Chassis.
FlexPoint modules installed in the 5-Module shelf or used as
standalone devices can be powered by an external AC to DC
power adapter, or through the 5VDC chassis connector.
Standalone modules can also be powered by attaching an
external DC power supply (18-60VDC). When used in the
14-Module power-redundant Powered Chassis with any
combination of AC and DC power supplies, the installed
modules are powered via the 5VDC chassis connector.
The wide variety of FlexPoint mounting and power options provide
flexible upgrade paths as network requirements change and
grow.
Simple, dependable and flexible. For over a decade, FlexPoint
media converters have been providing reliable fiber connectivity
in Enterprise and mission-critical networks around the world.

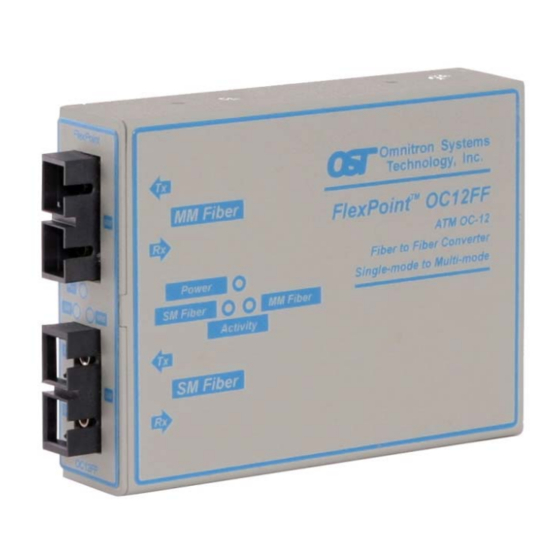

The FlexPoint OC12FF single-mode to multimode
protocol-independent fiber converter
Supports all OC-12 standards over ATM and SONET
Requires no manual configuration
Supports auto-negotiation of duplex mode
Extends network distances up to 80km
Labeled status LEDs for quick and easy installation
Wall-mount or rack-mount on a 5-Module shelf or in a
14-Module power-redundant FlexPoint Powered
Chassis
Completely software independent with no installation
of drivers required
Peace-of mind reliability backed by a lifetime
warranty and free 24/7 technical support
