Omnitron Systems Technology iConverter Wall-Mounting Kit 8249-0 User Instructions

®
iConverter
User Instructions
Description and Inventory
The 8249-0 iConverter
designed to attach one
Module chassis to a wall, backboard or other flat
surface. The 8249-0 kit should include the following
hardware:
(2) "L" shaped brackets
(4) Flat head screws, 4-40, 1/4 inch
(4) Wall mounting screws
Warning:
Before installing an iConverter
remove it from its power adapter. Make sure to
disconnect the power adapter from the AC line power.
Mounting:
1. Align the screw threads of the
with the holes in the bracket.
2. Attach one "L" bracket on each side of the unit
using the 4-40 flat head screws enclosed with the kit.
Wall-Mounting Kit
Wall-Mounting kit was
iConverter 1-Module or 2-
chassis, make sure to
iConverter chassis
3. The iConverter with the tab brackets should look
like the picture below (Fig. 1).
4. Attach unit to the desired surface using the
appropriate screws.
5. Follow any installation instructions in the
User Manual.

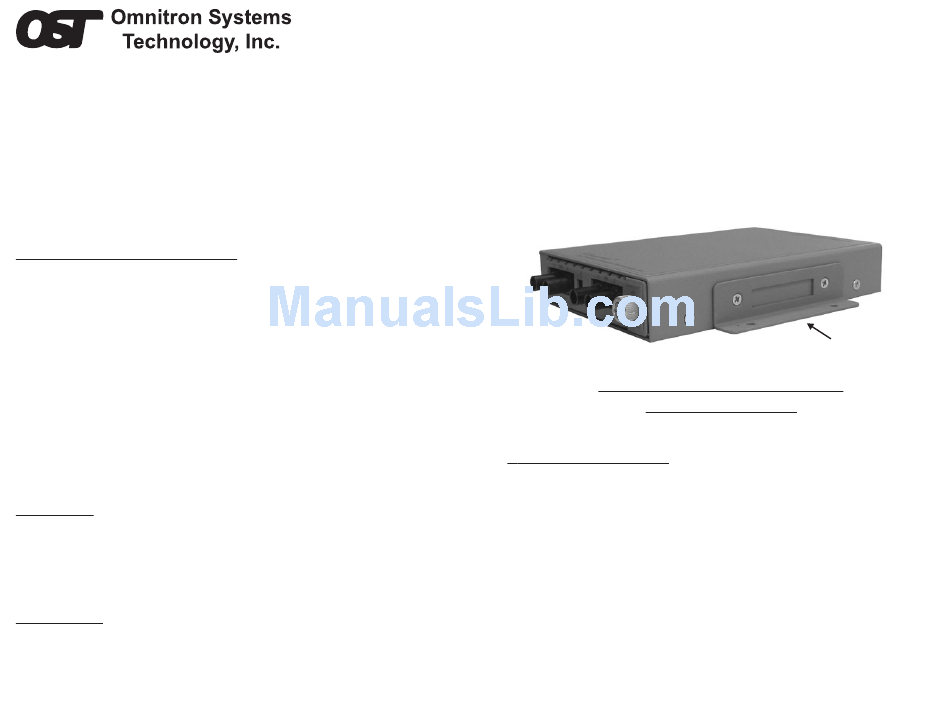

Fig. 1 1-Module Chassis with
Wall Mounting Kit
Technical Support:
For help with this product,
contact our Tech. Support:
Phone:
Fax:
Address: Omnitron Systems
iConverter
Wall Mounting Bracket
(949) 250-6510
(949) 250-6514
040-08249-001C 12/03
