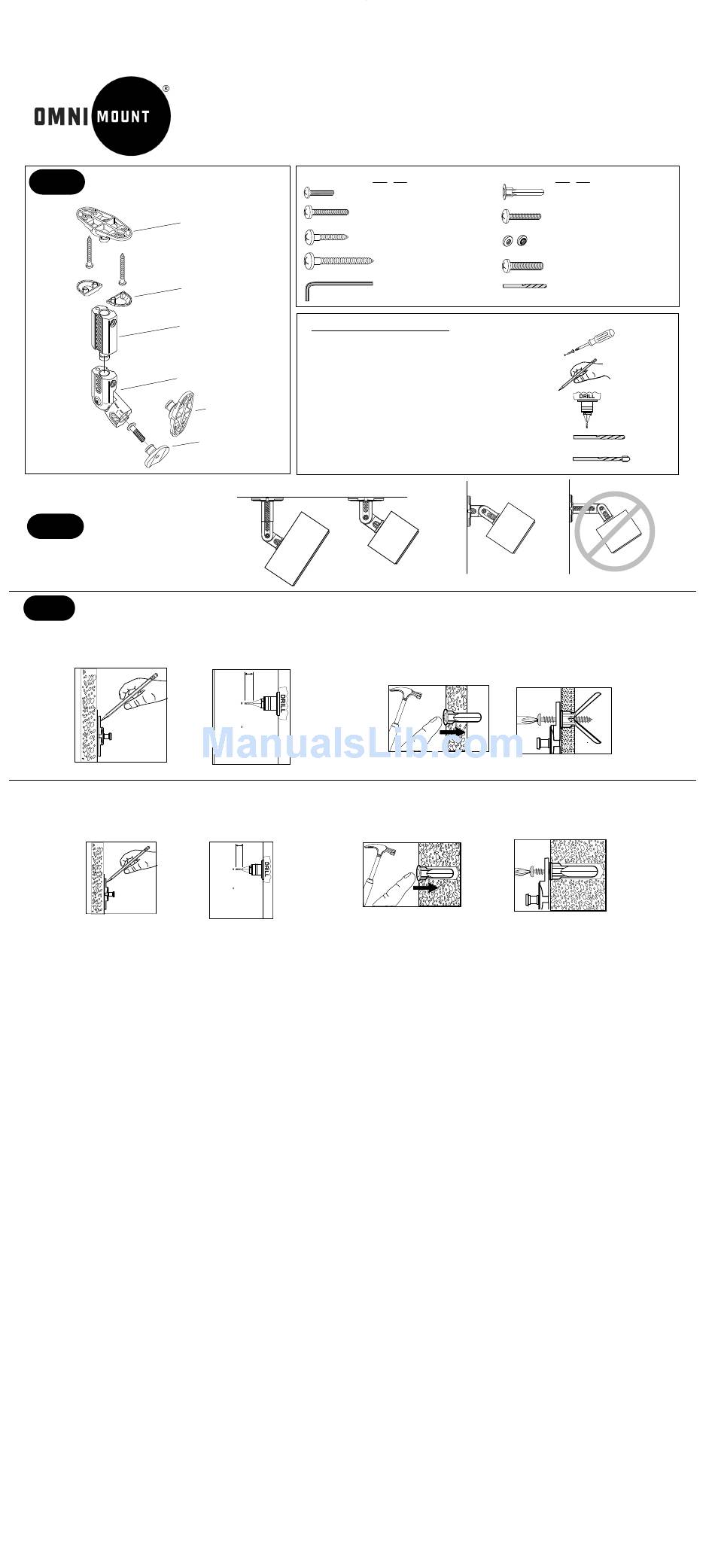

Identify parts
Step 1
Decide on location
Step 2
�
Installation of the wall plate
Step 3
�
�
Mounting to solid concrete or cinder block.
1. Drill into the surface with a 3/16'' masonry drill bit 1-3/4" deep and insert the anchors into the holes as shown in Fig. 3
2. Secure wall plate with the #12 x 1-3/4" , see fig. 4.
�
�
�

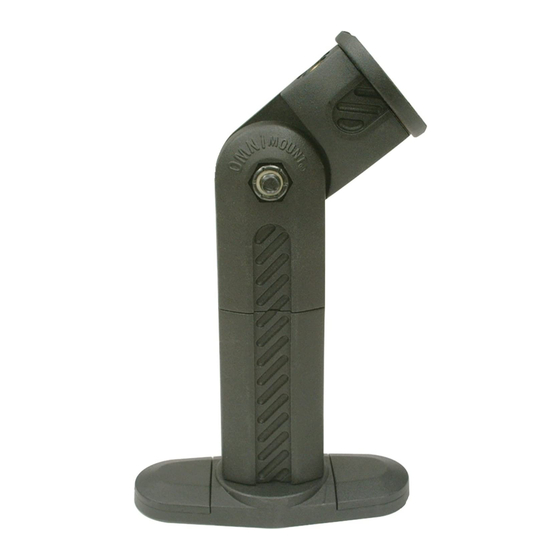

AB2/AB2 HTS INSTALLATION INSTRUCTIONS
�
Mounting plate (1)
Screw covers
Extension
Adjusting knuckle
Mounting plate (2)
Speaker plate
Mounting to drywall.
1. Use the wall plate as a template and mark the screw hole locations onto the surface using a pencil.
2. Drill into the drywall with a 1/4'' drill bit. Insert the anchors into the hole as shown in fig. 3.
3. Secure with the #12 x 1-3/4'' screws, see fig. 4.
� �� �� �
��� ���
�
� �� �� �
��� ���
�
These fasteners and tools are provided
AB2 HTS
(1)
(5)
M4 X 12mm Phillips
pan head machine screw
(1)
(5) M5 X 12mm Phillips pan
head machine screw
(2)
(10) #12 X 3/4" Phillips pan
head self-tapping screw
(2)
(10) #12 X 1-3/4'' Phillips pan
head self-tapping screw
(1)
(5) 5/32'' Hex key
Additional installation tools
Phillips Head Screw Driver
�
Pencil
Electric Drill
Drill Bits: 1/8'' drill bit for drywall
5/16'' masonry bit for cement wall applications
Ceiling
�
��� ���
��� ���
AB2 HTS
(2)
(10) Plastic anchor
(1)
(5)
8-32 X 5/8'' Phillips pan
head machine screw
(1)
(5)
Circular nut (PEM)
8-32 thread
�
� � � ��� � �� �� �
(1)
(5)
1/4-20 X 1" Phillips pan
head machine screw
(1)
(2)
3/32'' Drill bit
� �� � ��
1/8"
5/16'' mason bit
Wall
Wall
��� ���
��� ���
�
