Omnimount 1002290 Installation Instructions

Remove backing strip Rubber Pads (10), and press onto bottom of Foot Assembly and front edge of Shelf.
Thread Shelf Pegs (2) into holes on front edge of Shelf (1). (Fig. 19)
Place CCH1 on top of TV, with Shelf Pegs overlapping front edge of TV, as
shown in Fig. 20.
Loosen hex screw and slide Leg In or Out until Shelf sits level, then secure
Leg in position with hex wrench.
Note: Maximum extension is shown in Fig 20.
For additional minor adjustments, thread Foot Assembly In or Out of Leg
until Shelf sits level. Tighten Lock Nut (7) against leg to hold level posi-
tion.
Fig. 20
Proceed to section titled Mounting Components to CCH-1
Mounting Components to the CCH-1
The CCH-1 is the ideal companion for any home theater system, and provides a conven-
ient mounting solution for various components, such as:
•
Center channel speaker
•
DVD player
•
Cable/Satellite box
•
Video game console
•
VCR
The primary considerations when mounting a component to the CCH-1 are:
1. NEVER exceed the maximum weight capacity of 30 lbs. (13.6 Kg)
2. Make sure that the shelf pegs overlap the front edge of the TV
3. Place the component all the way to the front of the CCH-1, as shown in Fig 21.
Warning: NEVER place component towards rear of shelf, or it may become unstable
and tip backwards off of the TV. (Fig 22)
Thank you for purchasing an OmniMount product.
Warranty: Limited Lifetime on manufacturing defects and workmanship.
Specifications are subject to change without prior notice.
Every effort has been made to provide accurate and error-free assembly and installation. OmniMount Systems disclaims liability for any difficulties arising from the interpretation of information
contained in these instructions. If OmniMount products are used for purposes other than their original intent, OmniMount, its distributors and retailers shall not be held responsible or liable for
injuries or property damage, direct, indirect, or consequential, which may arise from the inability to use this product safely, properly, and in the manner for which it has been designed and manu-
factured. Warranty does not apply to products which have been lost, damaged by misuse, abuse, or accident.
OmniMount Systems, Inc.
8201 South 48th Street • Phoenix, AZ 85044-5355
1-800-MOUNT-IT • www.omnimount.com
4
Fig. 19
Fig. 21
Fig. 22
P/N 1002290 — Rev. B 5/2005
Installation Instructions

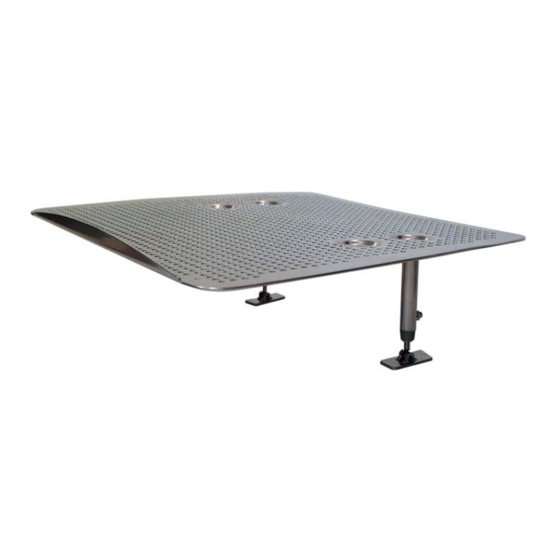

CCH-1:
Center Channel Shelf
Ideal for center channel speaker or A/V component
•
Fits on top of video display
•
Variable mounting: fits CRT/LCD/DLP
•
All steel construction
•
Scratch resistant powder coat finish
•
Maximum weight capacity: 30 lbs. (13.6 Kg)
•
Questions? 1-800-MOUNT IT (USA only)
1
