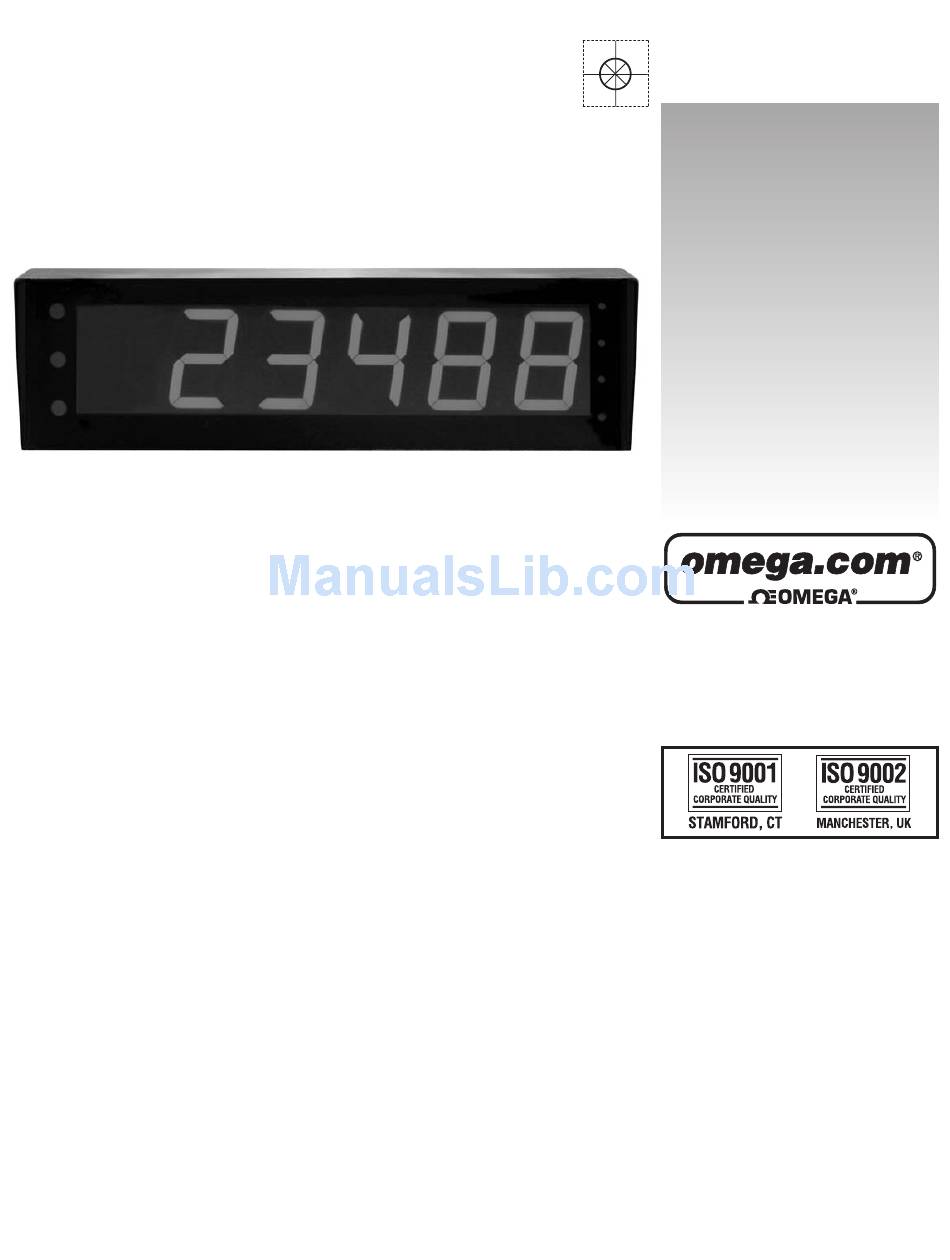

- Page 1 User’ s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info L L D D P P 6 6 3 3 1 1 0 0 0 0 Extra L L arge D D isplay LP0689X...
- Page 2 OMEGAnet Online Service ® omega.com Servicing North America: U.S.A.: One Omega Drive, P .O. Box 4047 ISO 9001 Certified Stamford, CT 06907-0047 TEL: (203) 359-1660 e-mail: info@omega.com Canada: 976 Bergar Laval (Quebec) H7L 5A1, Canada TEL: (514) 856-6928 e-mail: info@omega.ca For immediate technical or application assistance: U.S.A.
-
Page 3: General Description
“ON” condition, with SP 1 being the top position through SP 4 at the bottom. 4. LDP63100 Programming: The unit is a large display, designed to be remotely mounted. Therefore, the unit does not have a programming keypad. - Page 4 Plug-in cards. Adding Option Cards The LDP63100 series meters can be fitted with up to three optional plug-in cards. The details for each plug-in card can be reviewed in the specification section of the included manual. Only one card from each function type can be installed at one time.
-
Page 5: Assembling The Display
At this point, apply a small amount of pressure to the rear of the input module to fully engage the connection. Be sure the module fully snaps into the slots at the rear of the LDP63100 case. The input module holder can be removed with a driver to make inserting the module easier. -
Page 6: Installing The Display
The bezel should be cleaned only with a soft cloth and neutral soap product. Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the aging process of the bezel. DIMENSIONS In inches (mm) Figure 3, Panel Cut-out for the LDP63100 Figure 4, Installing The LDP63100 Into A Panel... - Page 7 Note: Both the LDP63100 and the input module require power. It is recommended to connect the primary AC power to the LDP63100 terminal block, then jumper to the input module. LDP63100 PROGRAMMING The unit is a large display, designed to be remotely mounted. Therefore, the unit does not have a programming keypad.
- Page 8 DESCRIPTION The NEMA 4/IP65 Large Display Enclosure is designed to protect the LDP63100 from dust and hose directed water, when properly installed. This light-weight all aluminum unit utilizes welded seams and neoprene gaskets to meet NEMA 4/IP65 requirements. A textured, polyurethane coating protects against corrosion and is scratch resistant.
- Page 9 NEMA 4/IP65 installation. The Shroud weighs 1.0 pound (0.45 Kg). SHROUD INSTALLATION PROCEDURE Installing The Shroud On An LDP63100 Display In A NEMA 4/IP65 Enclosure Or Panel 1. Place a gasket over the studs extending from the rear of the front panel of the Display.
- Page 10 True RMS AC Current and Volt Inputs, 85-250 VAC power Process Input, 85-250 VAC power Strain Gage Input, 85-250 VAC power ACCESSORIES DESCRIPTION NEMA 4 Enclosure NEMA 4 Enclosure With Shroud Programming Remote Shroud NFORMATION PART NUMBERS LDP63100-T LDP63100-DC LDP63100-AC LDP63100-E LDP63100-S PART NUMBERS LDP6-ENC12 LDP6-EN/SH LDP6-PGM LDP631-SHR...
- Page 11 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 25 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal two (2) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
