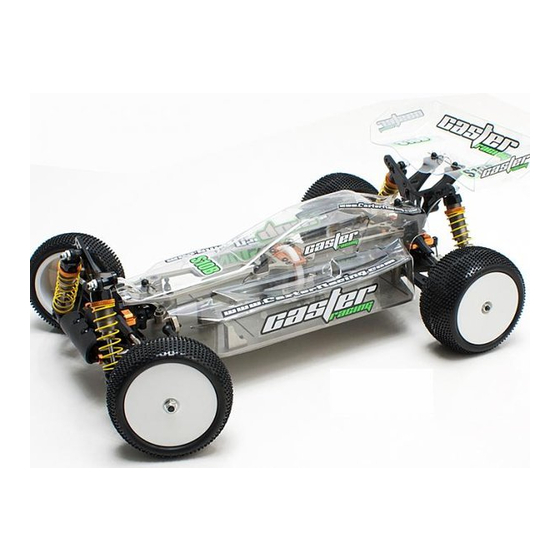

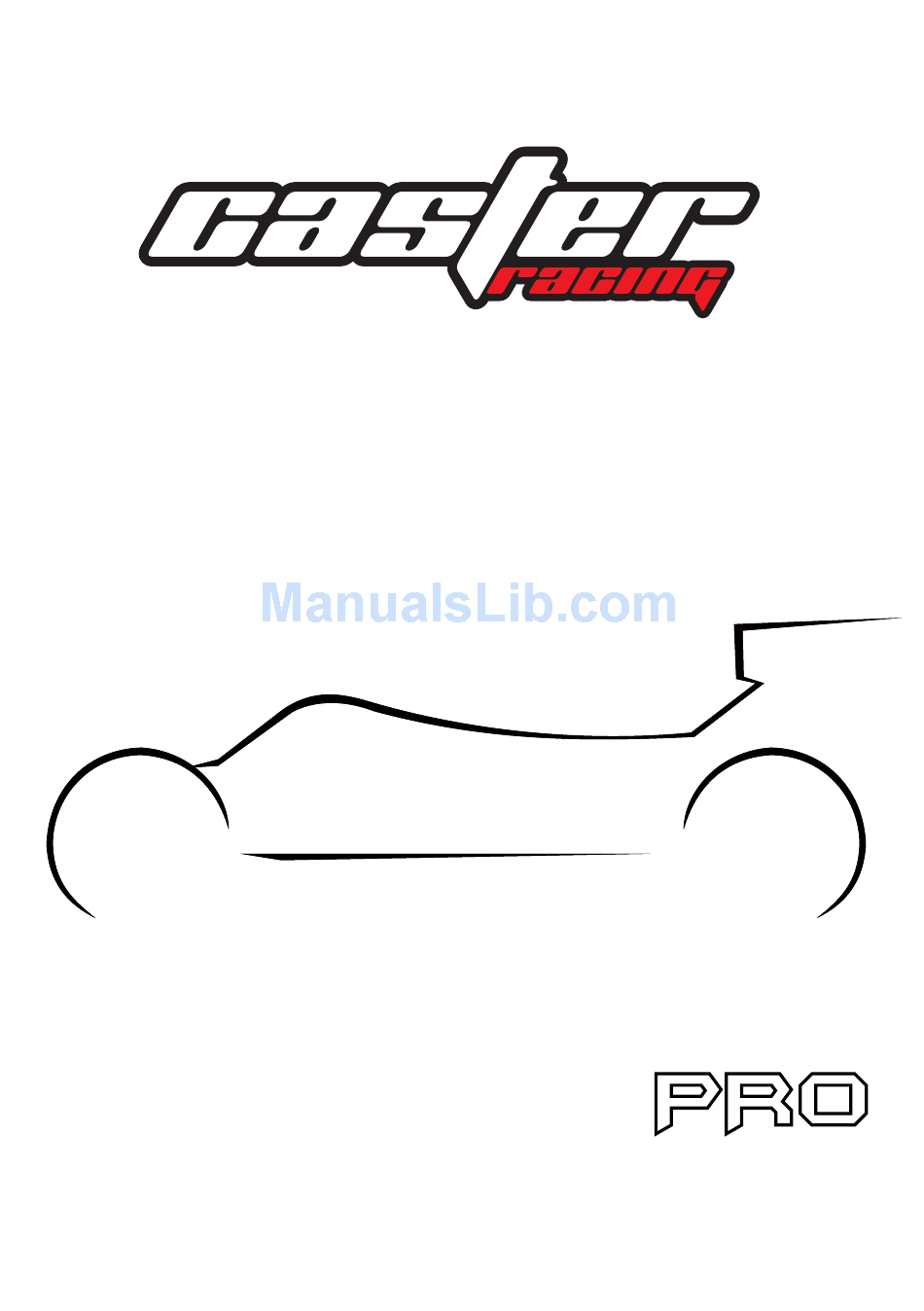

- Page 1 1/10 Scale EP 4WD Buggy-PRO S10b v4s...
-
Page 2: Safety Precautions
casterracing <SAFETY PRECAUTIONS> ●This is a radio control model, not a toy! ●In order to enjoy running the car, you need to finish assembly before operation. You also need to do routine maintenance work after operation. Replacement and optional parts are available separately. - Page 3 casterracing ●The antenna may ●Do not expose this model to be dangerous, do not aim it high temperature, humidity, or swing it towards anyone's or direct sunlight for face. extended periods of time. Operating your model safely WARNING! Do NOT operate the model in the following places or situations. (Non-observance may lead to an accident!) ●...
- Page 4 BAG A S10B003 S10B001 Nut M3 S10B002 Put Loctite 3x8(FH) Put Loctite 3x10(FH) 3x10(BH) Put Loctite S10B005 3x10(BH) S10B004 S10B006 Please do not tighten the screw for now. Please tighten the screws after you have assemble the center diff. Put Loctite 3x8(FH)
- Page 5 BAG B Put Loctite S10B018 S10B010 S10B017 S10B008 S10B016 S10B007 S10B009 S10B014 S10B019 Put Loctite S10B015 S10B013 S10B012 pre-assembled Put Loctite 3x10(FH) When the center diff is apply and move S10B020 freely,then please tighten the screws under the chassis which holds the S10B021 center mounts.
- Page 6 casterracing BAG C Gear Differential S10B024 S10B018 S10B023 2 x 8(RH) SK0P066 SK0P044(39T) SK075 S10B024 S10B025 WS0501150020(10) S10B026 CLE2.5(10) S10B029 SK0P049 SK0P060 SK0P048 CLE2.5(10) SK0P054 SK0P050 SK0P049 S10B030 CLE2.5(10) SK0P047 Grease/Oil SK0P048 pre-assembled SK0P049 S10B031 SK075 SK0P066 SK0P051 S10B028 S10B027 BAG D Front Lower Gear Box Installation SK0P081...
- Page 7 BAG E S10B040 Make sure when you assemble the front lower gear box have to be sure the screws & the holes are paralleled. S10B039 S10B040 10(FH) 12(FH) 8(RH) 16(RH) S10B041 S10B042 S10B043...
- Page 8 S10B052 S10B054 10(RH) 12(FH) S10B051 16(RH) 10(FH) S10B053 8(RH) Lop-sided aluminm spacers go in between chassis and diff case. upper Lower 10(FH) BAG F S10B048 S10B085 Put Loctite S10B049 S10B042 S10B050 S10B044 Put Loctite Put Loctite S10B045 S10B046 10(FH) S10B047 When you assembled make sure the Plaese adjust the tightness of ther S10B047 steering link is moving freely.
- Page 9 WS04009010 S10B091 S10B092 S10B093 Put Loctite 3x10(FH) BAG G S10B060 3x15(FH) 3x8(FH) S10B057 3x8(FH) S10B059 3x5(FH) S10B058 S10B061 3x10(FH)
- Page 10 BAG H S10B062 S10B036 S10B035 S10B037 S10B063 Front CVD RIGHT S10B065 S10B134 LEFT S10B066 Put Loctite Put Loctite S10B133 S10B067 S10B064 S10B068 When you assemble this step,please be aware and adjust according to your demand torlence fits, by using different S10B134 washer to adjust the play.
- Page 11 BAG I LEFT RIGHT S10B069 S10B070 Please make sure donʼt over tighten S10B069. Make sure the arm us moving freely. S10B072 Put Loctite S10B073 3x8(FH) S10B071...
- Page 12 BAG J 24.0mm Assemblex2 S10B075 S10B074 13.0mm Assemblex2 S10B084 S10B076...
- Page 13 BAG K S10B077 S10B035 S10B037 S10B078 S10B036 S10B081 S10B082 S10B080 S10B079 LEFT S10B083 S10B069 Please Make sure donʼt over tighten S10B070 S10B069.Make sure the rear hub and arm is moving freely. RIGHT...
- Page 14 BAG L S10B086 S10B095 S10B072 S10B094 3x8(FH) 19.00mm S10B075 S10B074 M3x44...
- Page 15 BAG M S10B087 Front:Longer Rear:Shorter Longer:S10B096 S10B088 3x12(RH) S10B131 3x8(Set) S10B089 S10B090 3x6(FH) 3x10(FH) 3x8(FH) Shorter:S10B097...
- Page 16 casterracing BAG N Shock set Assembly S10B106 SK027 SK115 S10B107 SK093 S10B102 FONT M2.5 Nut S10B098 M2.5 Nut FRONT SK114 SKOP082-01 S10B099 SKOP084 S10B100 SK160 S10B104 SK011 SK152 OPTION Slide the S10B098 washer over the stepped end of the shock Apply a drop of shock oil to the shaft.Please the piston over Slide the sk114 washer over...
- Page 17 3x20(RH) S10B117 M3 Nut S10B115 3x16(RH) 3x20(RH) M3 Nut S10B116 3x12(RH)
- Page 18 BAG O S10B132 S10B118 3x8(FH) 3x8(FH) S10B119 S10B120 11.0mm...
- Page 19 BAG P Put Loctite 3x10(BH) 3x3(Set) 3x10(BH) S10B121 S10B122 1.9MM 朝中差 S10B123 S10B124 S10B125 S10B126 3x8(FH)
- Page 20 S10B127 S10B128-Y S10B128-W S10B137 S10B135-Y S10B135-W S10B138 S10B129-Y S10B129-W S10B136-Y S10B136-W...
- Page 21 S10B130...
- Page 22 S10B002 Spare Parts S10B001 S10B003 S10B005 S10B004 S10B006 S10B007 S10B008 S10B009 S10B010 S10B011...
- Page 23 S10B013 Spare Parts S10B012 S10B014 S10B016 S10B015 S10B017 S10B018 S10B019 S10B020 S10B021 S10B022...
- Page 24 S10B024 Spare Parts S10B023 S10B025 S10B027 S10B026 S10B028 S10B029 S10B030 S10B031 S10B032 S10B033...
- Page 25 S10B035 Spare Parts S10B034 S10B036 S10B038 S10B037 S10B039 S10B040 S10B041 S10B042 S10B043 S10B044...
- Page 26 S10B046 Spare Parts S10B045 S10B047 S10B049 S10B048 S10B050 S10B051 S10B052 S10B053 S10B054 S10B055...
- Page 27 S10B057 Spare Parts S10B056 S10B058 S10B060 S10B059 S10B061 S10B062 S10B063 S10B064 S10B065 S10B066...
- Page 28 S10B068 Spare Parts S10B067 S10B069 S10B071 S10B070 S10B072 S10B073 S10B074 S10B075 S10B076 S10B077...
- Page 29 S10B079 Spare Parts S10B078 S10B080 S10B082 S10B081 S10B083 S10B084 S10B085 S10B086 S10B087 S10B088...
- Page 30 S10B090 Spare Parts S10B089 S10B091 S10B093 S10B092 S10B094 S10B095 S10B096 S10B097 S10B098 S10B099...
- Page 31 S10B101 Spare Parts S10B100 S10B102 S10B104 S10B103 S10B105 S10B106 S10B107 S10B108 S10B109 S10B110...
- Page 32 S10B112 Spare Parts S10B111 S10B113 S10B115 S10B114 S10B116 S10B117 S10B118 S10B119 S10B120 S10B121...
- Page 33 S10B123 Spare Parts S10B122 S10B124 S10B126 S10B125 S10B127 S10B128 S10B129 S10B130 S10B131 S10B132...
- Page 34 S10B134 Spare Parts S10B1133 S10B135 S10B136 S10B137 S10B138...
