Summary of Contents for Omega Engineering Wet/Wet Differential Sensor PX838

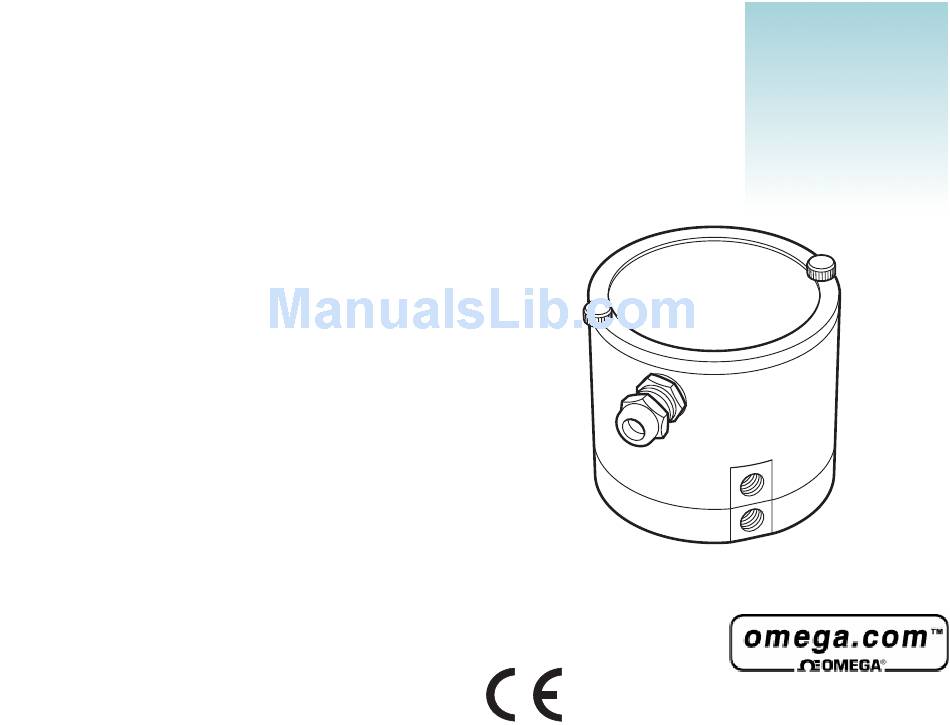

- Page 1 User’s Guide PX838 High Media Compatibility Wet/Wet Differential Sensor www.omega.com e-mail: info@omega.com...
- Page 2 New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
- Page 3 WARRANTY/DISCLAIMER OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time.
- Page 4 PX838 Series bidirectional operation using bipolar power supply (±12 Vdc) with bidirectional output (0±5 Vdc or 0±2.5 Vdc) Connect the power supply to + for positive, - for negative, and 0 for neutral; connect the output to signal for positive and 0 for negative signal. Purging or de-gassing the sensor Two 5 mm hexagonal socket bleed screws are located on the outer casing and can be loosened to bleed the two pressure connections.
