Omega PSW20 Series Instruction Sheet

Pressure, vacuum or differential pressure switches
Hide thumbs


Advertisement

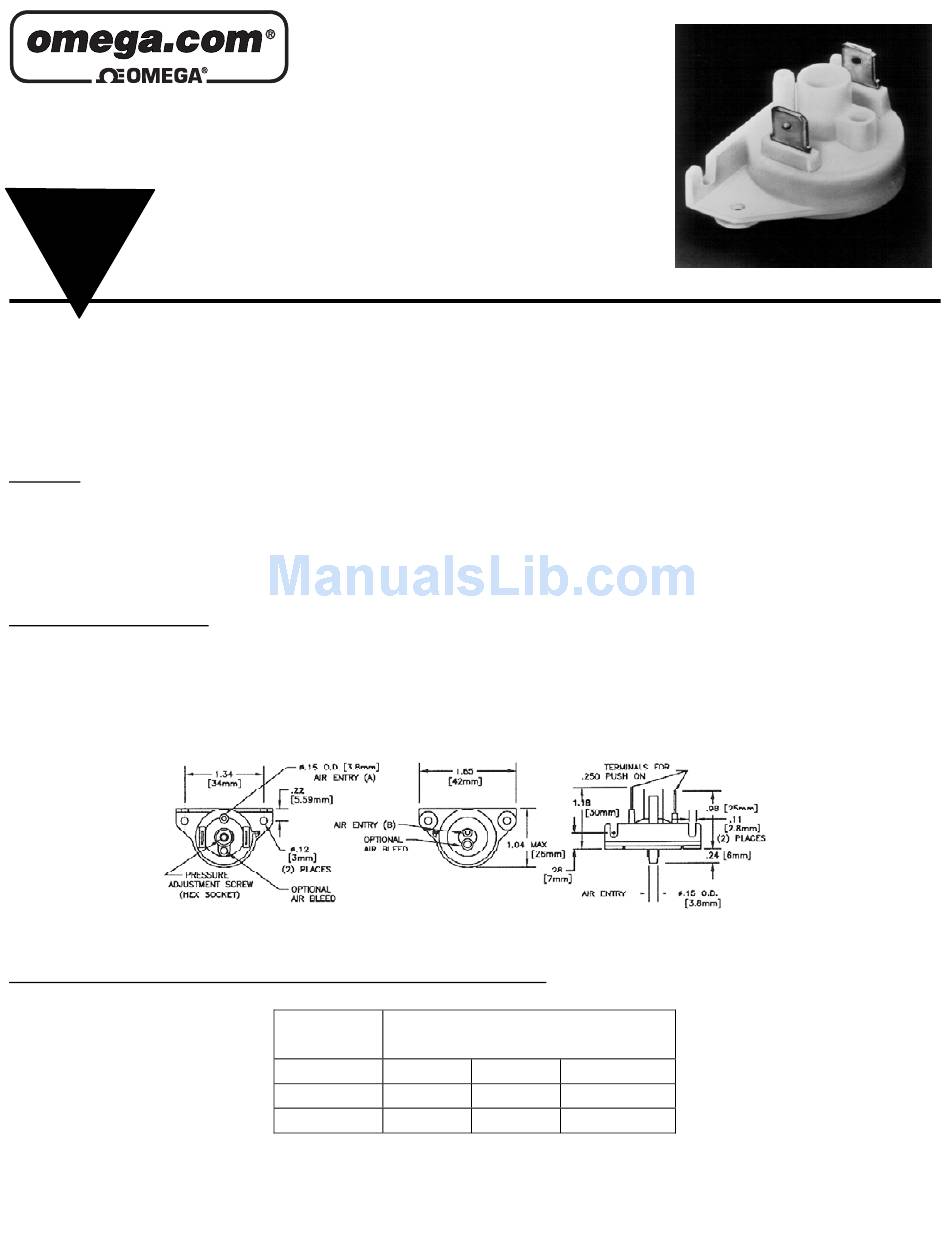

PSW20 Series
Pressure, vacuum or differential pressure switches
INSTRUCTION
SHEET
Shop online at: omega.com e-mail: info@omega.com
For latest product manuals: omegamanual.info
Installation Instructions for OMEGA PSW20 Series: Pressure, Vacuum and Differential
General
The PSW20 series is single pole switch that can be used as a pressure or vacuum switch (from 0.40 in W. C. to
20 inches W. C.) or as a pressure differential switch. The switch can respond to rapid pulsing and the gold
plated silver contacts will handle low level switching currents.
Mounting Instructions
Switch may be mounted in horizontal or vertical position, through 0.12" (3mm) holes on 1.34" (34mm)
centerline, with suitable clearances to accommodate 0.15" I.D tubing and electrical connectors – see diagram
for dimensions.
Electrical, Pneumatic and Material/Mechanical Specification
M4067-0504
Pressure Switches.
Part
Number
Pressure Vacuum Differential
PSW20A
0.4-15
PSW20B
1-20
Pressure range
(inches water, gauge)
0.4-15
.04-15
1-20
1-20
