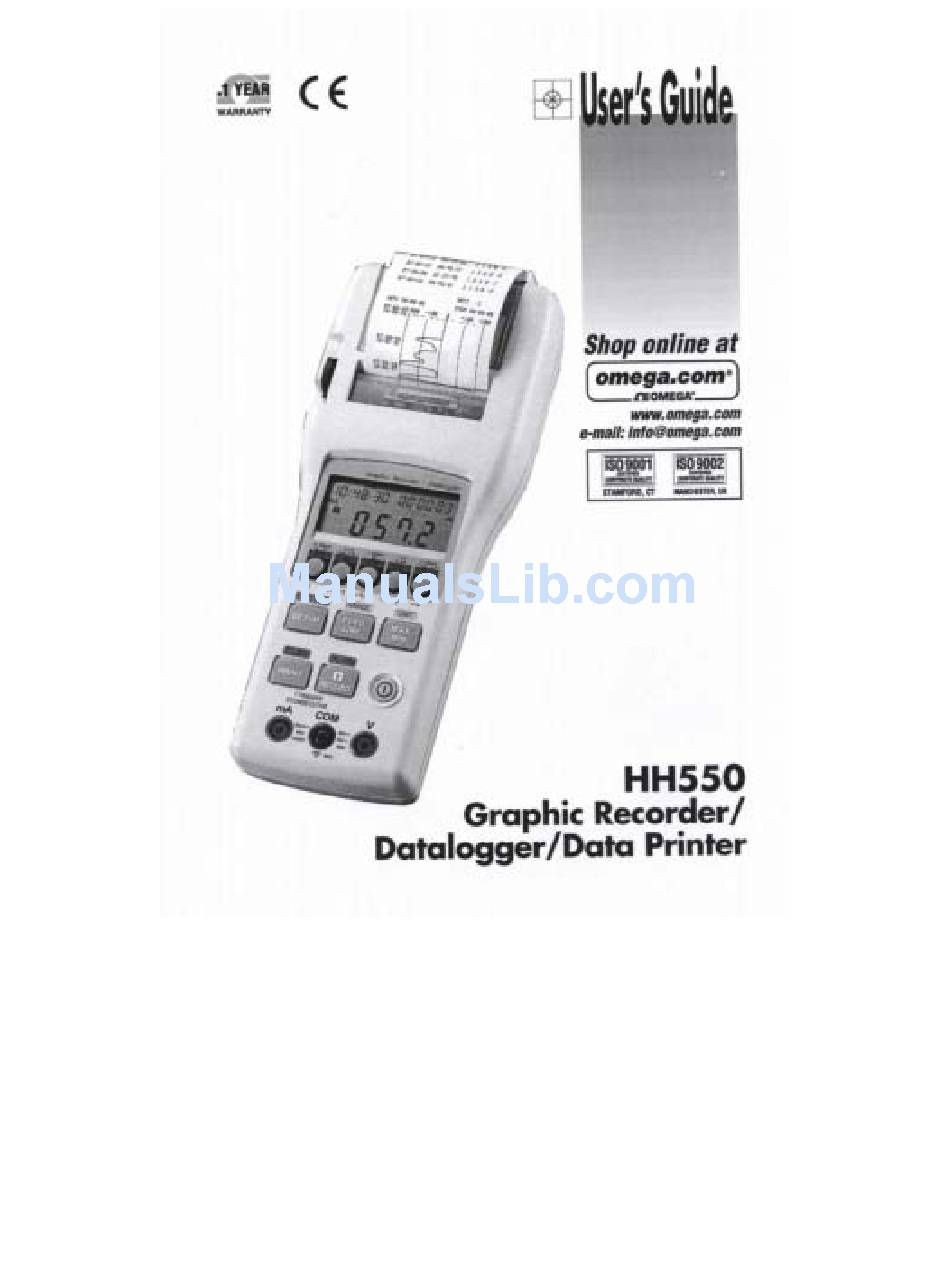

Omega HH550 User Manual

Graphic recorder/datalogger/data printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Omega HH550

  • Page 4: Table Of Contents

    CONTENTS Title 1. SAFETY INFORMATION ... 1 2. SPECIFICATION ... 2 2-1 General Specification ... 2 2-2 Electrical Specification... 5 3. PARTS & CONTROLS ... 6 3-1 The Name of Each Parts and Positions... 6 3-2 Power Status ... 9 3-3 Quick Manual for Easy Set-up...
  • Page 5 3-20 Setup Process Transducer (4-20mA) Mode ... 15 4. BATTERY & FUSE REPLACEMENT ... 16 4-1 Battery Check & Replacement ... 16 4-2 Fuse Replacement ... 16 4-3 Note... 16 5. DATALOGGING ... 16 5-1 Software Installation ... 17 5-2 Default Settings ... 21 5-3 Meter Stand alone Operation ...

  • Page 6: Safety Information

    1. SAFETY INFORMATION q Read the following safety information carefully before attempting to operate or service the meter. q The meter analog input protection voltage range is 24V ，current range is 250V/0.5A Fuse(MAX) , maybe damage forever if overload. Environment conditions： ...

  • Page 7: Specification

    2. SPECIFICATION 2-1 General Specification Display ： 3 LCD symbols： 1. SET ： In setting mode symbol. 2. RS-232 ： In RS-232 transmission mode symbol. DATE Show the date of real time clock. ： Show mode : month – day – year. –...
  • Page 8 ：DC test symbol. ：AC test symbol. ：Low battery indicator. 11. mVA ：Analog test indicate unit. 12. G ：The printer working in the graphic mode. 13. T ：The printer working in the text mode. ：Memory record indicator. 15. MAX ：MAX Analog input indicator.
  • Page 9 Dimensions ：About 250 (L) × 100 (W) × 45(H) mm Weight ：About 500g with battery Printer ：Interval print : 00 hour : 00 minute : 03 second〜23 hour : 59 minute : 59 sec ‚Trigger print : Print three data...

  • Page 10: Electrical Specification

    A / D Sample Rate ：2.5 times/sec Power Source ：6 pcs 1.5V，# 3 battery or 9V, DC adaptor (inside negative, outside positive) Battery Life ：Approx. 100 hours (without printing) Printer ：Thermal printer (EPL1902 of Panasonic) MEMORY ：60000 records (up to 130000 records)

  • Page 11: Parts & Controls

    3. PARTS & CONTROLS 3-1 The Name of Each Parts and Positions: 200mV 200mV 20mA ¢X ¢X ¢X ¢X HiHi LoLo DATE TIME START STOP INTV 4 5 6 7 8 9 SETTING RANGE UNIT FEED SETUP LINE CLOCK ALARM PRINT RECORD TRIGGER...
  • Page 12 200mV C / F Toggle button for ( 200mV, ℃/℉, HiHi, DATA) HiHi and digit “ o ”. DATA Lux/Fc Toggle button for ( 2V, Lux/ Fc, Hi, TIME) and TIME digit “ 1/2/3 ”. 1/2/3 200mV Toggle button for ( LoLo START and digit “...
  • Page 13 15 LCD Show test value, unit symbol and range indicator. 16 Thermal Printer Printing data. 17 Acryl Putting thermal paper. 18 RS-232 Connector RS-232 used. 19 FEED Button Feed paper into printer 20 DC 9V Socket To connect adaptor. (black color)

  • Page 14: Power Status

    As battery power is not sufficient, the replace with six new 1.5V batteries is required. 3-3 Quick Manual for Easy Set-up STEP1 STEP2 Choose one from specified Push this Select one. button 3 second. RANGE 200mV LUX / FC UNIT SETUP TIME START STOP CLOCK...

  • Page 15: Unit Setting Step

    sec à press à press RANGE press , to end setting mode. 3'SETTING 5. DCA 20mA Test setting sequence：Press and hold sec à press à press RANGE press , to end setting mode. 3'SETTING 3-5 UNIT Setting Step： 1. ℃/℉ Setting step：press and hold à...

  • Page 16: Real Time Clock , Time/ Date Setting Step

    è right shift button setting “ALARM" à press to end setting mode. 3'SETTING 3. LOLO ALARM Setting step：press and hold setting mode à press ALARM number è right shift button setting “ALARM" à press press to end setting mode. 3'SETTING 4.

  • Page 17: Print Mode Setting Step

    3'SETTING 3-9 Print Mode Setting Step： Printer work mode setting sequence：press and hold sec into setting mode à press G/T MODE à press to end setting mode. 3'SETTING 3-10 Clear Record Step： Press RECORD The LCD should display “dEL”...

  • Page 18: Record / Print Start And Step Operation Method

    3-17 Alarm Print in Graphic Mode : When printing in G mode, if you have setting any alarm points (HiHi, Hi, LoLo, Lo) when the read value over the set points, the printer the will print alarm value on the paper. PRINT RECORD...

  • Page 19: Scale Change In Graphic Mode

    HiHi LoLo ALARM ALARM ALARM ALARM ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü : had setting 3-19 How to ConnectsTL-(A37) Analog Output Cable Scale change by alarm setting No change...

  • Page 20: Setup Process Transducer (4-20Ma) Mode

    200mV 200mV 20mA ¢ X C ¢X ¢X ¢ X HiHi LoLo DATE TIME START STOP INTV SETTING RANGE UNIT FEED SETUP LINE CLOCK ALARM PRINT RECORD TRIGGER CONSECUTIVE C O M 20mA FUSED 600V Model Connecting way (DC Input) Connecting way (AC Input) Red lead connect to (V), TES-1300 Black lead connect to (COM)

  • Page 21: Battery & Fuse Replacement

    INTV Press + Power ON into Process Transducer (4 - 20 mA) mode. First of all, setting Ref1 “ MAX ” reference value (the “MAX” symbol will be flash), then press button to input “ MAX ” reference 0 1/2/3 4/5/6 7/8/9 0.001 ~ 9999, press RECORD the process transducer (4 - 20mA) mode setting is success.

  • Page 22: Software Installation

    1. PC Hardware requirements： q HDD 20 MB space, 1.44MB floppy driver, serial ports, 486 PC or above, with COM1, COM2 comports. q EGA or higher display. q 4M bytes or more memory size. 2. Hardware installation :  Switch off all power related to your PC. ‚...
  • Page 23 … A “ Run ” window appears, then type A:\SETUP or B:\SETUP and press “ OK ”. † Setup program will run automatically.
  • Page 24 ê ê ‡ Click “NEXT” ˆ a). Click “ NEXT ” or b). If willing to set up on a different folder, click “ Browse ”.
  • Page 25 ‰ Click “ NEXT ”...

  • Page 26: Default Settings

     Run the Graphic Recorder software : Click “Start” from the “Start” menu, move mouse pointer to “Programs” and then move to “Omega” (Default Settings). Move mouse pointer to “GRAPHER” and then click this button. ‚ Move mouse pointer to available comport COM1, COM2 then click.
  • Page 27 3. Time Setup : Move mouse pointer to “System Time Set” then click this button to input time of PC to the Graphic Recorder. When “WAIT” (center) disappeared, setup of time is completed. Also could be set up by “Setup” mode. Refer to P.31 ‚ for more details. 4.
  • Page 28 ‚ In the window “MEMORY”, move mouse pointer to “UPDATE” and then click this button. Input the No.s of IC, and then press OK. 5. ID CODE Setup :  Move mouse pointer to “Option” then click. Move mouse pointer to “Memory”...
  • Page 29 ‚ In the window of “MEMORY” , double click or drag the mouse to highlight the values of “ID Code”. ƒ Input the expected values of “ID Code” and then click the button “ID Code”. „ While “PLEASE WAIT” disappeared, setup of “ID Code” is completed.
  • Page 30 6. Setup of sampling rate of the meter :  Move mouse pointer to “Option” then click. Move mouse to “Setup” and then click this button.
  • Page 31 ‚ In the window “SETUP”, select the option button named “CLOCK” under the title “MODE”. ƒ Drag mouse to highlight the values of “INTERVAL”.
  • Page 32 „ Input the expected values with “HOUR” , “MINUTE” , “SECOND” of “INTERVAL” then click “SETUP”. … While the message “Start/Stop REC/PRT with timing ? ” appears, press “Cancel” at this moment then escape Setup mode. 7. Setup of Input Voltage \ Current...
  • Page 33 “Setup” and click this button. ‚ In the window “SETUP”, select the option button named “RANGE” under the title “MODE”. Under the “RANGE” title, select the expected input Voltage \ Current then escape “SETUP” mode. 8. Setup of Unit  Move mouse pointer to “Option” then click. Move mouse pointer to “Setup”...
  • Page 34 ‚ In the window “SETUP”, select the option button named “UNIT” under the title “MODE”. Under the “UNIT” title, select the expected input unit then escape “SETUP” mode. 9. Setup of Alarm :  Move mouse pointer to “Option” then click. Move mouse pointer to “Setup”...
  • Page 35 ‚ In the window “SETUP”, select the option button named “ALARM” under the title “MODE”. Under the “ALARM” title, drag mouse to highlight the values of HiHi, Hi, Lo, LoLo. Input the expected values then move mouse pointer to “UPDATE” and click. Escape the “SETUP” window to complete.
  • Page 36 10. Setup of Record / Print / Time : (Open up “PANEL” window is required)  Move mouse pointer to “Option” then click. Move mouse pointer to “Setup” and click this button. ‚ In the window “SETUP”, select the option button named “CLOCK” under...
  • Page 37 the title “MODE”. Under the “CLOCK” title. A. Setup time of the meter manually : a). Move mouse pointer to “TIME SET” then click. While the warning message appears, click “OK”. b). Drag mouse to highlight the values of YEAR / MONTH / DATE / HOUR / MINUTE / SECOND under the red title “DATE”...
  • Page 38 c). Input the expected values and then click the right bottom button “SETUP”. d). While the “START/STOP REC/PRT with timing…….” appears, click “Cancel” and then escape the “SETUP” mode. B. Setup time of REC/PRT automatically a). Drag mouse to highlight the values of HOUR \ MINUTE \ SECOND under the title “START”...
  • Page 39 e). While the “START/STOP REC/PRT with timing…….” appears, click “OK”. f ). While the P / R signal appears (in the window of “PANEL”), move mouse pointer to this signal and then click to set up the Start / Stop time of record / print.
  • Page 40 ‚ In the window “SETUP” select the option button named “PRINT MODE” under the title “MODE”. ƒ Under the “PRINT” title, select a print mode and then click that button. Escape “SETUP” mode to complete.

  • Page 41: Meter Stand Alone Operation

    1. How to clear “ Data Logger ” 2. How to do trigger record 3. How to consecutive Record/Print (Ⅰ) ð Press “ RECORD ” + “ POWER ON ”, the LCD will be show “dEL”. ð After “ POWER ON ”, release “ RECORD ”, button.
  • Page 42 PRINT ” button for 3 seconds to stop function. ð Stop consecutive Record/Print function the LCD will be clear. ð If the “ START ” and “ STOP ” function have been set, the printer will be stopped when “STOP” time is up.

  • Page 43: Download Datalogger (Graphic Recorder Èpc)

    5-4 Download Datalogger (Graphic Recorder èPC) Move mouse pointer to “Option” then click. Move mouse pointer to “Memory” and then click this button to read recorded data in memory. ò As above, the total memory size is 128K, 126.8K remained.
  • Page 44 1. Move mouse pointer to “Numbers of Sets” then click this button to show how many sets have been recorded in the memory of Graphic Recorder (EEPROM). 2. Move mouse pointer to “Time of Sets” then click this button. There will be a list that shows the recording time of each set.
  • Page 45 records for this set will be shown. 4. For more details of the chosen set, move mouse pointer to “Show Data” and then click. SAVE : To save data recorded in HD and to apply for other applications such as EXCEL, WORD.

  • Page 46: Data Conversion

    1. Save data by RS-232 communication port in PC.  Open Graphic Recorder software, check if Graphic Recorder connected and PC is well. If not the “ NO COM ” signal will be displayed, please be sure RS-232 cable is plugged and secured to COM1 or COM2. After a good connection, the COM1 or COM2 symbol will be showed on the screen.
  • Page 47 ƒ Move mouse pointer to “File”, then click. And move mouse pointer to “ START RECORDING ”, then click this button. The “RECORDING” signal and No.s of PC record will display from 1 up to end.
  • Page 48 „ To end this record function, move mouse pointer to “File”, then click. Move mouse pointer to “ STOP RECORDING ”, click the button. The “ RECORDING ” signal will disappear. 2. Apply for Excel : Open Microsoft EXCEL, go to “open file ”, from the searching function. ...
  • Page 49 ‚ From the “ Files of type ”, click the pull down pointer, then choose “All Files ”, select sample.dat then click “open” button. ƒ The “ Text Import Wizard ” then appears, click finish button, the selected data will show in excel type.

  • Page 50: On-Line Operation With Pc

    5. Run the Grapher software Click “ Start ” from Start menu, move mouse pointer to “ Programs ”, then move pointer to “Omega” (default), move mouse pointer to “GRAPHER” then click. Move mouse to available comport (COM1 , COM2) then click.
  • Page 51 7. Main tableau  Time Setup：Move mouse pointer to “ System Time Set ” then click to input the time of PC to the Graphic Recorder. When “ WAIT ” (in the center of the windows) disappeared, setup of time is completed.
  • Page 52 ‚ RESET：Reset current maximum and minimum values. Move mouse pointer to “RESET” then click this button to complete. ƒ Save data in HDD： a). Move mouse pointer to “File” then click. And move mouse pointer to “ SAVE AS ” then click this button. There shows a dialog box to open file.
  • Page 53 b). Move mouse pointer to “File” then click. And move mouse pointer to “Start Recording”, then click this button. The “Recording” meanwhile from 1 up to end also will show the Numbers of PC recording. c). If willing to end this recording, please move mouse pointer to “File” then click.
  • Page 54 d). Move mouse point to “File” then click. And move mouse pointer to “OPEN FILE”, then click this button. There comes a dialog box to open file. Input the saved file name to read. „ To show reading values in “ GRAPH ” type, move mouse pointer to ”Display”...
  • Page 55 a). Print : to print graph. b). Limit : Move mouse pointer to “ Limit ”, then click this button. There comes a dialog box. Input the willing setting and then click “ OK ”. The graph page will show which records on each.
  • Page 56 … To show reading values in LIST type, move mouse pointer to “Display” then click. And move mouse pointer to “List” and then click this button to launch. ê...
  • Page 57 PC. Move mouse pointer to “Display” then click. And move mouse pointer to “Sample Rate” then click this button. There shows a dialog box “ Input Sampling Time ”. Input the willing seconds the click “ OK ” to complete this setting.
  • Page 58 A. Tes meters : a). Move mouse pointer to “Option” then click. And move mouse pointer to “Setup” then click this button. b) In the window “SETUP”, move mouse pointer to “TES METER” which is under the title “MODE” then click this option button. c).
  • Page 59 a). Move mouse pointer to “ Option ” then click. Move mouse pointer to “ Od Mode ” and then click this button. There shows an “ Input HiHi Alarm ” dialog box. (as below) b). In this dialog box, input the willing values and then press “ OK ” to complete.
