Page 1: Digital Camera

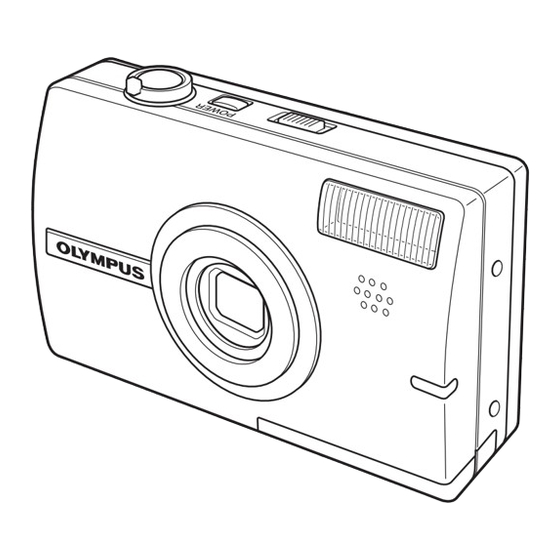

Advanced Manual Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.
Page 2: How To Use This Manual
How to use this manual (Basic and Advanced Manuals The instruction manual accompanying this camera is divided into two parts: the Basic Manual and the Advanced Manual (this document). Basic This manual gives you easy-to-follow explanations on how to take Manual pictures and view them so that you can get started quickly.
Page 3: Table Of Contents
To print the pictures you have taken. To enjoy the pictures you have taken on a computer. To use OLYMPUS Master. Troubleshooting. For when you want to know the names of parts, see a list of menus, or find what you are looking for.
Page 4 Table of Contents How to use this manual... 2 Composition of the manual ... 3 1 Basic operation - - - - - - - - - - - - - - - - - - - - - - -8 How to use the mode switch ...
Page 5 4 Additional shooting functions - - - - - - - - - - -49 Shoot pictures while checking the shot you just took (COMPARE & SHOOT) Changing ISO sensitivity (ISO) Changing picture brightness (EXP. COMP.) Adjusting the color of a picture (WHITE BALANCE) Changing the area for measuring the brightness of a subject (METERING)...
Page 6 Table of Contents Playing back pictures on a TV... 89 Video output ... 90 Protecting pictures (PROTECT) Copying pictures in the internal memory to the card (BACKUP)... 92 Erasing pictures Single-frame erase Erase selected ... 94 All-frame erase Formatting the internal memory/card (MEMORY FORMAT/ FORMAT) 6 Settings- - - - - - - - - - - - - - - - - - - - - - - - - - - - 97 Resetting the settings to the default (RESET)
Page 7 What is OLYMPUS Master?... 132 Installing OLYMPUS Master ... 133 Connecting the camera to a computer ... 137 Starting up OLYMPUS Master ... 138 Displaying camera images on a computer ... 140 Downloading and saving images ... 140 Viewing still pictures and movies ... 142 Printing pictures ...
Page 8: Basic Operation
Professional photographers use these functions to achieve a variety of effects. Now you too can achieve such effects simply by pressing the buttons on your digital camera. You can use the various functions available to adjust the brightness and white balance of your pictures, alter the focusing range, and much more.
Page 9: How To Use The Mode Switch
How to use the mode switch This camera features a shooting mode and a playback mode. Shooting mode is for taking pictures and adjusting shooting settings, whereas playback mode is for displaying and editing pictures you have taken. To switch between the shooting mode and the playback mode slide the mode switch.
Page 10 How to use the mode switch (Turning the camera on in shooting mode Set the mode switch to K or n and press the o button. • The camera turns on in shooting mode. You are ready to take pictures. o button (Lens cover opens To turn the camera off...
Page 11: Turning The Camera On In Playback Mode
(Turning the camera on in playback mode Set the mode switch to q and press the o button. • The camera turns on in playback mode. The last picture taken is displayed on the monitor. o button Mode switch (The lens cover is closed To turn the camera off jPress the o button.
Page 12: Direct Buttons
Direct buttons This camera features buttons for setting functions directly. The direct buttons have different functions in shooting mode and in playback mode. Using the direct buttons in shooting mode QUICK VIEW button The last picture taken is displayed on the monitor. All the functions in playback mode are available.
Page 13: Using The Direct Buttons In Playback Mode
Using the direct buttons in playback mode < button (Print) Prints pictures displayed on the monitor. DISP./GUIDE button Select a menu item, and press this button to display an explanation of its function. During playback, press this button repeatedly to change the display in the following order.
Page 14: Menus
Menus Press Z in shooting mode or playback mode to display the menus on the monitor. Menus are used to select each camera setting. About the menus The menu items displayed in shooting mode and playback mode differ. COMPARE COMPARE &...
Page 15: Shortcut Menus
Shortcut menus (Shooting mode For still pictures COMPARE COMPARE MULTI MULTI RESET RESET & SHOOT & SHOOT -SHOT -SHOT IMAGE IMAGE CANCEL MODE CANCEL MODE QUALITY QUALITY MENU MENU WHITE WHITE EXP. EXP. BALANCE BALANCE COMP. COMP. Menu items for taking pictures COMPARE &...
Page 16: Playback Mode
Menus (Playback mode For still pictures COMPOSE COMPOSE ADJUST ADJUST EDIT EDIT IMAGE IMAGE IMAGE IMAGE IMAGE IMAGE ALBUM ALBUM CANCEL CANCEL MODE MODE MENU MENU SLIDE SLIDE CALENDAR CALENDAR ERASE ERASE SHOW SHOW Menu items for taking pictures COMPOSE IMAGE (for still pictures) INDEX PLAY (for movies) ADJUST IMAGE (for still pictures) MOVIE PLAY (for movies)
Page 17 (Album playback mode For still pictures SEL. SEL. SELECT SELECT UNDO UNDO TITLE TITLE ENTRY ENTRY ALBUM ALBUM IMAGE IMAGE CLOSE CLOSE CANCEL CANCEL ALBUM ALBUM ALBUM ALBUM MENU MENU SLIDE SLIDE ROTATION ROTATION PROTECT PROTECT SHOW SHOW Menu items for taking pictures SEL.
Page 18: Mode Menu
Menus Mode menu (Shooting mode CAMERA For setting shooting-related functions. MEMORY/ For formatting internal memory or a card. Also saves internal memory CARD tab data to a card. SETUP tab For setting basic camera functions and settings that make the camera easier to use.
Page 19: Using The Menus
Using the menus Use the arrow pad and Z to set menu items. Follow the operation guide and arrows on the screen to select and change settings. Ex: Setting [DRIVE] Set the mode switch to K to enable shooting mode. Press Z.
Page 20 Menus Press ON to select [DRIVE], and press Y. • Refer to the arrows on the screen to select and make settings with the arrow pad. • Unavailable settings cannot be selected. Press ON to select from [o], [j], or [MULTI-SHOT], and press Z.
Page 21: Using The Guide Function
Using the GUIDE function This camera has a GUIDE function. Pressing the DISP./GUIDE button while a menu is displayed in shooting mode or playback mode automatically displays a menu guide explaining the menus. When a menu is displayed, hold down the DISP./GUIDE button. •...
Page 22: How To Read The Procedure Pages
How to read the procedure pages A sample of a procedure page is shown below explaining the notation. Look at it carefully before taking or viewing pictures. Indicates the position in which the mode switch is set. If multiple icons are displayed, the described function can be used in any of these modes.
Page 23: Tips Before You Start Taking Pictures
2 Tips before you start taking pictures Tips before you start taking pictures Your pictures are almost guaranteed to come out well just by setting the mode switch to K or A and pressing the shutter button. But occasionally, you can’t focus on your subject, the subject is too dark, or the picture doesn’t come out the way you want.
Page 24: If The Correct Focus Cannot Be Obtained
If the correct focus cannot be obtained The camera automatically detects the focus target in the frame. The level of contrast is one of the criteria used to determine the subject. The camera may fail to determine subjects with lower contrast than the surroundings or with an area of extremely strong contrast in the frame.
Page 25: Subjects That Are Difficult To Focus On
TIPS Focus on the subject in the center of the frame. g“Changing the focusing area (AF MODE)” (P. 56) Note • Press the shutter button gently. If it is pressed forcefully, the camera may move causing the picture to blur. •...
Page 26: Record Mode (Image Quality)
Record mode (IMAGE QUALITY) You can select a record mode in which to take pictures or shoot movies. Select the best record mode for your purpose (printing, editing on a computer, website editing, etc.). For information on the image sizes for each record mode and the number of storable still pictures/movie recording time, see the tables on P.
Page 27: Movie Record Modes
Image size The number of pixels (horizontal × vertical) used when saving an image. You can save your pictures at a large image size to get clearer prints. However, as the image size increases, the file size (data size) also increases, which decreases the number of pictures that can be saved.
Page 28: For Movies
Record mode (IMAGE QUALITY) For movies Record mode Image size 640 × 480 F FINE (30 frames/sec.) 320 × 240 F STANDARD (30 frames/sec.) 160 × 120 M EXTENDED (30 frames/sec.) Number of storable still pictures TIPS • When a picture is transferred to a computer, the size of the picture on the computer screen varies depending on the computer’s monitor setting.
Page 29: Changing The Record Mode
Changing the record mode Top menu [IMAGE QUALITY] For still pictures, select from [B SUPER HIGH6M], [e HIGH 4M], [f HIGH 2M], [L BASIC 1M] or [E E-MAIL VGA]. For movies, select from [F FINE], [F STANDARD], and [M EXTENDED]. Press Z.
Page 30: The Internal Memory And Memory Card
The internal memory and memory card Pictures taken are recorded in the internal memory. Pictures can also be recorded to an xD-Picture Card (“card”). The card can be used to record more pictures than is possible with the internal memory of the camera.
Page 31: The Card
Card (16 MB to 1GB) Note • This camera may not recognize a non-OLYMPUS card or a card that was formatted on another device (such as a computer, etc.). Make sure to format the card on this camera before use. g“Formatting the internal memory/card (MEMORY FORMAT/FORMAT)”...
Page 32: Inserting And Removing The Card
The internal memory and memory card Inserting and removing the card Make sure the camera is turned off. • The monitor is off. • The lens cover is closed. • The power/card access lamp is off. Open the battery compartment/ card cover.
Page 33: Removing The Card
(Removing the card Push the card all the way in and release slowly. • The card protrudes slightly and stops. Caution Releasing your finger quickly after pushing the card all the way in may cause it to eject forcefully out of the slot. •...
Page 34: Basic Shooting Functions
With a digital camera, you don’t need to learn how to make difficult settings. Your camera will adjust the settings for you! All you have to do...
Page 35: Selecting A Scene According To The Situation (F)
Selecting a scene according to the Selecting a scene according to the situation (SCENE) situation (f) When you select from the 26 types of f according to the scene or conditions, the camera automatically selects the optimal settings. (f mode P Program auto Suitable for general situations.
Page 36 Selecting a scene according to the situation (f) U Night + Portrait Suitable for taking pictures of your subject against a distant night scene. The camera sets a slower shutter speed than is used in normal shooting. N Indoor Suitable for taking pictures of people indoors. The atmosphere of the background is also vividly reproduced.
Page 37 V Cuisine Suitable for taking pictures of food. Food colors are vibrantly reproduced. P Behind Glass Suitable for shooting a subject through glass. The flash cannot be used. d Documents Suitable for taking pictures of documents or time schedules. The contrast between the text and background is enhanced.
Page 38 Selecting a scene according to the situation (f) k Under Water Wide1/l Under Water Wide2 Suitable for taking pictures of scenery under water. Be sure to use the underwater housing. Under Water Wide1 (k) Under Water Wide2 (l) H Under Water Macro Suitable for taking pictures under water in macro mode.
Page 39: Take The Picture
Press ON to select a scene, and press Z. Take the picture. • For shoot & select, hold down the shutter button. (When [SHOOT & SELECT1] or [SHOOT & SELECT2] is selected • After taking your pictures, the screen for selecting which pictures to erase is displayed.
Page 40: Zooming In On Your Subject
Zooming in on your subject Using the zoom You can zoom in on your subject using the optical zoom and digital zoom. With the optical zoom, the image is enlarged on the CCD when the lens magnification is changed, and the image is formed by all the CCD pixels. With the digital zoom, the area at the center of the image captured by the CCD is cropped and enlarged.
Page 41: Using The Digital Zoom
Using the digital zoom Top menu [MODE MENU] Turn the zoom lever to the T. Optical zoom The white area of the zoom indicator indicates the optical zoom. If the [DIGITAL ZOOM] is set to [ON], a red area is displayed on the zoom indicator.
Page 42: Using Macro/Super Macro Mode
Zooming in on your subject Using macro/super macro mode Focusing is usually slow when you get close to a subject (W: 10 cm/3.9" to 30 cm/ 11.8", T: 50 cm/19.7" to 60 cm/23.6"). However, in macro mode focusing is performed quickly. &...
Page 43: Flash Shooting
Flash shooting Select the flash mode best suited to the light conditions and the effect you want to achieve. Flash working range W (max.): Approx. 0.3 to 2.6 m (1.0 to 8.5 ft.) T (max.): Approx. 0.5 to 2.1 m (1.6 to 6.9 ft.) Auto-flash (No indication) The flash fires automatically in low light or backlight conditions.
Page 44: Flash Off
Flash shooting Flash off ($) The flash does not fire even in low light conditions. Use this mode in situations where flash photography is not desired or is prohibited. You can also use this mode when shooting landscapes, sunsets, and other subjects outside the range of the flash. Note •...
Page 45: Self-Timer Shooting
TIPS The # mark blinks. j Flash charging. Wait until the # mark turns off. j [$] is set. Change the setting to something other than [$] or use a tripod. Note • The flash does not fire in the following situations: Super macro mode, multi-shot, panorama and label shot.
Page 46: Recording Movies
Recording movies This function allows you to record movies. When the record mode is set to [F FINE], the camera can record up to 20 seconds. Compose your picture. • You can use the zoom lever to enlarge your subject. Press the shutter button fully to start recording.
Page 47: Camera Movement Compensation (Image Stabilizer)
Note • The remaining recording time may drop rapidly during recording. Try using the internal memory or card again after formatting it with your camera. g“Formatting the internal memory/card (MEMORY FORMAT/FORMAT)” (P. 96) • In n mode, the flash is not available. Camera movement compensation (IMAGE STABILIZER) This function reduces the blur incurred by camera movement when taking movies.
Page 48: Fulltime Af
Recording movies Fulltime AF When [FULLTIME AF] is set to [ON], the subject is automatically kept in focus during movie recording. Top menu [MODE MENU] Note • Setting [FULLTIME AF] to [ON] consumes more battery power. • [FULLTIME AF] cannot be used when [R] is set to [ON]. Recording sound with movies Sound can be recorded while shooting a movie.
Page 49: Additional Shooting Functions
4 Additional shooting functions Additional shooting functions Taking pictures like a pro... Adjust the brightness or white balance of the picture, change the focusing area depending on the subject, and make use of other useful functions to create professional-like pictures. At night or in the evening...
Page 50: Shoot Pictures While Checking The Shot You Just Took
Shoot pictures while checking the shot you just took (COMPARE & SHOOT) When COMPARE & SHOOT is set to [ON], the four previous frames are displayed on the left side. You can compare the previous pictures when you take the next picture. As you take pictures, the picture you took appears at the upper left, and the four frames on the left move down one with the bottom leaving the display.
Page 51: Changing Iso Sensitivity (Iso)
Changing ISO sensitivity (ISO) The higher the ISO, the better the camera’s light sensitivity and ability to shoot in low light conditions. However, high sensitivity introduces noise into the resulting picture, which may give it a grainy appearance. AUTO Sensitivity is automatically adjusted according to the conditions of the subject.
Page 52: Changing Picture Brightness (Exp. Comp.)
Changing picture brightness (EXP. COMP.) In some situations, you may get better results when the exposure that the camera sets is compensated (adjusted) manually. You can adjust the exposure in the range of ±2.0 EV in 1/3 EV steps. When the exposure is changed, you can check the result on the monitor.
Page 53: Adjusting The Color Of A Picture (White Balance)
Adjusting the color of a picture (WHITE BALANCE) The color of the subject differs depending on lighting conditions. For instance, when daylight, the setting sun or tungsten lighting are reflected on white paper, the shade of white produced will be slightly different for each.
Page 54: Changing The Area For Measuring The Brightness Of A Subject
Changing the area for measuring the brightness of a subject (METERING) When taking pictures against backlight, the face of the subject may appear darker. With spot metering, the picture can be taken based on the brightness at the center of the monitor without being affected by the light in the background.
Page 55: Sequential Shooting (J/Multi-Shot)
Sequential shooting (j/MULTI-SHOT) Sequential shooting (Sequential/MULTI-SHOT) You can take a sequence of pictures at one time while holding down the shutter button. Shoots 1 frame at a time when the shutter button is pressed. Focus, exposure and white balance are locked at the first frame. The sequential shooting speed varies depending on the record mode setting.
Page 56: Changing The Focusing Area (Af Mode)
Changing the focusing area (AF MODE) This function allows you to select how the camera focuses on your subject. AUTO The camera determines which subject within the screen to focus on. Even when the subject is not in the center of the screen, focusing is possible.
Page 57: Panorama Shooting
Panorama shooting You can take advantage of panorama shooting with an Olympus xD- Picture Card. Panorama shooting lets you connect pictures with overlapping edges into a single panoramic picture, using the OLYMPUS Master software. The part of the previous picture where it will be joined to the next picture does not remain in the frame on the edge of the screen.
Page 58 • Panorama mode is not available when there is no card in the camera. Panorama mode is only available with Olympus cards. • During panorama shooting, the flash, sequential shooting and multi-shot are not available. • The camera itself cannot connect panorama pictures. The OLYMPUS Master software is necessary to connect the pictures.
Page 59: Creating Labels For Combined Label (Label Shot)
Creating labels for combined LABEL (LABEL SHOT) You can make the labels you like for combined LABEL (g P. 81). Shoot the picture and text for the label and save them as a combined label shot file. Top menu [MODE MENU] Decide on the layout for the picture and text for the label.
Page 60: Recording Sound With Still Pictures
Recording sound with still pictures Sound can be recorded when taking still pictures. Recording starts about 0.5 seconds after the shutter is released and lasts about 4 seconds. When this function is enabled, sound is recorded automatically every time you take a picture. Top menu [MODE MENU] Take the picture.
Page 61: Changing The Monitor Display (Disp./Guide)
Changing the monitor display (DISP./GUIDE) This function displays histograms and lines that help you to compose your pictures. Press the DISP./GUIDE button repeatedly. • Press the DISP./GUIDE button to change the display in the following order. g“Direct buttons” (P. 12) Displays only basic information.
Page 62: Histogram
Changing the monitor display (DISP./GUIDE) Histogram This displays the histogram. You can take pictures while checking the distribution of brightness of the subject, thereby enabling you to closely check the exposure. The histogram is not displayed. The histogram is displayed as a graph. DIRECT Displays the overexposed and underexposed areas directly on the picture.
Page 63: Frame Assist
Frame assist This displays the frame assist and determines the type of frame assist. Refer to this when composing your picture. Frame assist is not displayed. Displays horizontal and vertical lines. Displays diagonal lines. Top menu [MODE MENU] [OFF]/[w]/[x] Changing the monitor display (DISP./GUIDE) [SETUP] [FRAME ASSIST] g“Using the menus”...
Page 64: Playback
That’s no way to record important memories! With a digital camera, you can review your pictures immediately. Just play the picture back as soon as you’ve taken it. If you don’t like what you see, erase and take it again.
Page 65: Playing Back Still Pictures
Playing back still pictures The pictures on a card are played back if a card is inserted in the camera. Remove the card to play back pictures stored in the internal memory. • The last picture taken is displayed on the monitor (single-frame playback). •...
Page 66: Playing Back Pictures In A Calendar (Calendar)
Playing back still pictures Playing back pictures in a calendar (CALENDAR) This function allows you to display the pictures you have taken in a calendar format. When a still picture or movie is recorded, it is automatically registered to the calendar by the date of recording.
Page 67: Playing Back Movies
Playing back movies This function lets you play back movies. You can fast forward the movie or play it back one frame at a time. Select the movie that you want to play, then display the top menu. Top menu [MOVIE PLAY] •...
Page 68: Selecting The Position To Begin Movie Playback (Index Play)
Playing back movies Note • The power/card access lamp blinks while the camera is reading the movie. Reading of movies may take some time. Do not open the battery compartment/ card cover while the power/card access lamp is blinking. Doing so may damage the data in the internal memory or the card and render the internal memory or card unusable.
Page 69: Playing Back Albums
Pictures stored in the internal memory cannot be entered in albums. You can enter up to 100 pictures into each of the available 12 albums. Using the provided OLYMPUS Master software, you can enter pictures from a computer into an album on a card.
Page 70: Adding Pictures To An Album (Album Entry)
Playing back albums Adding pictures to an album (ALBUM ENTRY) You can enter pictures or movies in an album. Top menu [ALBUM] Select the album entry method. SEL. IMAGE SET CALENDAR Selects a date on the SET ALL Press XY to select an album, and press Z.
Page 71 (SET CALENDAR Press ONXY to select the date with pictures to enter in the album, and press Z. Select [YES], and press Z. (SET ALL Select [PHOTO], [MOVIE] or [0], and press Z. Select [YES], and press Z. Note • The same picture cannot be entered in multiple albums. Playing back albums Mon Tue Tue Wed...
Page 72: Viewing Pictures In Albums
Playing back albums Viewing pictures in albums Top menu [ALBUM] Press XY to select an album to view, and press Z. • The title image for each album is displayed. Use ONXY to display the picture you want. Y : Displays the next picture. X : Displays the previous picture.
Page 73: Selecting An Album Cover (Select Title Image)
Selecting an album cover (SELECT TITLE IMAGE) You can change the title image (first frame in album) displayed on the [SEL. ALBUM] screen. Select the album to change and display the still image and then display the album playback top menu. Top menu [SELECT TITLE IMAGE] Press XY to select the picture...
Page 74 Playing back albums (SEL. IMAGE Press ONXY to select the pictures to undo, and press Z. • A icon is displayed on the selected picture. • Press Z again to cancel the selection. • Repeat Step 2 to undo multiple pictures.
Page 75: Erasing Pictures From Albums
Erasing pictures from albums You can erase pictures entered in an album. Unlike undoing album pictures, this erases the picture from the card. Display and erase a picture from an album. Note • You cannot erase protected pictures. Cancel protection before erasing such pictures.
Page 76: Slideshow
Slideshow This function displays pictures stored in the internal memory or the card one after another. You can select from 12 different transition effects. Only the first frame of each movie is displayed. (Types of slide shows • SCROLL • FADER •...
Page 77: Adding Sound To Still Pictures
Adding sound to still pictures Sound can be added to a still picture that you have already taken. You can also re-record over the sound that has already been recorded. Total recording time per picture is approximately 4 seconds. Select the still picture to which you want to add sound and display the top menu.
Page 78: Editing Still Pictures
Editing still pictures ( Editing still pictures (Resizing/Triming/REDEYE FIX/BLACK & WHITE/ SEPIA) FIX/BLACK & WHITE/SEPIA) This function lets you edit still pictures and store them as new pictures. The following editing operations are possible. Changes the image size to 640 × 480 or 320 × 240 and saves the picture as a new file.
Page 79 Editing still pictures (Q/P/REDEYE FIX/BLACK & WHITE/SEPIA) (When [P] is selected 1 Select [NEW FILE], and press Z. 2 Adjust the trimming position and size. ONXY Adjusts the trimming position of the picture. Zoom lever Adjusts the size of the picture.
Page 80: Creating Composite Pictures
Creating composite pictures (FRAME/ LABEL/CALENDAR/LAYOUT) This function lets you add frames, label or a calendar to still pictures and save them as new pictures. You can also create an index layout of selected pictures and save it as a new picture. The following picture composite operations are possible.
Page 81 Creating composite pictures (FRAME/LABEL/CALENDAR/LAYOUT) (When [LABEL] is selected 1 Press XY to select a picture, and press Z. 2 Press XY to select a label, and press Z. • Labels created with the LABEL SHOT function (g P. 59) are displayed after the internal labels.
Page 82 Creating composite pictures (FRAME/LABEL/CALENDAR/LAYOUT) (When [LAYOUT] is selected 1 Press XY to select a layout, and press Z. 2 Select the type of layout picture, and press Z. ALL IMAGES All pictures in the ALBUM CALENDAR Select the pictures you want to add to the layout by day SEL.
Page 83 If there is insufficient space in the internal memory or the card, or for movies, pictures edited with a computer, or pictures taken with another camera. TIPS • You can change frames and label using OLYMPUS Master software. For details, refer to the “Help” guide and the OLYMPUS Master reference manual. FRAME RESET...
Page 84: Adjusting Pictures
Adjusting pictures (BRIGHTNESS, SATURATION, COLOR BALANCE, WARM/COOL) This function lets you adjust still pictures and store them as new pictures. The following adjustment operations are possible. BRIGHTNESS Adjusts the brightness of a picture and saves the picture as a new file. SATURATION Adjusts the color strength of a picture and saves the picture as a new file.
Page 85: Editing Movies
• An adjustment bar to adjust RGB individually is displayed for color balance. Press XY to select. Select [OK], and press Z. • The [BUSY] bar is displayed and after the image is saved, the camera returns to the playback mode. Note •...
Page 86: Creating An Index
Editing movies Creating an index Top menu [EDIT] Select [NEW FILE], and press Z. Select the first frame of the index, and press Z. O : Jumps to the first frame of the movie. N : Jumps to the last frame of the movie. Y : Displays the next frame.
Page 87: Editing A Movie
Note • The index is stored as a still picture in a different record mode from the original movie. • The interval between the frames that are automatically extracted varies depending on the length of the movie. • You cannot create an index if there is insufficient memory space in the internal memory or the card.
Page 88 Editing movies Select [OK], and press Z. • The [BUSY] bar is displayed and after the edited movie is stored as a new movie or the original movie is overwritten, the camera returns to the playback mode. Note • You cannot select [NEW FILE] if there is insufficient memory space in the internal memory or the card.
Page 89: Playing Back Pictures On A Tv
Playing back pictures on a TV Use the provided AV cable to play back recorded images on your TV. You can play back both still pictures and movies on your TV. Make sure that the TV and camera are turned off. Connect the multi-connector on the camera to the video and audio input terminals on the TV using the provided AV cable.
Page 90: Video Output
Playing back pictures on a TV Video output You can select [NTSC] or [PAL] according to your TV’s video signal type. Use this setting when playing back pictures on a TV in a foreign country. Select the [VIDEO OUT] signal before connecting the video cable. If you select the wrong video signal type, you will not be able to play back the recorded pictures properly on the TV.
Page 91: Protecting Pictures (Protect)
Protecting pictures (PROTECT) It is recommended to protect important pictures to avoid accidentally erasing them. Protected pictures cannot be erased by the single-frame/selected/all- frame erase function, but they are all erased by formatting. Select the picture you want to protect and display the top menu. Top menu [MODE MENU] •...
Page 92: Copying Pictures In The Internal Memory To The Card (Backup)
Copying pictures in the internal memory to the card (BACKUP) Pictures recorded to the internal memory can be copied to a card (backup). A backup does not erase the pictures in the internal memory. You need a card to use the backup function. Insert a card into the camera before using this function.
Page 93: Erasing Pictures
Erasing pictures This function erases recorded pictures. Erasing can be done in the following ways. ERASE Only the frame that is being played back is erased. ERASE SELECTED Multiple frames that you want to erase can be selected and erased. You can select a maximum of 200 images. ALL ERASE All images in internal memory and on the card are erased.
Page 94: Erase Selected
Erasing pictures Erase selected Top menu [ERASE] Use XY to select the picture you want to erase, and press O. • You can undo the image by pressing O again. • Repeat Step 1 to erase multiple pictures. • Moving the zoom lever to the T changes the entire screen display, moving it to the W returns the screen display to its original form.
Page 95: All-Frame Erase
All-frame erase Top menu [MODE MENU] Select [YES], and press Z. • All the pictures are erased. TIPS • Select Top menu [ERASE] all the frames. [MEMORY (CARD)] [ALL ERASE] g“Using the menus” (P. 19) CAUTION ERASING ALL SELECT [YES], and press Z to erase [ALL ERASE] Erasing pictures ALL ERASE...
Page 96: Formatting The Internal Memory/Card
• Be sure that the card is inserted in the camera when formatting the card. • Before using non-OLYMPUS cards or cards which have been formatted on a computer, you must format them with this camera. All existing image data, including protected pictures, are erased when the internal memory or the card is formatted.
Page 97: Settings
6 Settings Settings One of the key features of a digital camera is that you can view the pictures you have taken immediately. But that isn’t all. For example, you can customize the startup screen with your own picture, and customize various other settings.
Page 98: Resetting The Settings To The Default (Reset)
Resetting the settings to the default (RESET) The camera retains the changed settings even if the power is turned off. Doing a [RESET] resets the settings (other than the [SETUP] tab in the mode menu) to the factory default settings. Top menu [MODE MENU] Select [YES], and press Z.
Page 99: Selecting A Display Language
Select a language, and press Z. TIPS To increase the number of languages j You can add other languages to your camera with the provided OLYMPUS Master software. For details, refer to the help in the OLYMPUS Master software. [SETUP] g“Using the menus”...
Page 100: Changing The Startup Screen And Shutdown Screen
Changing the startup screen and shutdown screen (PW ON SETUP/PW OFF SETUP) You can select the picture displayed and the sound played when the camera is turned on and turned off. You can also register your favorite picture and display it on the screen. g“Screen setup” (P. 101) Top menu [MODE MENU] [PW OFF SETUP]...
Page 101: (Pw On Setup/Pw Off Setup)
Changing the startup screen and shutdown screen (PW ON SETUP/PW OFF SETUP) Screen setup You can select the pictures that are displayed when the power is turned on and turned off. Still pictures in the internal memory or the card can be registered. Use [PW ON SETUP] or [PW OFF SETUP] to display the screen you registered.
Page 102: Viewing Pictures Immediately (Rec View)
Viewing pictures immediately (REC VIEW) You can choose whether or not to display the picture you have just taken on the monitor. The picture being recorded is not displayed. This is useful when you want to prepare for your next shot while the previous picture is being recorded. The picture being recorded is displayed.
Page 103: Setting Camera Sounds
Setting camera sounds (8/BEEP/ VOLUME) Setting camera sounds (Beep sound/BEEP/SHUTTER SOUND/ SHUTTER SOUND/VOLUME) Select [OFF], [LOW] or [HIGH] for the camera warning sound. BEEP Select [OFF], [1] or [2] for the sound of the button operations, for example when making menu selections. You can also set the volume of the sound to [LOW] or [HIGH].
Page 104: Shutter Sound
Setting camera sounds (8/BEEP/SHUTTER SOUND/VOLUME) (SHUTTER SOUND Top menu [MODE MENU] Select [OFF], [1] or [2]. If you selected [1] or [2], select [LOW] or [HIGH] and press Z. (VOLUME Top menu [MODE MENU] • For album playback mode: Top menu Press ON to set the volume, and press Z.
Page 105: Resetting File Names (File Name)
Resetting file names (FILE NAME) File names and their folder names for recorded pictures are automatically generated by the camera. File names and folder names respectively include file numbers (0001 to 9999) and folder names (100 to 999), and are named as follows. Folder name \ D C I M \ * * * O L Y M P \ P m d d * * * * .
Page 106: Adjusting The Image Processing Function (Pixel Mapping)
Adjusting the image processing function (PIXEL MAPPING) The pixel mapping feature allows the camera to check and adjust the CCD and image processing functions. It is not necessary to operate this function frequently. Approximately once a year is recommended. Wait at least one minute after taking or viewing pictures to allow the pixel mapping function to perform properly.
Page 107: Adjusting The Monitor Brightness
Adjusting the monitor brightness This function lets you adjust the brightness of the monitor to make it easier to see the image. Top menu [MODE MENU] • For album playback mode: Top menu Adjust the brightness while looking in the monitor, and when you have set the desired level, press Z.
Page 108: Setting The Date And Time In Another Time Zone
Setting the date and time in another time zone (DUAL TIME SETUP) Press ON to set the year, and press Y to move to the month setting. • To move back to the previous setting, press X. • The first two digits of the year are fixed. Repeat this procedure until the date and time are completely set.
Page 109 Setting the date and time in another time zone (DUAL TIME SETUP) (Setting dual time Select [ON], and press Y. Press ON to set the year, and press Y to move to the month setting. • To move back to the previous setting, press X.
Page 110: Displaying A Picture Automatically (Screen Saver)
Displaying a picture automatically (SCREEN SAVER) You can have the pictures in the card or internal memory automatically display one at a time if no operations are done in the playback mode for a set time. Top menu [MODE MENU] Select either [ON] or [OFF], and press Z.
Page 111: Setting The Sleep Time (Sleep)
Setting the sleep time (SLEEP) If no operations are performed for a certain period of time while the camera is running on batteries, the camera enters sleep mode (standby) and stops operating. You can set the time until the camera enters sleep mode. Top menu [MODE MENU] Select [30SEC], [1MIN], [3MIN],...
Page 112: Custom Button
Custom button You can set commonly used functions to the custom button. When a function is set to the custom button, you can simply press the custom button to display the setting screen for that function without having to go through the menu.
Page 113: Setting The Custom Button
Setting the custom button Top menu [MODE MENU] Select a function, and press Z. Note • K, n and q cannot be set separately. Using the custom button Press the z button. g “Direct buttons” (P. 12) • The menu of the set function is displayed. Press the z button repeatedly to set it.
Page 114: Printing Pictures
7 Printing pictures Printing pictures You can print out the pictures you have taken either at a photo store or at home on your own printer. If you go to a photo store, it is a good idea to store the print reservation data on the card first.
Page 115: Direct Printing (Pictbridge)
Direct printing (PictBridge) Using the direct printing function By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directly. With the camera connected to the printer, select the pictures you want to print and the number of prints on the camera’s monitor.
Page 116: Printing Pictures (Easy Print)
Direct printing (PictBridge) Printing pictures (EASY PRINT) Use the provided USB cable to connect the camera to a PictBridge-compatible printer. [EASY PRINT] can be used to print out the picture displayed on the monitor. Power on the printer. In playback mode, display the picture your want to print out on the monitor.
Page 117 Remove the USB cable from the camera. Remove the USB cable from the printer. TIPS • You can use [EASY PRINT] even when the camera is turned off or in shooting mode. With the camera turned off or in shooting mode, connect the USB cable. The selection screen for the USB connection is displayed.
Page 118: Printing Pictures (Custom Print)
Direct printing (PictBridge) Printing pictures (CUSTOM PRINT) Try printing one picture with the most basic printing method of [CUSTOM PRINT]. The selected picture is printed using the standard settings of your printer. The date and file name are not printed. Power on the printer.
Page 119 Select [PRINT], and press Z. • The [PRINTPAPER] screen is displayed. • When the [PRINTPAPER] screen is not displayed, go to Step 6. Press Z without changing the [SIZE] or [BORDERLESS] settings. Press XY to select a picture, and press O. •...
Page 120 Direct printing (PictBridge) (To cancel printing Pressing Z during print data transfer displays the screen for selecting whether to continue or cancel printing. To cancel printing, select [CANCEL] and press Z. In the [PRINT MODE SELECT] screen, press X. • A message is displayed. Remove the USB cable from the camera.
Page 121: Other Print Modes And Print Settings
Other print modes and print settings In addition to the basic printing method, there are also several other printing modes. The paper size and borderless settings can be set in the same print mode. If the following screen is displayed, perform the operations according to the operation guide.
Page 122: Selecting The Picture To Print
Direct printing (PictBridge) Setting the print paper Select the paper size and border on the [PRINTPAPER] screen. SIZE Choose from the available paper sizes on your printer. BORDERLESS Select framed or unframed. In [MULTI PRINT] mode, you cannot select the frame. OFF ( The picture is printed inside a blank frame.
Page 123 Setting the number of prints and data to be printed [MORE] <× Sets the number of prints. You can select up to 10 prints. DATE ( If you select [WITH], pictures are printed with the date. FILE NAME ( ) If you select [WITH], pictures are printed with the file name.
Page 124: If An Error Message Is Displayed
Direct printing (PictBridge) If an error message is displayed If an error message is displayed on the camera’s monitor during direct print setting or printing, see the following table. For more details, refer to the printer’s instruction manual. Monitor indication NO CONNECTION NO PAPER NO INK...
Page 125: Print Settings (Dpof)
Print settings (DPOF) How to make print reservations Print reservation allows you to save printing data (the number of prints and the date and time information) with the pictures stored on the card. Only images stored on the card can be reserved to print. Insert a card with recorded pictures into the camera before making print reservations.
Page 126 Print settings (DPOF) TIPS Relation between printing and record mode when shooting The resolution of a computer/printer is generally based on the number of dots (pixels) per inch (dpi). The higher the dpi value, the better the printed results. Keep in mind, however, that the number of pixels does not change. This means that when you print an image with a higher dpi value, the size of the printed picture will be smaller.
Page 127: Single-Frame Reservation
Single-frame reservation How to make a single-frame reservation for a selected picture is shown below. Follow the operation guide to adjust settings. For album playback mode, select the album that you want to make the print reservation for, and display the top menu. Top menu [MODE MENU] •...
Page 128: All-Frame Reservation
Print settings (DPOF) Select [NO], [DATE] or [TIME], and press Z. The pictures are printed without the date and time. DATE The selected pictures are printed with the shooting date. TIME The selected pictures are printed with the shooting time. Select [SET], and press Z.
Page 129: Resetting Print Reservation Data
Resetting print reservation data This function allows you to reset the print reservation data. You can reset all the print reservation data or just for selected pictures. Top menu [MODE MENU] • For album playback mode: Top menu (To reset the print reservation data for all pictures Select [<] or [U], and press Z.
Page 130: Connecting The Camera To A Computer
8 Connecting the camera to a computer Connecting the camera to a computer Viewing the pictures you have taken on your computer is just one of the many ways you can enjoy your pictures. You can print out your favorite pictures, use the application software to download your pictures from your camera and edit them or organize them by date or category, or attach...
Page 131: Flow
If the data cannot be downloaded from the camera using the USB cable jImage files on xD-Picture Card may be downloaded using the optional PC card adapter. For details, visit the Olympus web site at the address shown on the back cover of this manual.
Page 132: Using Olympus Master
CD-ROM. What is OLYMPUS Master? OLYMPUS Master is application software for editing images taken with a digital camera on a computer. Installing it on your computer lets you do the following: Download images from the camera or...
Page 133: Installing Olympus Master
Before installing the OLYMPUS Master software, please confirm that your computer is compatible with the following system requirements. For newer operating systems, please refer to the Olympus web site as shown on the back cover of this manual. (Operating environment...
Page 134 • Open the camera’s battery compartment/card cover Windows Insert the CD-ROM into the CD-ROM drive. • The OLYMPUS Master setup screen is displayed. • If the screen is not displayed, double-click the “My Computer” icon and click the CD-ROM icon.
Page 135 “Yes”. • A screen asking whether or not you want to install Adobe Reader is displayed. Adobe Reader is required to read the OLYMPUS Master instruction manual. If this screen is not displayed, Adobe Reader is already installed on your computer.
Page 136 Double-click the “Installer” icon. • The OLYMPUS Master installer starts up. • Follow the on-screen instructions. • When the OLYMPUS Master licensing agreement is displayed, read the agreement and click “Continue” and then “Agree” to proceed with the installation. • The screen confirming that installation is completed is displayed.
Page 137: Connecting The Camera To A Computer
The camera is recognized as a “Removable Disk”. • Macintosh The iPhoto program is the default application for managing digital images. When you connect your digital camera for the first time, the iPhoto application starts automatically, so close this application and start OLYMPUS Master.
Page 138: Starting Up Olympus Master
Double-click the “OLYMPUS Master” icon desktop. • The main menu is displayed. • When OLYMPUS Master is started up for the first time after installation, the “Registration” dialog box is displayed before the main menu. Follow the prompts and fill in the registration form.
Page 139 “Create and Share” button Displays the editing menu. “Backup Images” button Creates backup images. “Upgrade” button Displays window for optional upgrade to OLYMPUS Master Plus. (To exit OLYMPUS Master Click the “Exit” • OLYMPUS Master is exited. Starting up OLYMPUS Master...
Page 140: Displaying Camera Images On A Computer
Note • The power/card access lamp blinks while downloading images. Do not do any of the following while the lamp is blinking. • Open the battery compartment/card cover. • Connect or disconnect the AC adapter. on the OLYMPUS Master main...
Page 141: Windows 98Se
(To disconnect the camera You can disconnect the camera after downloading the images to your computer. Make sure that the power/card access lamp has stopped blinking. Make the following preparations for disconnecting the USB cable. Windows 98SE 1 Double-click the “My Computer” icon and right-click the “Removable Disk”...
Page 142: Viewing Still Pictures And Movies
• The “Browse” window is displayed. Double-click the still picture thumbnail that you want to view. • View mode is enabled and the picture is enlarged. • To return to the main menu, click “Menu” in the “Browse” window. on the OLYMPUS Master main Thumbnail...
Page 143: Printing Pictures
Pictures can be printed from the photo, index, postcard and calendar menus. The explanation below uses the photo menu. Click “Print Images at Home” main menu. • The print menu is displayed. Printing pictures at the 4 5 6 7 8 Description on the OLYMPUS Master...
Page 144 Printing pictures Click “Photo” • The “Photo Print” window is displayed. Click “Settings” in the “Photo Print” window. • The printer settings screen is displayed. Make the necessary printer settings. Select a layout and size. • To print the date and time with your image, check the box next to “Print Date”, and select between “Date”...
Page 145: To Download And Save Images To A Computer Without Using Olympus Master
To download and save images to a computer without using OLYMPUS Master Click “Print”. • Printing starts. • To return to the main menu, click “Menu” in the “Photo Print” window. To download and save images to a computer without using OLYMPUS Master This camera is compatible with USB mass storage.
Page 146: Appendix
9 Appendix Appendix This chapter contains useful information from OLYMPUS. • When you get an error message while using • When you press the o button but • When you want to know how to safely store • When you don’t understand a term used in the camera...
Page 147: Troubleshooting
Troubleshooting Error messages Monitor indication Possible cause There is a problem with the card. CARD ERROR Writing to the card is prohibited. WRITE-PROTECT The internal memory > has no available memory and cannot MEMORY FULL store any new data. The card has no available memory and cannot store any new CARD FULL...
Page 148 Troubleshooting Monitor indication When the camera is used for the first time or the battery has been removed for a long time, Y/M/D the date and time are on the factory default setting. This card cannot be CARD SETUP used in this camera. Or, the card is not POWER OFF FORMAT...
Page 149: Troubleshooting
Troubleshooting (Preparatory operations Possible cause Corrective action The camera does not turn on or function buttons do not respond. Press the o button to turn the camera The power is off. The battery power is Charge or change the battery. exhausted.
Page 150 Troubleshooting Possible cause The monitor is hard to see. There is condensation inside the camera. The brightness of the monitor is not adjusted properly. The monitor is exposed to direct sunlight. Vertical lines appear on the monitor screen during shooting. The date recorded with the image data is wrong.
Page 151 There are too many Use OLYMPUS Master to erase unneeded labels in the camera labels. For details, refer to the OLYMPUS Master software help or manual. Compare and shoot is set, but the pictures on the left to not change Turn [COMPARE &...
Page 152 Troubleshooting (Playback of recorded images Possible cause The pictures in the internal memory cannot be played back. The card is inserted in the camera. The picture is out of focus. A subject unsuited to AF was taken. The camera moved when the shutter button was pressed.
Page 153 Possible cause Corrective action The picture is too dark. The flash was blocked Hold the camera correctly, keeping your by your finger. fingers away from the flash. The subject was out of Shoot within the flash working range. the working range of the flash.
Page 154 Set the TV to the video input mode. Use [s] to adjust monitor brightness. Block the sunlight with your hand. Use OLYMPUS Master to erase unneeded frames or labels. For details, refer to the OLYMPUS Master software help or manual.
Page 155 The camera is not recognized by the computer. The computer failed to Disconnect the USB cable from the camera, recognize the camera. and connect it again. The USB driver has not Install OLYMPUS Master. been installed. Troubleshooting Ref. page P. 116, –...
Page 156: Camera Care
Camera care (Cleaning the camera Exterior: • Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth.
Page 157: Battery
Battery ( This camera uses one Olympus LI-40B lithium ion battery. No other type of batteries can be used. ( Power consumption by the camera varies depending on which functions are used. ( During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.
Page 158: Ac Adapter
AC adapter Use the Olympus AC adapter (S-D-1AC), provided with your camera, to power your digital camera from a common AC wall outlet (The AC adapter D-7AC, sold separately, can also be used.). An AC adapter is useful for time-consuming tasks such as image downloads to a computer.
Page 159: Safety Precautions
• Always observe the operating environment restrictions described in the camera’s manual. Battery Handling Precautions • This camera uses a lithium ion battery specified by Olympus. Do not use any other type of battery. For safe and proper use, read the battery’s instruction manual carefully before using it.
Page 160 • Olympus makes no representations or warranties regarding any damages or any benefit expected by using this unit lawfully which are caused by erasing picture data.
Page 161 Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein.
Page 162 - Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC). Any unauthorized changes or modifications to this equipment would void the...
Page 163: Glossary Of Terms
Glossary of terms CCD (Charge-Coupled Device) This converts light passing through the lens into electrical signals. On this camera, light is picked up and converted into RGB signals to build a single image. Contrast Detection Method This is used to measure the distance to the subject. The camera determines if the image is focused by the level of contrast in the subject.
Page 164: Noise Reduction
Glossary of terms Noise reduction When shooting in dark places, shutter speeds become slower as there is less light focused on the CCD. During long exposures, signals are generated by parts of the CCD where no light is focused and are recorded on the picture as noise. When noise reduction works, the camera automatically reduces the noise to produce clearer images.
Page 165: Miscellaneous
10 Miscellaneous Miscellaneous This chapter contains all the camera functions described in Chapters 1 to 8. Refer here for lists of the top menus and mode menus. The index helps you find the pages containing a function or item that you are looking for. For effective use of the manual, reference page numbers are listed in the menu lists.
Page 166: Menu List
Menu list Shooting mode menus (K) Top menu MODE MENU Item CAMERA METERING DRIVE DIGITAL ZOOM AF MODE PANORAMA LABEL SHOT MEMORY MEMORY FORMAT (CARD) (FORMAT) BACKUP SETUP RESET PW ON SETUP PW OFF SETUP REC VIEW BEEP SUTTER SOUND FILE NAME PIXEL MAPPING DUAL TIME SETUP OFF, ON...
Page 167 Top menu COMPARE & SHOOT MULTI-SHOT RESET IMAGE QUALITY WHITE BALANCE EXP. COMP. *1 Only displayed when a card is being used. *2 Available languages vary depending on the area where you purchased this camera. Item Settings OFF, ON OFF, ON YES, NO B SUPER HIGH6M, e HIGH 4M,...
Page 168 Menu list Shooting mode menus (A) Top menu MODE MENU COMPARE & SHOOT IMAGE STABILIZER RESET IMAGE QUALITY WHITE BALANCE EXP. COMP. Item CAMERA DIGITAL ZOOM FULLTIME AF MEMORY MEMORY FORMAT (CARD) (FORMAT) BACKUP SETUP RESET PW ON SETUP PW OFF SETUP BEEP FILE NAME PIXEL MAPPING...
Page 169 Top menu *1 Only displayed when a card is being used. *2 Available languages vary depending on the area where you purchased this camera. Item Settings AUTO, 64, 100, 200, 400 P. 51 Menu list Ref. Page...
Page 170 Menu list Playback mode menus (still pictures) Top menu MODE MENU COMPOSE IMAGE ADJUST IMAGE Item PLAY < MEMORY ALL ERASE (CARD) MEMORY FORMAT (FORMAT) BACKUP SETUP RESET PW ON SETUP PW OFF SETUP SCREEN SETUP VOLUME BEEP DUAL TIME SETUP OFF, ON VIDEO OUT SCREENSAVER SLEEP...
Page 171 Top menu EDIT IMAGE ALBUM SLIDESHOW CALENDAR ERASE *1 Only displayed when a card is being used. *2 Available languages vary depending on the area where you purchased this camera. Item Settings Q, P, REDEYE FIX, BLACK & WHITE, SEPIA, CANCEL SEL.
Page 172 Menu list Playback mode menus (n) Top menu MODE MENU INDEX PLAY MOVIE PLAY EDIT ALBUM Item PLAY MEMORY ALL ERASE (CARD) MEMORY FORMAT (FORMAT) BACKUP SETUP RESET PW ON SETUP PW OFF SETUP SCREEN SETUP VOLUME BEEP DUAL TIME SETUP OFF, ON VIDEO OUT SCREENSAVER SLEEP...
Page 173 Top menu SLIDESHOW CALENDAR ERASE *1 Only displayed when a card is being used. *2 Available languages vary depending on the area where you purchased this camera. Item Settings SCROOL, FADER, ZOOM, CHECKERBOARD, BLINDS, SWIVEL, POP, HEARTS, CIRCLE, SQUARE1, SQUARE2, RANDOM ERASE, ERASE SELECTED, ALL...
Page 174 Menu list Playback mode menus (album playback mode) Top menu ALBUM MENU SEL. ALBUM SELECT TITLE IMAGE UNDO ENTRY CLOSE ALBUM SLIDESHOW ROTATION INDEX PLAY PROTECT *1 Not displayed for movies. *2 Not displayed for still pictures. Item < VOLUME VIDEO OUT Ref.
Page 175: List Of Factory Default Settings
List of factory default settings The functions are set as follows when the camera leaves the factory. Shooting modes SCENE Information display (DISP./GUIDE) Optical zoom &, % Flash COMPARE & SHOOT IMAGE QUALITY WHITE BALANCE EXP. COMP. IMAGE STABILIZER METERING DRIVE DIGITAL ZOOM AF MODE...
Page 176 List of factory default settings Playback mode Information display (DISP./GUIDE) SLIDESHOW ROTATION VOLUME SCREENSAVER Others PW ON SETUP PW OFF SETUP BEEP DUAL TIME SETUP VIDEO OUT SLEEP * Settings differ according to the region where the camera is sold. Information on screen SCROLL 0°...
Page 177: Functions Available In Shooting Modes And Scenes
Functions available in shooting modes and scenes Some functions cannot be set in certain shooting modes and scenes. For more details, refer to the table below. Shooting mode Scene mode Function INFO Optical zoom & FLASH MODE COMPARE & SHOOT IMAGE QUALITY WHITE BALANCE EXP.
Page 178 Functions available in shooting modes and scenes Shooting mode Scene mode Function BEEP SHUTTER SOUND FILE NAME PIXEL MAPPING DUALTIME SETUP VIDEO OUT FRAME ASSIST CUSTOM BUTTON SLEEP *1 Auto is fixed during h. Still picture (K)
Page 179 Shooting mode Scene mode Function INFO Optical zoom & FLASH MODE — COMPARE & SHOOT IMAGE QUALITY WHITE BALANCE EXP. COMP. IMAGE STABILIZER METERING DRIVE — DIGITAL ZOOM AF MODE PANORAMA LABEL SHOT R (still pictures) FULLTIME AF R (movies) MEMORY FORMAT (FORMAT) BACKUP...
Page 180 Functions available in shooting modes and scenes Shooting mode Still picture (K) Scene mode Function PIXEL MAPPING DUALTIME SETUP VIDEO OUT FRAME ASSIST CUSTOM BUTTON SLEEP...
Page 181 Shooting mode Scene mode Function INFO Optical zoom & — FLASH MODE — COMPARE & SHOOT IMAGE QUALITY WHITE BALANCE EXP. COMP. IMAGE STABILIZER METERING DRIVE DIGITAL ZOOM AF MODE PANORAMA LABEL SHOT R (still pictures) FULLTIME AF R (movies) MEMORY FORMAT (FORMAT) BACKUP...
Page 182 Functions available in shooting modes and scenes Shooting mode Scene mode Function PIXEL MAPPING DUALTIME SETUP VIDEO OUT FRAME ASSIST CUSTOM BUTTON SLEEP *2 Wide angle (W) is fixed during l. *3 Macro (&) is fixed during i. *4 E-MAIL VGA (640x480) is fixed during i. Still picture (K) Movie —...
Page 183: Index
Index 8 ...103 f ...35 o button...10 z button (custom) ...12, 112 S button (erase) ...13, 75, 93 Y# button (flash mode) ...12, 43 X& button (macro mode) ..12, 42 Z button (OK/MENU)...12, 13, 14 < button (print)...13, 116 Of button (SCENE SELECT) ...12, 38 NY button (self-timer) ...12, 45 q mode switch (playback) ..9, 11...
Page 184 Index EDIT IMAGE M ...78 E-MAIL VGA E ...26, 29 ERASE S ...93 ERASE SELECTED...94 Error messages...124, 147 EV ...163 Exposure...24, 163 Exposure compensationE ...52 FADER...76 FILE NAME ...105, 123 Fill-in flash # ...43 FIREWORKS X...36 Flash ...43 Flash charging ...45 Flash mode #...44 Flash off $...44 Flash stand-by ...44...
Page 185 OLYMPUS Master ...132 Optical zoom ...40 PAL ...90, 164 PANORAMA ...57 PC ...137 PictBridge...115, 164 PIXEL MAPPING ...106 Pixels ...27, 164 Playback mode q ...9, 11, 65 Playback on a TV...89 Playing time ...67 POP ...76 PORTRAIT B...35 Press fully ...24 Press halfway...24...
Page 186 Index UNDER WATER MACRO H ...38 UNDER WATER WIDE 1/2 k l ...38 UNDO ALL ...73 UNDO ENTRY S...73 USB cable ...116, 118, 137, 145 USB driver...133, 145 Using memory...30 VIDEO OUT ...90 VOLUME...104 WARM/COOL ...84 WHITE BALANCE C...53 xD...30 xD-Picture Card ...31 ZOOM ...40, 76 ZOOM (Slideshow) ...76...
Page 187 Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET E-Mail: distec@olympus.com Olympus software updates can be obtained at: http://www.olympus.com/digital Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: +49 40-23 77 3-0 / Fax: +49 40-23 07 61...

This manual is also suitable for:

Sp 700 - 6 megapixel digital camera

Olympus SP-700 Advanced Manual

1 Basic Operation

2 Tips before You Start Taking Pictures

3 Basic Shooting Functions

4 Additional Shooting Functions

5 Playback

6 Settings

7 Printing Pictures

8 Connecting the Camera to a Computer

9 Appendix

10 Miscellaneous

Quick Links

DIGITAL CAMERA

Troubleshooting

Related Manuals for Olympus SP-700

Summary of Contents for Olympus SP-700

This manual is also suitable for:

Table of Contents
