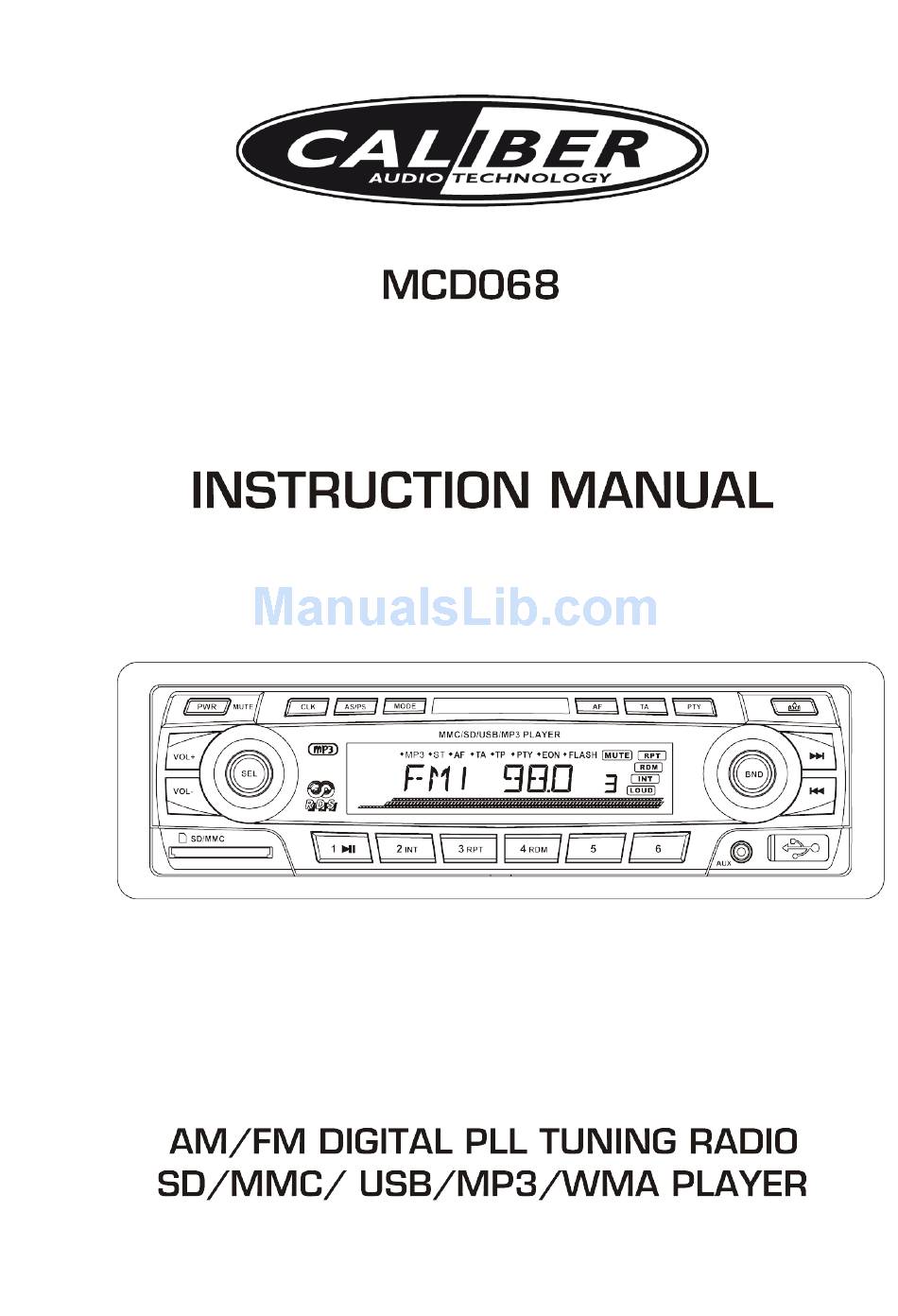

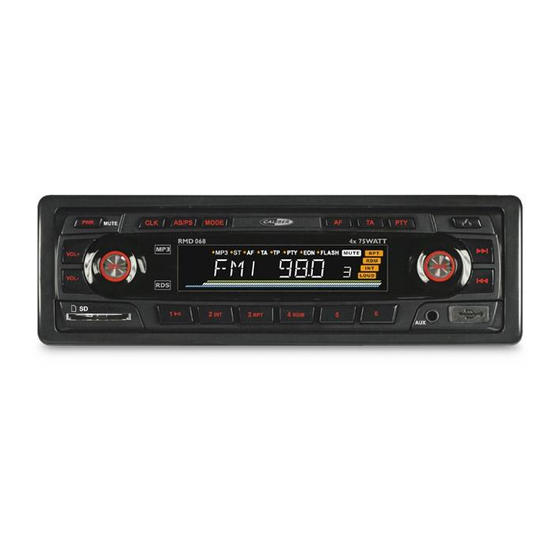

Summary of Contents for Caliber mcd068

  • Page 2: Location And Function Of Controls

    LOCATION AND FUNCTION OF CONTROLS SPECIFICATION GENERAL MODE MUTE AS/PS Supply Voltage DC 12V. Negative Ground MMC/SD/USB/MP3 PLAYER Current Consumption Max.10A VOL+ Power Output 25Watts X 4 (Measured at DC 14.4 V) VOL- Number of channels 2 STEREO channels. Unit Dimensions 178[W] X 101.5[D] X 50[H] mm.
  • Page 3: Wires Connection

    mode), CLK ON/CLK OFF, CLK 12/24 mode. After selecting the desired mode, WIRES CONNECTION press the VOL- or VOL+ button to select one setup item of the desired mode. RCA LINE OUT RCA LINE OUT 1) TA SEEK/TA ALARM: REAR RIGHT SPEAKER JACK FRONT RIGHT SPEAKER JACK TA SEEK mode: when newly tuned station does not receive TP information for RCA LINE OUT...
  • Page 4: Troubleshooting

    5. POWER ON/OFF & MUTE TROUBLE SHOOTING When the unit is power off, the unit comes to on by pressing any button except the EJECT and the RELEASE button. When the unit is power on, press and hold the power button for more than 0.5 seconds, the unit goes into power off mode.
  • Page 5 is on, the previous PTY program and PTY word is displayed on LCD. If there are no keys entered for 2 seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, NO PTY is flashed, then return to previous normal radio and PTY word disappear.
  • Page 6 2) When briefly pressing, the radio searches for each preset station in the current 24. MMC/SD CARD SLOT band and holds at that preset number for 5 seconds with releasing mute, and When you need to play the file in the MMC/SD card, insert the MMC/SD card then search again.
