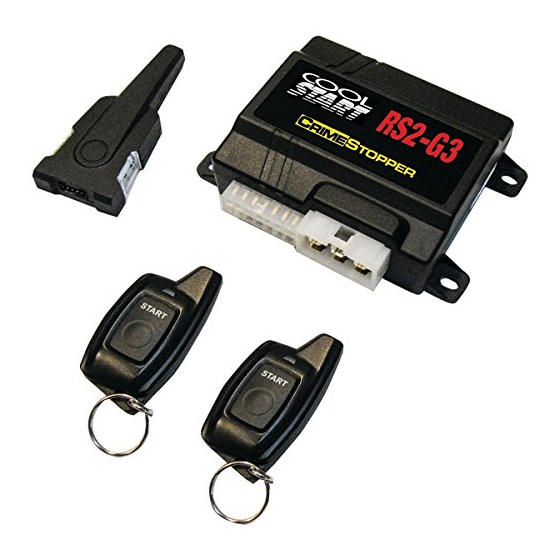

RS2-G3
ONE BUTTON 2-WAY REMOTE START SYSTEM
CONGRATULATIONS on your choice of a Cool Start™ Remote Engine Starter and Keyless Entry with DP
Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for
operating your system. If any questions arise, contact your installation dealer or Crimestopper Security
Products Inc.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e.
Remote Start connections, Flashing lights, and Brake Reset. For programming, the program button must be
installed.
-OPTIONAL: These features are to be connected only if desired or agreed upon by the customer and the
installing dealer i.e. Door Locks, Horn-Honk, Anti-Grind, etc. These features may also require additional parts
and/or labor fees. Consult with your installer beforehand to be sure of what is going to be installed with your
particular system.
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063
REV
08.08.2014
OPERATING INSTRUCTIONS
This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: 1) This device may not
cause interference, and (2) this device must accept any
interference that may be received, including interference that
may cause undesired operation.
responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
The manufacturer is not
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CrimeStopper cool start RS2-G3
Summary of Contents for CrimeStopper cool start RS2-G3
- Page 1 CONGRATULATIONS on your choice of a Cool Start™ Remote Engine Starter and Keyless Entry with DP Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for operating your system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc.
-
Page 2: Table Of Contents
2-Way Data Port…………………………………………………………………………………………………………15 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in which all items, such as parking brake and all associated components, door switches, transmission shift linkage, throttle linkage, and all engine safety features, are in perfect working condition. -
Page 3: Using The Remote Transmitter
USING THE REMOTE TRANSMITTER 2-Way Remote 1-Way Remote Red & Green LED Blue LED BASIC REMOTE OPERATION The transmitter supplied with this system is a single button 2-Way remote control. This is a multifunction remote control. It can operate power door locks (if equipped with power locks) and Remote Start the vehicle. The 2-Way Remote Control will confirm operation with Beeps and LED flash for lock, unlock and remote start. -
Page 4: Status Led
STATUS LED VEHICLE STATUS LED : Located on Window Antenna The Status led will flash when the doors are locked. It will turn off when the doors are unlocked. The LED will remain solid when the system is in Valet Service mode. The remote start function WILL NOT operate when in Valet Mode. - Page 5 REMOTE ENGINE CONTROL REMOTE ENGINE STARTING - UNSUCCESSFUL START In the event that the engine does not start on the first attempt, the system shuts down for a few seconds and then attempts to restart the engine a 2 and 3 time.
- Page 6 REMOTE ENGINE CONTROL IDLE DOWN MODE - EXITING THE VEHICLE: 1) With vehicle engine running with key, press the Remote Start button for 2 seconds. 2) Parking Lights will turn ON. 3) Doors will unlock. 4) Turn OFF Ignition and remove key. Engine should remain running. 5) Engine will remain running for programmed run time or until you return (whichever comes first).
-
Page 7: Timed Self Start Mode (Optional)
OPTIONAL SELF START MODE (OPTION 22) SELECTABLE HOURLY COLD-START MODE (2, 3 or 4 HOURS) Default = OFF This mode allows the vehicle to be programmed to self-start every 2, 3 or 4 hours and run for the programmed run time. This can be helpful during extremely cold conditions where engine fluid freeze-up is a concern. This option is disabled by default and must be activated. -
Page 8: Turbo Timer Mode
TURBO TIMER MODE (OPTION #21) The optional Turbo Timer mode allows the CoolStart system to keep a Turbo or Turbo Diesel vehicle running for 1, 3 or 5 minutes [selectively] after you remove the key and exit the vehicle. This is handy for turbo cool- down without the need for expensive turbo timers. -
Page 9: Convenience And Safety Features
CONVENIENCE AND SAFETY FEATURES KEYLESS ENTRY (Power Door Locks, may require Data Module - Optional) The doors will lock or unlock with a momentary press of the Start button. To confirm lock, the parking lights will flash once, the Status LED (on antenna) will start flashing and the horn will chirp once (selectable option). - Page 10 CONVENIENCE AND SAFETY FEATURES VALET MODE (Requires Installation of Valet Switch) Before servicing your vehicle or handing the keys over to a Valet we recommend putting the unit into Valet Mode. The remote start function WILL NOT operate when in Valet Mode. To enter Valet mode, turn the key to the ON position, press and hold Program/Valet switch for 5-6 seconds.
-
Page 11: Transmitter Programming
TRANSMITTER PROGRAMMING Note: All transmitter codes must be learned at time of programming!! The system learns up to 3 different transmitter codes. 1. Turn Ignition Key to the ON position. 2. Press Programming button 4 times, then after a few seconds the unit flashes the parking lights 4 times. 3. -
Page 12: No Factory Keyless Entry After Remote Start
NO FACTORY KEYLESS ENTRY AFTER REMOTE START Most new cars Do Not allow the factory Remote Keyless Entry to function with the Ignition ON. This means you can’t use the factory remote to lock or unlock the doors. After remote start you have to use the keys to unlock the door. -
Page 13: Remote Start Diagnostics
REMOTE START DIAGNOSTICS If the system flashes the LED and Parking Lights one to six times and doesn’t attempt remote. The LED will continue flashing the error code until the ignition is turned on, it means the following: 1 Parking Light Flash (1 LED Flash) = Problem with Brake Switch. 2 Parking Light Flashes (2 LED Flashes) = Problem with Hood Switch. -
Page 14: Battery Replacement
BATTERY REPLACEMENT To replace the battery: Simply take the case apart as shown below. Remove the two CR-2016 Lithium batteries and replace. Put case back together and tighten screw. The 1-Way remote needs two CR-2016 Lithium batteries. The 2-Way remote needs one CR-2032 Lithium battery. The 1-Way remote has a low battery indication;... -
Page 15: 2-Way Data Port
Databus modules are used to communicate with the vehicles computer at the OBD2 Data connector or Canbus wires. This reduces installation error. Crimestopper Systems with DP Series have a direct Data Port Plug-In for the Databus bypass module. This eliminates conventional wiring between the Alarm/Remote Starter and the bypass interface module. - Page 16 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. www.crimestopper.com email@crimestopper.com Phone (800) 998-6880 FAX (805) 581-9500 © 2014 Crimestopper Security Products...
