Summary of Contents for Oki PAGE 6w
-

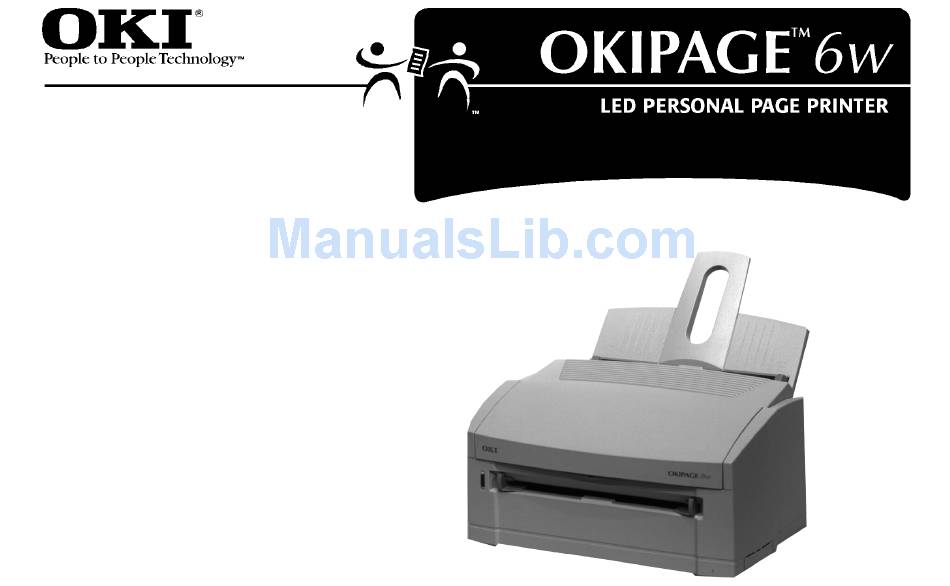

Page 1: Quick Setup
Quick Setup 59296202... - Page 2 • or by email to: pubs@okidata.com We welcome you to visit our multilingual web site: http://www.okidata.com OKI, OKIDATA, and OKIPAGE are registered trademarks/ marques déposées/marcas registradas of Oki Electric Industry Company, Ltd. is a registered trademark of the United States En- NERGY vironmental Protection Agency.
-
Page 3: Table Of Contents
Customer Support Call 1-800-OKIDATA. Assistance is available 24 hours a day, 7 days a week. Internet Visit our web site for the latest printer drivers, manuals, application notes, and more. http://www.okidata.com e-mail: pubs@okidata.com Quick Steps to Printing Unpack Your Printer ...5 Install the Paper Feed Tray ...6... -
Page 4: Getting To Know Your Printer
Getting to Know Your Printer Open Latch Paper Input Tray Paper Exit LED Array On/Off Switch Power/Status LED Power Cord Receptacle Image Drum Cartridge IEEE 1284 Parallel Interface Port Manual Feed Slot 4 Quick Setup... -
Page 5: Unpack Your Printer
Unpack Your Printer Unpack your printer and place it on a flat, stable surface you’ve selected. Remove the printer from the plastic bag. Note: As you unpack the accessories, please save the packing material in the event you need to repack the printer for shipping or moving. -
Page 6: Install The Paper Feed Tray
6 Quick Setup Swing the tray up and insert the tabs on the sides into the slots near the top of the printer. Push forward to install. (You may need to install one side at a time). -
Page 7: Remove The Protective Sheet
Remove the Protective Sheet Lift the cover. Lift out the Image Drum Cartridge. Quick Setup 7... - Page 8 Remove the Protective Sheet (continued) Guides Replace the Image Drum Pull out the protective sheet. Cartridge: a. Place front under the guides. b. Press down to lock. 8 Quick Setup...
-
Page 9: Install The Toner Cartridge
Install the Toner Cartridge Lift out and discard toner well cover. Unwrap toner cartridge. Shake cartridge side to side to distribute toner. Quick Setup 9... - Page 10 Install the Toner Cartridge (continued) Remove tape from the toner cartridge. Install the toner cartridge: a. Align the left side under the tab. b. Lower the right side into the well. 10 Quick Setup...
- Page 11 Install the Toner Cartridge (continued) Push the lock lever forward until it stops. Close the cover. Quick Setup 11...
-
Page 12: Connect To Your Computer
Connect to Your Computer We recommend that you use a Bi-directional parallel printer cable. Purchase a cable marked “IEEE 1284 compliant.” To comply with FCC regula- tions, the cable must be shielded and UL and CSA approved. Note: OKIDATA has tested and... -
Page 13: Load Paper
Load Paper Adjust the paper guides. Fan a stack of paper (up to 100 sheets/20 lb. max.) Place paper into the paper input tray. • Use smooth, low moisture paper rated for copier and laser printers. Paper Feeding • Feeder: 100 sheets/20 lb. max./ letter and legal size Stacking capacity: 30 sheets/ face-up... -
Page 14: Install The Printer Software
Install the Printer Software You are now ready to install the printer software. The CD-ROM packed with your printer includes the soft- ware you need to use your printer. Printer drivers - needed to use all printer features Status Monitor software - for on-screen monitoring... - Page 15 4. Type D:\install (if “D” is your CD-ROM drive). Click OK. 5. Proceed with the installation following the instruc- tions on your screen. To change the printer default, or to setup printer ® ® properties from the Program Manager: select...
-
Page 16: Print A Demo Page
Print a Demo Page Print a demo page to test your printer and view the Status Monitor. Click the Start button on the Windows Taskbar. ® ® Select Programs OKIPAGE 6w Hi-perW OKIPAGE 6w Status Monitor. Win 3.1x Users: 1. Open the OKIPAGE 6w Hiper-w program group. - Page 17 Print a Demo Page (continued) The Demo page prints. Click the Demo button. Help Click for more information about Status Monitor features. Quick Setup 17...
- Page 18 Printing Transparencies, Labels and Special Media Adjust the guides. Insert media face-up, top of page in first. Set Manual Feed and media size in your software. Select print. • Single Sheet Sizes: legal, letter, executive, A4, A5, B5, A6, user defined (min. 3" x 5" ) •...
-
Page 19: Printing Envelopes
Printing Envelopes Adjust the guides. 19 Quick Setup Insert the envelope flap down and to the left. Select manual feed-envelope in your software. Select print. Use this type – Use envelopes with a smooth, even surface that are designed for laser printers: no metal clasps, snaps, windows, or self- adhesive flaps... -
Page 20: Purchasing Supplies
Part Number: 40709901 nearest Authorized Sales and Service location. Order toll-free by phone at 1-800-OKIDATA (1-800-654-3282, North America only), using a major credit card. Check office supply catalogs or your local statio- nery store. Most carry OKI brand supplies. 20 Quick Setup... - Page 21 Collated Page Printing Normally the printer feeds the printed pages into Help the output tray face up with the first page at the bottom of the stack. Use this feature to print multi- page documents so that the first page is at the top of the stack.
-
Page 22: Online Manual
Online Manual For more information about using your printer, including maintenance, problem solving, support and service, see the online User’s Manual: ® ® ® Click on Start Programs 6w Hi-perW Online manual. Win 3.1x Users: 1. Open the OKIPAGE 6w Hiper-W program group 2.
