Summary of Contents for Oki OKIPAGE 10i

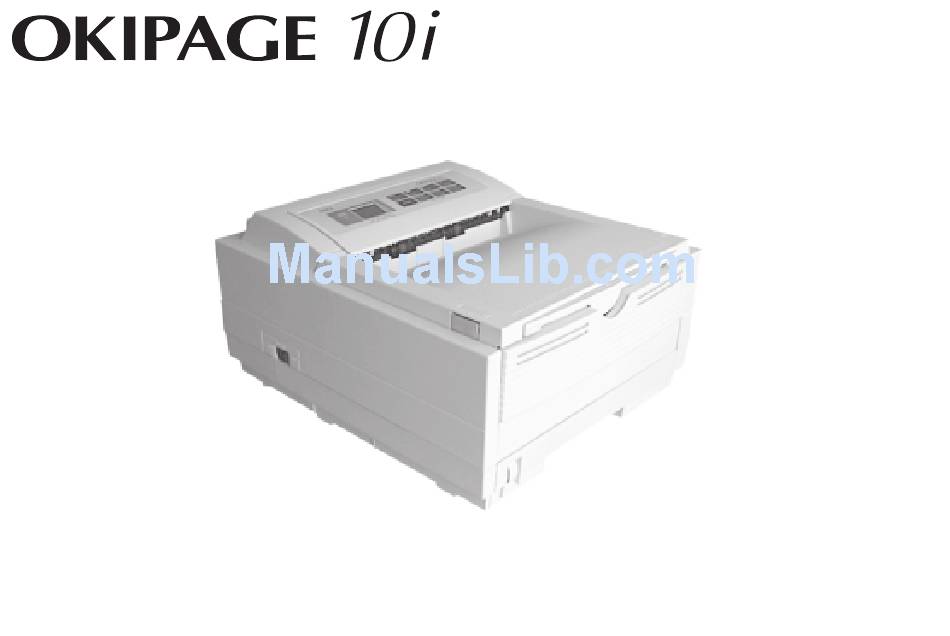

- Page 1 Read Me First...
- Page 2 Oki assumes no responsibility for the results of errors beyond its control. Oki also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it.
-
Page 3: Table Of Contents
Important Wiring Instructions ... 5 Printer Features ... 6 Optional Accessories ... 6 Check the Contents ...7 Printer Components ... 8 Setting Up Your Printer ... 9 Remove the Protective Sheet ... 9 Installing Toner ... 10 Installing Paper ... 12 Read Me First Connecting Your Printer ... -
Page 4: Safety Instructions
Safety Instructions Your Oki printer has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the printer: •... -
Page 5: Important Wiring Instructions
Brown — Live If the colours of the wires in the power cable of this printer do not correspond with the markings of the terminals of your plug, proceed as follows: • Green and Yellow must be connected to the terminal marked with the letter E (or the safety earth symbol) or the terminal coloured Green or Green &... -
Page 6: Printer Features
• Fast RISC processor for speedy printing (MIPS R3000) • Enhanced memory management to print more graphics with less memory • Advanced power saving mode; printer idles on minimum power to save energy • 45 scalable resident fonts compatible with the HP LaserJet 6p •... -
Page 7: Check The Contents
After unpacking the printer and choosing a suitable place to put it, check that you have all the necessary parts to continue: 1. Printer 2. Oki Type 5 Image drum cartridge (already installed) 3. Oki Type 5 Toner cartridge 4. Power cable 5. -
Page 8: Printer Components
Printer Components Rear paper exit tray Top paper exit bin Manual feed tray Power switch Automatic paper feed tray Power cable receptacle LED array Image drum cartridge with toner installed Bi-directional parallel interface port OKIPAGE 10i... -
Page 9: Setting Up Your Printer
Read Me First The first time you open the top cover will be to install your first toner cartridge. At this time the power will be off and the printer cold. When you open the top cover after this, for example to change the toner cartridge, the fuser area will be hot. -
Page 10: Installing Toner
Installing Toner Do not remove cartridge from packaging. Use OKI Type 5 image drum and toner cartridges only. 1. Remove the sponge and discard. 2. Shake the toner cartridge to evenly distribute toner. 3. Unwrap the new cartridge. 4. Carefully peel off the sealing tape. - Page 11 5. Insert the cartridge into the printer, left end first as illustrated. 6. Push the coloured tab forward to release the toner into the toner hopper. Read Me First 7. Close the printer cover.
-
Page 12: Installing Paper
Installing Paper 1. Remove the paper tray from the bottom of the printer and place plain paper in the tray, carefully keeping the level of the paper in the tray below the guide marks (1). 2. Adjust the rear paper support (2) to the size of paper you are using by lifting up and sliding forwards or backwards as necessary. -
Page 13: Connecting Your Printer
1. Plug the interface cable into the parallel socket on the printer. The parallel cable should support bi-directional communication and must be shielded. Read Me First 2. Plug the power cable into the printer, then into a grounded outlet. 3. Switch the printer on. The Ready light comes on. -
Page 14: Installing The Printer Driver
4. Click the Add button. 5. Insert the Oki Windows 3.1x/NT 3.51 driver diskette into drive A, and click the OK button. 6. Select the OKIPAGE 10i printer from the printer list, and click OK. From Windows 95™ 1. Click Start – Settings – Printers. -
Page 15: Changing The Language
Changing the Language To change the printer's display language to your local language proceed as follows: 1. Press (Ready light off). 2. Press and hold in the display window. until LANGUAGE appears in the 3. Press display window. 4. Press 5. -
Page 16: Index
Printer Drivers 14 Protective sheet removing 9 Ready light 13 Rear paper exit 8 Safety first 4 Sample font listing 15 Toner installing 10 type 10 Top cover open buttons 9 Top paper exit bin 8 Unpacking contents 7 OKIPAGE 10i...
