2. PRINTER SETUP

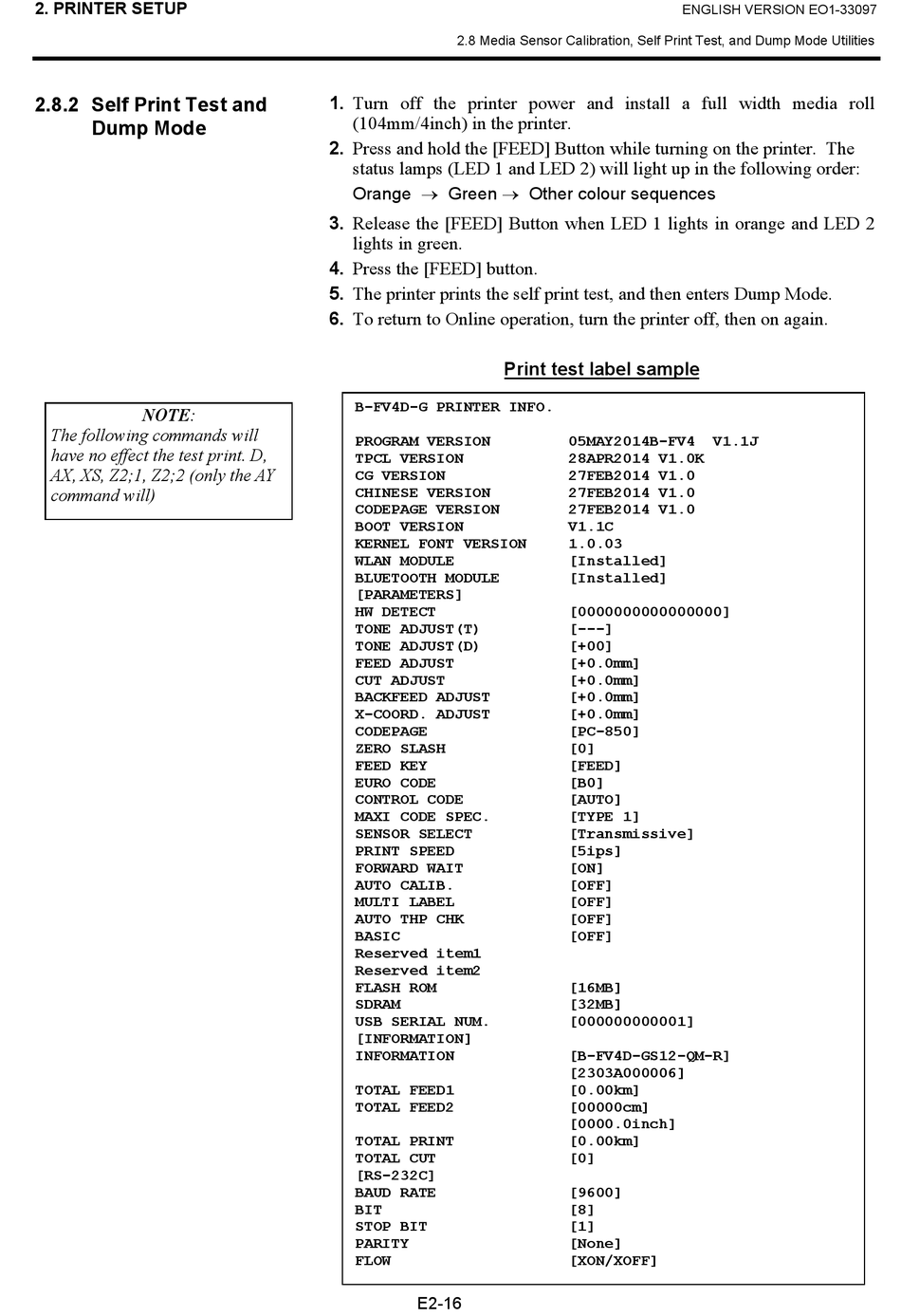

2.8.2 Self Print Test and
Dump Mode
NOTE:
The following commands will
have no effect the test print. D,
AX, XS, Z2;1, Z2;2 (only the AY
command will)
2.8 Media Sensor Calibration, Self Print Test, and Dump Mode Utilities
1. Turn off the printer power and install a full width media roll
(104mm/4inch) in the printer.
2. Press and hold the [FEED] Button while turning on the printer. The
status lamps (LED 1 and LED 2) will light up in the following order:
Orange  Green  Other colour sequences
3. Release the [FEED] Button when LED 1 lights in orange and LED 2
lights in green.
4. Press the [FEED] button.
5. The printer prints the self print test, and then enters Dump Mode.
6. To return to Online operation, turn the printer off, then on again.
B-FV4D-G PRINTER INFO.
PROGRAM VERSION
TPCL VERSION
CG VERSION
CHINESE VERSION
CODEPAGE VERSION
BOOT VERSION
KERNEL FONT VERSION
WLAN MODULE
BLUETOOTH MODULE
[PARAMETERS]
HW DETECT
TONE ADJUST(T)
TONE ADJUST(D)
FEED ADJUST
CUT ADJUST
BACKFEED ADJUST
X-COORD. ADJUST
CODEPAGE
ZERO SLASH
FEED KEY
EURO CODE
CONTROL CODE
MAXI CODE SPEC.
SENSOR SELECT
PRINT SPEED
FORWARD WAIT
AUTO CALIB.
MULTI LABEL
AUTO THP CHK
BASIC
Reserved item1
Reserved item2
FLASH ROM
SDRAM
USB SERIAL NUM.
[INFORMATION]
INFORMATION
TOTAL FEED1
TOTAL FEED2
TOTAL PRINT
TOTAL CUT
[RS-232C]
BAUD RATE
BIT
STOP BIT
PARITY
FLOW
E2-16
Print test label sample
05MAY2014B-FV4
28APR2014 V1.0K
27FEB2014 V1.0
27FEB2014 V1.0
27FEB2014 V1.0
V1.1C
1.0.03
[Installed]
[Installed]
[0000000000000000]
[---]
[+00]
[+0.0mm]
[+0.0mm]
[+0.0mm]
[+0.0mm]
[PC-850]
[0]
[FEED]
[B0]
[AUTO]
[TYPE 1]
[Transmissive]
[5ips]
[ON]
[OFF]
[OFF]
[OFF]
[OFF]
[16MB]
[32MB]
[000000000001]
[B-FV4D-GS12-QM-R]
[2303A000006]
[0.00km]
[00000cm]
[0000.0inch]
[0.00km]
[0]
[9600]
[8]
[1]
[None]
[XON/XOFF]
ENGLISH VERSION EO1-33097
V1.1J
