Océ Operations Guide
Education Services
1.1.1.
English version
Océ OP14
Printing System Set-up
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OP14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oce OP14

Summary of Contents for Oce OP14

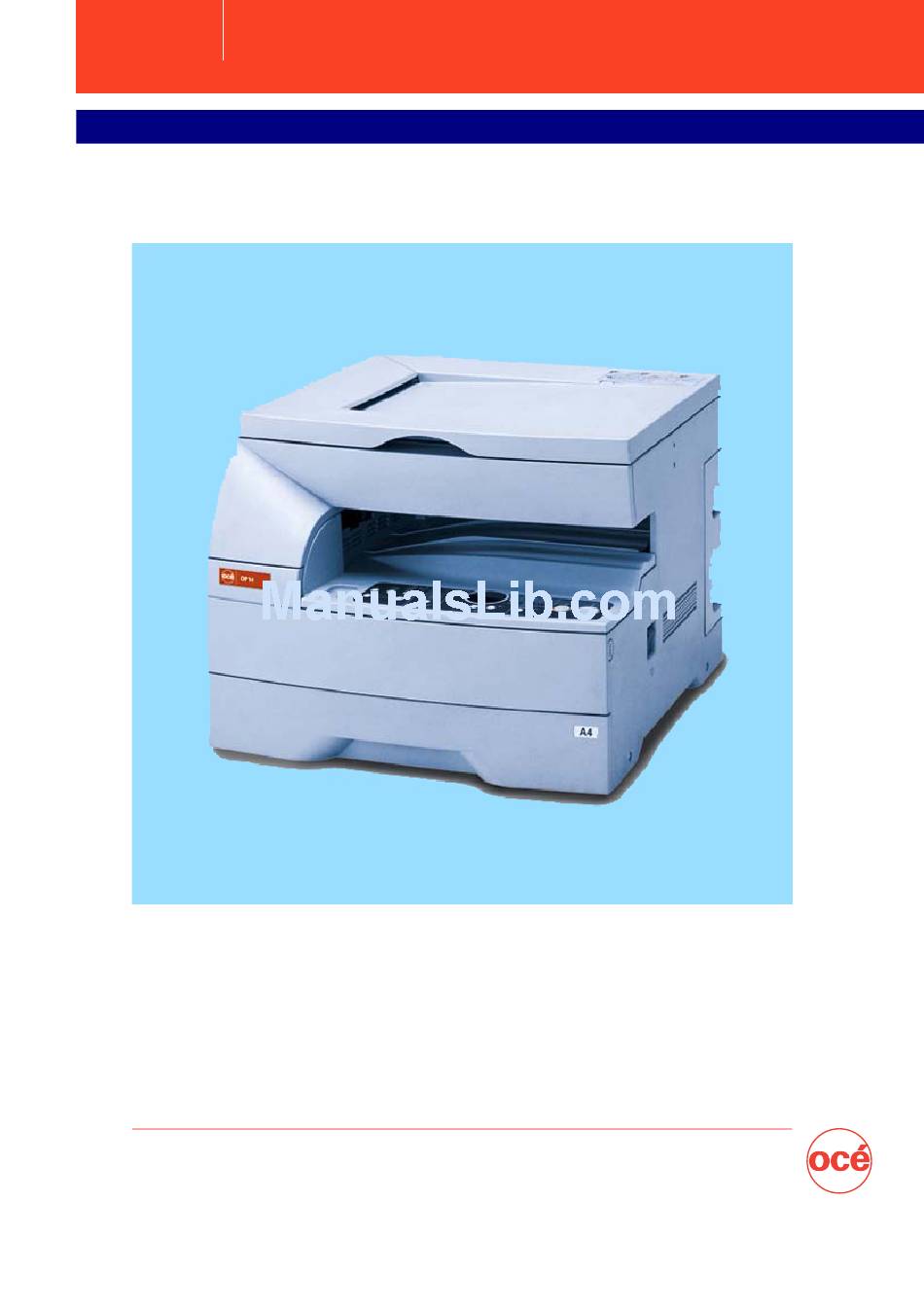

  • Page 1 Océ Operations Guide Education Services 1.1.1. English version Océ OP14 Printing System Set-up Operations Guide...

  • Page 2: Trademark Information

    • This product was developed using Tornado, the real-time operating system (ROTS) general development environment from Wind River Systems, Inc. • This printer uses PeerlessPrintXL, a PCL compatibility system developed by Peerless Group, to emulate the HP LaserJet Printer Control Language (PCL6). PeerlessPrintXL is a trademark of Peerless Group (Redondo Beach, CA 90278, U.S.A.).
  • Page 3 IBM PROGRAM LICENSE AGREEMENT THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS (“PROGRAMS”) WHICH BELONG TO INTERNATIONAL BUSINESS MACHINES CORPORATION (“IBM”). THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL REFUND.
  • Page 4 Typeface Trademark Acknowledgement All resident fonts in this printer are licensed from Agfa Corporation. Helvetica, Palatino and Times are registered trademarks of Linotype-Hell AG. ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC Zapf Dingbats are registered trademarks of International Type-face Corporation.
  • Page 5 About this Instruction Handbook This Instruction Handbook <Set-up Edition> is meant to be read when the Printer Board is installed in your copier and the copier is to be used mainly as a local printer. It contains explanations on set-up procedures for using the copier as a printer.

  • Page 6: Getting Connected

    Getting connected When connecting the printer directly to your computer (with a parallel cable) ... Parallel cable CD-ROM When connecting the printer to a network (the optional Network Card must be installed)… <Example connection> Network cable Network Card (option) CD-ROM...

  • Page 7: Table Of Contents

    1-3 Name of parts (main body) ... 1 1-4 Name of parts (operation panel) ... 2 2. Set-up ... 3 2-1 Connecting the printer cable ... 3 2-2 Installing the software ... 3 2-3 Network (TCP/IP) settings ... 4 3. Troubleshooting ... 5 3-1 Canceling printing ...

  • Page 8: Preparations

    2 Memory Card slot Insert the optional Memory Card here. 3 Main switch Turn this switch ON ( | ) first, prior to using the printer. Always turn this switch OFF (O) when connecting the printer cable, etc. 4 Operation panel...

  • Page 9: Name Of Parts (Operation Panel)

    Press this key when you want to restart printing, as well as when you want to initiate the operation for form feed. This key is also used to switch the printer on- and off-line. When the printer is on- line, the Data On-line indicator will be lit.

  • Page 10: Set-Up

    CAUTION: ALWAYS turn the main switch to the printer OFF (O) BEFORE connecting the printer cable. Turn the main switch located on the right side of the printer OFF (O) and then turn the power off to your computer as well.

  • Page 11: Network (Tcp/Ip) Settings

    2. Set-up Network (TCP/IP) settings When the optional Network Card is installed and this machine is to be used as a network printer, it is necessary to set the corresponding IP address for the printer. Notes • The IP address that should be registered here will differ depending upon your network environment.

  • Page 12: Troubleshooting

    • By performing this operation you will be canceling ALL print jobs that are currently waiting in the printer’s memory to be printed. • Always cancel the print job at your computer first. If the print job is not canceled in your computer, the data will be sent once again to the printer.

  • Page 13: When An Error Code Or Error Messages Appears

    If “Prt” is displayed and the Memory Overflow/Data Error indicator flashes while the machine is in the copier mode, an error has occurred with the printer functions of this machine. Press the Printer key and check the cause of the error.
  • Page 14 The selected interface is currently in use. Wait for a while and then attempt the operation again. An error has been detected during operation. Turn the main switch to the printer OFF (O) and then back ON ( | ) again. If the same error message remains, contact your service representative or an authorized service center.

  • Page 15: Basic Troubleshooting Chart

    3. Troubleshooting Basic troubleshooting chart If you experience trouble while you are using this machine as a printer, refer to the table below to perform minor adjustments. If trouble persists, contact your service representative or an authorized service center. * For information in regard to general mechanical trouble with the machine, refer to the Instruction Handbook for your copier.

  • Page 16: Specifications

    4. Specifications CPU ... PowerPC 405 (200MHz) Printing Speed ... 15, 18 ppm copier: 18 pages/min (A4 [8 1/2" x 11"]) Printing Resolution ... With smoothing OFF: 600 dpi x 600 dpi Maximum Printing Size ... Legal (8 1/2" x 14"). Folio RAM Memory Capacity ...
