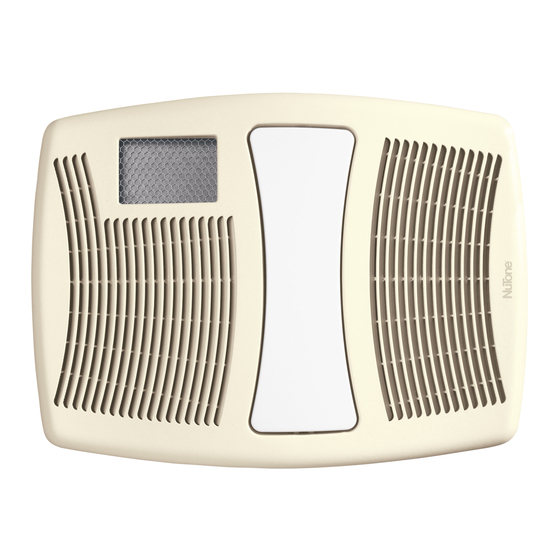

NuTone QTXN110HFLT Instruction Manual

NuTone QTXN110HFLT Instruction Manual

Heater / fan / fluorescent light / night light qtxn series
Hide thumbs Also See for QTXN110HFLT:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

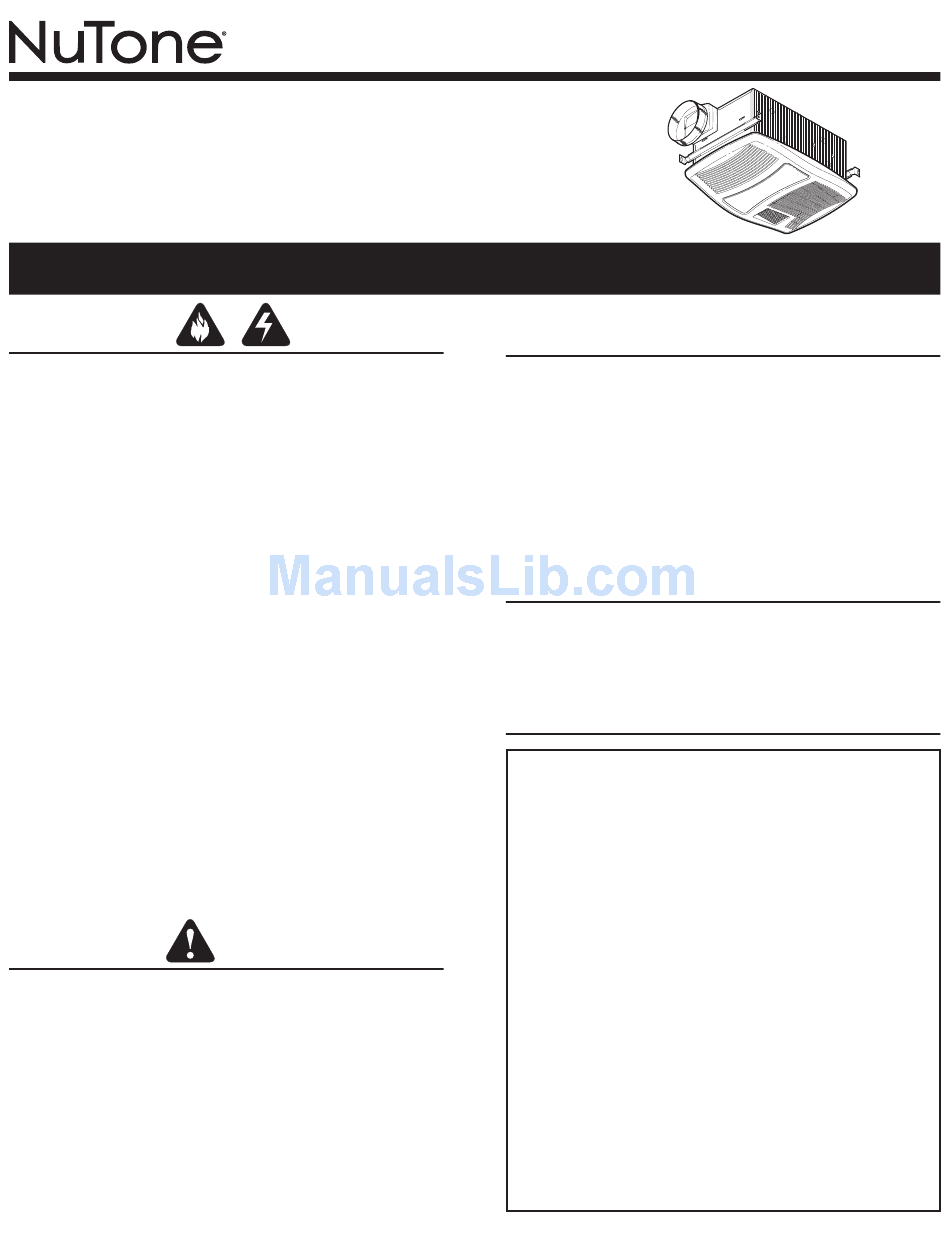

QTXN SERIES HEATER / FAN /
FLUORESCENT LIGHT /
NIGHT LIGHT
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the ser-
vice disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authori-
ties.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Provide a separate 20 AMP circuit. Use 12 GA. power cable
of type which meets code.
8. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a
12/12 pitch. Duct connector must point up. DO NOT MOUNT
THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Please read specification label on product for further informa-
tion and requirements.
Installer: Leave this manual with the homeowner.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appear-
ance - lower or remove grille and vacuum interior of unit with the
dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the
motor bearings are making excessive or unusual noises, replace
the motor with the exact service motor. The impeller should also
be replaced.
Replace light bulbs with (2) 18-Watt 3500K (maximum), GU24
based fluorescent lamps and (1) 7-Watt night light bulb.
OPERATION
Use a 4-Function Control to operate the heater, fan, light, and
night light separately. See "Connect Wiring" for details.
WARRANTY
BROAN-NUTONE THREE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such
products will be free from defects in materials or workmanship for a period of three
years from the date of original purchase. THERE ARE NO OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this three-year period, Broan-NuTone will, at its option, repair or replace,
without charge, any product or part which is found to be defective under normal
use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS
AND TUBES. This warranty does not cover (a) normal maintenance and service or
(b) any products or parts which have been subject to misuse, negligence, accident,
improper maintenance or repair (other than by Broan-NuTone), faulty installation or
installation contrary to recommended installation instructions.
The duration of an implied warranty is limited to the three-year period as specified
for the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-
NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE
REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE
FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF
OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which
vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or
telephone number stated below, (b) give the model number and part identification and
(c) describe the nature of any defect in the product or part. At the time of requesting
warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 888-336-3948
MODEL QTXN110HFLT
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QTXN110HFLT and is the answer not in the manual?

Questions and answers

Summary of Contents for NuTone QTXN110HFLT

  • Page 1 This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
  • Page 2: Typical Installation

    Use a roof cap or wall cap that has a built-in damper to reduce backdrafts. Plan to supply the unit with proper line voltage and appropriate power cable. INSTALLATION 1. Insert POWER MOUNTING CHANNELS HOUSING 2. Mount ROOF 3. Attach CAP WALL CAP 4. Install 6- MODEL QTXN110HFLT mounting brackets. Slide the (4) mounting brack- ets into the chan- nels on each end of the housing. housing. Secure hous- ing to ceiling structure with (4) mounting screws. Make sure bottom of housing will be flush with finished ceiling material.
  • Page 3: Connect Wiring

    NIGHT LIGHT (blue) (3-position rocker) FAN (2-position rocker) 9. Attach HEAT (2-position rocker) NuTone 4-Function 4-FUNCTION CONTROL Control shown (purchase separately) BLACK to BLACKS 10. Install 11. Attach MODEL QTXN110HFLT GRILLE MOUNTING light. SCREWS Hold grille as- sembly up near housing. Connect light plug from grille assembly to receptacle inside of housing. grille.
  • Page 4: Service Parts

    99080558 Motor-Heater 97016565 Heating Element (includes Key No. 7) 97016566 Heater Scroll Assembly (includes Key Nos. 12 thru 20) 99020284 Wheel-Fan 99080556 Motor-Fan 99100491 Isolator (4 req.) 97016471 Partition 99250959 Washer (4 req.) 99260558 Nut, Hex Lock #8-32 (4 req.) 97016567 Blower Assembly (includes Key Nos. 21 thru 26) 93150459 Screw #8-18 X .500 (2 req.) 97018036 Grille Assembly (includes Key No. 29) 99111461 Lens 99150622 Screw, Grille #8-18 X 2.000 (2 req.) 99271381 Lamp, Fluorescent, 18W, 3500K, GU24 (2 req.) MODEL QTXN110HFLT Page 4 99044479A...
  • Page 5: Limpieza Y Mantenimiento

    TAS O IMPLICITAS, INCLUYENDO, PERO NO LIMITADAS A, GARANTIAS IMPLICITAS DE COMERCIALIZACION O APTITUD PARA UN PROPOSITO PARTICULAR. Durante el período de tres años, y a su propio criterio, Broan-NuTone reparará o reemplazará, sin costo alguno cualquier producto o pieza que se encuentre defectuosa bajo condiciones normales de servicio y uso.
  • Page 6: Instalación Típica

    TECHO * regulador de tiro/con- ducto a la cubierta. Conecte a presión el conector del regulador de tiro/conducto en la cubierta. Asegúrese de que el conector esté al ras con la parte superior de la cubierta y que la aleta del regulador caiga cerrada. 4. Instale el TAPA conducto PARED * redondo de 6 pulg. Conecte el con- ducto redondo de 6 pulg. al conec- tor del regulador / conducto. Ex- tienda el conducto hacia una tapa de techo o tapa de pared. Encinte todas las conexiones de los conductos para fijarlas y hacerlas herméticas al aire. MODELO QTXN110HFLT Página ...
  • Page 7: Conexión Eléctrica

    LUZ DE NOCHE (azul) (3-position rocker) VENTILADOR (interruptor 2-posición) CALENTADOR ROJO (interruptor 2-posición) 9. Fije la rejilla. NuTone control para CONTROL DE 4-funciones ilustrado 4 FUNCIONNES (comprar separado) NEGRO a NEGROS 10. Instale los 11. Fije la lente MODELO QTXN110HFLT TORNILLOS DE MONTAJE foco.
  • Page 8: Piezas De Repuesto

    97016565 Elemento de calefacción (incluye clave no. 7) 97016566 Conjunto del desplazador del calefactor (incluye clave nos. 12 á 20) 99020284 Disco-Ventilador 99080556 Motor-Ventilador 99100491 Aislante (se req. 4) 97016471 División 99250959 Arandela (se req. 4) 99260558 Tuerca hexagonal de seguridad #8-32 (se req. 4) 97016567 Conjunto del ventilador (incluye clave nos. 21 á 26) 93150459 Tornillo, #8-18 x 0.500 (se req. 2) 97018036 Conjunto de la rejilla (incluye clave no. 29) 99111461 Lentes 99150622 Tornillo de la rejilla, #8-18 x 2.000 (se req. 2) 99271381 Lámpara, fluorescente, 18W, 3500K, GU24 (se req. 2) MODELO QTXN110HFLT Página  99044479A...
