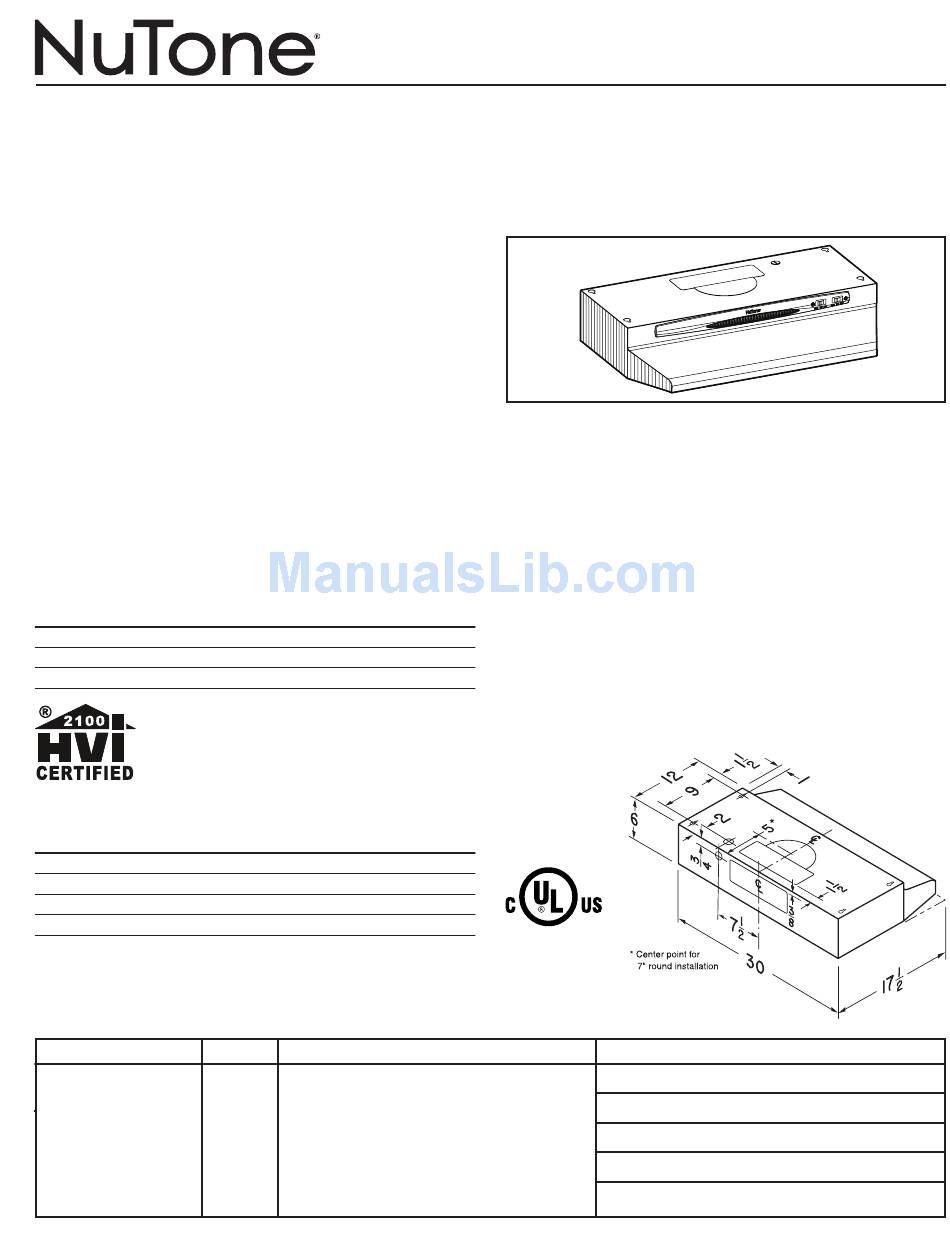

NuTone NS6530BC Specifications

Nutone range hoods architectural & engineering specifications
Hide thumbs


Advertisement

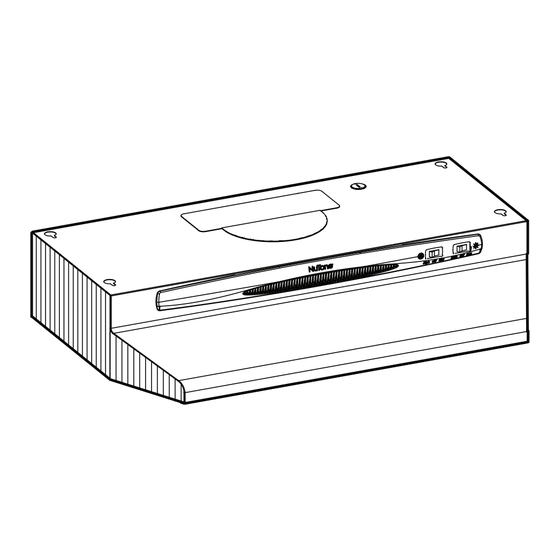

Modern 6-inch hood design with improved performance
and quieter operation than other conventional hoods.
DESCRIPTION
• Three (3) ducting options:
- 3¼" x 10", horizontal or vertical discharge
- 7" round, vertical discharge
- Non-ducted recirculation
• Two-speed rocker control offers quiet fan operation
• Rocker light control
• Two, 60W, Type A-19 appliance bulbs provide bright cooktop
lighting (bulbs not included)
• Two translucent, polymeric light lens - easily removed for
relamping
• Convenient night-light setting
• Thermally-protected, plug-in motor
• Electronically-balanced, polymeric fan blade
• Washable, aluminum mesh grease filter
• Optional non-ducted filter (WA65F) for particulate and odor removal
(sold separately)
• Keyhole mounting slots for easy installation
• Available in 30" width
• Powder-coated, baked enamel finishes in White, Biscuit, and
Black, as well as Stainless Steel construction
• UL Listed

SPECIFICATIONS

VOLTS
HZ. AMPS CFM SONES
120
60
1.9
120
60
1.9
120
60
1.9
HVI-2100 CERTIFIEd RATINgS comply with new testing
technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1 in. static pressure,
based on tests conducted in a state-of-the-art test laboratory.
Sones are a measure of humanly-perceived loudness, based
on laboratory measurements.
FINISH
White
Biscuit
Black
Stainless Steel
REFERENCE
DUCT
190
5.5
3¼" x 10" (H)
200
5.5
3¼" x 10" (V)
250
5.5
7" Round (V)
MODEL NUMBER
NS6530WW
NS6530BC
NS6530BL
NS6530SS
Broan-NuTone LLC
Hartford, Wisconsin
QTY.
REMARKS
Architectural & Engineering Specifications
NS6500 Series
Range Hood
INSTALLATION
Complete installation instructions are included with each Range
Hood
ARCHITECT'S SPECIFICATION
The Range Hood shall be a NuTone NS6500 Series. It will be 30"
wide and have a White, (Biscuit), (Black), (Stainless Steel) finish.
The hood must be convertible between 3¼" x 10", 7" round, and
non-ducted discharges. It will use a washable aluminum grease
filter (ducted discharge) as well as a non-ducted, particle and odor
filter (non-ducted discharge).
The motor assembly shall have a thermally-protected, plug-in
motor, and a one-piece polymeric fan blade. Fan speed to be
controlled by a two-speed control.
Cooktop lighting to be provided by two (2) 60W, A-19 type
bulbs. Bulbs will be operated using a rocker control with night-light
feature.
Hood to be UL listed.
www.nutone.com
888-336-3948
Project
Location
Architect
Engineer
Contractor
Submitted by
May 2007
Date
70E
99044041A
