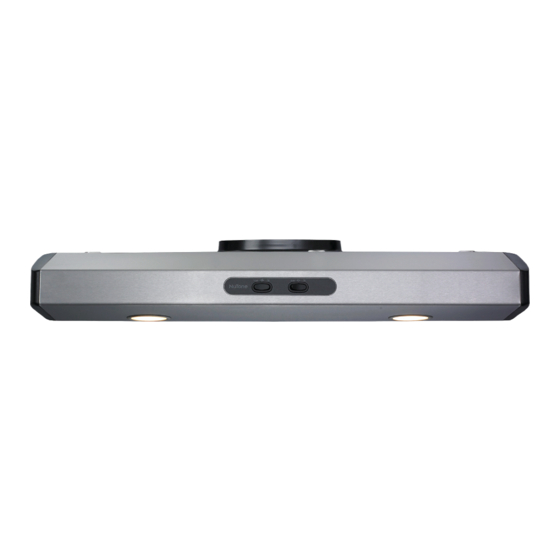

Ns series range hood
Table of Contents

Advertisement

Available languages

Available languages

N s se ries
r a n g e Hood
read aNd saVe tHese iNstructioNs
WarNiNg
to reduce tHe risK oF Fire, electric sHocK, or iN-
JurY to PersoNs, oBserVe tHe FolloWiNg:
1. Use this unit only in the manner intended by the manufac-
turer. If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel. Lock or tag service panel to prevent power from being
switched on accidentally.
3. Installation work and electrical wiring (including switch loca-
tion) must be done by a qualified person(s) in accordance
with all applicable codes and standards, including fire-rated
construction.
4. Provide sufficient air for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the combustion equip-
ment standards such as those published by the National
Fire Protection Association (NFPA), the American Society
for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and local codes.
5. This product may have sharp edges. Be careful to avoid cuts
and abrasions during installation and cleaning.
6. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. Use only metal ductwork.
9. Do not use this fan with any solid-state speed control device.
10. A s an alternative, this product may be installed with the UL-
approved cord kit designated for the product, following in-
structions packed with the cord kit.
11. This unit must be grounded.
to reduce tHe risK oF a raNge toP grease Fire:
1. Never leave greasy cooking unattended. Oil, butter, lard, etc.
can ignite in a few minutes.
2. Always turn hood ON when cooking at high heat or when
cooking flaming foods.
3. Always use cookware appropriate for the size of the surface
element.
installer: leave this manual with the homeowner.
Homeowner: cleaning, maintenance and operating
to register this product,
For domestic cooKiNg oNlY
instructions on page 2.
models Ns130Bl • Ns130ss • Ns130WW
visit: www.nutone.com
WarNiNg
to reduce tHe risK oF iNJurY to PersoNs iN tHe
eVeNt oF a raNge toP grease Fire, oBserVe tHe
FolloWiNg:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned or
spread the fire.
3. DO NOT USE WATER, including wet dishcloths or towels
- violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you
already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on "Kitchen Fire Safety Tips" published by NFPA.
cautioN
1. For general ventilating use only. Do not use to exhaust haz-
ardous or explosive materials and vapors.
2. For best capture of cooking impurities, range hood should be
mounted so that the top of the hood is 24"-30" [or applicable
dimension depending on hood height and test height] above
the cooking surface.
3. Read specification label on product for information and re-
quirements.
NOTE
If hood is to be installed non-ducted:
Purchase a set of (2) non-ducted filters from your
local distributor or retailer and attach them to the
aluminum mesh filters.
Ns136Bl • Ns136ss • Ns136WW
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuTone NS Series

  • Page 1 Homeowner: cleaning, maintenance and operating models Ns130Bl • Ns130ss • Ns130WW to register this product, visit: www.nutone.com WarNiNg to reduce tHe risK oF iNJurY to PersoNs iN tHe eVeNt oF a raNge toP grease Fire, oBserVe tHe FolloWiNg:* 1.
  • Page 2: Cleaning And Maintenance

    cleaNiNg & maiNteNaNce For performance, appearance, and health reasons, clean filter, fan and grease-laden surfaces. Use only a clean cloth and mild detergent solution on stainless and painted surfaces. Clean all- metal filters in the dishwasher. The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The impeller should also be replaced. Use 120 V, 50 W, shielded halogen bulbs - MR16 with GU10 base. Purchase bulbs separately.
  • Page 3: Prepare The Hood

    WOOD SHIMS (recessed-bottom cabinets only) CABINET FRONT " HORIZONTAL DUCT 3½" ACCESS HOLE CABINET BOTTOM 5¼" 5¼" 12¼" (30" hood) 12¼" 15¼" (36" hood) 15¼" HOOD MOUNTING CENTER SCREWS (5) LINE HOOD MOUNTING SCREWS (5) 12¼" 12¼" (30" hood) 15¼" 15¼"...
  • Page 4 RECIRCULATION SCROLL WALL NoN-ducted iNstallatioN oNlY: Remove Recirculation Scroll Wall from inside the hood. TABS ▼ ▼ NoN-ducted iNstallatioN oNlY: Depress the tabs on the Recirculation Cover and push cover out through top of hood to remove it. RECIRCULATION GRILLE NoN-ducted iNstallatioN oNlY: Remove recirculation grille from plastic bag and snap it into the opening in the top of the hood. models Ns130Bl • Ns130ss • Ns130WW RECIRCULATION COVER 10 ducted iNstallatioN oNlY: Ns136Bl • Ns136ss • Ns136WW THUMB RECIRCULATION SCREW...
  • Page 5: Install The Hood

    iNstall tHe Hood WarNiNg To reduce the risk of electrical shock, switch power off at service panel. Lock or tag service panel to prevent power from being switched on accidentally. HOUSE POWER CABLE HD0154 Run House Power cable between service panel and hood location. Attach power cable to hood using appropri- ate connector. Hold the hood in position under the cabinet. For ducted installations: Make sure the damper / duct connector enters the ductwork and that the damper opens and closes freely. Tighten all 5 mounting screws completely to secure the hood to the cabinet.
  • Page 6: Service Parts

    97017410 Bottom Cover, White, for 30” Hood * 97017411 Bottom Cover, Black, for 36” Hood * 97017412 Bottom Cover, White, for 36” Hood * 1 6 97017413 Non-duct Filter Kit for 30” Hood (2 Filters & 8 Filter Clips) 97017414 Non-duct Filter Kit for 36” Hood (2 Filters & 8 Filter Clips) 1 7 97017415 Filter Kit for 30” Hood (2 Filters) 97017416 Filter Kit for 36” Hood (2 Filters) ** 97017417 Parts Bag * Includes hardware ** Not illustrated Order replacement parts by PART NO. - not by KEY NO. Replacement parts can now be ordered on our website. Please visit us at www.nutone.com. models Ns130Bl • Ns130ss • Ns130WW Ns136Bl • Ns136ss • Ns136WW Page ...
  • Page 7: Warranty

    PURPOSE. During this one year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS, DUCT, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
  • Page 8 : Veuillez remettre ce manuel au propriétaire. Propriétaire : Nettoyage, entretien et mode modèles Ns130Bl • Ns130ss • Ns130WW Pour enregistrer ce produit, visitez : www.nutone.com aVertissemeNt oBserVez les coNsigNes suiVaNtes de maNière À rÉduire les risQues de Blessures corPorelles eN cas d’iNceNdie causÉ...
  • Page 9: Nettoyage Et Entretien

    NettoYage et eNtretieN Pour des raisons de santé, de performance et d’apparence, nettoyez le filtre, le ventilateur et les surfaces graisseuses. Utilisez seulement un chiffon propre et une solution de détergent doux sur l’acier inoxydable et les surfaces peintes. Lavez les filtres d’aluminium au lave-vaisselle. Le moteur est lubrifié en permanence et n’a pas besoin d’être huilé. Si les roulements du moteur sont anormalement bruyants, remplacez le moteur exactement par le même modèle.
  • Page 10: Préparation De La Hotte

    coNduit HorizoNtal CALES DE BOIS 8,3 X 25,4 cm (3-¼ X 10 Po.) (armoires à dessous encastré seulement) AVANT DE L’ARMOIRE 2⅜ po.* TROU POUR CONDUIT 3½ po. HORIZONTAL DESSOUS DE L’ARMOIRE 5¼ po. 5¼ po. 12 ¼ po. 12 ¼ po. (hotte de 30 po.) 15 ¼...
  • Page 11 VOLUTE DE RECIRCULATION Pose saNs coNduit seulemeNt : Enlevez la volute de recirculation à l’intérieur de la hotte. LANGUETTES ▼ ▼ Pose saNs coNduit seulemeNt : Enfoncez les languettes du couvercle de recirculation et poussez le couvercle à travers le dessus de la hotte pour l’enlever. GRILLE DE RECIRCULATION Pose saNs coNduit seulemeNt : Sortez la grille de recirculation du sac de plastique et engagez-la dans l’ouverture du dessus de la hotte. modèles Ns130Bl • Ns130ss • Ns130WW VIS À TÊTE COUVERCLE DE RECIRCULATION...
  • Page 12: Installation De La Hotte

    iNstallatioN de la Hotte aVertissemeNt P our réduire les risques de choc électrique, coupez le courant du panneau électrique. Verrouillez ou posez un sceau sur le panneau afin d’éviter que le courant ne soit rétabli accidentellement. CÂBLE ÉLECTRIQUE HD0154 Acheminez le câble électrique du panneau électrique jusqu’à l’emplacement de la hotte. Fixez le câble à la hotte avec le connecteur approprié.
  • Page 13: Pièces De Rechange

    Ens. de filtres, pour hotte 76 cm (30 po.) (2 filtres) 97017416 Ens. de filtres, pour hotte 91 cm (36 po.) (2 filtres) ** 97017417 Sac de pièces * Comprend la quincaillerie ** Non illustré. Veuillez commander les pièces par N° PIÈCE - et non par N° REPÈRE. Les pièces de rechange peuvent être commandées sur notre site Web. Visitez www.nutone.com. modèles Ns130Bl • Ns130ss • Ns130WW Ns136Bl • Ns136ss • Ns136WW Page ...
  • Page 14: Garantie

    PARTICULIER. Pendant cette période d’un an, Broan-NuTone procédera au remplacement ou à la réparation sans aucuns frais, mais à sa propre discrétion, de tout produit ou pièce jugé défectueux dans le cadre d’une utilisation normale. CETTE GARANATIE NE VISE PAS LES DISPOSITIFS D’AMORCAGE NI LES TUBES DES LUMINAIRES FLUORESCENTS.
  • Page 15 Ns130Bl • Ns130ss • Ns130WW Ns136Bl • Ns136ss • Ns136WW Para registrar este producto, visite: www.nutone.com adVerteNcia Para reducir el riesgo de lesioNes a las PersoNas eN caso de Fuego Producido Por grasa eN uNa cociNa, oBserVe lo siguieNte*: 1.
  • Page 16: Limpieza Y Mantenimiento

    limPieza Y maNteNimieNto Por motivos de rendimiento, apariencia y salud, limpie el filtro, el ventilador y las superficies con grasa. Utilice únicamente un trapo limpio y solución de detergente suave en superficies de acero inoxidable y pintadas. Limpie los filtros completamente metálicos en el lavaplatos. El motor está permanentemente lubricado y nunca necesitará aceite.
  • Page 17: Prepare La Campana

    CUÑAS DE MADERA (sólo gabinetes de fondo empotrado) FRENTE DEL GABINETE 2⅜ pulg.* 3½ pulg. ORIFICIO DE ACCESO PARA CONDUCTO HORIZONTAL FONDO DEL GABINETE ¼ pulg. 5¼ pulg. ¼ pulg. (campana de 30 pulg.) ¼ pulg. (campana de 36 pulg.) TORNILLOS LÍNEA PARA EL MONTAJE...
  • Page 18 PARED DE RECIRCULACIÓN ÚNicameNte iNstalaciÓN siN coNducto: Quite la pared de recirculación del interior de la campana. LENGÜETAS ▼ ▼ RECIRCULACIÓN ÚNicameNte iNstalaciÓN siN coNducto: Presione las lengüetas que están en la tapa de recirculación y retire la tapa empujándola hacia afuera por la parte superior de la campana. REJILLA DE RECIRCULACIÓN ÚNicameNte iNstalaciÓN siN coNducto: Saque la rejilla de recirculación de la bolsa plástica y encájela a presión en la abertura de la parte superior de la campana. modelos Ns130Bl • Ns130ss • Ns130WW DE APRIETE TAPA DE Ns136Bl •...
  • Page 19: Instale La Campana

    iNstale la camPaNa adVerteNcia P ara reducir el riesgo de una descarga eléctrica, desconecte el suministro eléctrico en el panel de servicio. Bloquee el panel de servicio o póngale una etiqueta de seguridad para evitar que alguien conecte accidentalmente la energía eléctrica. CABLE ELÉCTRICO DE LA RESIDENCIA HD0154 Tienda el cable eléctrico de la residencia entre el panel de servicio y la campana. Conecte el cable eléctrico a la campana mediante un conector apropiado. Sostenga la campana en su posición debajo del gabinete. Para instalaciones con conductos: asegúrese de que el conector del regulador de tiro/conducto entre a los conductos y que el regulador de tiro pueda abrirse y cerrarse libremente.
  • Page 20: Piezas De Repuesto

    Juego de filtro para campana de 30 pulg. (2 filtros) 97017416 Juego de filtro para campana de 36 pulg. (2 filtros) ** 97017417 Bolsa de piezas * Incluye herrajes ** No se ilustra Al pedir piezas de repuesto, suministre como referencia el N.º DE PIEZA, no el N.º DE CLAVE Ahora se pueden hacer los pedidos de las piezas de repuesto en nuestro sitio web. Visítenos en el sitio web www.nutone.com. modelos Ns130Bl • Ns130ss • Ns130WW Ns136Bl • Ns136ss • Ns136WW Página 0...
  • Page 21 ADAPTABLES A UN PROPÓSITO EN PARTICULAR. Durante este período de un año, Broan-NuTone reparará o reemplazará a su opción y sin costo, cualquier producto o parte que se encuentre defectuoso bajo condiciones normales de uso y servicio. ESTA GARANTÍA NO CUBRE A LOS ARRANCADORES PARA LÁMPARAS FLUORESCENTES O A LOS TUBOS FLUORESCENTES, FILTROS, DUCTOS, TAPAS DE TECHO, TAPAS DE PARED Y OTROS ACCESORIOS PARA CANALIZACIÓN.
